Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

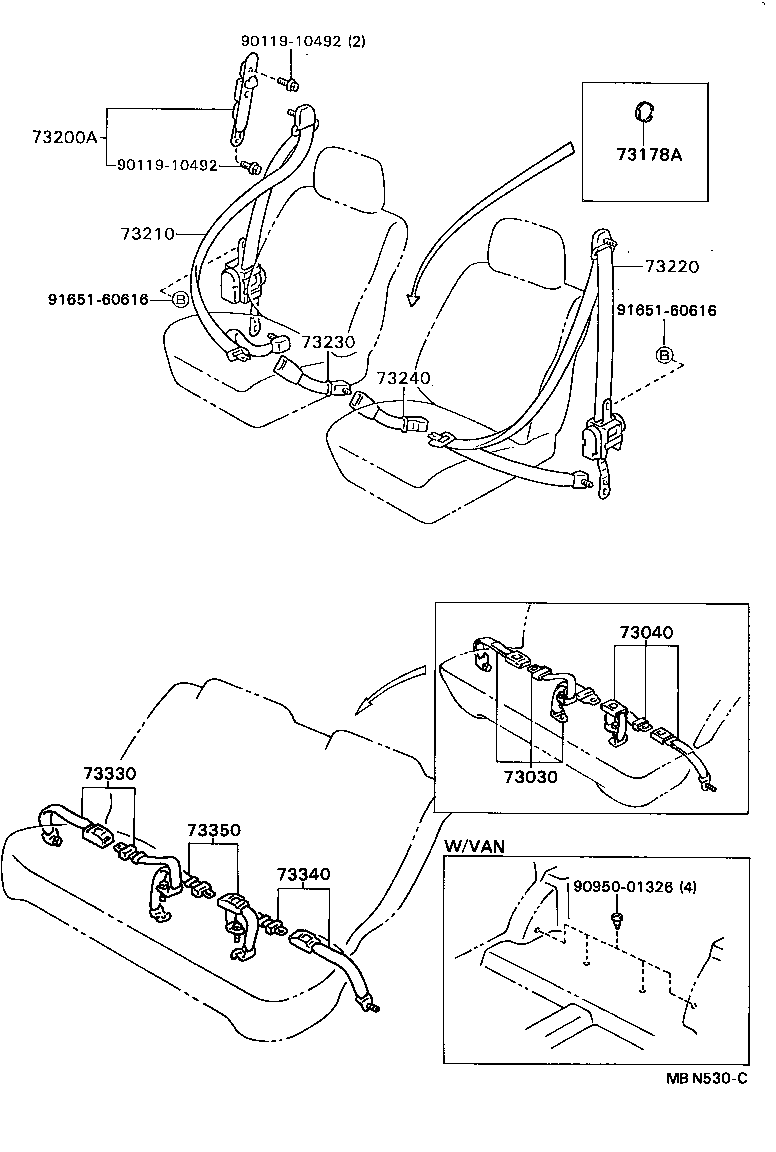

Exploded illustration MBN530C 9011910492 — not listed in this catalogue 73200A — ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR (6 parts) 73178A — CAP, SEAT BELT ANCHOR COVER (6 parts) 9011910492 — not listed in this catalogue 73210 — BELT ASSY, FRONT SEAT OUTER, RH (32 parts) 73220 — BELT ASSY, FRONT SEAT OUTER, LH (32 parts) 9165160616 — not listed in this catalogue 9165160616 — not listed in this catalogue 73230 — BELT ASSY, FRONT SEAT INNER, RH (14 parts) 73240 — BELT ASSY, FRONT SEAT INNER, LH (14 parts) 73040 — BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER LH (6 parts) 73330 — BELT ASSY, REAR SEAT LAP TYPE, RH (2 parts) 73030 — BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER RH (6 parts) 73350 — BELT ASSY, REAR SEAT LAP TYPE, CENTER (10 parts) 73340 — BELT ASSY, REAR SEAT LAP TYPE, LH (2 parts) 9095001326 — not listed in this catalogue
MBN530C · 11 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
130 parts on this figure
Part number Description Fitment Price
73030 — Belt Assy, NO.1 Seat Lap, Center W/Inner RH
73030-20040-03 note Belt Assy, NO.1 Seat Lap, Center W/Inner RH
1990-05 → 1992-11 ended
AT175;AT170,171,CT170,ST170 DX,S,SG,SGEXT,SV,SX ¥12,800
73030-20040-03 note Belt Assy, NO.1 Seat Lap, Center W/Inner RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 ¥12,800
73030-20040-04 note Belt Assy, NO.1 Seat Lap, Center W/Inner RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥12,800
73030-20040-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥12,800
73030-20040-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner RH
1990-05 → 1992-11 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT,SX ¥12,800
73030-20040-14 note Belt Assy, NO.1 Seat Lap, Center W/Inner RH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥11,800
73040 — Belt Assy, NO.1 Seat Lap, Center W/Inner LH
73040-20040-03 note Belt Assy, NO.1 Seat Lap, Center W/Inner LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 ¥16,300
73040-20040-04 note Belt Assy, NO.1 Seat Lap, Center W/Inner LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥17,800
73040-20040-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥16,300
73040-20080-03 note Belt Assy, NO.1 Seat Lap, Center W/Inner LH
1990-05 → 1992-11 ended
AT175;AT170,171,CT170,ST170 DX,S,SG,SGEXT,SV,SX ¥12,100
73040-20080-04 note Belt Assy, NO.1 Seat Lap, Center W/Inner LH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥12,100
73040-20080-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner LH
1990-05 → 1992-11 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT,SX ¥12,100
73178A — Cap, Seat Belt Anchor Cover
73178-16010-10 note Cap, Seat Belt Anchor Cover
1990-05 → 1992-08 ended
AT175 ¥650
73178-16010-13 note Cap, Seat Belt Anchor Cover
1988-08 → 1990-09 ended
AT175 ¥650
73178-16010-54 note Cap, Seat Belt Anchor Cover
1988-08 → 1988-09 ended
AT175 ¥650
73178-16010-56 note Cap, Seat Belt Anchor Cover
1988-08 → 1992-08 ended
AT175 ¥650
73178-16010-B0 note Cap, Seat Belt Anchor Cover
1990-09 → 1992-08 ended
AT175 ¥650
73178-16010-J0 note Cap, Seat Belt Anchor Cover
1988-09 → 1990-09 ended
AT175 SG,SGEXT ¥650
73200A — Adjuster Assy, Front Shoulder Belt Anchor
73200-20010-03 note Adjuster Assy, Front Shoulder Belt Anchor
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥5,400
73200-20010-04 note Adjuster Assy, Front Shoulder Belt Anchor
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥5,400
73200-20010-06 note Adjuster Assy, Front Shoulder Belt Anchor
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥5,400
73200-20030-03 note Adjuster Assy, Front Shoulder Belt Anchor
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥5,300
73200-20030-04 note Adjuster Assy, Front Shoulder Belt Anchor
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥5,300
73200-20030-06 note Adjuster Assy, Front Shoulder Belt Anchor
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥5,300
73210 — Belt Assy, Front Seat Outer, RH
73210-20430-03 note Belt Assy, Front Seat Outer, RH
1988-05 → 1992-11 ended
CT176,ET176 ¥24,700
73210-20430-03 note Belt Assy, Front Seat Outer, RH
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥24,700
73210-20430-04 note Belt Assy, Front Seat Outer, RH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥24,700
73210-20430-06 note Belt Assy, Front Seat Outer, RH
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥24,700
73210-20430-06 note Belt Assy, Front Seat Outer, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥24,700
73210-20430-06 note Belt Assy, Front Seat Outer, RH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥24,700
73210-20430-14 note Belt Assy, Front Seat Outer, RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥24,700
73210-20440-03 note Belt Assy, Front Seat Outer, RH
1988-05 → 1992-11 ended
CT176,ET176 ¥24,700
73210-20440-06 note Belt Assy, Front Seat Outer, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥24,700
73210-20450-03 note Belt Assy, Front Seat Outer, RH
1988-05 → 1989-11 ended
AT175 ¥25,000
73210-20450-03 note Belt Assy, Front Seat Outer, RH
1988-05 → 1989-11 ended
AT170,171,CT170,ST170 ¥25,000
73210-20450-03 note Belt Assy, Front Seat Outer, RH
1988-05 → 1989-11 ended
CT176,ET176 ¥25,000
73210-20450-04 note Belt Assy, Front Seat Outer, RH
1988-05 → 1989-11 ended
AT175 ¥25,000
73210-20450-04 note Belt Assy, Front Seat Outer, RH
1988-05 → 1989-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥25,000
73210-20450-06 note Belt Assy, Front Seat Outer, RH
1988-05 → 1989-11 ended
CT176,ET176 DX,SG ¥25,000
73210-20450-06 note Belt Assy, Front Seat Outer, RH
1988-05 → 1989-11 ended
AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥25,000
73210-20450-06 note Belt Assy, Front Seat Outer, RH
1988-05 → 1989-11 ended
AT175 ¥25,000
73210-20470-03 note Belt Assy, Front Seat Outer, RH
1988-05 → 1989-11 ended
CT176,ET176 ¥25,000
73210-20470-06 note Belt Assy, Front Seat Outer, RH
1988-05 → 1989-11 ended
CT176,ET176 DX,SG ¥25,000
73210-20580-03 note Belt Assy, Front Seat Outer, RH
1989-11 → 1992-11 ended
CT176,ET176 ¥24,700
73210-20580-03 note Belt Assy, Front Seat Outer, RH
1989-11 → 1992-11 ended
AT170,171,CT170,ST170 ¥24,700
73210-20580-03 note Belt Assy, Front Seat Outer, RH
1989-11 → 1992-11 ended
AT175 ¥24,700
73210-20580-04 note Belt Assy, Front Seat Outer, RH
1990-05 → 1992-08 ended
AT175 ¥24,700
73210-20580-04 note Belt Assy, Front Seat Outer, RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥24,700
73210-20580-06 note Belt Assy, Front Seat Outer, RH
1989-11 → 1992-11 ended
AT175 ¥24,700
73210-20580-06 note Belt Assy, Front Seat Outer, RH
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥24,700
73210-20580-06 note Belt Assy, Front Seat Outer, RH
1989-11 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥24,700
73210-20580-06 note Belt Assy, Front Seat Outer, RH
1989-11 → 1990-05 ended
CT176,ET176 DX,SG ¥24,700
73210-20580-14 note Belt Assy, Front Seat Outer, RH
1989-11 → 1990-05 ended
AT175 ¥24,700
73210-20580-14 note Belt Assy, Front Seat Outer, RH
1989-11 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥24,700
73210-20590-03 note Belt Assy, Front Seat Outer, RH
1989-11 → 1992-11 ended
CT176,ET176 ¥24,700
73210-20590-06 note Belt Assy, Front Seat Outer, RH
1989-11 → 1990-05 ended
CT176,ET176 DX,SG ¥24,700
73220 — Belt Assy, Front Seat Outer, LH
73220-20290-03 note Belt Assy, Front Seat Outer, LH
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥24,700
73220-20290-03 note Belt Assy, Front Seat Outer, LH
1988-05 → 1992-11 ended
CT176,ET176 ¥24,700
73220-20290-04 note Belt Assy, Front Seat Outer, LH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥24,700
73220-20290-06 note Belt Assy, Front Seat Outer, LH
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥24,700
73220-20290-06 note Belt Assy, Front Seat Outer, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥24,700
73220-20290-06 note Belt Assy, Front Seat Outer, LH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥24,700
73220-20290-14 note Belt Assy, Front Seat Outer, LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥24,700
73220-20300-03 note Belt Assy, Front Seat Outer, LH
1988-05 → 1992-11 ended
CT176,ET176 ¥24,700
73220-20300-06 note Belt Assy, Front Seat Outer, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥24,700
73220-20310-03 note Belt Assy, Front Seat Outer, LH
1988-05 → 1989-11 ended
CT176,ET176 ¥25,000
73220-20310-03 note Belt Assy, Front Seat Outer, LH
1988-05 → 1989-11 ended
AT170,171,CT170,ST170 ¥25,000
73220-20310-03 note Belt Assy, Front Seat Outer, LH
1988-05 → 1989-11 ended
AT175 ¥25,000
73220-20310-04 note Belt Assy, Front Seat Outer, LH
1988-05 → 1989-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥25,000
73220-20310-04 note Belt Assy, Front Seat Outer, LH
1988-05 → 1989-11 ended
AT175 ¥25,000
73220-20310-06 note Belt Assy, Front Seat Outer, LH
1988-05 → 1989-11 ended
CT176,ET176 DX,SG ¥25,000
73220-20310-06 note Belt Assy, Front Seat Outer, LH
1988-05 → 1989-11 ended
AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥25,000
73220-20310-06 note Belt Assy, Front Seat Outer, LH
1988-05 → 1989-11 ended
AT175 ¥25,000
73220-20330-03 note Belt Assy, Front Seat Outer, LH
1988-05 → 1989-11 ended
CT176,ET176 ¥25,000
73220-20330-06 note Belt Assy, Front Seat Outer, LH
1988-05 → 1989-11 ended
CT176,ET176 DX,SG ¥25,000
73220-20430-03 note Belt Assy, Front Seat Outer, LH
1989-11 → 1992-11 ended
CT176,ET176 ¥24,700
73220-20430-03 note Belt Assy, Front Seat Outer, LH
1989-11 → 1992-11 ended
AT170,171,CT170,ST170 ¥24,700
73220-20430-03 note Belt Assy, Front Seat Outer, LH
1989-11 → 1992-11 ended
AT175 ¥24,700
73220-20430-04 note Belt Assy, Front Seat Outer, LH
1990-05 → 1992-08 ended
AT175 ¥24,700
73220-20430-04 note Belt Assy, Front Seat Outer, LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥24,700
73220-20430-06 note Belt Assy, Front Seat Outer, LH
1989-11 → 1990-05 ended
CT176,ET176 DX,SG ¥24,700
73220-20430-06 note Belt Assy, Front Seat Outer, LH
1989-11 → 1992-11 ended
AT175 ¥24,700
73220-20430-06 note Belt Assy, Front Seat Outer, LH
1989-11 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥24,700
73220-20430-06 note Belt Assy, Front Seat Outer, LH
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥24,700
73220-20430-14 note Belt Assy, Front Seat Outer, LH
1989-11 → 1990-05 ended
AT175 ¥24,700
73220-20430-14 note Belt Assy, Front Seat Outer, LH
1989-11 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥24,700
73220-20440-03 note Belt Assy, Front Seat Outer, LH
1989-11 → 1992-11 ended
CT176,ET176 ¥24,700
73220-20440-06 note Belt Assy, Front Seat Outer, LH
1989-11 → 1990-05 ended
CT176,ET176 DX,SG ¥24,700
73230 — Belt Assy, Front Seat Inner, RH
73230-20440-03 note Belt Assy, Front Seat Inner, RH
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥4,730
73230-20440-04 note Belt Assy, Front Seat Inner, RH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥4,730
73230-20440-06 note Belt Assy, Front Seat Inner, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥4,730
73230-20440-06 note Belt Assy, Front Seat Inner, RH
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥4,730
73230-20440-14 note Belt Assy, Front Seat Inner, RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥4,730
73230-20450-03 note Belt Assy, Front Seat Inner, RH
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥4,730
73230-20450-04 note Belt Assy, Front Seat Inner, RH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥4,730
73230-20450-06 note Belt Assy, Front Seat Inner, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥4,730
73230-20450-06 note Belt Assy, Front Seat Inner, RH
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥4,730
73230-20450-14 note Belt Assy, Front Seat Inner, RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥4,730
73230-20480-03 note Belt Assy, Front Seat Inner, RH
1988-08 → 1992-08 ended
AT175 ¥5,500
73230-20480-04 note Belt Assy, Front Seat Inner, RH
1988-08 → 1990-05 ended
AT175 ¥5,500
73230-20480-06 note Belt Assy, Front Seat Inner, RH
1988-08 → 1992-08 ended
AT175 ¥5,500
73230-20480-14 note Belt Assy, Front Seat Inner, RH
1990-05 → 1992-08 ended
AT175 ¥5,500
73240 — Belt Assy, Front Seat Inner, LH
73230-20440-03 note Belt Assy, Front Seat Inner, LH
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥4,730
73230-20440-04 note Belt Assy, Front Seat Inner, LH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥4,730
73230-20440-06 note Belt Assy, Front Seat Inner, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥4,730
73230-20440-06 note Belt Assy, Front Seat Inner, LH
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥4,730
73230-20440-14 note Belt Assy, Front Seat Inner, LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥4,730
73230-20450-03 note Belt Assy, Front Seat Inner, LH
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥4,730
73230-20450-04 note Belt Assy, Front Seat Inner, LH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥4,730
73230-20450-06 note Belt Assy, Front Seat Inner, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥4,730
73230-20450-06 note Belt Assy, Front Seat Inner, LH
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥4,730
73230-20450-14 note Belt Assy, Front Seat Inner, LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥4,730
73230-20480-03 note Belt Assy, Front Seat Inner, LH
1988-08 → 1992-08 ended
AT175 ¥5,500
73230-20480-04 note Belt Assy, Front Seat Inner, LH
1988-08 → 1990-05 ended
AT175 ¥5,500
73230-20480-06 note Belt Assy, Front Seat Inner, LH
1988-08 → 1992-08 ended
AT175 ¥5,500
73230-20480-14 note Belt Assy, Front Seat Inner, LH
1990-05 → 1992-08 ended
AT175 ¥5,500
73330 — Belt Assy, Rear Seat Lap Type, RH
73330-13090-03 note Belt Assy, Rear Seat Lap Type, RH
1988-05 → 1992-11 ended
CT176,ET176 ¥10,100
73330-13090-06 note Belt Assy, Rear Seat Lap Type, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥10,100
73340 — Belt Assy, Rear Seat Lap Type, LH
73330-13090-03 note Belt Assy, Rear Seat Lap Type, LH
1988-05 → 1992-11 ended
CT176,ET176 ¥10,100
73330-13090-06 note Belt Assy, Rear Seat Lap Type, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥10,100
73350 — Belt Assy, Rear Seat Lap Type, Center
73350-13030-03 note Belt Assy, Rear Seat Lap Type, Center
1988-05 → 1992-11 ended
CT176,ET176 ¥10,100
73350-13030-06 note Belt Assy, Rear Seat Lap Type, Center
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥10,100
73350-20210-03 note Belt Assy, Rear Seat Lap Type, Center
1990-05 → 1991-06 ended
AT170,171,CT170,ST170 GLIM,SE ¥8,200
73350-20210-03 note Belt Assy, Rear Seat Lap Type, Center
1991-06 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥8,200
73350-20210-03 note Belt Assy, Rear Seat Lap Type, Center
1990-05 → 1992-11 ended
ST170 SX ¥8,200
73350-20210-04 note Belt Assy, Rear Seat Lap Type, Center
1990-05 → 1991-06 ended
AT170,CT170,ST170 SE ¥8,200
73350-20210-04 note Belt Assy, Rear Seat Lap Type, Center
1991-06 → 1992-08 ended
AT170,175,CT170,ST170 SE ¥8,200
73350-20210-06 note Belt Assy, Rear Seat Lap Type, Center
1990-05 → 1991-06 ended
AT170,CT170,ST170 SE ¥8,200
73350-20210-06 note Belt Assy, Rear Seat Lap Type, Center
1991-06 → 1992-08 ended
AT170,175,CT170,ST170 SE ¥8,200
73350-20210-06 note Belt Assy, Rear Seat Lap Type, Center
1990-05 → 1992-11 ended
ST170 SX ¥8,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
