Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

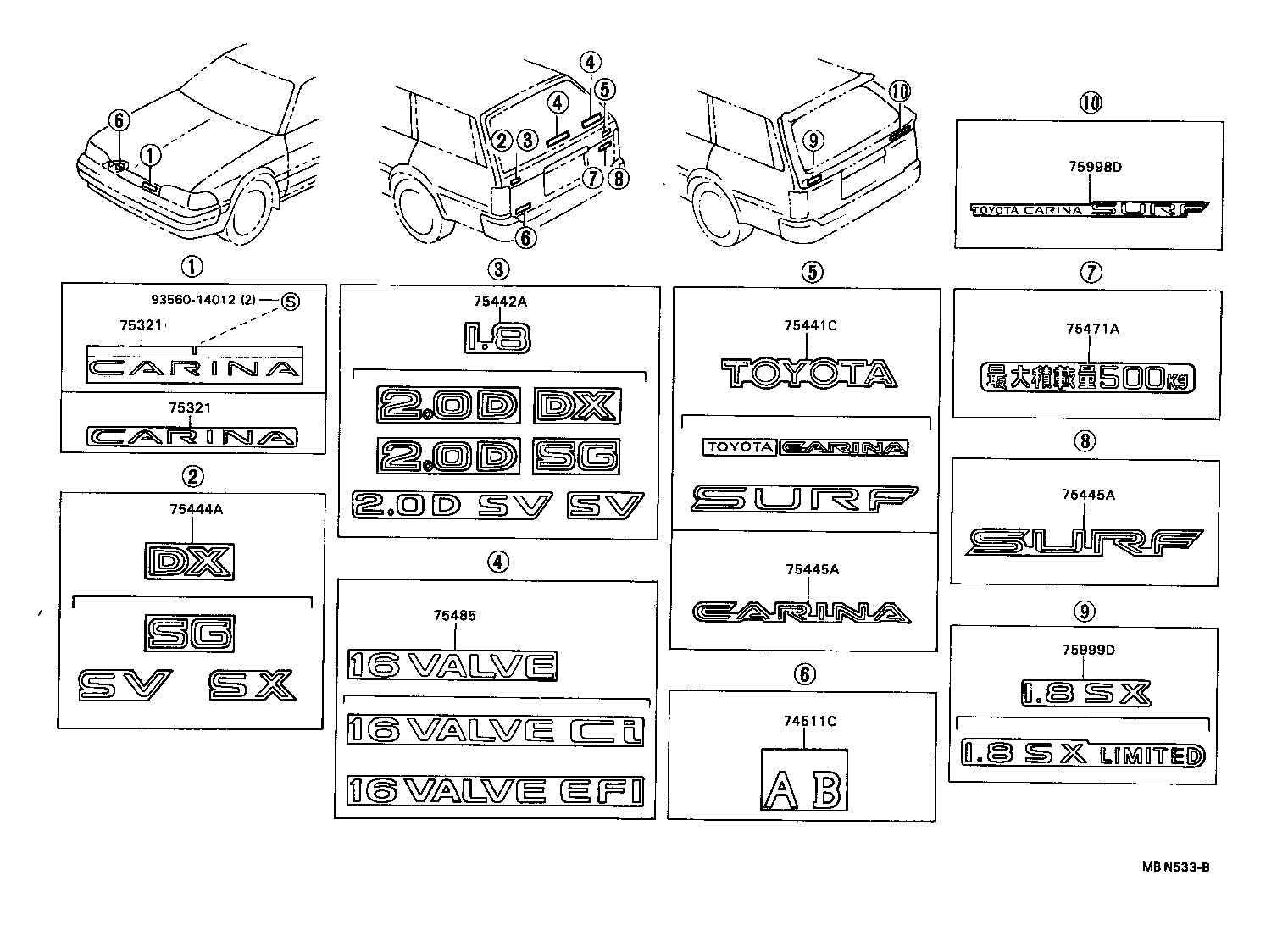

Exploded illustration MBN533B 75998D — STRIPE, REAR SPOILER, REAR RH (3 parts) 9356014012 — not listed in this catalogue 75442A — PLATE, BACK DOOR NAME, NO.2 (7 parts) 75321 — PLATE, RADIATOR GRILLE OR FRONT PANEL NAME (7 parts) 75441C — PLATE, BACK DOOR NAME (6 parts) 75471A — MARK, MAXIMUM LOAD (1 parts) 75321 — PLATE, RADIATOR GRILLE OR FRONT PANEL NAME (7 parts) 75445A — PLATE, BACK DOOR NAME, NO.5 (2 parts) 75444A — PLATE, BACK DOOR NAME, NO.4 (4 parts) 75445A — PLATE, BACK DOOR NAME, NO.5 (2 parts) 75485 — PLATE, BACK WINDOW NAME (13 parts) 75999D — STRIPE, REAR SPOILER, REAR LH (5 parts) 74511C — PLATE, NAME (2 parts)
MBN533B · 12 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
74511C — Plate, Name
74511-2B250 Plate, Name
1991-06 → 1992-11 ended
AT170,171,CT170,ST170 ¥260
74511-2B250 Plate, Name
1990-05 → 1991-06 ended
AT171,ST170 GLIM,SE ¥260
75321 — Plate, Radiator Grille OR Front Panel Name
75321-20600 note Plate, Radiator Grille OR Front Panel Name
1988-05 → 1990-05 ended
AT170,171,CT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX ¥2,540
75321-20600 note Plate, Radiator Grille OR Front Panel Name
1990-05 → 1992-11 ended
CT176,ET176 ¥2,540
75321-20601 note Plate, Radiator Grille OR Front Panel Name
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 DX,S,SE,SG,SGEXT,SV,SX ¥2,540
75321-20610 note Plate, Radiator Grille OR Front Panel Name
1988-05 → 1990-05 ended
AT171 GLIM ¥2,830
75321-20620 note Plate, Radiator Grille OR Front Panel Name
1988-08 → 1990-05 ended
AT175 ¥2,570
75321-20640 note Plate, Radiator Grille OR Front Panel Name
1990-05 → 1992-08 ended
AT171 EFI ¥2,540
75321-20650 note Plate, Radiator Grille OR Front Panel Name
1990-05 → 1992-08 ended
AT175 ¥2,540
75441C — Plate, Back Door Name
75441-20360 note Plate, Back Door Name
1988-05 → 1992-11 ended
CT176,ET176 ¥2,250
75441-21040-03 note Plate, Back Door Name
1990-05 → 1992-11 ended
AT170,CT170 SV ¥5,400
75441-21040-13 note Plate, Back Door Name
1990-05 → 1992-11 ended
AT170,CT170 SV ¥5,400
75441-21050-03 note Plate, Back Door Name
1990-05 → 1992-11 ended
AT170,CT170 SV ¥4,930
75441-21050-13 note Plate, Back Door Name
1990-05 → 1992-11 ended
AT170,CT170 SV ¥4,930
75441-95503 note Plate, Back Door Name
1988-05 → 1990-05 ended
AT170,ST170 WG ¥2,420
75442A — Plate, Back Door Name, NO.2
75442-95R01 note Plate, Back Door Name, NO.2
1988-05 → 1990-05 ended
ST170 SX ¥2,130
75442-95R02 note Plate, Back Door Name, NO.2
1988-05 → 1992-11 ended
CT176 DX ¥1,400
75442-95R03 note Plate, Back Door Name, NO.2
1988-05 → 1992-11 ended
CT176 SG ¥1,400
75999-21030-03 note Plate, Back Door Name, NO.2
1990-05 → 1992-11 ended
AT170 SV ¥1,120
75999-21030-13 note Plate, Back Door Name, NO.2
1990-05 → 1992-11 ended
AT170 SV ¥1,120
75999-21040-03 note Plate, Back Door Name, NO.2
1990-05 → 1992-11 ended
CT170 SV ¥1,300
75999-21040-13 note Plate, Back Door Name, NO.2
1990-05 → 1992-11 ended
CT170 SV ¥1,300
75444A — Plate, Back Door Name, NO.4
75444-20830 note Plate, Back Door Name, NO.4
1988-05 → 1992-11 ended
ET176 DX ¥1,330
75444-95R00 note Plate, Back Door Name, NO.4
1988-05 → 1992-11 ended
ET176 SG ¥1,170
75444-95R01 note Plate, Back Door Name, NO.4
1988-05 → 1990-05 ended
AT170 SV ¥2,130
75444-95R02 note Plate, Back Door Name, NO.4
1988-05 → 1990-05 ended
ST170 SX ¥2,130
75445A — Plate, Back Door Name, NO.5
75445-95R00 note Plate, Back Door Name, NO.5
1988-05 → 1990-05 ended
AT170,ST170 WG ¥3,140
75445-95R01 note Plate, Back Door Name, NO.5
1988-05 → 1990-05 ended
AT170,ST170 WG ¥3,140
75471A — Mark, Maximum Load
75471-21010 Mark, Maximum Load
1988-05 → 1992-11 ended
CT176,ET176 ¥520
75485 — Plate, Back Window Name
75485-20280 note Plate, Back Window Name
1988-05 → 1990-05 ended
AT170 SED ¥1,440
75485-20290 note Plate, Back Window Name
1988-05 → 1992-08 ended
AT17#,ST170 (DX,S,SE,SG,SGEXT) EFI ¥1,590
75485-20300 note Plate, Back Window Name
1988-05 → 1990-05 ended
ST170 SED ¥1,650
75485-20320 note Plate, Back Window Name
1988-05 → 1992-08 ended
AT171 GLIM ¥1,590
75485-20500 note Plate, Back Window Name
1990-05 → 1992-08 ended
AT171 EFIS ¥1,370
75485-20520 note Plate, Back Window Name
1990-05 → 1992-08 ended
AT171 EFI ¥1,000
75485-20530 note Plate, Back Window Name
1990-05 → 1992-08 ended
AT171 EFI ¥1,370
75485-20540 note Plate, Back Window Name
1990-05 → 1992-08 ended
AT17#,ST170 GLIM,S,SE,SG,SGEXT ¥1,170
75485-21010 note Plate, Back Window Name
1990-05 → 1992-11 ended
AT170,ST170 WG ¥1,170
75485-32030 note Plate, Back Window Name
1988-05 → 1990-05 ended
AT171 GLIM ¥970
75485-32070 note Plate, Back Window Name
1988-05 → 1990-05 ended
AT171 GLIM ¥1,760
75485-95R01 note Plate, Back Window Name
1988-05 → 1990-05 ended
ST170 SX ¥1,650
75485-95R02 note Plate, Back Window Name
1988-05 → 1990-05 ended
AT170 SV ¥1,650
75998D — Stripe, Rear Spoiler, Rear RH
75998-21010-13 note Stripe, Rear Spoiler, Rear RH
1990-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥2,180
75998-21010-23 note Stripe, Rear Spoiler, Rear RH
1990-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥2,180
75998-21010-23 note Stripe, Rear Spoiler, Rear RH
1991-05 → 1992-11 ended
ST170 SX ¥2,180
75999D — Stripe, Rear Spoiler, Rear LH
75999-21010-03 note Stripe, Rear Spoiler, Rear LH
1990-05 → 1992-11 ended
ST170 SX ¥1,300
75999-21010-13 note Stripe, Rear Spoiler, Rear LH
1990-05 → 1992-11 ended
ST170 SX ¥1,300
75999-21010-13 note Stripe, Rear Spoiler, Rear LH
1991-05 → 1992-11 ended
ST170 SX ¥1,300
75999-21020-03 note Stripe, Rear Spoiler, Rear LH
1990-05 → 1992-11 ended
ST170 SX ¥1,120
75999-21020-13 note Stripe, Rear Spoiler, Rear LH
1990-05 → 1992-11 ended
ST170 SX ¥1,120
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
