Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

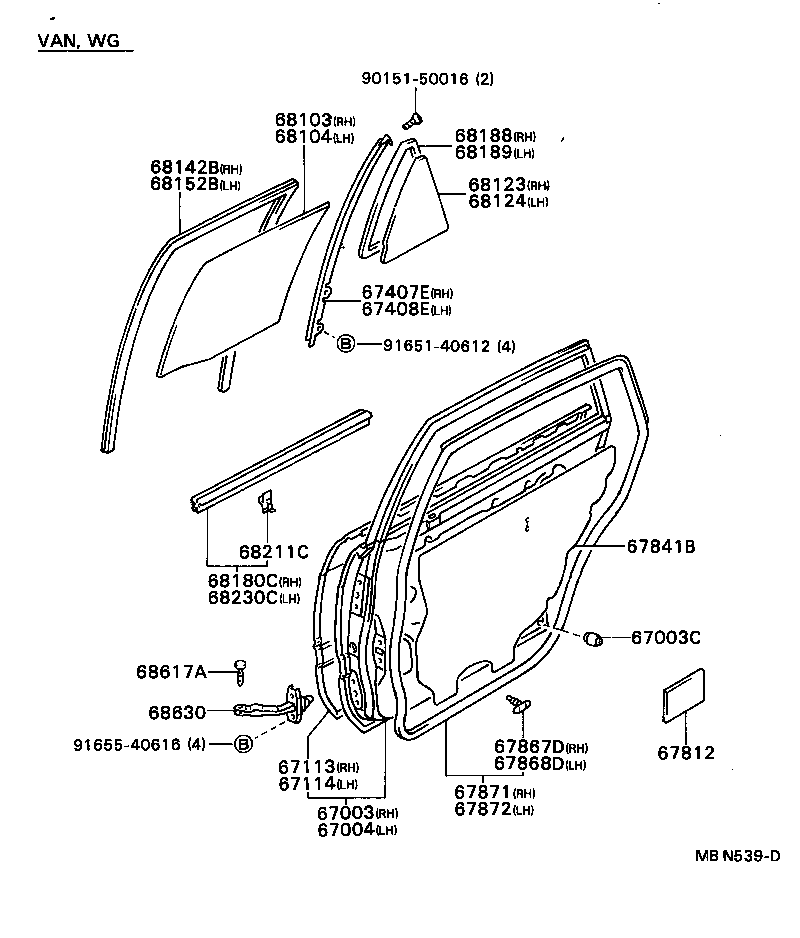

Exploded illustration MBN539D 9015150016 — not listed in this catalogue 68103 — GLASS SUB-ASSY, REAR DOOR, RH (19 parts) 68188 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH (2 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (19 parts) 68189 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH (2 parts) 68142B — RUN, REAR DOOR WINDOW, RH (3 parts) 68152B — RUN, REAR DOOR WINDOW, LH (3 parts) 68123 — GLASS, REAR DOOR WINDOW, RH (19 parts) 68124 — GLASS, REAR DOOR WINDOW, LH (19 parts) 67407E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH (2 parts) 67408E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH (2 parts) 9165140612 — not listed in this catalogue 67841B — COVER, REAR DOOR SERVICE HOLE (10 parts) 68211C — CLIP(FOR REAR DOOR GLASS WEATHERSTRIP) (5 parts) 68180C — WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH (1 parts) 68230C — WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH (1 parts) 67003C — CUSHION, REAR DOOR PANEL (1 parts) 68617A — PIN, REAR DOOR CHECK (1 parts) 68630 — CHECK ASSY, REAR DOOR (1 parts) 9165540616 — not listed in this catalogue 67867D — RETAINER, REAR DOOR WEATHERSTRIP, RH (4 parts) 67812 — PAD, REAR DOOR SILENCER (2 parts) 67868D — RETAINER, REAR DOOR WEATHERSTRIP, LH (4 parts) 67113 — PANEL, REAR DOOR, OUTER RH (1 parts) 67114 — PANEL, REAR DOOR, OUTER LH (1 parts) 67871 — WEATHERSTRIP, REAR DOOR, RH (2 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (2 parts) 67003 — PANEL SUB-ASSY, REAR DOOR, RH (15 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (15 parts)
MBN539D · 26 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
156 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-20630 note Panel Sub-assy, Rear Door, RH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥57,200
67003-20630 note Panel Sub-assy, Rear Door, RH
1988-05 → 1989-02 ended
ST170 SGEXT;AT170 4F SG ¥57,200
67003-20630 note Panel Sub-assy, Rear Door, RH
1990-12 → 1992-08 ended
CT170 SG ¥57,200
67003-20630 note Panel Sub-assy, Rear Door, RH
1990-05 → 1992-08 ended
AT171 EFIS ¥57,200
67003-20630 Panel Sub-assy, Rear Door, RH
1988-05 → 1992-08 ended
ST170 SE CI;AT17#,CT170,ST170 (GLIM,SE,SGEXT) +1 ¥57,200
67003-20630 note Panel Sub-assy, Rear Door, RH
1989-02 → 1990-05 ended
AT170 4F SG ¥57,200
67003-20630 note Panel Sub-assy, Rear Door, RH
1989-02 → 1990-05 ended
ST170 SGEXT ¥57,200
67003-20630 note Panel Sub-assy, Rear Door, RH
1989-02 → 1990-05 ended
CT170 SG ¥57,200
67003-20630 note Panel Sub-assy, Rear Door, RH
1988-05 → 1990-05 ended
AT171 S ¥57,200
67003-20630 note Panel Sub-assy, Rear Door, RH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥57,200
67003-20640 Panel Sub-assy, Rear Door, RH
1988-05 → 1992-08 ended
ST170 SGEXT CI;AT17#,CT170 DX,S,SG ¥57,200
67003-95R00 Panel Sub-assy, Rear Door, RH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥57,200
67003-95R01 note Panel Sub-assy, Rear Door, RH
1989-03 → 1990-05 ended
ST170 SX ¥57,200
67003-95R01 note Panel Sub-assy, Rear Door, RH
1988-05 → 1989-03 ended
ST170 SX ¥57,200
67003-95R01 note Panel Sub-assy, Rear Door, RH
1990-05 → 1992-11 ended
ST170 SX ¥57,200
67003C — Cushion, Rear Door Panel
90541-09064 Cushion, Rear Door Panel
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥200
67004 — Panel Sub-assy, Rear Door, LH
67004-20630 note Panel Sub-assy, Rear Door, LH
1990-05 → 1992-08 ended
AT171 EFIS ¥57,200
67004-20630 Panel Sub-assy, Rear Door, LH
1988-05 → 1992-08 ended
ST170 SE CI;AT17#,CT170,ST170 (GLIM,SE,SGEXT) +1 ¥57,200
67004-20630 note Panel Sub-assy, Rear Door, LH
1990-12 → 1992-08 ended
CT170 SG ¥57,200
67004-20630 note Panel Sub-assy, Rear Door, LH
1989-02 → 1990-05 ended
AT170 4F SG ¥57,200
67004-20630 note Panel Sub-assy, Rear Door, LH
1989-02 → 1990-05 ended
ST170 SGEXT ¥57,200
67004-20630 note Panel Sub-assy, Rear Door, LH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥57,200
67004-20630 note Panel Sub-assy, Rear Door, LH
1989-02 → 1990-05 ended
CT170 SG ¥57,200
67004-20630 note Panel Sub-assy, Rear Door, LH
1988-05 → 1990-05 ended
AT171 S ¥57,200
67004-20630 note Panel Sub-assy, Rear Door, LH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥57,200
67004-20630 note Panel Sub-assy, Rear Door, LH
1988-05 → 1989-02 ended
ST170 SGEXT;AT170 4F SG ¥57,200
67004-20640 Panel Sub-assy, Rear Door, LH
1988-05 → 1992-08 ended
ST170 SGEXT CI;AT17#,CT170 DX,S,SG ¥57,200
67004-95R00 note Panel Sub-assy, Rear Door, LH
1989-03 → 1990-05 ended
ST170 SX ¥57,200
67004-95R00 note Panel Sub-assy, Rear Door, LH
1990-05 → 1992-11 ended
ST170 SX ¥57,200
67004-95R00 note Panel Sub-assy, Rear Door, LH
1988-05 → 1989-03 ended
ST170 SX ¥57,200
67004-95R01 Panel Sub-assy, Rear Door, LH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥57,200
67113 — Panel, Rear Door, Outer RH
67113-20200 Panel, Rear Door, Outer RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥23,300
67114 — Panel, Rear Door, Outer LH
67114-20140 Panel, Rear Door, Outer LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥23,300
67407E — Bar Sub-assy, Rear Door Window Division, RH
67407-20180 Bar Sub-assy, Rear Door Window Division, RH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥3,240
67407-95R00 Bar Sub-assy, Rear Door Window Division, RH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥3,590
67408E — Bar Sub-assy, Rear Door Window Division, LH
67408-20170 Bar Sub-assy, Rear Door Window Division, LH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥3,240
67408-95R00 Bar Sub-assy, Rear Door Window Division, LH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥3,590
67812 — Pad, Rear Door Silencer
67812-12010 Pad, Rear Door Silencer
1988-05 → 1990-05 ended
CT176 SG;CT176 5F DX;AT17#,CT170,ET176,ST170 ¥640
67812-12010 Pad, Rear Door Silencer
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥640
67841B — Cover, Rear Door Service Hole
67841-20200 note Cover, Rear Door Service Hole
1990-05 → 1992-08 ended
AT171 EFIS ¥1,060
67841-20200 note Cover, Rear Door Service Hole
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥1,060
67841-20200 note Cover, Rear Door Service Hole
1990-05 → 1992-11 ended
ST170 SX ¥1,060
67841-20210 note Cover, Rear Door Service Hole
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥1,060
67841-20210 note Cover, Rear Door Service Hole
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥1,060
67842-20100 note Cover, Rear Door Service Hole
1990-05 → 1992-11 ended
ST170 SX ¥1,060
67842-20100 note Cover, Rear Door Service Hole
1990-05 → 1992-08 ended
AT171 EFIS ¥1,060
67842-20100 note Cover, Rear Door Service Hole
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥1,060
67842-20110 note Cover, Rear Door Service Hole
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥1,060
67842-20110 note Cover, Rear Door Service Hole
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥1,060
67867D — Retainer, Rear Door Weatherstrip, RH
67868-12050 Retainer, Rear Door Weatherstrip, RH
1990-05 → 1991-08 ended
AT17#,CT170,ST170 SED ¥210
67868-22020 Retainer, Rear Door Weatherstrip, RH
1991-08 → 1992-08 ended
AT17#,CT170,ST170 SED ¥180
67868-30050 Retainer, Rear Door Weatherstrip, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 SED ¥170
67868-95R00 Retainer, Rear Door Weatherstrip, RH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥170
67868D — Retainer, Rear Door Weatherstrip, LH
67868-12050 Retainer, Rear Door Weatherstrip, LH
1990-05 → 1991-08 ended
AT17#,CT170,ST170 SED ¥210
67868-22020 Retainer, Rear Door Weatherstrip, LH
1991-08 → 1992-08 ended
AT17#,CT170,ST170 SED ¥180
67868-30050 Retainer, Rear Door Weatherstrip, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 SED ¥170
67868-95R00 Retainer, Rear Door Weatherstrip, LH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥170
67871 — Weatherstrip, Rear Door, RH
67871-20250 Weatherstrip, Rear Door, RH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥7,400
67871-95R00 Weatherstrip, Rear Door, RH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥7,400
67872 — Weatherstrip, Rear Door, LH
67872-20250 Weatherstrip, Rear Door, LH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥7,400
67872-95R00 Weatherstrip, Rear Door, LH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥7,400
68103 — Glass Sub-assy, Rear Door, RH
68113-20510 note Glass Sub-assy, Rear Door, RH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥16,200
68113-20520 note Glass Sub-assy, Rear Door, RH
1990-12 → 1992-08 ended
CT170 SG ¥19,400
68113-20520 note Glass Sub-assy, Rear Door, RH
1988-05 → 1989-02 ended
AT170 4F SG ¥19,400
68113-20520 note Glass Sub-assy, Rear Door, RH
1988-05 → 1992-08 ended
AT171 EFIS;AT17#,CT170,ST170 GLIM,SE,SGEXT ¥19,400
68113-20520 note Glass Sub-assy, Rear Door, RH
1989-02 → 1990-05 ended
AT170 4F SG ¥19,400
68113-20520 note Glass Sub-assy, Rear Door, RH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥19,400
68113-20520 note Glass Sub-assy, Rear Door, RH
1989-02 → 1990-05 ended
CT170 SG ¥19,400
68113-20520 note Glass Sub-assy, Rear Door, RH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥19,400
68113-20530 note Glass Sub-assy, Rear Door, RH
1989-02 → 1990-05 ended
CT170 SG ¥21,000
68113-20530 note Glass Sub-assy, Rear Door, RH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥21,000
68113-20530 note Glass Sub-assy, Rear Door, RH
1989-02 → 1990-05 ended
AT170 4F SG ¥21,000
68113-20530 note Glass Sub-assy, Rear Door, RH
1988-05 → 1989-02 ended
AT170 4F SG ¥21,000
68113-20530 note Glass Sub-assy, Rear Door, RH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥21,000
68113-20530 note Glass Sub-assy, Rear Door, RH
1988-05 → 1992-08 ended
AT171 EFIS;AT17#,CT170,ST170 GLIM,SE,SGEXT ¥21,000
68113-20530 note Glass Sub-assy, Rear Door, RH
1990-12 → 1992-08 ended
CT170 SG ¥21,000
68113-95506 note Glass Sub-assy, Rear Door, RH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥16,000
68113-95507 note Glass Sub-assy, Rear Door, RH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 (VAN,WG) (SG,SV,SX) ¥16,200
68113-95R02 note Glass Sub-assy, Rear Door, RH
1988-05 → 1992-11 ended
ST170 SX ¥19,400
68113-95R03 note Glass Sub-assy, Rear Door, RH
1988-05 → 1992-11 ended
ST170 SX ¥21,000
68104 — Glass Sub-assy, Rear Door, LH
68114-20430 note Glass Sub-assy, Rear Door, LH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥16,200
68114-20440 note Glass Sub-assy, Rear Door, LH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥19,400
68114-20440 note Glass Sub-assy, Rear Door, LH
1990-12 → 1992-08 ended
CT170 SG ¥19,400
68114-20440 note Glass Sub-assy, Rear Door, LH
1988-05 → 1992-08 ended
AT171 EFIS;AT17#,CT170,ST170 GLIM,SE,SGEXT ¥19,400
68114-20440 note Glass Sub-assy, Rear Door, LH
1989-02 → 1990-05 ended
AT170 4F SG ¥19,400
68114-20440 note Glass Sub-assy, Rear Door, LH
1989-02 → 1990-05 ended
CT170 SG ¥19,400
68114-20440 note Glass Sub-assy, Rear Door, LH
1988-05 → 1989-02 ended
AT170 4F SG ¥19,400
68114-20440 note Glass Sub-assy, Rear Door, LH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥19,400
68114-20450 note Glass Sub-assy, Rear Door, LH
1989-02 → 1990-05 ended
CT170 SG ¥21,000
68114-20450 note Glass Sub-assy, Rear Door, LH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥21,000
68114-20450 note Glass Sub-assy, Rear Door, LH
1989-02 → 1990-05 ended
AT170 4F SG ¥21,000
68114-20450 note Glass Sub-assy, Rear Door, LH
1988-05 → 1989-02 ended
AT170 4F SG ¥21,000
68114-20450 note Glass Sub-assy, Rear Door, LH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥21,000
68114-20450 note Glass Sub-assy, Rear Door, LH
1988-05 → 1992-08 ended
AT171 EFIS;AT17#,CT170,ST170 GLIM,SE,SGEXT ¥21,000
68114-20450 note Glass Sub-assy, Rear Door, LH
1990-12 → 1992-08 ended
CT170 SG ¥21,000
68114-95505 note Glass Sub-assy, Rear Door, LH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥16,000
68114-95506 note Glass Sub-assy, Rear Door, LH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 (VAN,WG) (SG,SV,SX) ¥16,200
68114-95R02 note Glass Sub-assy, Rear Door, LH
1988-05 → 1992-11 ended
ST170 SX ¥19,400
68114-95R03 note Glass Sub-assy, Rear Door, LH
1988-05 → 1992-11 ended
ST170 SX ¥21,000
68123 — Glass, Rear Door Window, RH
68123-20500 note Glass, Rear Door Window, RH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥4,320
68123-20510 note Glass, Rear Door Window, RH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥5,300
68123-20510 note Glass, Rear Door Window, RH
1988-05 → 1989-02 ended
AT170 4F SG ¥5,300
68123-20510 note Glass, Rear Door Window, RH
1989-02 → 1990-05 ended
CT170 SG ¥5,300
68123-20510 note Glass, Rear Door Window, RH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥5,300
68123-20510 note Glass, Rear Door Window, RH
1989-02 → 1990-05 ended
AT170 4F SG ¥5,300
68123-20510 note Glass, Rear Door Window, RH
1990-12 → 1992-08 ended
CT170 SG ¥5,300
68123-20510 note Glass, Rear Door Window, RH
1988-05 → 1992-08 ended
AT171 EFIS;AT17#,CT170,ST170 GLIM,SE,SGEXT ¥5,300
68123-20520 note Glass, Rear Door Window, RH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥5,800
68123-20520 note Glass, Rear Door Window, RH
1990-12 → 1992-08 ended
CT170 SG ¥5,800
68123-20520 note Glass, Rear Door Window, RH
1988-05 → 1992-08 ended
AT171 EFIS;AT17#,CT170,ST170 GLIM,SE,SGEXT ¥5,800
68123-20520 note Glass, Rear Door Window, RH
1989-02 → 1990-05 ended
AT170 4F SG ¥5,800
68123-20520 note Glass, Rear Door Window, RH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥5,800
68123-20520 note Glass, Rear Door Window, RH
1989-02 → 1990-05 ended
CT170 SG ¥5,800
68123-20520 note Glass, Rear Door Window, RH
1988-05 → 1989-02 ended
AT170 4F SG ¥5,800
68123-95R00 note Glass, Rear Door Window, RH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥4,640
68123-95R01 note Glass, Rear Door Window, RH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 (VAN,WG) (SG,SV,SX) ¥4,700
68123-95R02 note Glass, Rear Door Window, RH
1988-05 → 1992-11 ended
ST170 SX ¥5,800
68123-95R03 note Glass, Rear Door Window, RH
1988-05 → 1992-11 ended
ST170 SX ¥6,200
68124 — Glass, Rear Door Window, LH
68124-20420 note Glass, Rear Door Window, LH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥4,320
68124-20430 note Glass, Rear Door Window, LH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥5,300
68124-20430 note Glass, Rear Door Window, LH
1990-12 → 1992-08 ended
CT170 SG ¥5,300
68124-20430 note Glass, Rear Door Window, LH
1988-05 → 1992-08 ended
AT171 EFIS;AT17#,CT170,ST170 GLIM,SE,SGEXT ¥5,300
68124-20430 note Glass, Rear Door Window, LH
1989-02 → 1990-05 ended
AT170 4F SG ¥5,300
68124-20430 note Glass, Rear Door Window, LH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥5,300
68124-20430 note Glass, Rear Door Window, LH
1989-02 → 1990-05 ended
CT170 SG ¥5,300
68124-20430 note Glass, Rear Door Window, LH
1988-05 → 1989-02 ended
AT170 4F SG ¥5,300
68124-20440 note Glass, Rear Door Window, LH
1989-02 → 1990-05 ended
CT170 SG ¥5,800
68124-20440 note Glass, Rear Door Window, LH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥5,800
68124-20440 note Glass, Rear Door Window, LH
1989-02 → 1990-05 ended
AT170 4F SG ¥5,800
68124-20440 note Glass, Rear Door Window, LH
1988-05 → 1989-02 ended
AT170 4F SG ¥5,800
68124-20440 note Glass, Rear Door Window, LH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥5,800
68124-20440 note Glass, Rear Door Window, LH
1988-05 → 1992-08 ended
AT171 EFIS;AT17#,CT170,ST170 GLIM,SE,SGEXT ¥5,800
68124-20440 note Glass, Rear Door Window, LH
1990-12 → 1992-08 ended
CT170 SG ¥5,800
68124-95R00 note Glass, Rear Door Window, LH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥4,640
68124-95R01 note Glass, Rear Door Window, LH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 (VAN,WG) (SG,SV,SX) ¥4,700
68124-95R02 note Glass, Rear Door Window, LH
1988-05 → 1992-11 ended
ST170 SX ¥5,800
68124-95R03 note Glass, Rear Door Window, LH
1988-05 → 1992-11 ended
ST170 SX ¥6,200
68142B — Run, Rear Door Window, RH
68142-20130 Run, Rear Door Window, RH
1988-05 → 1991-10 ended
AT17#,CT170,ST170 SED ¥3,000
68142-20170 Run, Rear Door Window, RH
1991-10 → 1992-08 ended
AT17#,CT170,ST170 SED ¥2,980
68142-95501 Run, Rear Door Window, RH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥2,990
68152B — Run, Rear Door Window, LH
68152-20070 Run, Rear Door Window, LH
1988-05 → 1991-10 ended
AT17#,CT170,ST170 SED ¥3,000
68152-20110 Run, Rear Door Window, LH
1991-10 → 1992-08 ended
AT17#,CT170,ST170 SED ¥2,980
68152-95502 Run, Rear Door Window, LH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥2,990
68180C — Weatherstrip Assy, Rear Door Glass, Outer RH
68180-95R00 Weatherstrip Assy, Rear Door Glass, Outer RH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥3,090
68188 — Weatherstrip, Rear Door Quarter Window, RH
68188-20150 Weatherstrip, Rear Door Quarter Window, RH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥3,620
68188-95R00 Weatherstrip, Rear Door Quarter Window, RH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥4,000
68189 — Weatherstrip, Rear Door Quarter Window, LH
68189-20150 Weatherstrip, Rear Door Quarter Window, LH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥3,620
68189-95R00 Weatherstrip, Rear Door Quarter Window, LH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥4,000
68211C — Clip(FOR REAR DOOR GLASS WEATHERSTRIP)
68211-20070 note Clip(FOR REAR DOOR GLASS WEATHERSTRIP)
1988-05 → 1990-05 ended
CT176,ET176 DX,STD ¥240
68211-20070 note Clip(FOR REAR DOOR GLASS WEATHERSTRIP)
1988-05 → 1990-05 ended
AT170 4F DX ¥240
68211-20070 note Clip(FOR REAR DOOR GLASS WEATHERSTRIP)
1990-05 → 1992-11 ended
CT176,ET176 DX,STD ¥240
68211-95500 note Clip(FOR REAR DOOR GLASS WEATHERSTRIP)
1988-05 → 1990-05 ended
CT176,ET176 DX,STD ¥300
68211-95500 note Clip(FOR REAR DOOR GLASS WEATHERSTRIP)
1990-05 → 1992-11 ended
CT176,ET176 DX,STD ¥300
68230C — Weatherstrip Assy, Rear Door Glass, Outer LH
68230-95R00 Weatherstrip Assy, Rear Door Glass, Outer LH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥3,090
68617A — Pin, Rear Door Check
68617-20011 Pin, Rear Door Check
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥180
68630 — Check Assy, Rear Door
68630-20050 Check Assy, Rear Door
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥3,760
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
