Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration MBS067F 5202 — not listed in this catalogue 58305 — BRACKET SUB-ASSY, SPARE WHEEL CLAMP (1 parts) 9011906175 — not listed in this catalogue 6403 — not listed in this catalogue 58234A — BRACKET, EXHAUST PIPE MOUNTING, INNER (1 parts) 58397C — COVER, BODY LOWER BACK, RH (1 parts) 58313 — PANEL, REAR FLOOR SIDE, RH (8 parts) 58365A — BRACKET, FUEL TANK SUPPORT, RH (1 parts) 58307 — PANEL SUB-ASSY, BODY LOWER BACK (7 parts) 9011906361 — not listed in this catalogue 58366A — BRACKET, FUEL TANK SUPPORT, LH (1 parts) 5202 — not listed in this catalogue 58311 — PAN, REAR FLOOR (1 parts) 58193 — BRACKET, INSTRUMENT PANEL BRACE MOUNTING (2 parts) 58314 — PANEL, REAR FLOOR SIDE, LH (7 parts) 9354014010 — not listed in this catalogue 58325E — COVER, REAR FLOOR SERVICE HOLE (3 parts) 9095001404 — not listed in this catalogue 9018904002 — not listed in this catalogue 9095001404 — not listed in this catalogue 57468A — BRACKET, FRONT SEAT, OUTSIDE, REAR RH (2 parts) 9095001005 — not listed in this catalogue 9095001060 — not listed in this catalogue 9095001322 — not listed in this catalogue 58208 — PAN, CENTER FLOOR (2 parts) 58111 — PAN, FRONT FLOOR (3 parts) 9095001433 — not listed in this catalogue 58212C — PAN, CENTER FLOOR, FRONT (1 parts) 9095001369 — not listed in this catalogue 9095001056 — not listed in this catalogue 9095001417 — not listed in this catalogue 58191 — FOOTREST, FRONT FLOOR (2 parts) 9095001005 — not listed in this catalogue 9095001369 — not listed in this catalogue 58367 — BRACKET, FUEL TUBE CLAMP (1 parts) 9165540616 — not listed in this catalogue 9033330002 — not listed in this catalogue 9095001056 — not listed in this catalogue 57469A — BRACKET, FRONT SEAT, OUTSIDE, REAR LH (2 parts) 9033330002 — not listed in this catalogue 9095001433 — not listed in this catalogue 9095001005 — not listed in this catalogue 58171 — REINFORCEMENT, PARKING BRAKE BASE (3 parts) 58207 — BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1 (1 parts) 9095001005 — not listed in this catalogue 58266B — BRACKET, FUEL TUBE CLAMP (1 parts) 9033330002 — not listed in this catalogue 9033330004 — not listed in this catalogue 9095001056 — not listed in this catalogue 9095001005 — not listed in this catalogue 57278A — BRACKET, CATALYTIC CONVERTER SUPPORT (1 parts) 58027A — REINFORCE SUB-ASSY, SEAT BELT ANCHOR (5 parts) 9095001518 — not listed in this catalogue 58277B — REINFORCEMENT, DRIVE SHAFT CENTER SUPPORT (2 parts)

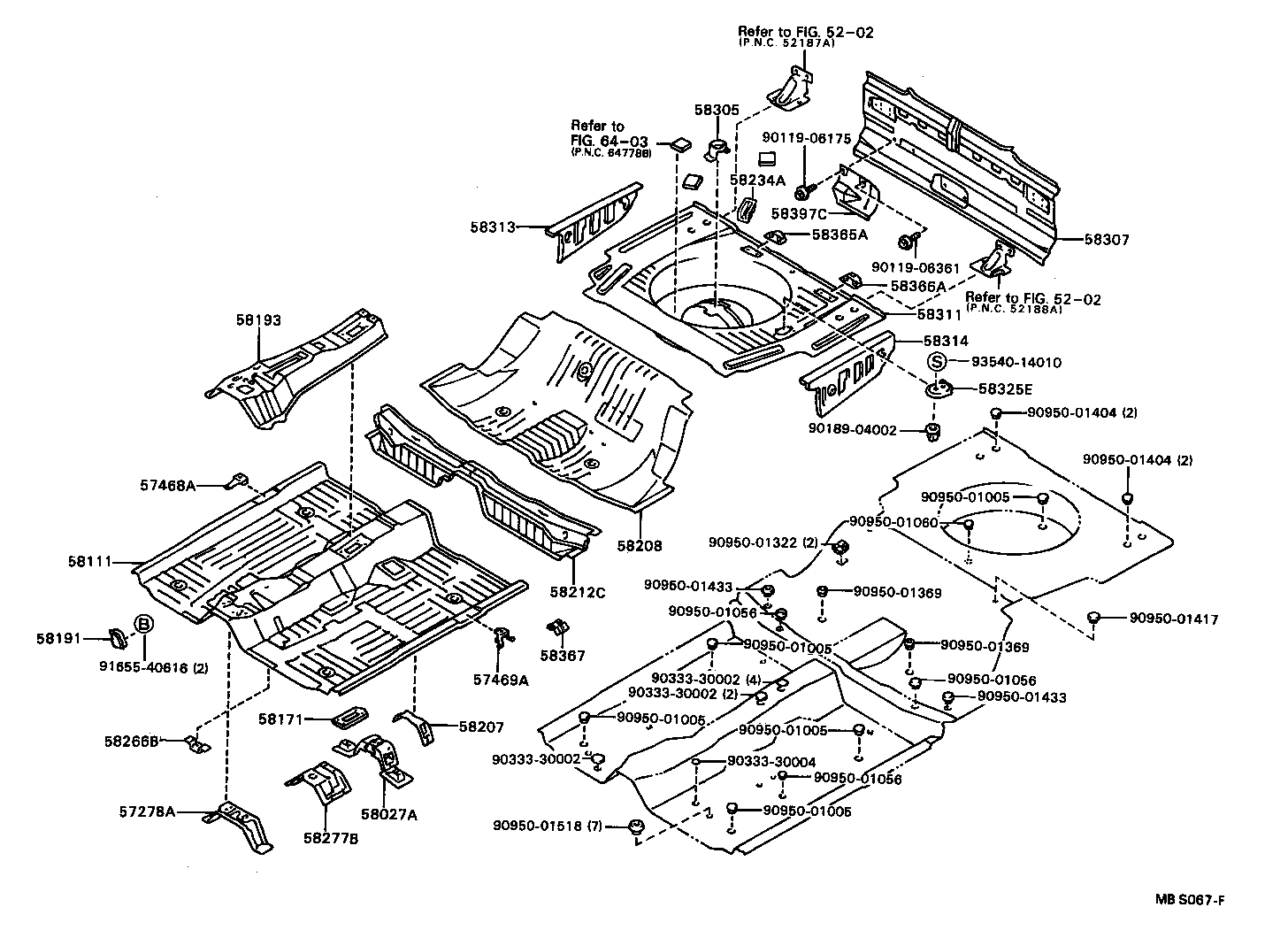

MBS067F · 24 callouts, 30 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
57278A — Bracket, Catalytic Converter Support
57278-20010 Bracket, Catalytic Converter Support
1988-08 → 1992-08 ended
AT175 ¥3,420
57468A — Bracket, Front Seat, Outside, Rear RH
57468-20030 Bracket, Front Seat, Outside, Rear RH
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥350
57468-20040 Bracket, Front Seat, Outside, Rear RH
1988-08 → 1992-08 ended
AT175 ¥1,090
57469A — Bracket, Front Seat, Outside, Rear LH
57469-20030 Bracket, Front Seat, Outside, Rear LH
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥350
57469-20040 Bracket, Front Seat, Outside, Rear LH
1988-08 → 1992-08 ended
AT175 ¥1,090
58027A — Reinforce Sub-assy, Seat Belt Anchor
58027-20050 Reinforce Sub-assy, Seat Belt Anchor
1988-05 → 1989-11 ended
AT171,ET176 DX,GLIM,SG,STD ¥3,280
58027-20050 Reinforce Sub-assy, Seat Belt Anchor
1989-11 → 1992-08 ended
AT171 EFIS;AT171 GLIM ¥3,280
58027-20070 Reinforce Sub-assy, Seat Belt Anchor
1988-05 → 1989-11 ended
AT170,171,CT17#,ST170 DX,S,SE,SG,SGEXT,SV,SX ¥3,280
58027-20070 Reinforce Sub-assy, Seat Belt Anchor
1989-11 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 (DX,S,SE,SG,SGEXT,STD,SV,SX) (CBR,CI,DSL,EFI) ¥3,280
58027-20090 Reinforce Sub-assy, Seat Belt Anchor
1988-08 → 1992-08 ended
AT175 ¥4,300
58111 — Pan, Front Floor
58111-20111 Pan, Front Floor
1988-08 → 1988-12 ended
AT175 ¥52,000
58111-20113 Pan, Front Floor
1988-12 → 1992-08 ended
AT175 ¥51,900
58111-20120 Pan, Front Floor
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥51,900
58171 — Reinforcement, Parking Brake Base
58107-20040 Reinforcement, Parking Brake Base
1988-05 → 1989-12 ended
AT170,171,CT17#,ET176,ST170 ¥1,750
58171-20090 Reinforcement, Parking Brake Base
1988-08 → 1992-08 ended
AT175 ¥680
58171-20100 Reinforcement, Parking Brake Base
1989-12 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥1,470
58191 — Footrest, Front Floor
58191-20030 Footrest, Front Floor
1988-08 → 1992-08 ended
AT175 ¥1,460
58191-20040 Footrest, Front Floor
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥1,970
58193 — Bracket, Instrument Panel Brace Mounting
58109-20090 Bracket, Instrument Panel Brace Mounting
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥2,170
58109-20100 Bracket, Instrument Panel Brace Mounting
1988-08 → 1992-08 ended
AT175 ¥10,800
58207 — Bracket Sub-assy, Parking Brake Cable, NO.1
58207-20070 Bracket Sub-assy, Parking Brake Cable, NO.1
1988-08 → 1992-08 ended
AT175 ¥1,350
58208 — Pan, Center Floor
58201-32090 Pan, Center Floor
1988-08 → 1992-08 ended
AT175 ¥18,700
58211-32051 Pan, Center Floor
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥27,800
58212C — Pan, Center Floor, Front
58212-32010 Pan, Center Floor, Front
1988-08 → 1992-08 ended
AT175 ¥18,500
58234A — Bracket, Exhaust Pipe Mounting, Inner
58234-32030 Bracket, Exhaust Pipe Mounting, Inner
1988-08 → 1992-08 ended
AT175 ¥1,630
58266B — Bracket, Fuel Tube Clamp
58266-22040 Bracket, Fuel Tube Clamp
1988-08 → 1992-08 ended
AT175 ¥310
58277B — Reinforcement, Drive Shaft Center Support
58277-20031 Reinforcement, Drive Shaft Center Support
1988-08 → 1988-12 ended
AT175 ¥3,330
58277-20032 Reinforcement, Drive Shaft Center Support
1988-12 → 1992-08 ended
AT175 ¥3,300
58305 — Bracket Sub-assy, Spare Wheel Clamp
58305-10011 Bracket Sub-assy, Spare Wheel Clamp
1988-08 → 1992-08 ended
AT175 ¥350
58307 — Panel Sub-assy, Body Lower Back
58307-20670 Panel Sub-assy, Body Lower Back
1988-05 → 1990-05 ended
AT17#,CT170,ST170 DX,S,SG,SGEXT ¥17,200
58307-20670 Panel Sub-assy, Body Lower Back
1990-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥17,200
58307-20680 note Panel Sub-assy, Body Lower Back
1989-02 → 1990-05 ended
ST170 SGEXT ¥17,400
58307-20680 Panel Sub-assy, Body Lower Back
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,SE ¥17,400
58307-20690 note Panel Sub-assy, Body Lower Back
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG ¥17,400
58307-95516 Panel Sub-assy, Body Lower Back
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥15,700
58307-95517 Panel Sub-assy, Body Lower Back
1988-05 → 1992-11 ended
CT176,ET176 ¥15,700
58311 — Pan, Rear Floor
58311-32110 Pan, Rear Floor
1988-08 → 1992-08 ended
AT175 ¥36,800
58313 — Panel, Rear Floor Side, RH
58313-20290 Panel, Rear Floor Side, RH
1990-05 → 1992-08 ended
ST170 SE;AT170,171,CT170 SED ¥2,970
58313-20300 Panel, Rear Floor Side, RH
1990-03 → 1990-05 ended
AT170,CT170,ST170 SED ¥3,000
58313-20300 note Panel, Rear Floor Side, RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,S,SE ¥3,000
58313-20300 Panel, Rear Floor Side, RH
1990-04 → 1992-08 ended
ST170 SGEXT EFI ¥3,000
58313-20300 Panel, Rear Floor Side, RH
1990-03 → 1990-05 ended
AT171 ¥3,000
58313-20300 Panel, Rear Floor Side, RH
1990-03 → 1990-04 ended
CT170 SE;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥3,000
58313-20300 Panel, Rear Floor Side, RH
1988-05 → 1990-03 ended
AT170,171,CT170,ST170 SED ¥3,000
58313-20320 Panel, Rear Floor Side, RH
1988-08 → 1992-08 ended
AT175 ¥4,310
58314 — Panel, Rear Floor Side, LH
58314-20270 Panel, Rear Floor Side, LH
1990-05 → 1992-08 ended
ST170 SE;AT170,171,CT170 SED ¥2,970
58314-20280 Panel, Rear Floor Side, LH
1988-05 → 1990-04 ended
CT170 SE;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥3,000
58314-20280 note Panel, Rear Floor Side, LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,S,SE ¥3,000
58314-20280 Panel, Rear Floor Side, LH
1990-04 → 1992-08 ended
ST170 SGEXT EFI ¥3,000
58314-20280 Panel, Rear Floor Side, LH
1988-05 → 1990-05 ended
AT170,CT170,ST170 SED ¥3,000
58314-20280 Panel, Rear Floor Side, LH
1988-05 → 1990-05 ended
AT171 ¥3,000
58314-20300 Panel, Rear Floor Side, LH
1988-08 → 1992-08 ended
AT175 ¥4,310
58325E — Cover, Rear Floor Service Hole
58325-12020 Cover, Rear Floor Service Hole
1988-05 → 1992-11 ended
CT176,ET176 ¥780
58325-20040 Cover, Rear Floor Service Hole
1988-08 → 1992-08 ended
AT175 ¥1,030
58325-32020 Cover, Rear Floor Service Hole
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥2,050
58365A — Bracket, Fuel Tank Support, RH
58365-32010 Bracket, Fuel Tank Support, RH
1988-08 → 1992-08 ended
AT175 ¥1,090
58366A — Bracket, Fuel Tank Support, LH
58366-20010 Bracket, Fuel Tank Support, LH
1988-08 → 1992-08 ended
AT175 ¥1,280
58367 — Bracket, Fuel Tube Clamp
58367-20040 Bracket, Fuel Tube Clamp
1988-08 → 1992-08 ended
AT175 ¥450
58397C — Cover, Body Lower Back, RH
58397-20070 Cover, Body Lower Back, RH
1988-08 → 1992-08 ended
AT175 ¥5,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
