Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

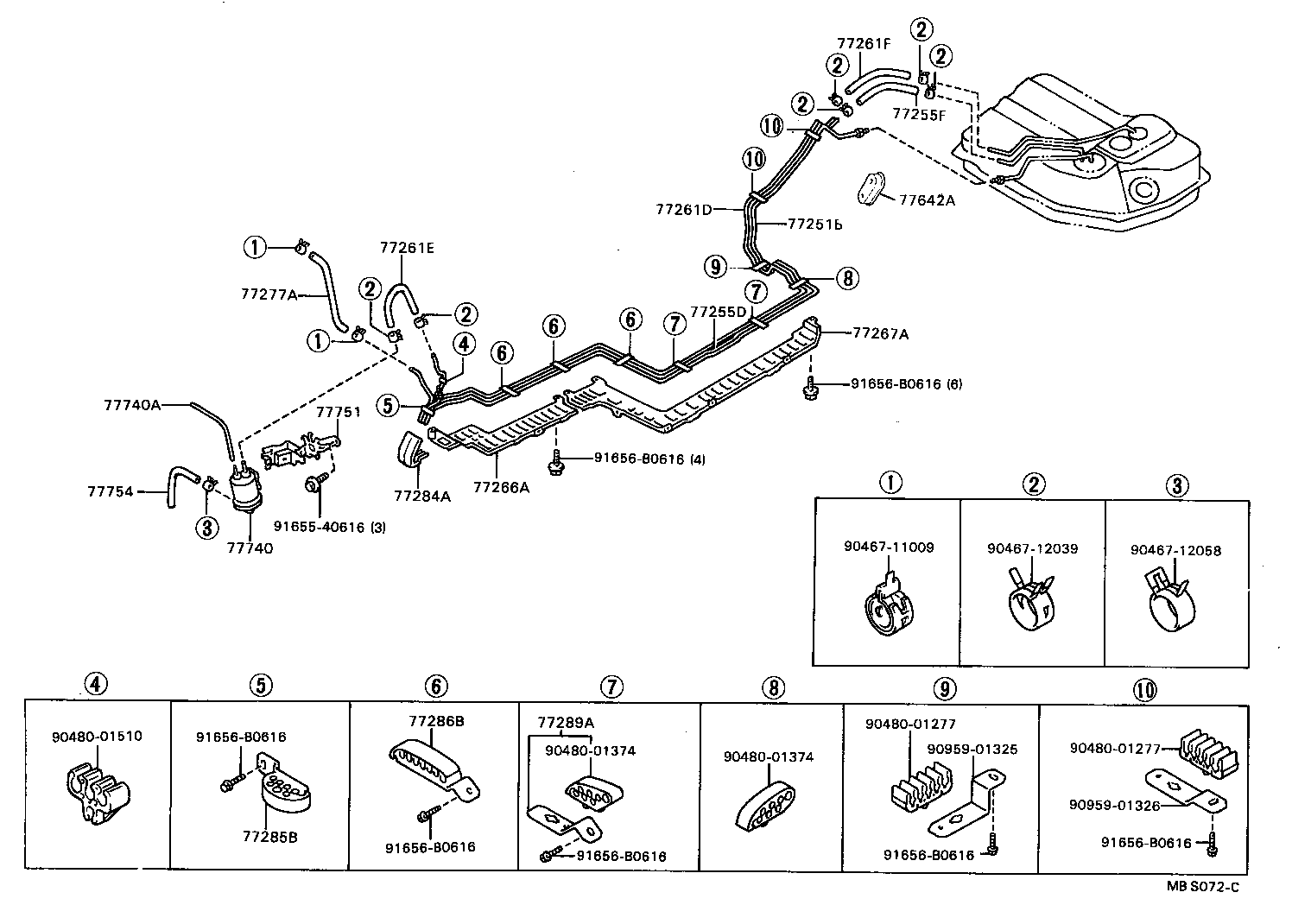

Exploded illustration MBS072C 77261F — HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) (3 parts) 77255F — HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) (6 parts) 77642A — PROTECTOR, FUEL TANK, NO.2 (1 parts) 77261D — TUBE, FUEL TANK TO CANISTER (5 parts) 77251B — TUBE, FUEL MAIN (6 parts) 77261E — HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) (4 parts) 77277A — HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) (9 parts) 77255D — TUBE, FUEL RETURN (6 parts) 77267A — PROTECTOR, FUEL TUBE, NO.2 (3 parts) 91656B0616 — not listed in this catalogue 77740A — HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) (4 parts) 77751 — BRACKET, CHARCOAL CANISTER BASE (4 parts) 91656B0616 — not listed in this catalogue 77266A — PROTECTOR, FUEL TUBE, NO.1 (2 parts) 77754 — HOSE, CHARCOAL CANISTER OUTLET, NO.1 (5 parts) 77284A — PROTECTOR, FUEL TUBE, NO.3 (1 parts) 9165540616 — not listed in this catalogue 9046711009 — not listed in this catalogue 77740 — CANISTER ASSY, CHARCOAL (5 parts) 9046712039 — not listed in this catalogue 9046712058 — not listed in this catalogue 77286B — CLAMP, FUEL TUBE W/GROMMET, NO.2 (1 parts) 77289A — CLAMP, FUEL TUBE W/GROMMET, NO.3 (1 parts) 9048001277 — not listed in this catalogue 9048001510 — not listed in this catalogue 91656B0616 — not listed in this catalogue 9048001277 — not listed in this catalogue 9095901325 — not listed in this catalogue 9048001374 — not listed in this catalogue 9048001374 — not listed in this catalogue 9095901326 — not listed in this catalogue 77285B — CLAMP, FUEL TUBE W/GROMMET, NO.1 (1 parts) 91656B0616 — not listed in this catalogue 91656B0616 — not listed in this catalogue 91656B0616 — not listed in this catalogue 91656B0616 — not listed in this catalogue
MBS072C · 18 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-20480 Tube, Fuel Main
1988-05 → 1992-11 ended
CT170 ¥3,450
77251-20500 Tube, Fuel Main
1988-05 → 1992-11 ended
AT170,171,ST170 CI,EFI,EFIS ¥3,810
77251-20520 Tube, Fuel Main
1988-05 → 1990-05 ended
AT170 ¥2,870
77251-20570 Tube, Fuel Main
1988-08 → 1992-08 ended
AT175 ¥6,400
77251-95500 Tube, Fuel Main
1988-05 → 1992-11 ended
CT176 ¥3,330
77251-95503 Tube, Fuel Main
1988-05 → 1992-11 ended
ET176 ¥2,930
77255D — Tube, Fuel Return
77255-20380 Tube, Fuel Return
1988-05 → 1990-05 ended
AT170 ¥2,170
77255-20390 Tube, Fuel Return
1988-05 → 1992-11 ended
CT170,ST170 ¥2,860
77255-20430 Tube, Fuel Return
1988-08 → 1992-08 ended
AT175 ¥4,770
77255-20440 Tube, Fuel Return
1988-05 → 1992-11 ended
AT170,171 EFI,EFIS ¥2,860
77255-95506 Tube, Fuel Return
1988-05 → 1992-11 ended
CT176 ¥2,820
77255-95509 Tube, Fuel Return
1988-05 → 1992-11 ended
ET176 ¥2,210
77255F — Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
95333-04020 note Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1988-05 → 1990-05 ended
AT170 ¥510
95333-04020 note Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1988-05 → 1992-05 ended
ET176 ¥510
95333-06020 note Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1988-05 → 1992-11 ended
CT170 ¥480
95333-06020 note Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1988-05 → 1992-11 ended
CT176 ¥480
95333-06030 note Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1988-08 → 1992-08 ended
AT175 ¥580
95334-04013 note Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1992-09 → 1992-11 ended
ET176 ¥200
77261D — Tube, Fuel Tank TO Canister
77261-20130 Tube, Fuel Tank TO Canister
1988-05 → 1990-05 ended
AT170 ¥2,920
77261-20170 Tube, Fuel Tank TO Canister
1988-05 → 1992-11 ended
ST170 ¥2,890
77261-20190 Tube, Fuel Tank TO Canister
1988-08 → 1992-08 ended
AT175 ¥4,980
77261-20220 Tube, Fuel Tank TO Canister
1988-05 → 1992-11 ended
AT170,171 EFI,EFIS ¥2,930
77261-95502 Tube, Fuel Tank TO Canister
1988-05 → 1992-11 ended
CT176,ET176 ¥2,780
77261E — Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-20060 note Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
1988-08 → 1992-08 ended
AT175 ¥680
77259-20080 Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
1988-05 → 1992-11 ended
AT170,171 EFI,EFIS ¥2,080
95333-06030 note Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
1988-05 → 1992-11 ended
CT176 ¥580
95333-06030 note Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
1988-05 → 1992-11 ended
ST170;AT170,ET176 CBR ¥580
77261F — Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020 note Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
1988-08 → 1992-08 ended
AT175 ¥480
95333-06020 note Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
1988-05 → 1992-11 ended
CT176,ET176 ¥480
95333-06020 note Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
1988-05 → 1992-11 ended
AT170,171,ST170 ¥480
77266A — Protector, Fuel Tube, NO.1
77266-20090 Protector, Fuel Tube, NO.1
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥1,130
77267-20040 Protector, Fuel Tube, NO.1
1988-08 → 1992-08 ended
AT175 ¥1,160
77267A — Protector, Fuel Tube, NO.2
77266-20080 Protector, Fuel Tube, NO.2
1988-08 → 1992-08 ended
AT175 ¥1,610
77267-20050 Protector, Fuel Tube, NO.2
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥1,350
77267-20080 Protector, Fuel Tube, NO.2
1988-05 → 1992-11 ended
CT176,ET176 ¥1,350
77277A — Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
23271-15220 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1988-05 → 1990-05 ended
AT170 ¥1,260
23271-64130 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1988-05 → 1992-11 ended
CT17# ¥790
23271-74190 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1990-05 → 1992-11 ended
ST170 ¥860
90447-12043 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1988-05 → 1992-08 ended
AT171,175 S,SE,SG,SGEXT ¥980
90447-12085 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1988-05 → 1992-02 ended
ST170 CI;AT170 EFI ¥880
90447-12091 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1988-05 → 1989-05 ended
AT171 GLIM ¥1,600
90447-12117 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1989-05 → 1992-08 ended
AT171 GLIM ¥1,510
90447-12141 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1992-02 → 1992-11 ended
AT170 ¥920
95333-04046 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1988-05 → 1992-11 ended
ET176 ¥790
77284A — Protector, Fuel Tube, NO.3
77284-20050 Protector, Fuel Tube, NO.3
1988-08 → 1992-08 ended
AT175 ¥940
77285B — Clamp, Fuel Tube W/Grommet, NO.1
77285-20050 Clamp, Fuel Tube W/Grommet, NO.1
1988-08 → 1992-08 ended
AT175 ¥400
77286B — Clamp, Fuel Tube W/Grommet, NO.2
77286-20030 Clamp, Fuel Tube W/Grommet, NO.2
1988-08 → 1992-08 ended
AT175 ¥400
77289A — Clamp, Fuel Tube W/Grommet, NO.3
77289-20010 Clamp, Fuel Tube W/Grommet, NO.3
1988-08 → 1992-08 ended
AT175 ¥400
77642A — Protector, Fuel Tank, NO.2
77642-20020 Protector, Fuel Tank, NO.2
1988-08 → 1992-08 ended
AT175 ¥1,160
77740 — Canister Assy, Charcoal
77704-12361 Canister Assy, Charcoal
1988-05 → 1990-05 ended
AT170 ¥9,400
77704-12450 Canister Assy, Charcoal
1988-08 → 1992-08 ended
AT175 ¥9,400
77704-20250 Canister Assy, Charcoal
1988-05 → 1992-11 ended
ET176 ¥9,400
77704-32020 Canister Assy, Charcoal
1988-05 → 1992-11 ended
ST170 ¥9,400
77704-60050 Canister Assy, Charcoal
1988-05 → 1992-11 ended
AT170,171 EFI,EFIS ¥7,900
77740A — Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
90447-04061 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1990-05 → 1992-11 ended
AT170,171 DX,S,SE,SG,SGEXT,SV ¥310
90447-04091 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1989-07 → 1992-08 ended
AT171,175 (S,SE,SG,SGEXT) EFI ¥350
90999-92003 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1988-05 → 1992-08 ended
AT171 GLIM ¥520
95413-49948 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1988-05 → 1989-07 ended
AT171,175 S,SG,SGEXT ¥370
77751 — Bracket, Charcoal Canister Base
77750-20010 Bracket, Charcoal Canister Base
1988-08 → 1992-08 ended
AT175 ¥1,830
77751-20110 Bracket, Charcoal Canister Base
1988-05 → 1992-11 ended
ST170 ¥1,950
77751-20180 Bracket, Charcoal Canister Base
1988-05 → 1992-11 ended
AT170,171 EFI,EFIS ¥2,080
77751-20190 Bracket, Charcoal Canister Base
1988-05 → 1992-11 ended
AT170,ET176 CBR ¥1,950
77754 — Hose, Charcoal Canister Outlet, NO.1
77754-20011 Hose, Charcoal Canister Outlet, NO.1
1988-05 → 1992-11 ended
ST170 ¥740
77754-20040 Hose, Charcoal Canister Outlet, NO.1
1988-05 → 1990-05 ended
AT170 ¥740
77754-20080 Hose, Charcoal Canister Outlet, NO.1
1988-05 → 1992-11 ended
AT170,171 EFI,EFIS ¥990
77754-20090 Hose, Charcoal Canister Outlet, NO.1
1988-08 → 1992-08 ended
AT175 ¥620
95333-08030 note Hose, Charcoal Canister Outlet, NO.1
1988-05 → 1992-11 ended
ET176 ¥660
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
