Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

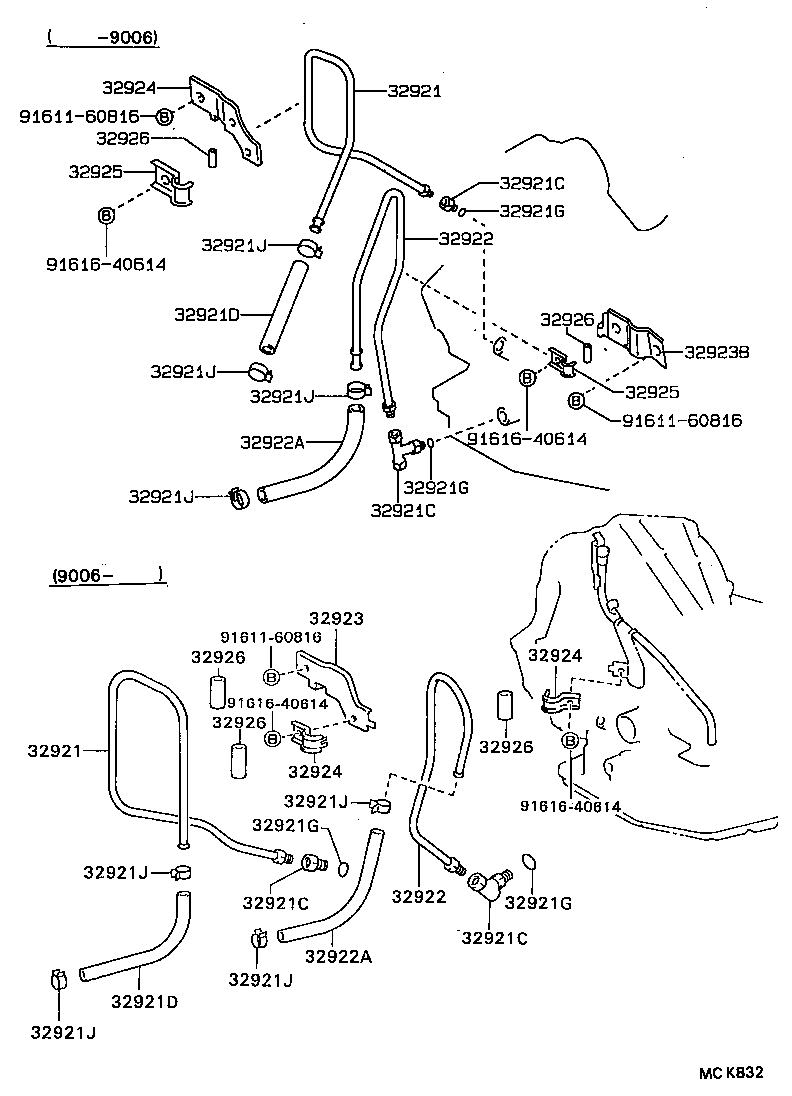

Exploded illustration MCK832 32924 — CLAMP, OIL COOLER TUBE, NO.2 (8 parts) 32921 — TUBE, OIL COOLER INLET, NO.1 (12 parts) 9161160816 — not listed in this catalogue 32926 — CUSHION, OIL COOLER TUBE(ATM) (5 parts) 32925 — CLAMP, OIL COOLER TUBE, NO.3 (1 parts) 32921C — UNION(FOR OIL COOLER TUBE) (5 parts) 32921G — RING, O(FOR OIL COOLER TUBE UNION) (3 parts) 32922 — TUBE, OIL COOLER OUTLET, NO.1 (12 parts) 32921J — CLIP(FOR OIL COOLER HOSE) (1 parts) 9161640614 — not listed in this catalogue 32921D — HOSE(FOR OIL COOLER INLET) (11 parts) 32926 — CUSHION, OIL COOLER TUBE(ATM) (5 parts) 32923B — CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 (6 parts) 32921J — CLIP(FOR OIL COOLER HOSE) (1 parts) 32925 — CLAMP, OIL COOLER TUBE, NO.3 (1 parts) 32921J — CLIP(FOR OIL COOLER HOSE) (1 parts) 9161160816 — not listed in this catalogue 9161640614 — not listed in this catalogue 32922A — HOSE(FOR OIL COOLER OUTLET) (6 parts) 32921G — RING, O(FOR OIL COOLER TUBE UNION) (3 parts) 32921J — CLIP(FOR OIL COOLER HOSE) (1 parts) 32921C — UNION(FOR OIL COOLER TUBE) (5 parts) 32923 — CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE (1 parts) 9161160816 — not listed in this catalogue 32924 — CLAMP, OIL COOLER TUBE, NO.2 (8 parts) 32926 — CUSHION, OIL COOLER TUBE(ATM) (5 parts) 9161640614 — not listed in this catalogue 32926 — CUSHION, OIL COOLER TUBE(ATM) (5 parts) 32926 — CUSHION, OIL COOLER TUBE(ATM) (5 parts) 32921 — TUBE, OIL COOLER INLET, NO.1 (12 parts) 32924 — CLAMP, OIL COOLER TUBE, NO.2 (8 parts) 32921J — CLIP(FOR OIL COOLER HOSE) (1 parts) 9161640614 — not listed in this catalogue 32921G — RING, O(FOR OIL COOLER TUBE UNION) (3 parts) 32921J — CLIP(FOR OIL COOLER HOSE) (1 parts) 32922 — TUBE, OIL COOLER OUTLET, NO.1 (12 parts) 32921C — UNION(FOR OIL COOLER TUBE) (5 parts) 32921G — RING, O(FOR OIL COOLER TUBE UNION) (3 parts) 32921C — UNION(FOR OIL COOLER TUBE) (5 parts) 32922A — HOSE(FOR OIL COOLER OUTLET) (6 parts) 32921J — CLIP(FOR OIL COOLER HOSE) (1 parts) 32921D — HOSE(FOR OIL COOLER INLET) (11 parts) 32921J — CLIP(FOR OIL COOLER HOSE) (1 parts)
MCK832 · 36 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
71 parts on this figure
Part number Description Fitment Price
32921 — Tube, Oil Cooler Inlet, NO.1
32921-12261 Tube, Oil Cooler Inlet, NO.1
1990-05 → 1992-08 ended
AT175 4FC ¥980
32921-12350 Tube, Oil Cooler Inlet, NO.1
1988-05 → 1989-10 ended
AT170,171 4FC ¥1,000
32921-12351 Tube, Oil Cooler Inlet, NO.1
1989-10 → 1992-11 ended
AT170,171 4FC ¥1,260
32921-12370 Tube, Oil Cooler Inlet, NO.1
1988-05 → 1989-10 ended
ET176 3FC ¥1,150
32921-12371 Tube, Oil Cooler Inlet, NO.1
1989-10 → 1992-11 ended
ET176 3FC ¥980
32921-20220 Tube, Oil Cooler Inlet, NO.1
1988-05 → 1990-02 ended
CT17# 4FC ¥1,360
32921-20221 Tube, Oil Cooler Inlet, NO.1
1990-02 → 1992-11 ended
CT17# 4FC ¥660
32921-20290 Tube, Oil Cooler Inlet, NO.1
1990-02 → 1992-11 ended
ST170 4FC EFI ¥670
32921-20290 Tube, Oil Cooler Inlet, NO.1
1988-05 → 1990-02 ended
ST170 4FC ¥670
32921-20291 Tube, Oil Cooler Inlet, NO.1
1990-02 → 1990-05 ended
ST170 4FC ¥660
32921-20300 Tube, Oil Cooler Inlet, NO.1
1988-08 → 1989-10 ended
AT175 4FC ¥990
32921-20301 Tube, Oil Cooler Inlet, NO.1
1989-10 → 1990-05 ended
AT175 4FC ¥1,000
32921C — Union(FOR OIL COOLER TUBE)
32901-32010 note Union(FOR OIL COOLER TUBE)
1988-05 → 1992-11 ended
ST170 4FC ¥3,760
90404-14007 note Union(FOR OIL COOLER TUBE)
1988-05 → 1992-11 ended
AT175,ET176,ST170 ATM ¥500
90404-14007 Union(FOR OIL COOLER TUBE)
1988-05 → 1992-11 ended
AT170,171,CT17# 4FC ¥500
90407-14003 note Union(FOR OIL COOLER TUBE)
1988-05 → 1992-11 ended
ET176 3FC ¥1,720
90407-16015 note Union(FOR OIL COOLER TUBE)
1988-08 → 1992-08 ended
AT175 4FC ¥680
32921D — Hose(FOR OIL COOLER INLET)
32941-12131 Hose(FOR OIL COOLER INLET)
1988-05 → 1992-11 ended
ET176 3FC ¥2,420
32941-12141 Hose(FOR OIL COOLER INLET)
1990-05 → 1992-08 ended
AT175 4FC ¥2,320
32941-12191 Hose(FOR OIL COOLER INLET)
1990-05 → 1992-08 ended
AT171 4FC EFIS ¥2,620
32941-20151 Hose(FOR OIL COOLER INLET)
1988-05 → 1992-11 ended
AT170,171 4FC (DX,S,SE,SG,SGEXT,SV) (CBR,EFI) ¥2,030
32941-20171 Hose(FOR OIL COOLER INLET)
1988-05 → 1992-08 ended
AT171 4FC GLIM ¥2,470
32941-20191 Hose(FOR OIL COOLER INLET)
1988-08 → 1990-05 ended
AT175 4FC ¥2,320
90445-15020 Hose(FOR OIL COOLER INLET)
1990-05 → 1992-11 ended
ST170 4FC ¥580
90445-15039 Hose(FOR OIL COOLER INLET)
1988-05 → 1989-11 ended
CT170 4FC ¥920
90445-15042 Hose(FOR OIL COOLER INLET)
1990-02 → 1990-05 ended
ST170 4FC ¥710
90445-15058 Hose(FOR OIL COOLER INLET)
1989-11 → 1992-11 ended
CT17# 4FC ¥900
90445-16026 Hose(FOR OIL COOLER INLET)
1988-05 → 1990-02 ended
ST170 4FC ¥1,000
32921G — Ring, O(FOR OIL COOLER TUBE UNION)
90301-10189 note Ring, O(FOR OIL COOLER TUBE UNION)
1988-05 → 1992-11 ended
AT175 4FC ¥170
90301-10189 Ring, O(FOR OIL COOLER TUBE UNION)
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ATM ¥170
90301-15004 note Ring, O(FOR OIL COOLER TUBE UNION)
1988-08 → 1992-08 ended
AT175 4FC ¥160
32921J — Clip(FOR OIL COOLER HOSE)
90467-13039 Clip(FOR OIL COOLER HOSE)
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ATM ¥100
32922 — Tube, Oil Cooler Outlet, NO.1
32922-12200 Tube, Oil Cooler Outlet, NO.1
1988-05 → 1989-10 ended
ET176 3FC ¥1,150
32922-12201 Tube, Oil Cooler Outlet, NO.1
1989-10 → 1992-11 ended
ET176 3FC ¥980
32922-12230 Tube, Oil Cooler Outlet, NO.1
1988-08 → 1989-10 ended
AT175 4FC ¥670
32922-12231 Tube, Oil Cooler Outlet, NO.1
1989-10 → 1992-08 ended
AT175 4FC ¥980
32922-20210 Tube, Oil Cooler Outlet, NO.1
1988-05 → 1990-02 ended
CT17# 4FC ¥1,210
32922-20211 Tube, Oil Cooler Outlet, NO.1
1990-02 → 1992-11 ended
CT17# 4FC ¥660
32922-20270 Tube, Oil Cooler Outlet, NO.1
1988-05 → 1989-10 ended
AT170,171 4FC ¥670
32922-20271 Tube, Oil Cooler Outlet, NO.1
1989-10 → 1992-11 ended
AT170,171 4FC ¥980
32922-20320 Tube, Oil Cooler Outlet, NO.1
1990-05 → 1992-11 ended
ST170 4FC ¥670
32922-32040 Tube, Oil Cooler Outlet, NO.1
1988-05 → 1989-02 ended
ST170 4FC ¥1,150
32922-32041 Tube, Oil Cooler Outlet, NO.1
1989-02 → 1990-03 ended
ST170 4FC ¥1,020
32922-32042 Tube, Oil Cooler Outlet, NO.1
1990-03 → 1990-05 ended
ST170 4FC ¥1,000
32922A — Hose(FOR OIL COOLER OUTLET)
90445-15020 Hose(FOR OIL COOLER OUTLET)
1990-05 → 1992-11 ended
CT17# 4FC ¥580
90445-15027 Hose(FOR OIL COOLER OUTLET)
1988-05 → 1989-10 ended
AT170,171 4FC ¥800
90445-15050 Hose(FOR OIL COOLER OUTLET)
1988-05 → 1992-11 ended
ET176 3FC ¥540
90445-15051 Hose(FOR OIL COOLER OUTLET)
1988-08 → 1992-11 ended
AT175,ST170 4FC EFI ¥870
90445-15052 Hose(FOR OIL COOLER OUTLET)
1989-10 → 1992-11 ended
AT170,171 4FC ¥850
90445-16026 Hose(FOR OIL COOLER OUTLET)
1988-05 → 1990-05 ended
CT17#,ST170 4FC ¥1,000
32923 — Clamp, Automatic Transmission Oil Cooler Tube
32923-20111 Clamp, Automatic Transmission Oil Cooler Tube
1990-05 → 1992-11 ended
ST170 4FC ¥850
32923B — Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923-12110 Clamp, Automatic Transmission Oil Cooler Tube, NO.1
1988-05 → 1992-11 ended
ET176 3FC ¥810
32923-12150 Clamp, Automatic Transmission Oil Cooler Tube, NO.1
1988-05 → 1990-05 ended
AT170,171 4FC ¥860
32923-12150 Clamp, Automatic Transmission Oil Cooler Tube, NO.1
1990-05 → 1991-10 ended
AT17# 4FC ¥860
32923-20090 Clamp, Automatic Transmission Oil Cooler Tube, NO.1
1988-05 → 1990-05 ended
ST170 4FC ¥780
32923-20100 Clamp, Automatic Transmission Oil Cooler Tube, NO.1
1988-08 → 1990-05 ended
AT175 4FC ¥870
32923-20140 Clamp, Automatic Transmission Oil Cooler Tube, NO.1
1991-10 → 1992-11 ended
AT17# 4FC ¥600
32924 — Clamp, Oil Cooler Tube, NO.2
32923-20110 Clamp, Oil Cooler Tube, NO.2
1989-09 → 1989-10 ended
ST170 4FC ¥860
32923-20111 Clamp, Oil Cooler Tube, NO.2
1989-10 → 1990-05 ended
ST170 4FC ¥850
32923-32021 Clamp, Oil Cooler Tube, NO.2
1988-05 → 1989-09 ended
ST170 4FC ¥680
32924-20070 Clamp, Oil Cooler Tube, NO.2
1990-05 → 1992-11 ended
ST170 4FC ¥360
90462-10082 Clamp, Oil Cooler Tube, NO.2
1988-05 → 1990-05 ended
AT175,CT17#,ET176 ATM ¥80
90462-10082 Clamp, Oil Cooler Tube, NO.2
1990-05 → 1992-11 ended
CT17#,ET176 ATM ¥80
90462-12085 Clamp, Oil Cooler Tube, NO.2
1988-05 → 1990-05 ended
AT170,171 4FC ¥220
90462-12085 Clamp, Oil Cooler Tube, NO.2
1990-05 → 1992-11 ended
AT17# 4FC ¥220
32925 — Clamp, Oil Cooler Tube, NO.3
90462-10082 Clamp, Oil Cooler Tube, NO.3
1988-05 → 1990-05 ended
ST170 4FC ¥80
32926 — Cushion, Oil Cooler Tube(ATM)
32926-22010 note Cushion, Oil Cooler Tube(ATM)
1988-11 → 1990-05 ended
AT175 4FC ¥230
32926-22010 note Cushion, Oil Cooler Tube(ATM)
1990-05 → 1992-08 ended
AT175 4FC ¥230
32926-30011 note Cushion, Oil Cooler Tube(ATM)
1988-05 → 1988-11 ended
AT17#,CT170,ET176 ATM ¥200
32926-30011 note Cushion, Oil Cooler Tube(ATM)
1988-05 → 1990-05 ended
ST170 4FC ¥200
32926-30011 note Cushion, Oil Cooler Tube(ATM)
1988-11 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ATM (CBR,DSL,EFI,EFIS) ¥200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
