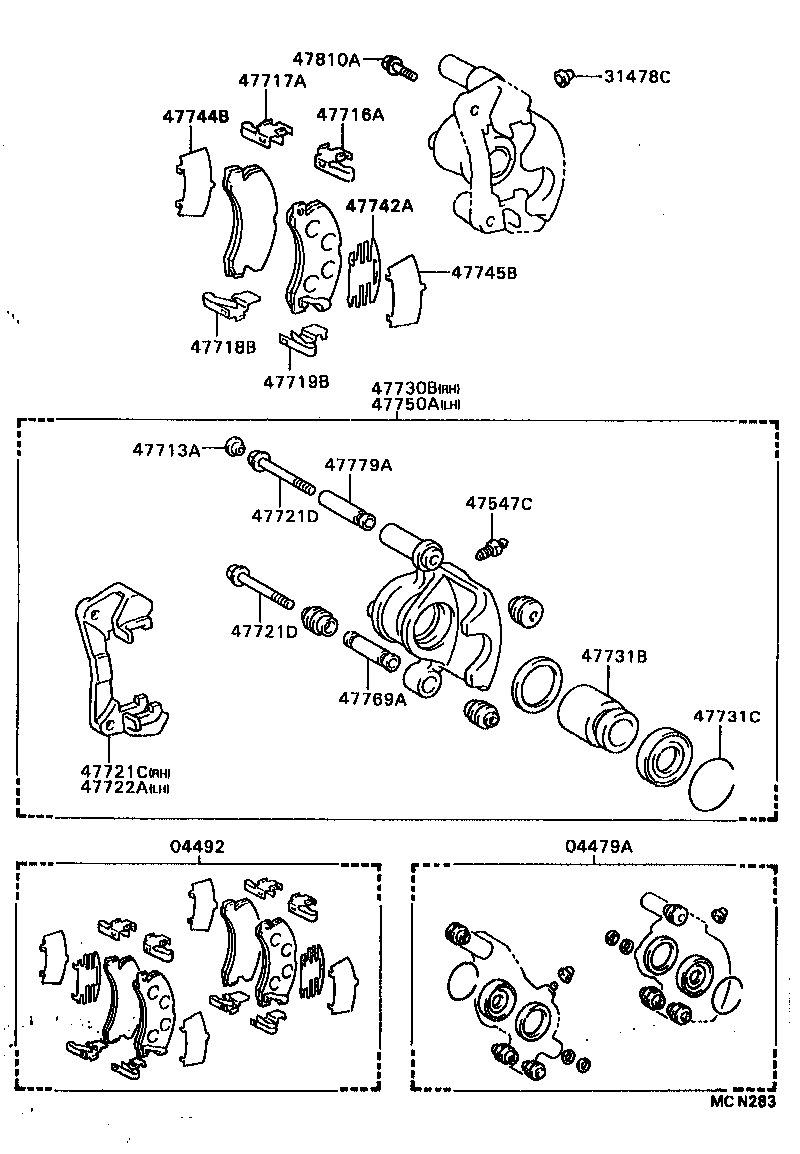

Exploded illustration MCN283 47810A — BOLT, HEXAGON(FOR REAR CALIPER) (2 parts) 31478C — CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) (1 parts) 47717A — PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) (2 parts) 47716A — PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) (2 parts) 47744B — SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE) (2 parts) 47742A — SHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE) (2 parts) 47745B — SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) (2 parts) 47718B — PLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE) (1 parts) 47719B — PLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE) (1 parts) 47730B — CYLINDER ASSY, REAR DISC BRAKE, RH (3 parts) 47750A — CYLINDER ASSY, DISC BRAKE, REAR LH (3 parts) 47713A — PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER) (1 parts) 47779A — BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) (2 parts) 47547C — PLUG, BLEEDER(FOR REAR DISC BRAKE) (1 parts) 47721D — BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) (4 parts) 47721D — BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) (4 parts) 47731B — PISTON, REAR DISC BRAKE (2 parts) 47769A — BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) (2 parts) 47731C — RING, SET(FOR REAR DISC BRAKE PISTON) (2 parts) 47721C — MOUNTING, REAR DISC BRAKE CYLINDER, RH (3 parts) 47722A — MOUNTING, REAR DISC BRAKE CYLINDER, LH (3 parts) 04492 — PAD KIT, DISC BRAKE, REAR (5 parts) 04479A — CYLINDER KIT, DISC BRAKE, REAR (2 parts)
MCN283 · 23 callouts Full size ↗
48 parts on this figure
Part number Description Fitment Price
04479A — Cylinder Kit, Disc Brake, Rear
04479-20090 Cylinder Kit, Disc Brake, Rear
1988-05 → 1992-08 ended
AT171 GLIM ¥2,400
04479-20120 Cylinder Kit, Disc Brake, Rear
1988-08 → 1992-08 ended
AT175 ¥2,600
04492 — Pad Kit, Disc Brake, Rear
04492-20040 Pad Kit, Disc Brake, Rear
1988-05 → 1988-12 ended
AT171 GLIM ¥9,700
04492-20050 Pad Kit, Disc Brake, Rear
1988-08 → 1991-06 ended
AT175 ¥8,800
04492-20060 Pad Kit, Disc Brake, Rear
1988-12 → 1991-06 ended
AT171 GLIM ¥8,800
04492-20070 Pad Kit, Disc Brake, Rear
1991-06 → 1992-08 ended
AT171 EFI ¥10,000
04492-32061 Pad Kit, Disc Brake, Rear
1991-06 → 1992-08 ended
AT175 ¥9,600
31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR REAR DISC BRAKE)
1988-05 → 1992-08 ended
AT171,175 GLIM,SE,SG,SGEXT ¥160
47547C — Plug, Bleeder(FOR REAR DISC BRAKE)
47547-20010 Plug, Bleeder(FOR REAR DISC BRAKE)
1988-05 → 1992-08 ended
AT171,175 GLIM,SE,SG,SGEXT ¥200
47713A — Plug, Hole(FOR REAR DISC BRAKE CYLINDER)
90950-01538 Plug, Hole(FOR REAR DISC BRAKE CYLINDER)
1988-08 → 1992-08 ended
AT175 ¥200
47716A — Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
47716-32020 Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
1988-08 → 1991-06 ended
AT175 ¥400
47716-32020 Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
1991-06 → 1992-08 ended
AT175 ¥400
47717A — Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
47717-32020 Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
1991-06 → 1992-08 ended
AT175 ¥400
47717-32020 Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
1988-08 → 1991-06 ended
AT175 ¥400
47718B — Plate, Pad Support, NO.3(FOR REAR DISK BRAKE)
47718-32010 Plate, Pad Support, NO.3(FOR REAR DISK BRAKE)
1991-06 → 1992-08 ended
AT175 ¥440
47719B — Plate, Pad Support, NO.4(FOR REAR DISK BRAKE)
47719-32010 Plate, Pad Support, NO.4(FOR REAR DISK BRAKE)
1991-06 → 1992-08 ended
AT175 ¥440
47721C — Mounting, Rear Disc Brake Cylinder, RH
47721-20130 Mounting, Rear Disc Brake Cylinder, RH
1988-05 → 1992-08 ended
AT171 GLIM ¥6,200
47721-32040 Mounting, Rear Disc Brake Cylinder, RH
1988-08 → 1991-06 ended
AT175 ¥3,920
47721-32130 Mounting, Rear Disc Brake Cylinder, RH
1991-06 → 1992-08 ended
AT175 ¥3,920
47721D — Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08133 note Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
1988-08 → 1992-08 ended
AT175 ¥190
90109-08098 note Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
1988-05 → 1992-08 ended
AT171 GLIM ¥500
90119-08431 note Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
1988-05 → 1992-08 ended
AT171 GLIM ¥220
90119-08547 note Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
1988-08 → 1992-08 ended
AT175 ¥240
47722A — Mounting, Rear Disc Brake Cylinder, LH
47721-20130 Mounting, Rear Disc Brake Cylinder, LH
1988-05 → 1992-08 ended
AT171 GLIM ¥6,200
47721-32040 Mounting, Rear Disc Brake Cylinder, LH
1988-08 → 1991-06 ended
AT175 ¥3,920
47721-32130 Mounting, Rear Disc Brake Cylinder, LH
1991-06 → 1992-08 ended
AT175 ¥3,920
47730B — Cylinder Assy, Rear Disc Brake, RH
47730-20230 Cylinder Assy, Rear Disc Brake, RH
1988-05 → 1992-08 ended
AT171 GLIM ¥43,200
47730-20260 Cylinder Assy, Rear Disc Brake, RH
1988-08 → 1991-06 ended
AT175 ¥41,400
47730-32150 Cylinder Assy, Rear Disc Brake, RH
1991-06 → 1992-08 ended
AT175 ¥41,600
47731B — Piston, Rear Disc Brake
47731-20110 Piston, Rear Disc Brake
1988-05 → 1992-08 ended
AT171 GLIM ¥2,300
47731-20130 Piston, Rear Disc Brake
1988-08 → 1992-08 ended
AT175 ¥2,400
47731C — Ring, Set(FOR REAR DISC BRAKE PISTON)
90522-43003 Ring, Set(FOR REAR DISC BRAKE PISTON)
1988-08 → 1992-08 ended
AT175 ¥260
90522-45001 Ring, Set(FOR REAR DISC BRAKE PISTON)
1988-05 → 1992-08 ended
AT171 GLIM ¥170
47742A — Shim, Anti-squeal, NO.3(FOR REAR DISC BRAKE)
47742-32031 Shim, Anti-squeal, NO.3(FOR REAR DISC BRAKE)
1988-05 → 1991-06 ended
AT171,175 GLIM,SE,SG,SGEXT ¥280
47742-32090 Shim, Anti-squeal, NO.3(FOR REAR DISC BRAKE)
1991-06 → 1992-08 ended
AT171,175 EFI ¥280
47744B — Shim, Anti-squeal(FOR REAR DISC BRAKE)
47744-12071 Shim, Anti-squeal(FOR REAR DISC BRAKE)
1988-08 → 1992-08 ended
AT171 GLIM ¥930
47744-32021 Shim, Anti-squeal(FOR REAR DISC BRAKE)
1988-08 → 1992-08 ended
AT175 ¥260
47745B — Shim, Anti-squeal, NO.2(FOR REAR DISC BRAKE)
47745-32030 Shim, Anti-squeal, NO.2(FOR REAR DISC BRAKE)
1988-05 → 1991-06 ended
AT171,175 GLIM,SE,SG,SGEXT ¥280
47745-32090 Shim, Anti-squeal, NO.2(FOR REAR DISC BRAKE)
1991-06 → 1992-08 ended
AT171,175 EFI ¥280
47750A — Cylinder Assy, Disc Brake, Rear LH
47750-20220 Cylinder Assy, Disc Brake, Rear LH
1988-05 → 1992-08 ended
AT171 GLIM ¥43,200
47750-20260 Cylinder Assy, Disc Brake, Rear LH
1988-08 → 1991-06 ended
AT175 ¥41,400
47750-32150 Cylinder Assy, Disc Brake, Rear LH
1991-06 → 1992-08 ended
AT175 ¥41,600
47769A — Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47769-28010 Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
1988-05 → 1992-08 ended
AT171 GLIM ¥680
47769-32020 Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
1988-08 → 1992-08 ended
AT175 ¥590
47779A — Bush, Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
47779-12010 Bush, Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
1988-05 → 1992-08 ended
AT171 GLIM ¥870
47779-32020 Bush, Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
1988-08 → 1992-08 ended
AT175 ¥620
47810A — Bolt, Hexagon(FOR REAR CALIPER)
90119-10379 Bolt, Hexagon(FOR REAR CALIPER)
1988-05 → 1992-08 ended
AT171 GLIM ¥120
90119-10445 Bolt, Hexagon(FOR REAR CALIPER)
1988-08 → 1992-08 ended
AT175 ¥190
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
