Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

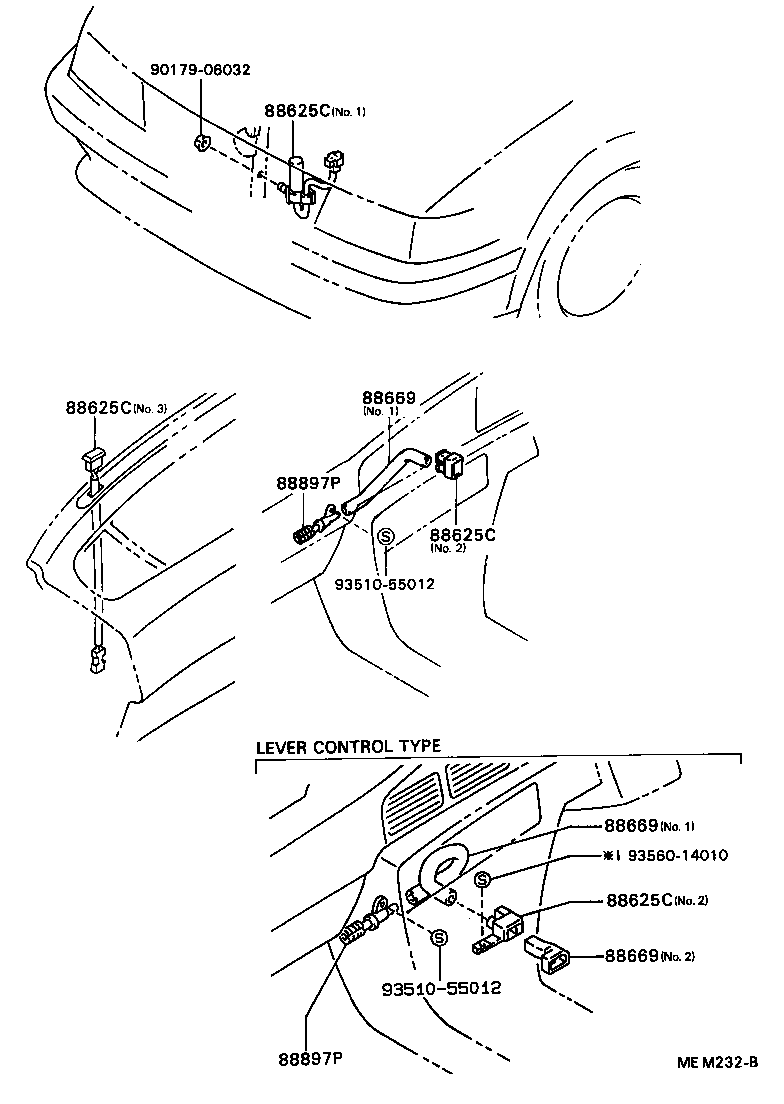

Exploded illustration MEM232B 9017906032 — not listed in this catalogue 88625C — THERMISTOR, COOLER (43 parts) 88669 — HOSE, COOLER AIR (36 parts) 88625C — THERMISTOR, COOLER (43 parts) 88897P — ASPIRATOR (13 parts) 88625C — THERMISTOR, COOLER (43 parts) 9351055012 — not listed in this catalogue 88669 — HOSE, COOLER AIR (36 parts) 9356014010 — not listed in this catalogue 88625C — THERMISTOR, COOLER (43 parts) 88669 — HOSE, COOLER AIR (36 parts) 9351055012 — not listed in this catalogue 88897P — ASPIRATOR (13 parts)
MEM232B · 9 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
92 parts on this figure
Part number Description Fitment Price
88625C — Thermistor, Cooler
88625-20130 note Thermistor, Cooler
1989-04 → 1990-05 ended
ST170 SGEXT —
88625-20130 note Thermistor, Cooler
1990-12 → 1992-11 ended
CT170 SE;AT170,171,ST170 S,SGEXT,SX —
88625-20130 note Thermistor, Cooler
1989-03 → 1990-05 ended
AT170 MTM SG —
88625-20130 note Thermistor, Cooler
1989-03 → 1990-05 ended
CT170 SG —
88625-20130 note Thermistor, Cooler
1990-12 → 1992-08 ended
CT170 SG —
88625-20130 note Thermistor, Cooler
1990-12 → 1992-08 ended
AT175 SE,SGEXT;AT170,171,ST170 GLIM,SE —
88625-20130 note Thermistor, Cooler
1989-03 → 1990-05 ended
AT170 4FC SG —
88625-20130 note Thermistor, Cooler
1988-05 → 1990-12 ended
ST170 SX EFI;AT171,CT170 (S,SE) +1 —
88625-20130 note Thermistor, Cooler
1989-03 → 1989-04 ended
ST170 SGEXT —
88625-20130 note Thermistor, Cooler
1988-05 → 1990-05 ended
AT171 S —
88625-20130 note Thermistor, Cooler
1988-05 → 1990-12 ended
ST170 SE CI;AT17#,ST170 (GLIM,SE,SGEXT) +1 —
88625-20140 note Thermistor, Cooler
1989-03 → 1990-12 ended
ST170 SGEXT CI;AT170,ST170 WG +2 —
88625-20140 note Thermistor, Cooler
1989-03 → 1990-05 ended
AT170 4F SG —
88625-20140 note Thermistor, Cooler
1988-05 → 1989-03 ended
AT17#,ST170 GLIM,SE,SGEXT,SX —
88625-20140 note Thermistor, Cooler
1989-03 → 1990-12 ended
ST170 (SE,SX) CI;AT17#,ST170 (GLIM,SE,SGEXT) +1 —
88625-20140 note Thermistor, Cooler
1990-12 → 1992-08 ended
AT175 SE,SGEXT;AT170,171,ST170 GLIM,SE —
88625-20140 note Thermistor, Cooler
1990-12 → 1992-08 ended
CT170 SG —
88625-20140 note Thermistor, Cooler
1990-12 → 1992-11 ended
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX —
88625-20140 note Thermistor, Cooler
1988-05 → 1989-03 ended
AT171,CT170 S,SE —
88625-20140 note Thermistor, Cooler
1989-03 → 1990-05 ended
CT170 SG —
88625-20140 note Thermistor, Cooler
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG —
88625-20140 note Thermistor, Cooler
1988-05 → 1989-03 ended
AT170 4F SG —
88625-20140 note Thermistor, Cooler
1989-03 → 1990-05 ended
AT170 5F SG —
88625-20140 note Thermistor, Cooler
1989-03 → 1990-05 ended
AT170 4FC SG —
88625-20190 note Thermistor, Cooler
1988-05 → 1989-03 ended
AT171,CT170 S,SE —
88625-20190 note Thermistor, Cooler
1990-12 → 1992-11 ended
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX —
88625-20190 note Thermistor, Cooler
1990-12 → 1992-08 ended
CT170 SG —
88625-20190 note Thermistor, Cooler
1990-12 → 1992-08 ended
AT175 SE,SGEXT;AT170,171,ST170 GLIM,SE —
88625-20190 note Thermistor, Cooler
1988-05 → 1989-03 ended
AT17#,ST170 GLIM,SE,SGEXT,SX —
88625-20190 note Thermistor, Cooler
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG —
88625-20190 note Thermistor, Cooler
1988-05 → 1989-03 ended
AT170 4F SG —
88625-20190 note Thermistor, Cooler
1989-03 → 1990-12 ended
ST170 (SE,SX) CI;AT17#,ST170 (GLIM,SE,SGEXT) +1 —
88625-20190 note Thermistor, Cooler
1989-03 → 1990-12 ended
ST170 SGEXT CI;AT170,ST170 WG +2 —
88625-20190 note Thermistor, Cooler
1989-03 → 1990-05 ended
AT170 5F SG —
88625-20190 note Thermistor, Cooler
1989-03 → 1990-05 ended
CT170 SG —
88625-20190 note Thermistor, Cooler
1989-03 → 1990-05 ended
AT170 4FC SG —
88625-20190 note Thermistor, Cooler
1989-03 → 1990-05 ended
AT170 4F SG —
88625-20220 note Thermistor, Cooler
1988-05 → 1989-03 ended
AT171 S —
88625-20220 note Thermistor, Cooler
1989-03 → 1992-11 ended
ST170 SGEXT CI;AT170,171,CT170 (S,SV) +1 —
88625-20220 note Thermistor, Cooler
1989-03 → 1990-05 ended
ST170 SX —
88625-20220 note Thermistor, Cooler
1988-05 → 1990-05 ended
AT170 4F SG —
88625-20220 note Thermistor, Cooler
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG —
88625-20220 note Thermistor, Cooler
1988-05 → 1989-03 ended
ST170 SGEXT,SX —
88669 — Hose, Cooler Air
88669-20050 note Hose, Cooler Air
1988-05 → 1988-08 ended
AT170 (4FC,5F) SG —
88669-20050 note Hose, Cooler Air
1990-05 → 1992-11 ended
AT170,CT170 SV —
88669-20050 note Hose, Cooler Air
1988-05 → 1990-05 ended
AT171,ST170 S,SGEXT,SX —
88669-20050 note Hose, Cooler Air
1988-05 → 1990-05 ended
AT170 4F SG —
88669-20050 note Hose, Cooler Air
1988-08 → 1990-05 ended
AT170 5F SG —
88669-20050 note Hose, Cooler Air
1988-08 → 1990-05 ended
AT170 4FC SG —
88669-20060 note Hose, Cooler Air
1989-03 → 1992-11 ended
ST170 SGEXT CI;AT170,171,CT170 (S,SV) +1 —
88669-20060 note Hose, Cooler Air
1988-05 → 1989-03 ended
AT171 S —
88669-20060 note Hose, Cooler Air
1989-03 → 1990-05 ended
ST170 SX —
88669-20060 note Hose, Cooler Air
1988-08 → 1990-05 ended
AT170 (4FC,5F) SG —
88669-20060 note Hose, Cooler Air
1988-05 → 1990-05 ended
AT170 4F SG —
88669-20060 note Hose, Cooler Air
1988-05 → 1989-03 ended
ST170 SGEXT,SX —
88669-20060 note Hose, Cooler Air
1988-05 → 1988-08 ended
AT170 4FC SG —
88669-20060 note Hose, Cooler Air
1988-05 → 1988-08 ended
AT170 5F SG —
88669-20080 note Hose, Cooler Air
1990-12 → 1992-08 ended
ST170 SGEXT —
88669-20080 note Hose, Cooler Air
1990-12 → 1992-11 ended
ST170 SX —
88669-20080 note Hose, Cooler Air
1990-12 → 1992-11 ended
AT171 EFIS —
88669-20080 note Hose, Cooler Air
1990-12 → 1992-08 ended
CT170 SG —
88669-20080 note Hose, Cooler Air
1988-05 → 1990-05 ended
ST170 SE;AT17# GLIM,SE,SGEXT —
88669-20080 note Hose, Cooler Air
1990-12 → 1992-08 ended
AT170 SGEXT —
88669-20080 note Hose, Cooler Air
1990-12 → 1992-08 ended
AT170,175 SE —
88669-20080 Hose, Cooler Air
1990-12 → 1992-08 ended
AT171,ST170 GLIM,SE —
88669-20080 note Hose, Cooler Air
1988-05 → 1992-08 ended
CT170 SE —
88669-20080 Hose, Cooler Air
1990-05 → 1990-12 ended
AT171 EFI —
88669-20080 note Hose, Cooler Air
1990-05 → 1990-12 ended
AT170,175,ST170 SE —
88669-20080 note Hose, Cooler Air
1989-03 → 1990-05 ended
CT170 SG —
88669-20080 note Hose, Cooler Air
1989-03 → 1990-05 ended
AT170 MTM SG —
88669-20080 note Hose, Cooler Air
1989-03 → 1990-05 ended
ST170 SGEXT —
88669-20080 Hose, Cooler Air
1989-04 → 1990-05 ended
ST170 SE —
88669-20080 note Hose, Cooler Air
1989-04 → 1990-05 ended
ST170 SGEXT —
88669-20080 note Hose, Cooler Air
1989-05 → 1990-05 ended
ST170 SX —
88669-20080 note Hose, Cooler Air
1988-05 → 1990-12 ended
AT171,ST170 (S,SX) (EFI,EFIS) —
88669-20080 note Hose, Cooler Air
1989-03 → 1990-12 ended
AT170 4FC SG CBR —
88669-20110 Hose, Cooler Air
1990-05 → 1990-11 ended
AT17#,ST170 S,SGEXT,SX —
88669-20120 Hose, Cooler Air
1990-11 → 1992-08 ended
AT17# S,SGEXT —
88669-20120 Hose, Cooler Air
1991-10 → 1992-11 ended
ST170 SGEXT,SX —
88897P — Aspirator
88566-22040 Aspirator
1990-12 → 1992-11 ended
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX —
88566-22040 Aspirator
1990-12 → 1992-08 ended
AT175 SE,SGEXT;AT170,171,ST170 GLIM,SE —
88566-22040 Aspirator
1990-12 → 1992-08 ended
CT170 SG —
88566-22040 Aspirator
1989-03 → 1990-12 ended
ST170 (SE,SX) CI;AT17#,ST170 (GLIM,SE,SGEXT) +1 —
88566-22040 Aspirator
1989-03 → 1990-12 ended
ST170 SGEXT CI;AT170,ST170 WG +2 —
88566-22040 Aspirator
1989-03 → 1990-05 ended
CT170 SG —
88566-22040 Aspirator
1989-03 → 1990-05 ended
AT170 5F SG —
88566-22040 Aspirator
1989-03 → 1990-05 ended
AT170 4FC SG —
88566-22040 Aspirator
1989-03 → 1990-05 ended
AT170 4F SG —
88566-22040 Aspirator
1988-05 → 1989-03 ended
AT17#,ST170 GLIM,SE,SGEXT,SX —
88566-22040 Aspirator
1988-05 → 1989-03 ended
AT171,CT170 S,SE —
88566-22040 Aspirator
1988-05 → 1989-03 ended
AT170 4F SG —
88566-22040 Aspirator
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
