Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

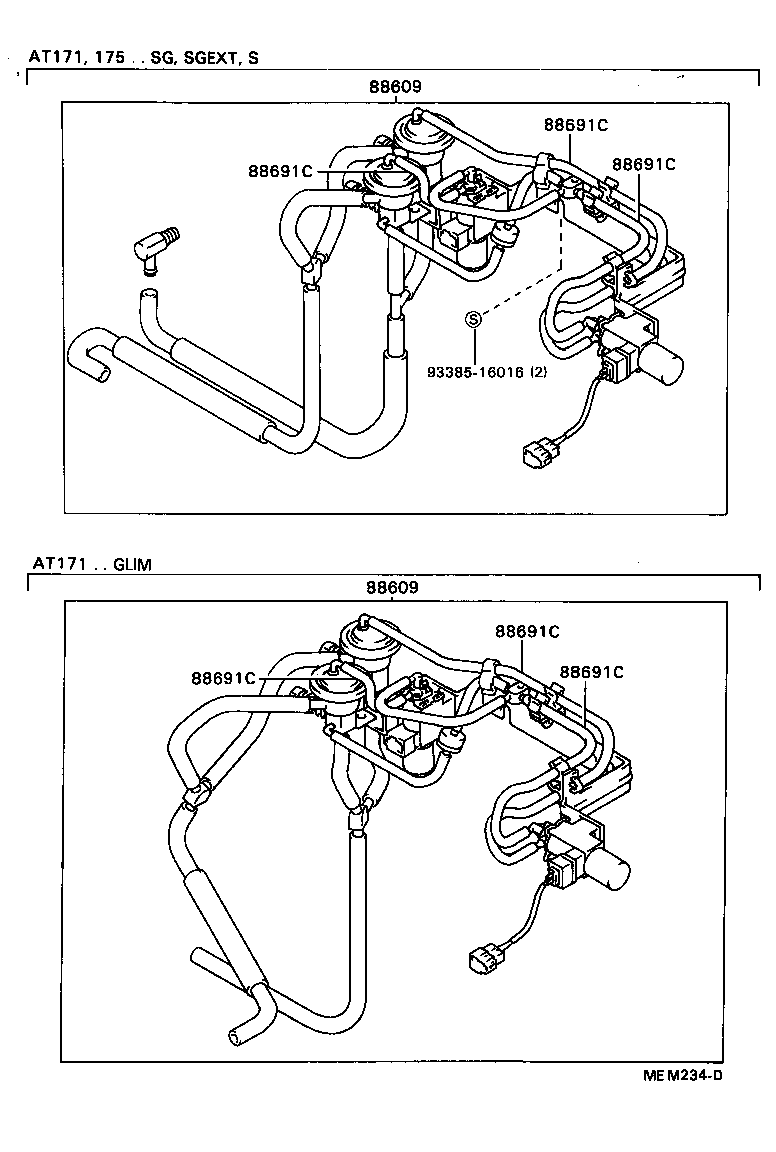

Exploded illustration MEM234D 88609 — DEVICE SUB-ASSY, IDLE UP (8 parts) 88691C — HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 (83 parts) 88691C — HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 (83 parts) 88691C — HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 (83 parts) 9338516016 — not listed in this catalogue 88609 — DEVICE SUB-ASSY, IDLE UP (8 parts) 88691C — HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 (83 parts) 88691C — HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 (83 parts) 88691C — HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 (83 parts)
MEM234D · 8 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
91 parts on this figure
Part number Description Fitment Price
88609 — Device Sub-assy, Idle UP
88609-20290 Device Sub-assy, Idle UP
1990-05 → 1990-12 ended
ST170 SED —
88609-20290 Device Sub-assy, Idle UP
1990-05 → 1990-12 ended
ST170 SX —
88609-20290 Device Sub-assy, Idle UP
1990-12 → 1992-08 ended
ST170 SE —
88609-20290 Device Sub-assy, Idle UP
1990-12 → 1992-11 ended
ST170 SGEXT,SX —
88609-20320 Device Sub-assy, Idle UP
1988-05 → 1992-08 ended
AT171 GLIM —
88609-20340 Device Sub-assy, Idle UP
1988-08 → 1990-05 ended
AT175 —
88609-20340 Device Sub-assy, Idle UP
1988-05 → 1990-05 ended
AT171 S —
88609-20380 Device Sub-assy, Idle UP
1990-05 → 1992-08 ended
AT175 —
88691C — Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
90445-08234 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-12 → 1992-08 ended
CT170 4FC SE ¥930
90445-08234 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-12 → 1992-08 ended
CT170 4FC SG ¥930
90445-08234 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-05 → 1990-12 ended
CT170 SED 4FC ¥930
90445-08260 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
CT170 SE;CT176 5F —
90445-08260 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-12 → 1992-11 ended
CT176;CT170 SE,SV —
90445-08260 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-12 → 1992-08 ended
CT170 SG —
90445-08260 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-05 → 1990-12 ended
CT17# —
90445-08260 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
CT170 SG —
90445-08260 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
CT17# —
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
AT170 4FC SG ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
ST170 ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 4F SG ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-05 → 1992-08 ended
AT171 EFI ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-05 → 1992-08 ended
AT175 ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 4FC SG ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 4FC SG ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
ST170 SE,SX ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
ST170 SGEXT ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
AT170 4F SG ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
AT170 4FC SG ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
AT170 5F SG ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
AT170 4FC SG ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1992-08 ended
AT171,175 GLIM,SE,SG,SGEXT;AT170 4FC (DX,SE,SV) +1 ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1992-08 ended
AT171,175 GLIM,SE,SG,SGEXT ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-05 → 1990-12 ended
AT170,171,ST170 S,SV,SX ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-05 → 1990-12 ended
AT170,ST170 SED ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-05 → 1990-12 ended
AT170,171,ST170 S,SV,SX ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 4FC SG ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 5F SG ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-12 ended
AT170,ST170 SED EFI;AT170 4FC +2 ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT170 4FC (DX,SE,SV) ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1992-11 ended
ET176;AT170 4FC (DX,SE,SV) CBR ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1992-11 ended
ET176 ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-12 → 1992-11 ended
AT170,171,ST170 S,SGEXT,SV,SX ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-12 → 1992-11 ended
AT170,171,ST170 S,SGEXT,SV,SX ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT171 S ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT170 4FC SG ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT170 DX,SE,SV ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT170 MTM (DX,SE,SV) ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT170 4FC (DX,SV);AT170 MTM +1 ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT171 S ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT171 4FC S ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT171,175 GLIM,SG,SGEXT ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT170 4FC (DX,SE,SV) ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT171 4FC S ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-12 → 1992-08 ended
AT170,ST170 DX,SE,SG ¥460
90999-92002 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-12 → 1992-08 ended
AT170,ST170 DX,SE,SG ¥460
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-12 → 1992-11 ended
AT170,171,ST170 S,SGEXT,SV,SX ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1992-11 ended
ET176;AT170 MTM (DX,SE,SV) CBR ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1992-11 ended
ET176 ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-05 → 1990-12 ended
AT170,171,ST170 S,SV,SX ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-05 → 1990-12 ended
AT170,ST170 SED ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-12 → 1992-08 ended
AT170,ST170 DX,SE,SG ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1992-08 ended
AT171,175 GLIM,SE,SG,SGEXT ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
AT170 4F SG ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 4F SG ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 4FC SG ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 5F SG ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
AT170 5F SG ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
AT170 4FC SG ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT171 S ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT170 DX,SE,SV ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT170 4FC (DX,SE,SV) ¥520
90999-92003 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT171 4FC S ¥520
90999-92004 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT170 4FC (DX,SG,SV);AT170 MTM +1 ¥890
90999-92004 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
ST170 ¥890
90999-92004 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 4F SG ¥890
90999-92004 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 5F SG ¥890
90999-92004 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1990-05 → 1992-08 ended
AT175 ¥890
90999-92004 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
ST170 SE,SX ¥890
90999-92004 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
ST170 SGEXT ¥890
90999-92004 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
AT170 4F SG ¥890
90999-92004 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
AT170 5F SG ¥890
90999-92006 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
AT170 5F SG ¥2,010
90999-92006 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT170 4FC (DX,SE,SV) ¥2,010
90999-92006 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1990-05 ended
AT170 MTM (DX,SE,SV) ¥2,010
90999-92006 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 5F SG ¥2,010
90999-92006 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 4FC SG ¥2,010
90999-92006 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1988-05 → 1989-03 ended
AT170 4F SG ¥2,010
90999-92006 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
AT170 4F SG ¥2,010
90999-92006 note Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1989-03 → 1990-05 ended
AT170 4FC SG ¥2,010
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
