Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

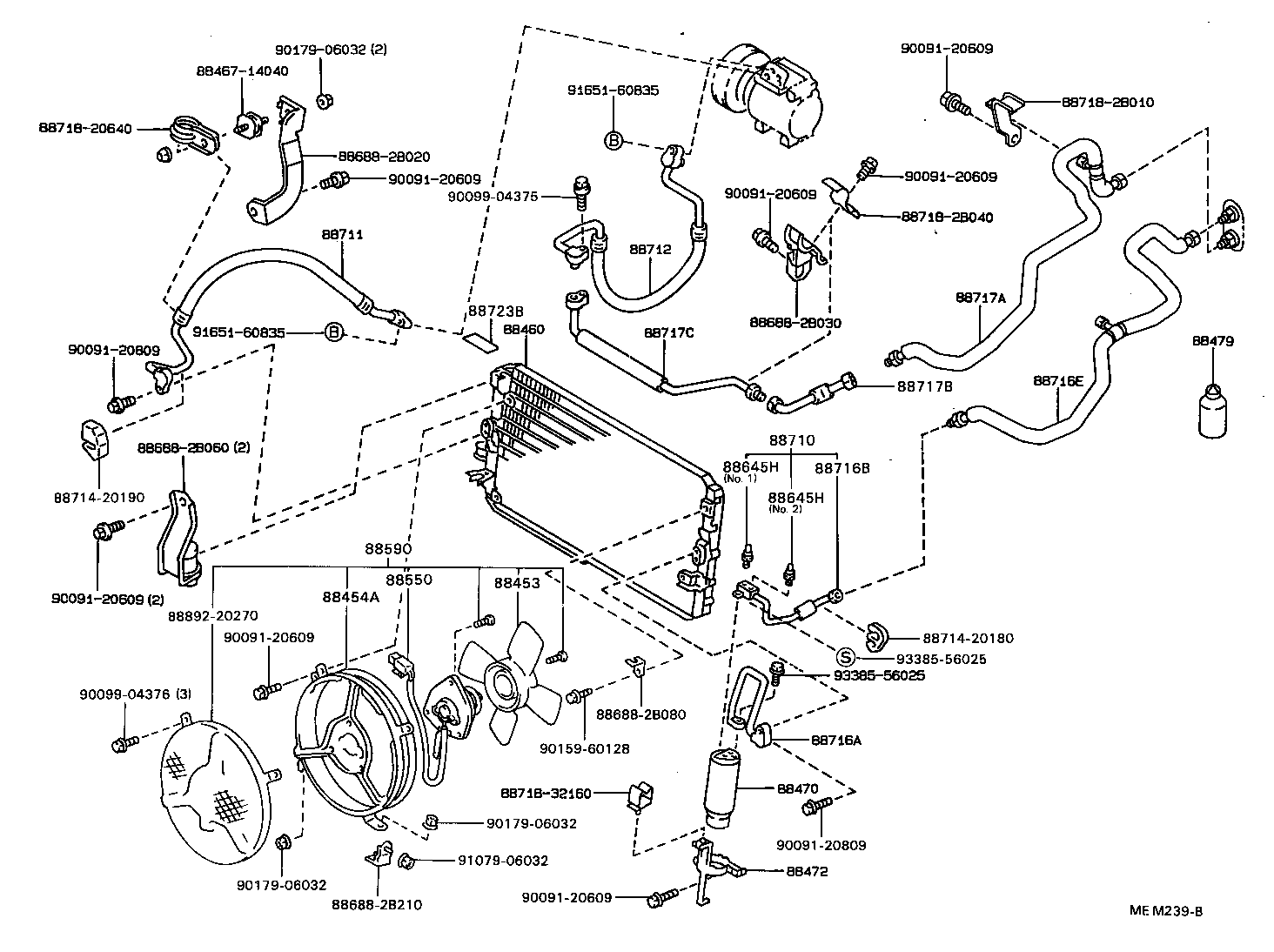

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88453 — Fan, Cooling (FOR CONDENSER) | ||||
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1988-05 → 1989-03
ended
|
AT171 S | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1990-12 → 1992-11
ended
|
CT170 4FC SV;AT170,171,ST170 S,SGEXT,SV,SX | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1990-12 → 1992-11
ended
|
AT175;AT170,171,ET176,ST170 DX,GLIM,SE,SG,STD | — | |
| 88453-20030 note |
Fan, Cooling (FOR CONDENSER)
1990-05 → 1992-11
ended
|
CT176 | — | |
| 88453-20030 note |
Fan, Cooling (FOR CONDENSER)
1990-05 → 1992-11
ended
|
CT170 4FC SE | — | |
| 88453-20030 note |
Fan, Cooling (FOR CONDENSER)
1990-05 → 1992-11
ended
|
CT170 4FC SG | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1990-05 → 1990-12
ended
|
AT17#,ET176,ST170 (SED,VAN) (CBR,EFI) | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1990-05 → 1990-12
ended
|
AT171 EFIS | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1989-03 → 1990-12
ended
|
AT170,175 DX,SE,SGEXT | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1989-03 → 1990-12
ended
|
AT17# (GLIM,SG) EFI | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1989-03 → 1990-12
ended
|
AT170,ST170 WG EFI | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1989-03 → 1990-12
ended
|
ST170 SE | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1989-03 → 1990-12
ended
|
AT170,ET176,ST170 (VAN,WG) (CBR,CI) | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1989-03 → 1990-12
ended
|
ST170 SGEXT EFI | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1989-03 → 1990-12
ended
|
AT171 S | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1988-05 → 1989-03
ended
|
AT170 4F SG | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1988-05 → 1989-03
ended
|
ET176,ST170 | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1988-05 → 1989-03
ended
|
AT171,175 GLIM,SGEXT | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1988-05 → 1989-03
ended
|
AT170 DX,SE,SV | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1988-05 → 1990-05
ended
|
CT176 | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1989-03 → 1990-05
ended
|
AT170 4F SG | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1989-03 → 1990-05
ended
|
AT170 5F SG | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1989-04 → 1990-05
ended
|
ST170 SE | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1989-04 → 1990-05
ended
|
ST170 SGEXT | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1988-05 → 1990-12
ended
|
CT170 4FC SV | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1989-03 → 1990-12
ended
|
ST170 SGEXT CI | — | |
| 88453-20030 |
Fan, Cooling (FOR CONDENSER)
1989-03 → 1990-05
ended
|
AT170 4FC SG | — | |
| 88453-32020 note |
Fan, Cooling (FOR CONDENSER)
1990-05 → 1992-08
ended
|
CT170 4FC SG | — | |
| 88453-32020 note |
Fan, Cooling (FOR CONDENSER)
1990-05 → 1992-08
ended
|
CT170 4FC SE | — | |
| 88453-32020 note |
Fan, Cooling (FOR CONDENSER)
1990-05 → 1992-11
ended
|
CT176 4FC | — | |
| 88454A — Shroud, Fan | ||||
| 88454-20060 |
Shroud, Fan
1989-03 → 1990-12
ended
|
ST170 SGEXT EFI | — | |
| 88454-20060 |
Shroud, Fan
1989-03 → 1990-12
ended
|
AT170,ET176,ST170 (VAN,WG) (CBR,CI) | — | |
| 88454-20060 |
Shroud, Fan
1989-03 → 1990-12
ended
|
ST170 SE | — | |
| 88454-20060 |
Shroud, Fan
1989-03 → 1990-12
ended
|
AT170,ST170 WG EFI | — | |
| 88454-20060 |
Shroud, Fan
1989-03 → 1990-12
ended
|
AT17# (GLIM,SG) EFI | — | |
| 88454-20060 |
Shroud, Fan
1989-03 → 1990-12
ended
|
AT170,175 DX,SE,SGEXT | — | |
| 88454-20060 |
Shroud, Fan
1990-05 → 1990-12
ended
|
AT171 EFIS | — | |
| 88454-20060 |
Shroud, Fan
1990-05 → 1990-12
ended
|
AT17#,ET176,ST170 (SED,VAN) (CBR,EFI) | — | |
| 88454-20060 note |
Shroud, Fan
1990-05 → 1992-11
ended
|
CT170 4FC SG | — | |
| 88454-20060 note |
Shroud, Fan
1990-05 → 1992-11
ended
|
CT170 4FC SE | — | |
| 88454-20060 note |
Shroud, Fan
1990-05 → 1992-11
ended
|
CT176 | — | |
| 88454-20060 |
Shroud, Fan
1990-12 → 1992-11
ended
|
AT175;AT170,171,ET176,ST170 DX,GLIM,SE,SG,STD | — | |
| 88454-20060 |
Shroud, Fan
1990-12 → 1992-11
ended
|
CT170 4FC SV;AT170,171,ST170 S,SGEXT,SV,SX | — | |
| 88454-20060 |
Shroud, Fan
1989-03 → 1990-12
ended
|
ST170 SGEXT CI | — | |
| 88454-20060 |
Shroud, Fan
1989-03 → 1990-12
ended
|
AT171 S | — | |
| 88454-20060 |
Shroud, Fan
1988-05 → 1990-12
ended
|
CT170 4FC SV | — | |
| 88454-20060 |
Shroud, Fan
1989-04 → 1990-05
ended
|
ST170 SGEXT | — | |
| 88454-20060 |
Shroud, Fan
1989-04 → 1990-05
ended
|
ST170 SE | — | |
| 88454-20060 |
Shroud, Fan
1989-03 → 1990-05
ended
|
AT170 5F SG | — | |
| 88454-20060 |
Shroud, Fan
1989-03 → 1990-05
ended
|
AT170 4FC SG | — | |
| 88454-20060 |
Shroud, Fan
1989-03 → 1990-05
ended
|
AT170 4F SG | — | |
| 88454-20060 |
Shroud, Fan
1988-05 → 1990-05
ended
|
CT176 | — | |
| 88454-20060 |
Shroud, Fan
1988-05 → 1990-05
ended
|
ET176 | — | |
| 88454-20060 |
Shroud, Fan
1988-05 → 1989-03
ended
|
AT171 S | — | |
| 88454-20060 |
Shroud, Fan
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | — | |
| 88454-20060 |
Shroud, Fan
1988-05 → 1989-03
ended
|
AT170 DX,SE,SV | — | |
| 88454-20060 |
Shroud, Fan
1988-05 → 1989-03
ended
|
AT171,175 GLIM,SGEXT | — | |
| 88454-20060 |
Shroud, Fan
1988-05 → 1989-03
ended
|
ET176,ST170 | — | |
| 88454-20060 |
Shroud, Fan
1988-05 → 1989-03
ended
|
AT170 4F SG | — | |
| 88454-20070 note |
Shroud, Fan
1990-05 → 1992-11
ended
|
CT176 4FC | — | |
| 88454-20070 note |
Shroud, Fan
1990-05 → 1992-08
ended
|
CT170 4FC SE | — | |
| 88454-20070 note |
Shroud, Fan
1990-05 → 1992-08
ended
|
CT170 4FC SG | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 88460-20250 |
Condenser Assy, Cooler
1988-05 → 1989-03
ended
|
CT176 | ¥34,200 | |
| 88460-20250 |
Condenser Assy, Cooler
1988-05 → 1989-03
ended
|
CT170 SG | ¥34,200 | |
| 88460-20250 |
Condenser Assy, Cooler
1990-12 → 1992-11
ended
|
CT176 | ¥34,200 | |
| 88460-20250 |
Condenser Assy, Cooler
1989-03 → 1990-05
ended
|
CT176 | ¥34,200 | |
| 88460-20250 |
Condenser Assy, Cooler
1989-03 → 1990-05
ended
|
CT170 SG | ¥34,200 | |
| 88460-20250 |
Condenser Assy, Cooler
1988-05 → 1992-11
ended
|
CT170 SE,SV | ¥34,200 | |
| 88460-20250 |
Condenser Assy, Cooler
1990-12 → 1992-08
ended
|
CT170 SG | ¥34,200 | |
| 88460-20250 |
Condenser Assy, Cooler
1990-05 → 1990-12
ended
|
CT17# DX,SG | ¥34,200 | |
| 88460-20280 |
Condenser Assy, Cooler
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | ¥34,200 | |
| 88460-20280 |
Condenser Assy, Cooler
1990-12 → 1992-11
ended
|
AT170,171,ST170 S,SGEXT,SV,SX | ¥34,200 | |
| 88460-20280 |
Condenser Assy, Cooler
1990-12 → 1992-11
ended
|
AT175;AT170,171,ET176,ST170 DX,GLIM,SE,SG,STD | ¥34,200 | |
| 88460-20280 |
Condenser Assy, Cooler
1989-03 → 1990-12
ended
|
ST170 SGEXT CI;AT170,171,ST170 (S,SV,SX) +1 | ¥34,200 | |
| 88460-20280 |
Condenser Assy, Cooler
1989-03 → 1990-12
ended
|
AT170 IM,SE,SG,SGEXT,STD) SED (CBR,EFI) +4 | ¥34,200 | |
| 88460-20280 |
Condenser Assy, Cooler
1989-03 → 1990-05
ended
|
AT170 5F SG | ¥34,200 | |
| 88460-20280 |
Condenser Assy, Cooler
1989-03 → 1990-05
ended
|
AT170 4FC SG | ¥34,200 | |
| 88460-20280 |
Condenser Assy, Cooler
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥34,200 | |
| 88460-20280 |
Condenser Assy, Cooler
1988-05 → 1989-03
ended
|
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SGEXT,SV,SX | ¥34,200 | |
| 88460-20280 |
Condenser Assy, Cooler
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥34,200 | |
| 88460-20280 |
Condenser Assy, Cooler
1988-05 → 1989-03
ended
|
AT171 S | ¥34,200 | |
| 88470 — Receiver & Dryer Assy, Cooler | ||||
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1989-03 → 1990-05
ended
|
AT170 5F SG | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1989-03 → 1990-05
ended
|
CT170 SG | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1989-03 → 1990-12
ended
|
AT170 IM,SE,SG,SGEXT,STD) SED (CBR,EFI) +4 | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1989-03 → 1990-12
ended
|
CT170 SE,SV;AT171 4FC S;AT171 +6 | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1990-05 → 1990-12
ended
|
CT17# DX,SG | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1990-12 → 1992-08
ended
|
CT170 SG | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1990-12 → 1992-11
ended
|
CT176 | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1990-12 → 1992-11
ended
|
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1990-12 → 1992-11
ended
|
AT175;AT170,171,ET176,ST170 DX,GLIM,SE,SG,STD | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1989-03 → 1990-05
ended
|
AT170 4FC SG | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1988-05 → 1989-03
ended
|
CT176 | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1988-05 → 1989-03
ended
|
CT170 SG | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1988-05 → 1989-03
ended
|
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SGEXT,SV,SX | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1988-05 → 1989-03
ended
|
CT170 SE;AT171 4FC S | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1988-05 → 1990-05
ended
|
AT171 5F S | ¥4,600 | |
| 88471-16040 |
Receiver & Dryer Assy, Cooler
1989-03 → 1990-05
ended
|
CT176 | ¥4,600 | |
| 88472 — Bracket, Receiver Tank, NO.1 | ||||
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1989-03 → 1990-05
ended
|
AT170 5F SG | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1990-12 → 1992-11
ended
|
AT175;AT170,171,ET176,ST170 DX,GLIM,SE,SG,STD | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1990-12 → 1992-11
ended
|
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1990-12 → 1992-11
ended
|
CT176 | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1990-12 → 1992-08
ended
|
CT170 SG | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1990-05 → 1990-12
ended
|
CT17# DX,SG | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1989-03 → 1990-12
ended
|
AT170 IM,SE,SG,SGEXT,STD) SED (CBR,EFI) +4 | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1989-03 → 1990-12
ended
|
ST170 SGEXT CI;AT170,ST170 WG +2 | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1989-03 → 1990-05
ended
|
CT170 SG | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1989-03 → 1990-05
ended
|
AT170 4FC SG | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1989-03 → 1990-05
ended
|
AT170 4F SG | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1989-03 → 1990-05
ended
|
CT176 | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1988-05 → 1989-03
ended
|
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SGEXT,SV,SX | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1988-05 → 1989-03
ended
|
AT171,CT170 S,SE | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1988-05 → 1989-03
ended
|
CT170 SG | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1988-05 → 1989-03
ended
|
AT170 4F SG | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | — | |
| 88473-20040 |
Bracket, Receiver Tank, NO.1
1988-05 → 1989-03
ended
|
CT176 | — | |
| 88479 — Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-03 → 1989-10
ended
|
AT170 5F SG | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1988-05 → 1989-03
ended
|
AT170 4F SG | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-03 → 1989-10
ended
|
CT170 SG | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-03 → 1989-10
ended
|
ST170 SGEXT;AT171,CT170 S,SE | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-03 → 1989-10
ended
|
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SV,SX | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1988-05 → 1990-05
ended
|
CT170 4FC SE | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-03 → 1990-05
ended
|
CT170 4FC SG | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-10 → 1990-05
ended
|
CT170 4FC SG | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-10 → 1990-05
ended
|
CT170 4FC SE | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-03 → 1989-10
ended
|
AT170 4F SG | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-03 → 1989-10
ended
|
CT176 | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1988-05 → 1989-03
ended
|
AT171 S;CT170 5F SE | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1988-05 → 1989-03
ended
|
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SGEXT,SV,SX | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1988-05 → 1989-03
ended
|
CT170 4FC SE | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-03 → 1989-10
ended
|
AT170 4FC SG | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1988-05 → 1989-03
ended
|
CT170 SG | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | — | |
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1988-05 → 1989-03
ended
|
CT176 | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-05 → 1990-12
ended
|
AT175,ET176;AT170,171,ST170 GLIM,SE,SGEXT | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-05 → 1990-12
ended
|
AT170,ST170 SED | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-05 → 1990-12
ended
|
CT170 5F;CT176 5F DX;AT170,ST170 +1 | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-12 → 1992-08
ended
|
CT170 4FC SG | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-12 → 1992-08
ended
|
CT170 5F SG | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-12 → 1992-08
ended
|
AT170,ST170 DX,SE,SG | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-05 → 1992-11
ended
|
CT176 5F DX | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-05 → 1992-11
ended
|
CT170 4FC SE;AT171,CT170 S,SV | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-12 → 1992-11
ended
|
AT175,ET176;AT170,171,ST170 GLIM,SE | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-12 → 1992-11
ended
|
CT170 5F SE;AT170,ST170 SGEXT,SV,SX | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-12 → 1992-11
ended
|
CT176 SG;CT176 4FC | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-04 → 1989-10
ended
|
ST170 SGEXT | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-12 → 1992-11
ended
|
CT170 5F;CT176 5F DX;AT170,ST170 +1 | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-05 → 1990-12
ended
|
CT176 SG;CT17# 4FC (DX,SG) | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-11 → 1990-05
ended
|
CT170 4FC SE | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-11 → 1990-05
ended
|
CT170 4FC SG | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-10 → 1990-05
ended
|
CT170 5F SE;AT171,ST170 S,SGEXT | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-10 → 1990-05
ended
|
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SV,SX | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-10 → 1990-05
ended
|
CT170 4FC SE | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-10 → 1990-05
ended
|
CT170 SG | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-10 → 1990-05
ended
|
AT170 5F SG | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-10 → 1990-05
ended
|
AT170 4FC SG | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-10 → 1990-05
ended
|
AT170 4F SG | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-10 → 1990-05
ended
|
CT176 | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1989-04 → 1989-10
ended
|
ST170 SE | — | |
| 90986-02004 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1990-05 → 1990-12
ended
|
CT170 5F SE;AT170,ST170 WG | — | |
| 88550 — Motor Assy, Blower (FOR CONDENSER) | ||||
| 88550-12120 note |
Motor Assy, Blower (FOR CONDENSER)
1988-05 → 1992-11
ended
|
CT17# | ¥17,300 | |
| 88550-20040 |
Motor Assy, Blower (FOR CONDENSER)
1988-05 → 1992-11
ended
|
ET176 | ¥17,300 | |
| 88550-20040 |
Motor Assy, Blower (FOR CONDENSER)
1988-05 → 1992-11
ended
|
ST170 | ¥17,300 | |
| 88550-20040 |
Motor Assy, Blower (FOR CONDENSER)
1988-05 → 1992-11
ended
|
AT175 SG | ¥17,300 | |
| 88550-20040 |
Motor Assy, Blower (FOR CONDENSER)
1988-05 → 1992-11
ended
|
AT171 | ¥17,300 | |
| 88550-20040 |
Motor Assy, Blower (FOR CONDENSER)
1988-05 → 1992-11
ended
|
AT175 SE,SGEXT | ¥17,300 | |
| 88550-20040 |
Motor Assy, Blower (FOR CONDENSER)
1988-05 → 1992-11
ended
|
AT170 SE,SGEXT,SV | ¥17,300 | |
| 88550-20040 |
Motor Assy, Blower (FOR CONDENSER)
1988-05 → 1992-11
ended
|
AT170 DX,SG | ¥17,300 | |
| 88550-20040 note |
Motor Assy, Blower (FOR CONDENSER)
1990-05 → 1992-11
ended
|
CT17# DX,SV | ¥17,300 | |
| 88590 — Blower Assy, W/Shroud | ||||
| 88590-20170 note |
Blower Assy, W/Shroud
1990-05 → 1990-12
ended
|
CT17# 5F (DX,SG) | — | |
| 88590-20170 note |
Blower Assy, W/Shroud
1989-03 → 1990-05
ended
|
CT170 SG | — | |
| 88590-20170 note |
Blower Assy, W/Shroud
1990-05 → 1992-08
ended
|
CT170 4FC SE | — | |
| 88590-20170 |
Blower Assy, W/Shroud
1990-12 → 1992-08
ended
|
CT170 4FC SG | — | |
| 88590-20170 |
Blower Assy, W/Shroud
1990-12 → 1992-08
ended
|
CT170 5F SG | — | |
| 88590-20170 note |
Blower Assy, W/Shroud
1988-05 → 1992-11
ended
|
CT170 4FC SV | — | |
| 88590-20170 |
Blower Assy, W/Shroud
1990-05 → 1992-11
ended
|
CT170 5F (SE,SV) | — | |
| 88590-20170 |
Blower Assy, W/Shroud
1990-12 → 1992-11
ended
|
CT176 5F | — | |
| 88590-20170 note |
Blower Assy, W/Shroud
1990-05 → 1992-11
ended
|
CT17# 4FC (DX,SG) | — | |
| 88590-20170 note |
Blower Assy, W/Shroud
1989-03 → 1990-05
ended
|
CT176 | — | |
| 88590-20170 note |
Blower Assy, W/Shroud
1988-05 → 1989-03
ended
|
CT176 | — | |
| 88590-20170 note |
Blower Assy, W/Shroud
1988-05 → 1990-05
ended
|
CT170 SE | — | |
| 88590-20170 note |
Blower Assy, W/Shroud
1988-05 → 1989-03
ended
|
CT170 SG | — | |
| 88590-20180 |
Blower Assy, W/Shroud
1989-03 → 1990-05
ended
|
AT170 4F SG | — | |
| 88590-20180 |
Blower Assy, W/Shroud
1990-12 → 1992-11
ended
|
AT170,171,ST170 S,SGEXT,SV,SX | — | |
| 88590-20180 |
Blower Assy, W/Shroud
1990-12 → 1992-11
ended
|
AT175;AT170,171,ET176,ST170 DX,GLIM,SE,SG,STD | — | |
| 88590-20180 note |
Blower Assy, W/Shroud
1990-05 → 1992-11
ended
|
CT170 4FC SE | — | |
| 88590-20180 note |
Blower Assy, W/Shroud
1990-05 → 1992-11
ended
|
CT176 | — | |
| 88590-20180 note |
Blower Assy, W/Shroud
1990-05 → 1992-11
ended
|
CT170 4FC SG | — | |
| 88590-20180 |
Blower Assy, W/Shroud
1988-05 → 1989-03
ended
|
AT171 S | — | |
| 88590-20180 |
Blower Assy, W/Shroud
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | — | |
| 88590-20180 |
Blower Assy, W/Shroud
1988-05 → 1989-03
ended
|
AT170 4F SG | — | |
| 88590-20180 |
Blower Assy, W/Shroud
1988-05 → 1989-03
ended
|
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SGEXT,SV,SX | — | |
| 88590-20180 note |
Blower Assy, W/Shroud
1988-05 → 1990-05
ended
|
CT176 | — | |
| 88590-20180 |
Blower Assy, W/Shroud
1989-03 → 1990-12
ended
|
ST170 SGEXT CI;AT170,171,ST170 (S,SV,SX) +1 | — | |
| 88590-20180 |
Blower Assy, W/Shroud
1989-03 → 1990-12
ended
|
AT170 IM,SE,SG,SGEXT,STD) SED (CBR,EFI) +4 | — | |
| 88590-20180 |
Blower Assy, W/Shroud
1989-03 → 1990-05
ended
|
AT170 5F SG | — | |
| 88590-20180 |
Blower Assy, W/Shroud
1989-03 → 1990-05
ended
|
AT170 4FC SG | — | |
| 88590-20180 note |
Blower Assy, W/Shroud
1988-05 → 1992-11
ended
|
CT170 4FC SV | — | |
| 88645H — Switch, Pressure NO.1 | ||||
| 88645-20010 note |
Switch, Pressure NO.1
1988-05 → —
|
AT17#,CT17#,ET176,ST170 | — | |
| 88645-30280 note |
Switch, Pressure NO.1
1988-05 → —
|
AT17#,CT17#,ET176,ST170 | — | |
| 88710 — Tube Assy, Air Conditioner | ||||
| 88706-20040 |
Tube Assy, Air Conditioner
1989-03 → 1990-05
ended
|
AT170 4FC SG | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1990-12 → 1992-11
ended
|
AT175;AT170,171,ET176,ST170 DX,GLIM,SE,SG,STD | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1990-12 → 1992-11
ended
|
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1990-12 → 1992-11
ended
|
CT176 | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1990-12 → 1992-08
ended
|
CT170 SG | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1990-05 → 1990-12
ended
|
CT17# DX,SG | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1989-03 → 1990-12
ended
|
AT170 IM,SE,SG,SGEXT,STD) SED (CBR,EFI) +4 | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1989-03 → 1990-12
ended
|
ST170 SGEXT CI;AT170,ST170 WG +2 | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1989-03 → 1990-05
ended
|
CT170 SG | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1989-03 → 1990-05
ended
|
CT176 | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1988-05 → 1989-03
ended
|
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SGEXT,SV,SX | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1988-05 → 1989-03
ended
|
AT171,CT170 S,SE | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1988-05 → 1989-03
ended
|
CT17# DX,SG | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | ¥18,400 | |
| 88706-20040 |
Tube Assy, Air Conditioner
1989-03 → 1990-05
ended
|
AT170 5F SG | ¥18,400 | |
| 88711 — Hose, Cooler Refrigerant Discharge, NO.1 | ||||
| 88711-20620 |
Hose, Cooler Refrigerant Discharge, NO.1
1988-05 → 1989-03
ended
|
CT17# DX,SG | ¥12,700 | |
| 88711-20620 |
Hose, Cooler Refrigerant Discharge, NO.1
1989-03 → 1990-05
ended
|
CT170 SG | ¥12,700 | |
| 88711-20620 |
Hose, Cooler Refrigerant Discharge, NO.1
1988-05 → 1990-05
ended
|
CT170 SE | ¥12,700 | |
| 88711-20620 |
Hose, Cooler Refrigerant Discharge, NO.1
1989-03 → 1990-05
ended
|
CT176 5F | ¥12,700 | |
| 88711-20650 |
Hose, Cooler Refrigerant Discharge, NO.1
1988-05 → 1992-11
ended
|
ET176 | ¥13,000 | |
| 88711-20680 |
Hose, Cooler Refrigerant Discharge, NO.1
1990-12 → 1992-11
ended
|
ST170 SGEXT,SX | ¥12,000 | |
| 88711-20680 |
Hose, Cooler Refrigerant Discharge, NO.1
1990-12 → 1992-08
ended
|
ST170 SE | ¥12,000 | |
| 88711-20680 |
Hose, Cooler Refrigerant Discharge, NO.1
1989-03 → 1990-12
ended
|
ST170 SED EFI;ST170 (SE,SX) +1 | ¥12,000 | |
| 88711-20680 |
Hose, Cooler Refrigerant Discharge, NO.1
1989-03 → 1990-12
ended
|
ST170 SX EFI;ST170 SGEXT +1 | ¥12,000 | |
| 88711-20680 |
Hose, Cooler Refrigerant Discharge, NO.1
1988-05 → 1989-03
ended
|
ST170 | ¥12,000 | |
| 88711-20690 |
Hose, Cooler Refrigerant Discharge, NO.1
1988-05 → 1992-08
ended
|
AT171 GLIM | ¥13,200 | |
| 88711-20740 |
Hose, Cooler Refrigerant Discharge, NO.1
1990-05 → 1990-12
ended
|
CT17# | ¥12,900 | |
| 88711-20740 |
Hose, Cooler Refrigerant Discharge, NO.1
1988-05 → 1990-05
ended
|
CT176 4FC | ¥12,900 | |
| 88711-20740 |
Hose, Cooler Refrigerant Discharge, NO.1
1990-12 → 1992-08
ended
|
CT170 SG | ¥12,900 | |
| 88711-20740 |
Hose, Cooler Refrigerant Discharge, NO.1
1990-05 → 1992-11
ended
|
CT170 SE,SV | ¥12,900 | |
| 88711-20740 |
Hose, Cooler Refrigerant Discharge, NO.1
1990-12 → 1992-11
ended
|
CT17# | ¥12,900 | |
| 88720-20330 |
Hose, Cooler Refrigerant Discharge, NO.1
1990-12 → 1992-08
ended
|
AT175;AT170 DX,SE,SG | ¥15,400 | |
| 88720-20330 |
Hose, Cooler Refrigerant Discharge, NO.1
1990-12 → 1992-11
ended
|
AT170,171 S,SGEXT,SV | ¥15,400 | |
| 88720-20330 |
Hose, Cooler Refrigerant Discharge, NO.1
1988-05 → 1990-12
ended
|
AT170,171 (S,SV) (EFI,EFIS) | ¥15,400 | |
| 88720-20330 |
Hose, Cooler Refrigerant Discharge, NO.1
1988-05 → 1990-12
ended
|
AT170,175 SED EFI;AT170 (DX,SE,SV) +1 | ¥15,400 | |
| 88720-20330 |
Hose, Cooler Refrigerant Discharge, NO.1
1989-03 → 1990-05
ended
|
AT170 5F SG | ¥15,400 | |
| 88720-20330 |
Hose, Cooler Refrigerant Discharge, NO.1
1989-03 → 1990-05
ended
|
AT170 4FC SG | ¥15,400 | |
| 88720-20330 |
Hose, Cooler Refrigerant Discharge, NO.1
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥15,400 | |
| 88720-20330 |
Hose, Cooler Refrigerant Discharge, NO.1
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥15,400 | |
| 88720-20330 |
Hose, Cooler Refrigerant Discharge, NO.1
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | ¥15,400 | |
| 88712 — Hose, Cooler Refrigerant Suction, NO.1 | ||||
| 88712-20820 |
Hose, Cooler Refrigerant Suction, NO.1
1988-05 → 1990-05
ended
|
CT170 SE | ¥13,300 | |
| 88712-20820 |
Hose, Cooler Refrigerant Suction, NO.1
1989-03 → 1990-05
ended
|
CT170 SG | ¥13,300 | |
| 88712-20820 |
Hose, Cooler Refrigerant Suction, NO.1
1989-03 → 1990-05
ended
|
CT176 5F | ¥13,300 | |
| 88712-20820 |
Hose, Cooler Refrigerant Suction, NO.1
1988-05 → 1989-03
ended
|
CT17# DX,SG | ¥13,300 | |
| 88712-20890 |
Hose, Cooler Refrigerant Suction, NO.1
1988-05 → 1992-11
ended
|
ET176 | ¥13,000 | |
| 88712-2B050 |
Hose, Cooler Refrigerant Suction, NO.1
1988-05 → 1992-08
ended
|
AT171 GLIM | ¥13,200 | |
| 88712-2B140 |
Hose, Cooler Refrigerant Suction, NO.1
1990-12 → 1992-11
ended
|
CT176 | ¥13,300 | |
| 88712-2B140 |
Hose, Cooler Refrigerant Suction, NO.1
1988-05 → 1990-05
ended
|
CT176 4FC | ¥13,300 | |
| 88712-2B140 |
Hose, Cooler Refrigerant Suction, NO.1
1990-05 → 1992-11
ended
|
CT170 | ¥13,300 | |
| 88712-2B140 |
Hose, Cooler Refrigerant Suction, NO.1
1990-12 → 1992-08
ended
|
CT170 SG | ¥13,300 | |
| 88712-2B140 |
Hose, Cooler Refrigerant Suction, NO.1
1990-05 → 1990-12
ended
|
CT17# | ¥13,300 | |
| 88720-20260 |
Hose, Cooler Refrigerant Suction, NO.1
1988-05 → 1990-12
ended
|
AT170,175 SED EFI;AT170 (DX,SE,SV) +1 | ¥15,400 | |
| 88720-20260 |
Hose, Cooler Refrigerant Suction, NO.1
1990-12 → 1992-11
ended
|
AT170 SGEXT,SV | ¥15,400 | |
| 88720-20260 |
Hose, Cooler Refrigerant Suction, NO.1
1990-12 → 1992-08
ended
|
AT175;AT170 DX,SE,SG | ¥15,400 | |
| 88720-20260 |
Hose, Cooler Refrigerant Suction, NO.1
1990-11 → 1990-12
ended
|
AT170 SV | ¥15,400 | |
| 88720-20260 |
Hose, Cooler Refrigerant Suction, NO.1
1988-05 → 1990-11
ended
|
AT170,171 (S,SV) (EFI,EFIS) | ¥15,400 | |
| 88720-20260 |
Hose, Cooler Refrigerant Suction, NO.1
1989-03 → 1990-05
ended
|
AT170 5F SG | ¥15,400 | |
| 88720-20260 |
Hose, Cooler Refrigerant Suction, NO.1
1989-03 → 1990-05
ended
|
AT170 4FC SG | ¥15,400 | |
| 88720-20260 |
Hose, Cooler Refrigerant Suction, NO.1
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥15,400 | |
| 88720-20260 |
Hose, Cooler Refrigerant Suction, NO.1
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥15,400 | |
| 88720-20260 |
Hose, Cooler Refrigerant Suction, NO.1
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | ¥15,400 | |
| 88720-20280 |
Hose, Cooler Refrigerant Suction, NO.1
1989-03 → 1990-12
ended
|
ST170 SED EFI;ST170 (SE,SX) +1 | ¥14,700 | |
| 88720-20280 |
Hose, Cooler Refrigerant Suction, NO.1
1989-03 → 1990-12
ended
|
ST170 SX EFI;ST170 SGEXT +1 | ¥14,700 | |
| 88720-20280 |
Hose, Cooler Refrigerant Suction, NO.1
1990-12 → 1992-08
ended
|
ST170 SE | ¥14,700 | |
| 88720-20280 |
Hose, Cooler Refrigerant Suction, NO.1
1988-05 → 1989-03
ended
|
ST170 | ¥14,700 | |
| 88720-20280 |
Hose, Cooler Refrigerant Suction, NO.1
1990-12 → 1992-11
ended
|
ST170 SGEXT,SX | ¥14,700 | |
| 88720-20420 |
Hose, Cooler Refrigerant Suction, NO.1
1990-11 → 1992-08
ended
|
AT171 EFIS | ¥20,900 | |
| 88716A — Pipe, Cooler Refrigerant Liquid, A | ||||
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1989-03 → 1990-05
ended
|
AT170 5F SG | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1989-03 → 1990-05
ended
|
CT170 SG | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1989-03 → 1990-12
ended
|
ST170 SGEXT CI;AT170,ST170 WG +2 | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1990-05 → 1990-12
ended
|
CT17# DX,SG | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1990-12 → 1992-08
ended
|
CT170 SG | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1990-12 → 1992-11
ended
|
CT176 | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1990-12 → 1992-11
ended
|
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1990-12 → 1992-11
ended
|
AT175;AT170,171,ET176,ST170 DX,GLIM,SE,SG,STD | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1989-03 → 1990-12
ended
|
AT170 IM,SE,SG,SGEXT,STD) SED (CBR,EFI) +4 | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1989-03 → 1990-05
ended
|
CT176 | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1988-05 → 1989-03
ended
|
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SGEXT,SV,SX | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1988-05 → 1989-03
ended
|
AT171,CT170 S,SE | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1988-05 → 1989-03
ended
|
CT170 SG | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1988-05 → 1989-03
ended
|
CT176 | ¥4,430 | |
| 88716-2B720 |
Pipe, Cooler Refrigerant Liquid, A
1989-03 → 1990-05
ended
|
AT170 4FC SG | ¥4,430 | |
| 88716B — Pipe, Cooler Refrigerant Liquid, B | ||||
| 88716-2B710 |
Pipe, Cooler Refrigerant Liquid, B
1990-05 → 1992-08
ended
|
AT17#,CT17#,ET176,ST170 | ¥3,870 | |
| 88716E — Pipe, Cooler Refrigerant Liquid, E | ||||
| 88716-2B440 |
Pipe, Cooler Refrigerant Liquid, E
1989-03 → 1990-05
ended
|
AT170 4FC SG | ¥9,300 | |
| 88716-2B440 |
Pipe, Cooler Refrigerant Liquid, E
1988-05 → 1992-11
ended
|
ET176;AT170 (DX,SE,SV) CBR | ¥9,300 | |
| 88716-2B440 |
Pipe, Cooler Refrigerant Liquid, E
1989-03 → 1990-05
ended
|
AT170 5F SG | ¥9,300 | |
| 88716-2B440 |
Pipe, Cooler Refrigerant Liquid, E
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥9,300 | |
| 88716-2B440 |
Pipe, Cooler Refrigerant Liquid, E
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | ¥9,300 | |
| 88716-2B440 |
Pipe, Cooler Refrigerant Liquid, E
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥9,300 | |
| 88716-2B450 |
Pipe, Cooler Refrigerant Liquid, E
1988-05 → 1989-03
ended
|
AT171,175,ST170 GLIM,SE,SG,SGEXT,SX | ¥10,000 | |
| 88716-2B450 |
Pipe, Cooler Refrigerant Liquid, E
1990-12 → 1992-11
ended
|
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX | ¥10,000 | |
| 88716-2B450 |
Pipe, Cooler Refrigerant Liquid, E
1990-12 → 1992-11
ended
|
CT176 | ¥10,000 | |
| 88716-2B450 |
Pipe, Cooler Refrigerant Liquid, E
1990-12 → 1992-08
ended
|
AT175;AT170,171,ST170 DX,GLIM,SE,SG | ¥10,000 | |
| 88716-2B450 |
Pipe, Cooler Refrigerant Liquid, E
1990-12 → 1992-08
ended
|
CT170 SG | ¥10,000 | |
| 88716-2B450 |
Pipe, Cooler Refrigerant Liquid, E
1990-05 → 1990-12
ended
|
CT17# DX,SG | ¥10,000 | |
| 88716-2B450 |
Pipe, Cooler Refrigerant Liquid, E
1989-03 → 1990-12
ended
|
ST170 (SE,SX) CI;AT17#,ST170 (DX,GLIM,SE,SG,SGEXT) +1 | ¥10,000 | |
| 88716-2B450 |
Pipe, Cooler Refrigerant Liquid, E
1989-03 → 1990-12
ended
|
ST170 SGEXT CI;AT170,ST170 WG +2 | ¥10,000 | |
| 88716-2B450 |
Pipe, Cooler Refrigerant Liquid, E
1989-03 → 1990-05
ended
|
CT170 SG | ¥10,000 | |
| 88716-2B450 |
Pipe, Cooler Refrigerant Liquid, E
1989-03 → 1990-05
ended
|
CT176 | ¥10,000 | |
| 88716-2B450 |
Pipe, Cooler Refrigerant Liquid, E
1988-05 → 1989-03
ended
|
CT176 | ¥10,000 | |
| 88716-2B450 |
Pipe, Cooler Refrigerant Liquid, E
1988-05 → 1989-03
ended
|
CT170 SG | ¥10,000 | |
| 88716-2B450 |
Pipe, Cooler Refrigerant Liquid, E
1988-05 → 1989-03
ended
|
AT171,CT170 S,SE | ¥10,000 | |
| 88717A — Pipe, Cooler Refrigerant Suction, A | ||||
| 88717-20730 |
Pipe, Cooler Refrigerant Suction, A
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | ¥15,400 | |
| 88717-20730 |
Pipe, Cooler Refrigerant Suction, A
1988-05 → 1992-11
ended
|
ET176;AT170 (DX,SE,SV) CBR | ¥15,400 | |
| 88717-20730 |
Pipe, Cooler Refrigerant Suction, A
1989-03 → 1990-05
ended
|
AT170 5F SG | ¥15,400 | |
| 88717-20730 |
Pipe, Cooler Refrigerant Suction, A
1989-03 → 1990-05
ended
|
AT170 4FC SG | ¥15,400 | |
| 88717-20730 |
Pipe, Cooler Refrigerant Suction, A
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥15,400 | |
| 88717-20730 |
Pipe, Cooler Refrigerant Suction, A
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥15,400 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1988-05 → 1989-03
ended
|
AT171,CT170 S,SE | ¥18,000 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1990-12 → 1992-11
ended
|
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX | ¥18,000 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1990-12 → 1992-11
ended
|
CT176 | ¥18,000 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1990-12 → 1992-08
ended
|
AT170,171,ST170 DX,GLIM,SE,SG | ¥18,000 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1990-12 → 1992-08
ended
|
CT170 SG | ¥18,000 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1990-05 → 1990-12
ended
|
AT170,171,ST170 SED EFI | ¥18,000 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1990-05 → 1990-12
ended
|
CT17# DX,SG | ¥18,000 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1989-03 → 1990-05
ended
|
ST170 SE,SX;AT171,175 GLIM,SG,SGEXT | ¥18,000 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1989-03 → 1990-05
ended
|
CT170 SG | ¥18,000 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1989-03 → 1990-05
ended
|
CT176 | ¥18,000 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1988-05 → 1989-03
ended
|
CT176 | ¥18,000 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1988-05 → 1989-03
ended
|
CT170 SG | ¥18,000 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1988-05 → 1989-03
ended
|
AT171,175,ST170 GLIM,SE,SG,SGEXT,SX | ¥18,000 | |
| 88717-20740 |
Pipe, Cooler Refrigerant Suction, A
1989-03 → 1990-12
ended
|
ST170 SGEXT CI;AT170,ST170 WG +2 | ¥18,000 | |
| 88717-2B110 |
Pipe, Cooler Refrigerant Suction, A
1990-05 → 1992-08
ended
|
AT175 | ¥22,800 | |
| 88717B — Pipe, Cooler Refrigerant Suction, B | ||||
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1989-03 → 1990-05
ended
|
CT170 SG | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1989-03 → 1990-12
ended
|
ST170 SGEXT CI;AT170,ST170 WG +2 | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1989-03 → 1990-12
ended
|
AT170 IM,SE,SG,SGEXT,STD) SED (CBR,EFI) +4 | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1990-05 → 1990-12
ended
|
CT17# DX,SG | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1990-12 → 1992-08
ended
|
CT170 SG | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1988-05 → 1989-03
ended
|
CT170 SG | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1990-12 → 1992-11
ended
|
CT176 | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1990-12 → 1992-11
ended
|
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1990-12 → 1992-11
ended
|
AT175;AT170,171,ET176,ST170 DX,GLIM,SE,SG,STD | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1989-03 → 1990-05
ended
|
AT170 4FC SG | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1989-03 → 1990-05
ended
|
CT176 | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1988-05 → 1989-03
ended
|
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SGEXT,SV,SX | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1988-05 → 1989-03
ended
|
AT171,CT170 S,SE | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1988-05 → 1989-03
ended
|
CT176 | ¥6,700 | |
| 88717-20830 |
Pipe, Cooler Refrigerant Suction, B
1989-03 → 1990-05
ended
|
AT170 5F SG | ¥6,700 | |
| 88717C — Pipe, Cooler Refrigerant Suction, C | ||||
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1989-03 → 1990-05
ended
|
AT170 5F SG | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1990-12 → 1992-11
ended
|
CT176 | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1989-03 → 1990-05
ended
|
CT170 SG | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1989-03 → 1990-12
ended
|
ST170 SGEXT CI;AT170,ST170 WG +2 | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1989-03 → 1990-12
ended
|
AT170 IM,SE,SG,SGEXT,STD) SED (CBR,EFI) +4 | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1990-05 → 1990-12
ended
|
CT17# DX,SG | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1990-12 → 1992-08
ended
|
CT170 SG | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1990-12 → 1992-11
ended
|
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1990-12 → 1992-11
ended
|
AT175;AT170,171,ET176,ST170 DX,GLIM,SE,SG,STD | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1989-03 → 1990-05
ended
|
AT170 4FC SG | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1988-05 → 1989-03
ended
|
CT176 | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1988-05 → 1989-03
ended
|
CT170 SG | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1988-05 → 1989-03
ended
|
AT171,CT170 S,SE | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1988-05 → 1989-03
ended
|
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SGEXT,SV,SX | ¥9,400 | |
| 88717-20820 |
Pipe, Cooler Refrigerant Suction, C
1989-03 → 1990-05
ended
|
CT176 | ¥9,400 | |
| 88723B — Label, Cooler Service Caution | ||||
| 88723-12040 |
Label, Cooler Service Caution
1990-12 → 1992-11
ended
|
CT170 5F SE;AT170,ST170 SGEXT,SV,SX | — | |
| 88723-12040 |
Label, Cooler Service Caution
1990-12 → 1992-11
ended
|
AT175,ET176;AT170,171,ST170 GLIM,SE | — | |
| 88723-12040 |
Label, Cooler Service Caution
1990-12 → 1992-11
ended
|
CT176 4FC | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1992-11
ended
|
CT170 4FC (SE,SV) | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1992-11
ended
|
CT176 SG | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1992-11
ended
|
CT170 5F SV | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1992-11
ended
|
CT176 DX | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1992-11
ended
|
AT171 EFIS | — | |
| 88723-12040 |
Label, Cooler Service Caution
1990-12 → 1992-08
ended
|
CT170 5F SG | — | |
| 88723-12040 |
Label, Cooler Service Caution
1990-12 → 1992-08
ended
|
CT170 4FC SG | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1990-12
ended
|
AT170,ST170 WG EFI | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1990-12
ended
|
AT170 (SE,SGEXT) EFI | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1990-12
ended
|
AT175 SE,SGEXT | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1990-12
ended
|
CT170 5F SE | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1990-12
ended
|
CT170 4FC SG | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1990-12
ended
|
CT176 4FC DX | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1990-12
ended
|
ST170 SED EFI | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1990-12
ended
|
ET176 | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1990-12
ended
|
AT171 GLIM | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1990-05
ended
|
CT170 4FC SE | — | |
| 88723-12040 |
Label, Cooler Service Caution
1988-05 → 1990-05
ended
|
CT170 4FC SG | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
