Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

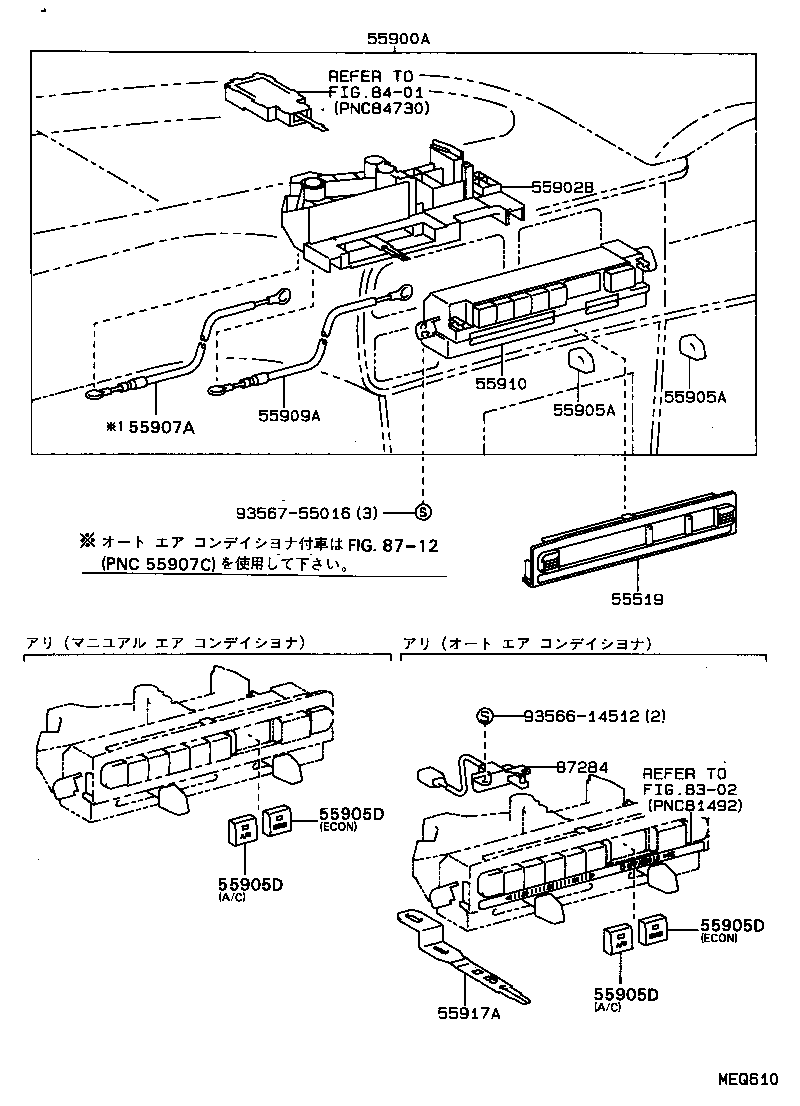

Exploded illustration MEQ610 55900A — CONTROL & ACCESSORY ASSY, HEATER (8 parts) 8401 — not listed in this catalogue 55902B — CONTROL SUB-ASSY, HEATER (1 parts) 55910 — CONTROL ASSY, HEATER OR BOOST VENTILATOR (3 parts) 55905A — KNOB, HEATER CONTROL (2 parts) 55905A — KNOB, HEATER CONTROL (2 parts) 55909A — CABLE SUB-ASSY, AIRMIX DAMPER CONTROL (3 parts) 55907A — CABLE SUB-ASSY, WATER VALVE CONTROL (4 parts) 9356755016 — not listed in this catalogue 55519 — PLATE, HEATER CONTROL NAME (8 parts) 9356614512 — not listed in this catalogue 87284 — RESISTOR SUB-ASSY, VARIABLE (2 parts) 8302 — not listed in this catalogue 55905D — KNOB SUB-ASSY, CONTROL (29 parts) 55905D — KNOB SUB-ASSY, CONTROL (29 parts) 55905D — KNOB SUB-ASSY, CONTROL (29 parts) 55905D — KNOB SUB-ASSY, CONTROL (29 parts) 55917A — LEVER, TEMPERATURE DAMPER CONTROL (2 parts)
MEQ610 · 14 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
55519 — Plate, Heater Control Name
55519-20270 Plate, Heater Control Name
1989-03 → 1990-05 ended
ST170 SGEXT ¥3,790
55519-20270 note Plate, Heater Control Name
1989-03 → 1990-05 ended
AT170,CT170 SG ¥3,790
55519-20270 note Plate, Heater Control Name
1989-05 → 1990-05 ended
ST170 SX ¥3,790
55519-20270 Plate, Heater Control Name
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥3,790
55519-20270 note Plate, Heater Control Name
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥3,790
55519-20270 note Plate, Heater Control Name
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥3,790
55519-20270 Plate, Heater Control Name
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥3,790
55519-20300 Plate, Heater Control Name
1990-05 → 1992-11 ended
AT17#,ST170 S,SGEXT,SX ¥2,550
55900A — Control & Accessory Assy, Heater
55900-20600 note Control & Accessory Assy, Heater
1989-05 → 1990-05 ended
ST170 SX ¥23,800
55900-20600 note Control & Accessory Assy, Heater
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥23,800
55900-20600 note Control & Accessory Assy, Heater
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥23,800
55900-20600 Control & Accessory Assy, Heater
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥23,800
55900-20600 note Control & Accessory Assy, Heater
1989-03 → 1990-05 ended
AT170,CT170 SG ¥23,800
55900-20600 Control & Accessory Assy, Heater
1989-03 → 1990-05 ended
ST170 SGEXT ¥23,800
55900-20600 Control & Accessory Assy, Heater
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥23,800
55900-20850 Control & Accessory Assy, Heater
1990-05 → 1992-11 ended
AT17#,ST170 S,SGEXT,SX ¥25,900
55902B — Control Sub-assy, Heater
55902-20120 Control Sub-assy, Heater
1990-05 → 1992-11 ended
AT17#,ST170 S,SGEXT,SX ¥2,120
55905A — Knob, Heater Control
55905-12130 Knob, Heater Control
1988-05 → 1992-11 ended
ST170 (SGEXT,SX) CI;AT17#,CT17#,ET176 (DX,S,SG,STD,SV) +1 ¥650
55905-20380 Knob, Heater Control
1990-05 → 1992-11 ended
AT17#,ST170 S,SGEXT,SX ¥430
55905D — Knob Sub-assy, Control
55905-20280 note Knob Sub-assy, Control
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥440
55905-20280 note Knob Sub-assy, Control
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥440
55905-20280 note Knob Sub-assy, Control
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥440
55905-20280 note Knob Sub-assy, Control
1989-05 → 1990-05 ended
ST170 SX ¥440
55905-20280 note Knob Sub-assy, Control
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥440
55905-20280 note Knob Sub-assy, Control
1989-03 → 1990-05 ended
ST170 SGEXT ¥440
55905-20280 note Knob Sub-assy, Control
1989-03 → 1990-05 ended
AT170,CT170 SG ¥440
55905-20290 note Knob Sub-assy, Control
1989-03 → 1990-05 ended
ST170 SGEXT ¥440
55905-20290 note Knob Sub-assy, Control
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥440
55905-20290 note Knob Sub-assy, Control
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥440
55905-20290 note Knob Sub-assy, Control
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥440
55905-20290 note Knob Sub-assy, Control
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥440
55905-20290 note Knob Sub-assy, Control
1989-05 → 1990-05 ended
ST170 SX ¥440
55905-20290 note Knob Sub-assy, Control
1989-03 → 1990-05 ended
AT170,CT170 SG ¥440
55905-20300 note Knob Sub-assy, Control
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥440
55905-20300 note Knob Sub-assy, Control
1989-05 → 1990-05 ended
ST170 SX ¥440
55905-20300 note Knob Sub-assy, Control
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥440
55905-20300 note Knob Sub-assy, Control
1989-03 → 1990-05 ended
AT170,CT170 SG ¥440
55905-20300 note Knob Sub-assy, Control
1989-03 → 1990-05 ended
ST170 SGEXT ¥440
55905-20300 note Knob Sub-assy, Control
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥440
55905-20300 note Knob Sub-assy, Control
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥440
55905-20390 note Knob Sub-assy, Control
1990-05 → 1990-12 ended
AT171,ST170 S,SX ¥440
55905-20390 note Knob Sub-assy, Control
1990-12 → 1992-11 ended
AT170,171,ST170 S,SGEXT,SX ¥440
55905-20390 note Knob Sub-assy, Control
1990-12 → 1992-08 ended
AT175 SGEXT ¥440
55905-20390 note Knob Sub-assy, Control
1990-05 → 1990-12 ended
AT170,175,ST170 SGEXT ¥440
55905-20400 note Knob Sub-assy, Control
1990-05 → 1990-12 ended
AT170,175,ST170 SGEXT ¥440
55905-20400 note Knob Sub-assy, Control
1990-05 → 1990-12 ended
AT171,ST170 S,SX ¥440
55905-20400 note Knob Sub-assy, Control
1990-12 → 1992-11 ended
AT170,171,ST170 S,SGEXT,SX ¥440
55905-20400 note Knob Sub-assy, Control
1990-12 → 1992-08 ended
AT175 SGEXT ¥440
55907A — Cable Sub-assy, Water Valve Control
55907-20200 Cable Sub-assy, Water Valve Control
1988-09 → 1990-05 ended
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,S,SG,STD,SV ¥1,000
55907-20201 Cable Sub-assy, Water Valve Control
1990-05 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥990
55907-20220 Cable Sub-assy, Water Valve Control
1988-05 → 1988-09 ended
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,S,SG,STD,SV ¥990
55907-20270 Cable Sub-assy, Water Valve Control
1990-05 → 1992-11 ended
AT17#,ST170 S,SGEXT,SX ¥990
55909A — Cable Sub-assy, Airmix Damper Control
55909-20090 Cable Sub-assy, Airmix Damper Control
1988-05 → 1990-05 ended
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,S,SG,STD,SV ¥740
55909-20091 Cable Sub-assy, Airmix Damper Control
1990-05 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥860
55909-20150 Cable Sub-assy, Airmix Damper Control
1990-05 → 1992-11 ended
AT17#,ST170 S,SGEXT,SX ¥860
55910 — Control Assy, Heater OR Boost Ventilator
55910-20540 Control Assy, Heater OR Boost Ventilator
1988-05 → 1990-05 ended
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,S,SG,STD,SV ¥4,150
55910-20541 Control Assy, Heater OR Boost Ventilator
1990-05 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥4,100
55910-20610 Control Assy, Heater OR Boost Ventilator
1990-05 → 1992-11 ended
AT17#,ST170 S,SGEXT,SX ¥22,900
55917A — Lever, Temperature Damper Control
55917-20120 Lever, Temperature Damper Control
1988-05 → 1992-11 ended
AT170,171,CT170 (S,SV) (DSL,EFI);AT170,ST170 (SG,SGEXT,SX) +1 ¥530
55917-20130 Lever, Temperature Damper Control
1990-05 → 1992-11 ended
AT17#,ST170 S,SGEXT,SX ¥530
87284 — Resistor Sub-assy, Variable
88032-20110 Resistor Sub-assy, Variable
1988-05 → 1992-11 ended
AT170,171,CT170 (S,SV) (DSL,EFI);AT170,ST170 (SG,SGEXT,SX) +1 —
88032-20160 Resistor Sub-assy, Variable
1990-05 → 1992-11 ended
AT17#,ST170 S,SGEXT,SX —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
