Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

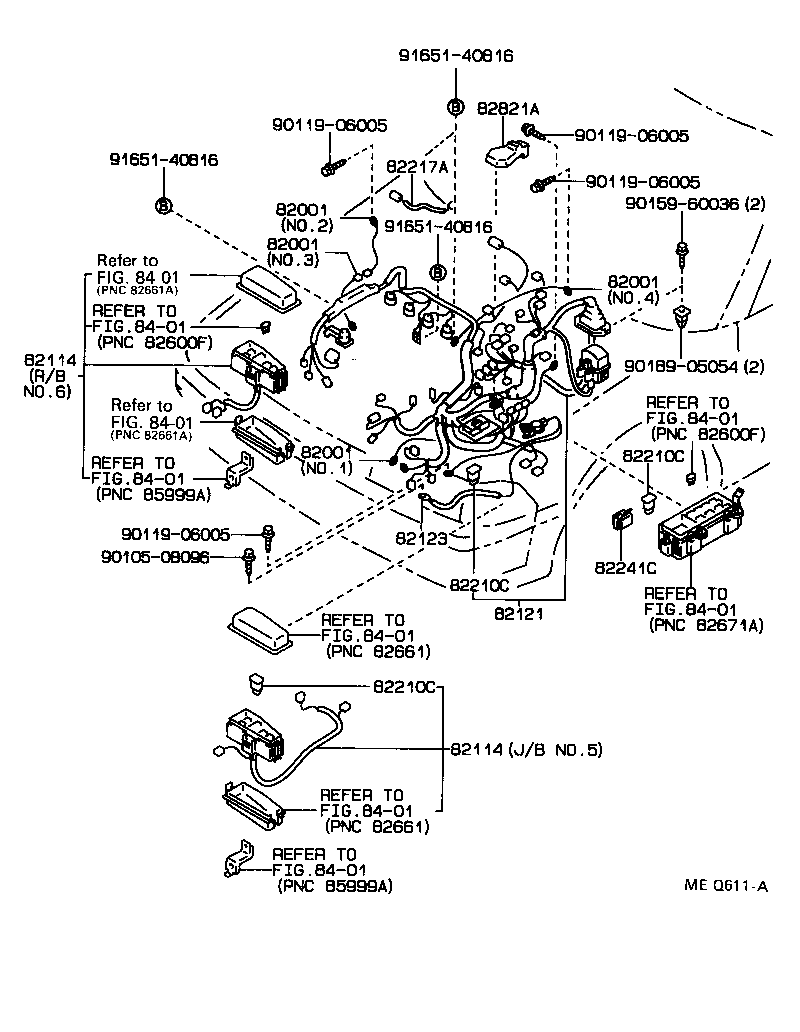

Exploded illustration MEQ611A 9165140816 — not listed in this catalogue 82821A — COVER, CONNECTOR (3 parts) 9011906005 — not listed in this catalogue 9011906005 — not listed in this catalogue 9165140816 — not listed in this catalogue 82217A — WIRE, FRONT WINDOW DEFOGGER (1 parts) 9011906005 — not listed in this catalogue 9015960036 — not listed in this catalogue 82001 — CABLE, BOND, NO.1 (11 parts) 9165140816 — not listed in this catalogue 82001 — CABLE, BOND, NO.1 (11 parts) 8401 — not listed in this catalogue 82001 — CABLE, BOND, NO.1 (11 parts) 8401 — not listed in this catalogue 82114 — WIRE, ENGINE ROOM, NO.4 (18 parts) 9018905054 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 82001 — CABLE, BOND, NO.1 (11 parts) 82210C — FUSIBLE LINK (16 parts) 8401 — not listed in this catalogue 9011906005 — not listed in this catalogue 82123 — WIRE, ENGINE, NO.3 (2 parts) 9010508096 — not listed in this catalogue 82241C — WIRE, RELAY (1 parts) 82210C — FUSIBLE LINK (16 parts) 8401 — not listed in this catalogue 82121 — WIRE, ENGINE (77 parts) 8401 — not listed in this catalogue 82210C — FUSIBLE LINK (16 parts) 82114 — WIRE, ENGINE ROOM, NO.4 (18 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue
MEQ611A · 14 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
129 parts on this figure
Part number Description Fitment Price
82001 — Cable, Bond, NO.1
90980-07126 note Cable, Bond, NO.1
1988-08 → 1992-08 ended
AT175 ¥910
90980-07206 note Cable, Bond, NO.1
1988-05 → 1992-11 ended
AT17#,CT17#,ST170 ¥610
90980-07221 note Cable, Bond, NO.1
1988-05 → 1992-11 ended
CT17# ¥640
90980-07235 note Cable, Bond, NO.1
1988-05 → 1992-08 ended
AT171 GLIM ¥510
90980-07264 note Cable, Bond, NO.1
1988-05 → 1992-11 ended
AT17#,ET176,ST170 ¥680
90980-07280 note Cable, Bond, NO.1
1988-05 → 1992-11 ended
ST170 ¥610
90980-07299 note Cable, Bond, NO.1
1988-05 → 1992-11 ended
AT17# DX,S,SE,SG,SGEXT,SV ¥500
90980-07302 note Cable, Bond, NO.1
1988-05 → 1992-11 ended
AT170,171 DX,S,SE,SG,SGEXT,SV ¥990
90980-07303 note Cable, Bond, NO.1
1988-05 → 1992-11 ended
ET176 ¥500
90980-07305 note Cable, Bond, NO.1
1988-05 → 1992-08 ended
AT171 GLIM ¥610
90980-07306 note Cable, Bond, NO.1
1988-05 → 1992-11 ended
ST170 ¥790
82114 — Wire, Engine Room, NO.4
82114-20030 Wire, Engine Room, NO.4
1990-05 → 1992-11 ended
ET176 ¥5,300
82114-20030 note Wire, Engine Room, NO.4
1988-05 → 1990-05 ended
AT170,ET176 ¥5,300
82114-20040 note Wire, Engine Room, NO.4
1989-11 → 1990-05 ended
CT176 4FC ¥5,300
82114-20040 Wire, Engine Room, NO.4
1990-05 → 1992-11 ended
CT170 4FC ¥5,300
82114-20040 Wire, Engine Room, NO.4
1990-05 → 1992-11 ended
CT176 4FC ¥5,300
82114-20050 note Wire, Engine Room, NO.4
1990-05 → 1992-02 ended
AT175,ST170 SE,SGEXT,SX ¥4,550
82114-20050 note Wire, Engine Room, NO.4
1990-05 → 1992-08 ended
AT170,171 GLIM,S,SE,SGEXT ¥4,550
82114-20050 note Wire, Engine Room, NO.4
1992-02 → 1992-08 ended
ST170 SED ¥4,550
82114-20070 note Wire, Engine Room, NO.4
1988-05 → 1990-05 ended
ST170 ¥5,300
82114-20070 note Wire, Engine Room, NO.4
1990-05 → 1992-11 ended
ST170 ¥5,300
82114-20080 note Wire, Engine Room, NO.4
1990-12 → 1992-08 ended
CT170 SG ¥6,000
82114-20080 note Wire, Engine Room, NO.4
1990-05 → 1992-08 ended
AT175,CT170 SE,SGEXT ¥6,000
82114-20140 note Wire, Engine Room, NO.4
1990-05 → 1992-11 ended
AT175 ¥5,300
82114-20140 Wire, Engine Room, NO.4
1990-05 → 1992-11 ended
AT170,171 ¥5,300
82114-20140 note Wire, Engine Room, NO.4
1988-05 → 1990-05 ended
AT171,175 ¥5,300
82114-20150 note Wire, Engine Room, NO.4
1988-05 → 1990-05 ended
CT170;CT176 5F ¥6,800
82114-20150 Wire, Engine Room, NO.4
1990-05 → 1992-11 ended
CT170 SV;CT17# (SED,VAN) 5F ¥6,800
82114-20200 note Wire, Engine Room, NO.4
1992-02 → 1992-11 ended
AT175,ST170 SE,SGEXT,SX ¥3,190
82121 — Wire, Engine
82121-2B620 note Wire, Engine
1988-05 → 1988-07 ended
AT170 4FC SG ¥70,600
82121-2B620 Wire, Engine
1988-05 → 1988-07 ended
AT170 4FC SE ¥70,600
82121-2B621 Wire, Engine
1988-07 → 1988-09 ended
AT170 4FC SE ¥70,600
82121-2B621 note Wire, Engine
1988-07 → 1988-09 ended
AT170 4FC SG ¥70,600
82121-2B622 note Wire, Engine
1989-03 → 1990-05 ended
AT170 4FC SG ¥70,900
82121-2B622 Wire, Engine
1988-09 → 1990-05 ended
AT170 4FC SE ¥70,900
82121-2B622 note Wire, Engine
1988-09 → 1989-03 ended
AT170 4FC SG ¥70,900
82121-2B702 Wire, Engine
1988-05 → 1988-09 ended
ST170 4FC ¥90,400
82121-2B703 Wire, Engine
1988-09 → 1990-05 ended
ST170 4FC ¥90,800
82121-2B712 note Wire, Engine
1988-05 → 1988-09 ended
ST170 4FC ¥97,300
82121-2B713 note Wire, Engine
1988-09 → 1990-05 ended
ST170 4FC ¥97,900
82121-2B750 Wire, Engine
1988-05 → 1988-07 ended
AT170 MTM ¥59,100
82121-2B751 Wire, Engine
1988-07 → 1988-09 ended
AT170 MTM ¥59,100
82121-2B752 Wire, Engine
1988-09 → 1990-05 ended
AT170 MTM ¥59,300
82121-2B760 Wire, Engine
1988-05 → 1988-07 ended
AT170 4FC (DX,SG,SV) ¥59,100
82121-2B761 Wire, Engine
1988-07 → 1988-09 ended
AT170 4FC (DX,SG,SV) ¥59,100
82121-2B762 Wire, Engine
1988-09 → 1990-05 ended
AT170 4FC (DX,SG,SV) ¥59,300
82121-2B770 Wire, Engine
1988-05 → 1988-09 ended
ST170 5F ¥79,100
82121-2B771 Wire, Engine
1988-09 → 1990-05 ended
ST170 5F ¥79,600
82121-2B780 note Wire, Engine
1988-05 → 1988-09 ended
ST170 5F ¥79,100
82121-2B781 note Wire, Engine
1988-09 → 1990-05 ended
ST170 5F ¥79,600
82121-2D300 Wire, Engine
1988-05 → 1989-11 ended
CT170 4FC SG ¥70,900
82121-2D301 Wire, Engine
1989-11 → 1990-05 ended
CT170 4FC SG ¥70,900
82121-2D310 Wire, Engine
1988-05 → 1989-11 ended
CT170 4FC SE ¥70,900
82121-2D310 note Wire, Engine
1989-03 → 1989-11 ended
CT170 4FC SG ¥70,900
82121-2D311 Wire, Engine
1989-11 → 1990-05 ended
CT170 4FC SE ¥70,900
82121-2D311 note Wire, Engine
1989-11 → 1990-05 ended
CT170 4FC SG ¥70,900
82121-2D320 Wire, Engine
1988-05 → 1989-11 ended
CT17# 5F ¥59,300
82121-2D321 Wire, Engine
1989-11 → 1990-05 ended
CT170 5F ¥59,300
82121-2D330 Wire, Engine
1988-05 → 1989-11 ended
ET176 MTM ¥59,300
82121-2D340 Wire, Engine
1988-05 → 1989-11 ended
ET176 3FC ¥59,300
82121-2D550 Wire, Engine
1988-05 → 1989-08 ended
AT171 5F GLIM ¥79,100
82121-2D560 Wire, Engine
1988-05 → 1989-08 ended
AT171 4FC GLIM ¥79,100
82121-2D670 Wire, Engine
1988-05 → 1990-05 ended
AT171 5F S ¥90,800
82121-2D680 Wire, Engine
1988-05 → 1990-05 ended
AT171 4FC S ¥97,900
82121-2D690 Wire, Engine
1988-08 → 1990-05 ended
AT175 5F ¥90,800
82121-2D700 Wire, Engine
1988-08 → 1990-05 ended
AT175 4FC SG ¥97,900
82121-2D710 Wire, Engine
1988-08 → 1990-05 ended
AT175 4FC SGEXT ¥97,900
82121-2D800 Wire, Engine
1989-08 → 1990-05 ended
AT171 5F GLIM ¥79,600
82121-2D810 Wire, Engine
1989-08 → 1990-05 ended
AT171 4FC GLIM ¥79,600
82121-2D820 Wire, Engine
1990-05 → 1992-11 ended
AT170 MTM ¥90,100
82121-2D830 note Wire, Engine
1990-05 → 1992-08 ended
AT170 4FC SGEXT ¥90,100
82121-2D830 Wire, Engine
1990-05 → 1992-11 ended
AT170 4FC (DX,SG,SV) ¥90,100
82121-2D840 note Wire, Engine
1990-05 → 1992-08 ended
AT170 4FC SGEXT ¥97,100
82121-2D840 Wire, Engine
1990-05 → 1992-08 ended
AT170 4FC (SE,SGEXT) ¥97,100
82121-2D850 Wire, Engine
1990-05 → 1992-08 ended
AT175 5F ¥97,100
82121-2D860 Wire, Engine
1990-05 → 1992-08 ended
AT175 4FC SG ¥97,100
82121-2D870 Wire, Engine
1990-05 → 1992-08 ended
AT175 4FC (SE,SGEXT) ¥97,100
82121-2D880 Wire, Engine
1990-05 → 1992-11 ended
ST170 5F ¥90,100
82121-2G010 Wire, Engine
1990-05 → 1992-11 ended
ST170 4FC ¥97,100
82121-2G060 Wire, Engine
1989-11 → 1990-05 ended
CT176 5F ¥79,600
82121-2G060 Wire, Engine
1991-06 → 1991-07 ended
CT176 5F ¥79,600
82121-2G060 Wire, Engine
1990-05 → 1991-06 ended
CT17# 5F ¥79,600
82121-2G061 Wire, Engine
1991-07 → 1992-11 ended
CT176 5F ¥45,000
82121-2G071 Wire, Engine
1990-05 → 1991-06 ended
CT170 4FC (SG,SV) ¥45,500
82121-2G080 Wire, Engine
1989-11 → 1991-07 ended
CT176 4FC ¥79,600
82121-2G081 Wire, Engine
1991-07 → 1992-11 ended
CT176 4FC ¥45,000
82121-2G091 note Wire, Engine
1990-12 → 1991-06 ended
CT170 4FC SG ¥48,900
82121-2G091 Wire, Engine
1990-05 → 1991-06 ended
CT170 4FC SE ¥48,900
82121-2G100 Wire, Engine
1989-11 → 1992-11 ended
ET176 MTM ¥70,100
82121-2G110 Wire, Engine
1989-11 → 1992-11 ended
ET176 3FC ¥78,900
82121-2G380 Wire, Engine
1990-05 → 1991-03 ended
AT171 5F EFIS ¥51,800
82121-2G381 Wire, Engine
1991-03 → 1992-08 ended
AT171 5F EFIS ¥51,200
82121-2G390 Wire, Engine
1990-05 → 1991-03 ended
AT171 4FC EFIS ¥51,800
82121-2G391 Wire, Engine
1991-03 → 1992-08 ended
AT171 4FC EFIS ¥51,200
82121-2G400 Wire, Engine
1990-05 → 1991-03 ended
AT171 5F EFI ¥48,900
82121-2G401 Wire, Engine
1991-03 → 1992-08 ended
AT171 5F EFI ¥48,300
82121-2G410 Wire, Engine
1990-05 → 1991-03 ended
AT171 4FC EFI ¥48,900
82121-2G411 Wire, Engine
1991-03 → 1992-08 ended
AT171 4FC EFI ¥48,300
82121-2G811 Wire, Engine
1991-06 → 1991-07 ended
CT170 5F ¥45,500
82121-2G812 Wire, Engine
1991-07 → 1992-11 ended
CT170 5F ¥45,000
82121-2G821 Wire, Engine
1991-06 → 1991-07 ended
CT170 4FC (SG,SV) ¥48,900
82121-2G822 Wire, Engine
1991-07 → 1992-11 ended
CT170 4FC (SG,SV) ¥48,300
82121-2G831 note Wire, Engine
1991-06 → 1991-07 ended
CT170 4FC SG ¥48,900
82121-2G831 Wire, Engine
1991-06 → 1991-07 ended
CT170 4FC SE ¥48,900
82121-2G832 Wire, Engine
1991-07 → 1992-08 ended
CT170 4FC SE ¥48,300
82121-2G832 note Wire, Engine
1991-07 → 1992-08 ended
CT170 4FC SG ¥48,300
82123 — Wire, Engine, NO.3
82123-20130 Wire, Engine, NO.3
1988-05 → 1992-11 ended
AT17#,ET176,ST170 ¥3,200
82123-20150 Wire, Engine, NO.3
1988-05 → 1992-11 ended
CT17# ¥3,200
82210C — Fusible Link
90982-08188 note Fusible Link
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥710
90982-08190 note Fusible Link
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥750
90982-08202 note Fusible Link
1988-05 → 1988-08 ended
AT171 GLIM ¥700
90982-08202 note Fusible Link
1988-08 → 1992-11 ended
AT170,171 DX,GLIM,SE,SG,SGEXT,SV ¥700
90982-08203 note Fusible Link
1990-05 → 1992-11 ended
CT17# ¥460
90982-08203 note Fusible Link
1988-05 → 1988-12 ended
CT17# ¥460
90982-08203 note Fusible Link
1989-12 → 1992-11 ended
ST170 5F;AT17#,ET176;ST170 4FC CI ¥460
90982-08203 note Fusible Link
1989-12 → 1990-05 ended
CT17# ¥460
90982-08203 note Fusible Link
1988-05 → 1988-12 ended
AT17#,ET176,ST170 ¥460
90982-08246 note Fusible Link
1988-05 → 1992-11 ended
ST170 4FC ¥440
90982-08253 note Fusible Link
1989-11 → 1989-12 ended
CT176;CT170 5F ¥730
90982-08253 note Fusible Link
1989-11 → 1989-12 ended
CT170 4FC ¥730
90982-08253 note Fusible Link
1989-03 → 1989-12 ended
CT170 4FC SG ¥730
90982-08253 note Fusible Link
1988-05 → 1989-12 ended
AT17#,ET176,ST170 ¥730
90982-08253 note Fusible Link
1988-05 → 1989-11 ended
CT17# ¥730
90982-08259 note Fusible Link
1988-10 → 1992-11 ended
CT17# ¥730
82217A — Wire, Front Window Defogger
82217-20010 Wire, Front Window Defogger
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥1,400
82241C — Wire, Relay
82241-32020 Wire, Relay
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥300
82821A — Cover, Connector
82821-24010 Cover, Connector
1988-05 → 1992-11 ended
AT17#,CT17#,ST170 CI,DSL,EFI,EFIS ¥310
82821-32030 note Cover, Connector
1990-05 → 1992-08 ended
AT170 4FC SGEXT ¥610
82821-32030 Cover, Connector
1988-05 → 1992-11 ended
AT170,ET176 CBR;AT170 (DX,SG,SV) EFI;AT170 +3 ¥610
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
