Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

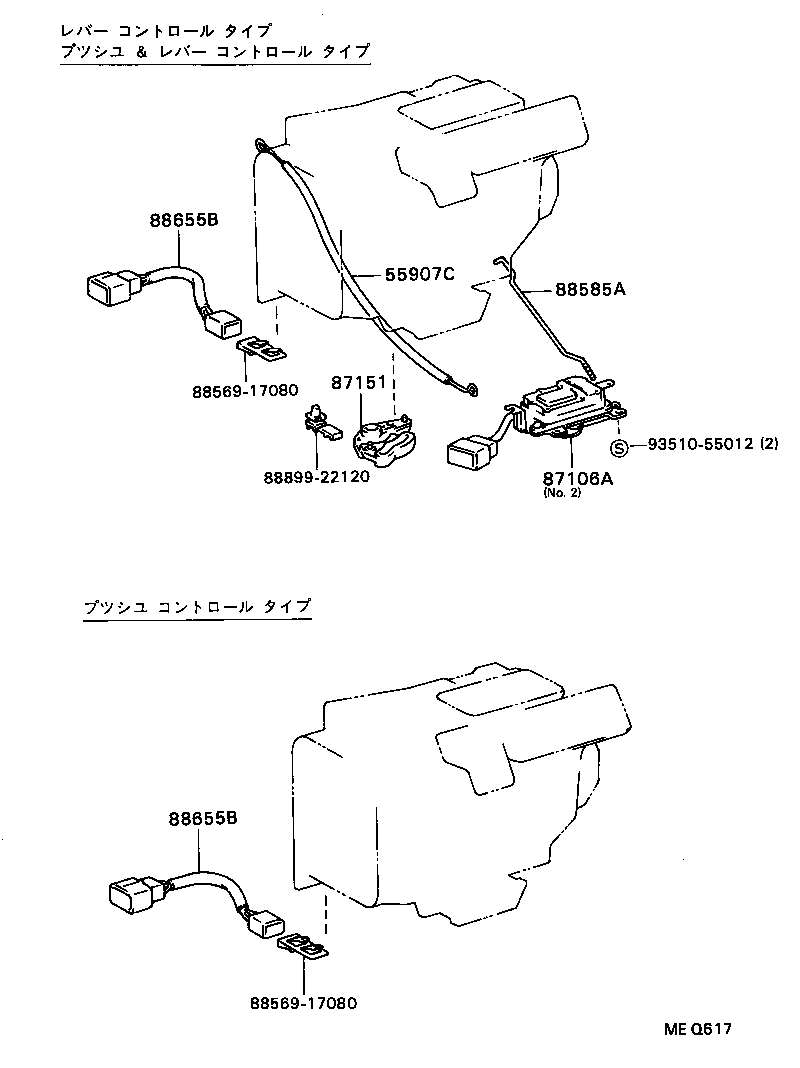

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55907C — Cable Sub-assy, Water Valve Control | ||||
| 87286-20080 |
Cable Sub-assy, Water Valve Control
1988-05 → 1989-03
ended
|
AT170 4F SG | — | |
| 87286-20080 |
Cable Sub-assy, Water Valve Control
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | — | |
| 87286-20080 |
Cable Sub-assy, Water Valve Control
1990-05 → 1992-11
ended
|
AT170,CT170 SV | — | |
| 87286-20080 |
Cable Sub-assy, Water Valve Control
1988-05 → 1992-11
ended
|
AT171,ST170 (S,SX) (EFI,EFIS) | — | |
| 87286-20080 |
Cable Sub-assy, Water Valve Control
1990-12 → 1992-08
ended
|
AT175 SE,SGEXT;AT170,171,CT170,ST170 GLIM,SE | — | |
| 87286-20080 |
Cable Sub-assy, Water Valve Control
1990-12 → 1992-08
ended
|
AT170,ST170 SGEXT | — | |
| 87286-20080 |
Cable Sub-assy, Water Valve Control
1990-12 → 1992-08
ended
|
CT170 SG | — | |
| 87286-20080 |
Cable Sub-assy, Water Valve Control
1989-03 → 1990-12
ended
|
ST170 (SE,SX) CI;AT17#,CT170,ST170 (GLIM,SE,SGEXT) +1 | — | |
| 87286-20080 |
Cable Sub-assy, Water Valve Control
1989-03 → 1990-05
ended
|
CT170 SG | — | |
| 87286-20080 |
Cable Sub-assy, Water Valve Control
1989-03 → 1990-05
ended
|
AT170 4F SG | — | |
| 87286-20080 |
Cable Sub-assy, Water Valve Control
1989-03 → 1990-05
ended
|
AT170 (4FC,5F) SG | — | |
| 87286-20080 |
Cable Sub-assy, Water Valve Control
1989-03 → 1990-05
ended
|
ST170 SGEXT | — | |
| 87286-20080 |
Cable Sub-assy, Water Valve Control
1988-05 → 1989-03
ended
|
AT17#,CT170,ST170 GLIM,SE,SGEXT,SX | — | |
| 87106A — Servo Sub-assy, Damper | ||||
| 87106-20090 note |
Servo Sub-assy, Damper
1990-12 → 1992-08
ended
|
CT170,ST170 SG,SGEXT | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1990-12 → 1992-08
ended
|
AT175 SE,SGEXT;AT170,171,CT170,ST170 GLIM,SE | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1990-12 → 1992-08
ended
|
AT170 SGEXT | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1990-05 → 1992-11
ended
|
AT170,CT170 SV;ST170 SGEXT,SX | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1988-05 → 1992-08
ended
|
AT171 S | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1989-03 → 1990-12
ended
|
ST170 SE;ST170 SX CI;AT17#,CT170 +1 | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1990-05 → 1992-11
ended
|
ST170 SX | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
CT170 SG | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
AT170 4F SG | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
AT170 (4FC,5F) SG | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
ST170 SGEXT | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1988-05 → 1989-03
ended
|
AT170 4F SG | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1988-05 → 1989-03
ended
|
AT17#,CT170,ST170 GLIM,SE,SGEXT,SX | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
ST170 SGEXT | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
AT170,CT170 SG | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1990-12 → 1992-11
ended
|
AT175 SE,SGEXT | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1988-05 → 1990-12
ended
|
AT171,ST170 ) (S,SE) (CI,EFIS);AT17#,CT170,ST170 +2 | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1990-12 → 1992-11
ended
|
AT170,171,CT170,ST170 GLIM,S,SE,SGEXT,SX | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1988-05 → 1990-05
ended
|
AT171 S | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1990-12 → 1992-08
ended
|
CT170 SG | — | |
| 87106-20110 note |
Servo Sub-assy, Damper
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥0 | |
| 87106-20110 note |
Servo Sub-assy, Damper
1990-12 → 1992-08
ended
|
CT170 SG;AT170,ST170 SGEXT | ¥0 | |
| 87106-20110 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
AT170,CT170 SG | ¥0 | |
| 87106-20110 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
ST170 SGEXT | ¥0 | |
| 87106-20110 note |
Servo Sub-assy, Damper
1988-05 → 1990-05
ended
|
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT | ¥0 | |
| 87106-20110 note |
Servo Sub-assy, Damper
1988-05 → 1992-11
ended
|
AT171,ST170 (S,SX) (EFI,EFIS) | ¥0 | |
| 87106-20190 note |
Servo Sub-assy, Damper
1990-05 → 1992-11
ended
|
AT17#,ST170 S,SGEXT,SX | — | |
| 87151 — Plate, Damper | ||||
| 87151-20010 |
Plate, Damper
1990-05 → 1992-11
ended
|
AT17#,ST170 S,SGEXT,SX | — | |
| 87151-20010 |
Plate, Damper
1990-05 → 1992-11
ended
|
AT170,CT170 SV | — | |
| 88585A — Shaft, Heater Air Damper | ||||
| 88585-20060 |
Shaft, Heater Air Damper
1990-05 → 1992-11
ended
|
AT17#,ST170 S,SGEXT,SX | — | |
| 88585-20060 note |
Shaft, Heater Air Damper
1990-05 → 1992-11
ended
|
AT170,CT170 SV | — | |
| 88655B — Switch, Water Temperature | ||||
| 88655-22020 |
Switch, Water Temperature
1990-12 → 1992-11
ended
|
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX | — | |
| 88655-22020 |
Switch, Water Temperature
1990-12 → 1992-08
ended
|
AT175 SE,SGEXT;AT170,171,ST170 GLIM,SE | — | |
| 88655-22020 |
Switch, Water Temperature
1990-12 → 1992-08
ended
|
CT170 SG | — | |
| 88655-22020 |
Switch, Water Temperature
1989-03 → 1990-12
ended
|
ST170 (SE,SX) CI;AT17#,ST170 (GLIM,SE,SGEXT) +1 | — | |
| 88655-22020 |
Switch, Water Temperature
1989-03 → 1990-12
ended
|
ST170 SGEXT CI;AT170,ST170 WG +2 | — | |
| 88655-22020 |
Switch, Water Temperature
1989-03 → 1990-05
ended
|
CT170 SG | — | |
| 88655-22020 |
Switch, Water Temperature
1989-03 → 1990-05
ended
|
AT170 5F SG | — | |
| 88655-22020 |
Switch, Water Temperature
1989-03 → 1990-05
ended
|
AT170 4FC SG | — | |
| 88655-22020 |
Switch, Water Temperature
1989-03 → 1990-05
ended
|
AT170 4F SG | — | |
| 88655-22020 |
Switch, Water Temperature
1988-05 → 1989-03
ended
|
AT17#,ST170 GLIM,SE,SGEXT,SX | — | |
| 88655-22020 |
Switch, Water Temperature
1988-05 → 1989-03
ended
|
AT171,CT170 S,SE | — | |
| 88655-22020 |
Switch, Water Temperature
1988-05 → 1989-03
ended
|
AT170 4F SG | — | |
| 88655-22020 |
Switch, Water Temperature
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
