Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

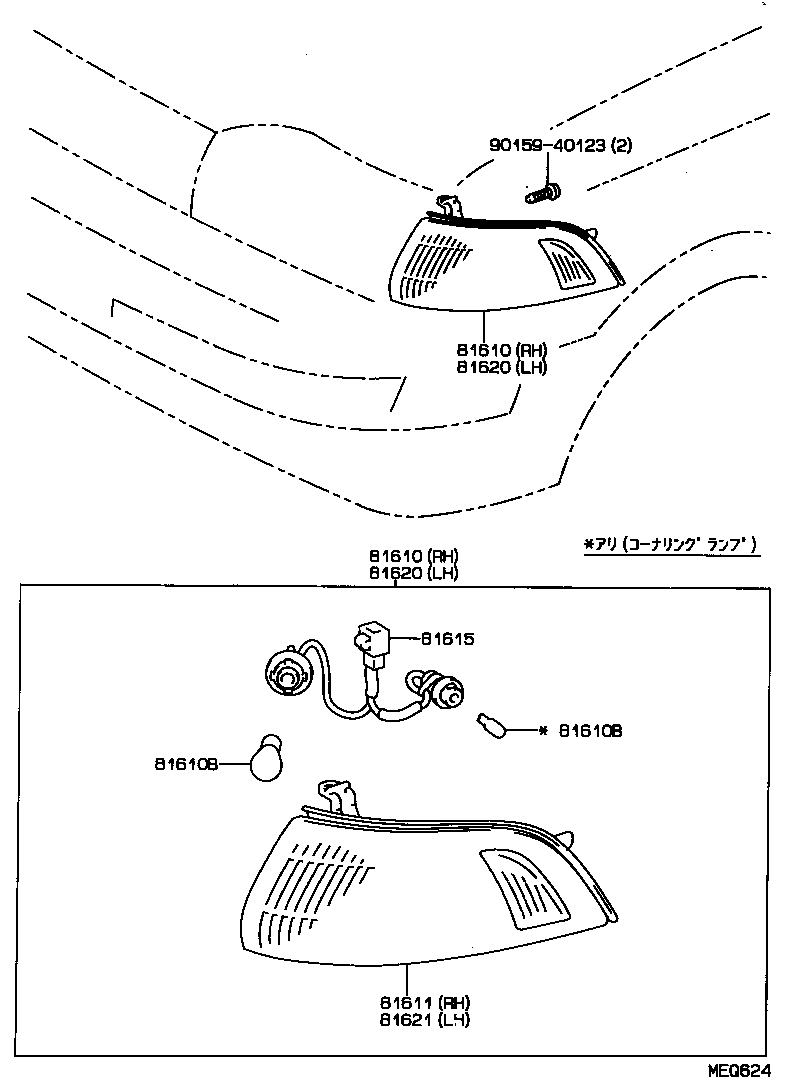

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81610 — Lamp Assy, Parking & Clearance, RH | ||||
| 81610-20450 |
Lamp Assy, Parking & Clearance, RH
1990-05 → 1992-11
ended
|
AT170,CT170 DX,SV | ¥10,300 | |
| 81610-20460 |
Lamp Assy, Parking & Clearance, RH
1990-05 → 1992-08
ended
|
AT170,175,CT170 SG | ¥10,300 | |
| 81610-20470 |
Lamp Assy, Parking & Clearance, RH
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥10,300 | |
| 81610-20480 |
Lamp Assy, Parking & Clearance, RH
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE,SGEXT | ¥10,600 | |
| 81610-20480 note |
Lamp Assy, Parking & Clearance, RH
1990-12 → 1992-08
ended
|
CT170 SG | ¥10,600 | |
| 81610-20480 note |
Lamp Assy, Parking & Clearance, RH
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥10,600 | |
| 81610B — Bulb(FOR PARKING & CLEARANCE LAMP) | ||||
| 90981-13036 note |
Bulb(FOR PARKING & CLEARANCE LAMP)
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE,SGEXT | ¥540 | |
| 90981-13036 note |
Bulb(FOR PARKING & CLEARANCE LAMP)
1990-12 → 1992-08
ended
|
CT170 SG | ¥540 | |
| 90981-13036 note |
Bulb(FOR PARKING & CLEARANCE LAMP)
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥540 | |
| 99132-12050 note |
Bulb(FOR PARKING & CLEARANCE LAMP)
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE,SGEXT | ¥110 | |
| 99132-12050 note |
Bulb(FOR PARKING & CLEARANCE LAMP)
1990-12 → 1992-08
ended
|
CT170 SG | ¥110 | |
| 99132-12050 note |
Bulb(FOR PARKING & CLEARANCE LAMP)
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥110 | |
| 99132-12050 note |
Bulb(FOR PARKING & CLEARANCE LAMP)
1990-05 → 1992-11
ended
|
AT17#,CT170,ST170 DX,S,SG,SV,SX | ¥110 | |
| 81611 — Lens, Parking & Clearance Lamp, RH | ||||
| 81611-20450 |
Lens, Parking & Clearance Lamp, RH
1990-05 → 1992-11
ended
|
AT170,CT170 DX,SV | ¥8,400 | |
| 81611-20460 |
Lens, Parking & Clearance Lamp, RH
1990-05 → 1992-08
ended
|
AT170,175,CT170 SG | ¥8,400 | |
| 81611-20480 |
Lens, Parking & Clearance Lamp, RH
1990-05 → 1992-11
ended
|
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX | ¥8,400 | |
| 81611-20480 note |
Lens, Parking & Clearance Lamp, RH
1990-12 → 1992-08
ended
|
CT170 SG | ¥8,400 | |
| 81615 — Socket And Wire, Clearance Lamp | ||||
| 81615-20450 |
Socket And Wire, Clearance Lamp
1990-05 → 1992-11
ended
|
AT170,CT170 DX,SV | ¥1,290 | |
| 81615-20460 |
Socket And Wire, Clearance Lamp
1990-05 → 1992-08
ended
|
AT170,175,CT170 SG | ¥1,290 | |
| 81615-20470 |
Socket And Wire, Clearance Lamp
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥1,290 | |
| 81615-20480 |
Socket And Wire, Clearance Lamp
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE,SGEXT | ¥1,290 | |
| 81615-20480 note |
Socket And Wire, Clearance Lamp
1990-12 → 1992-08
ended
|
CT170 SG | ¥1,290 | |
| 81615-20480 note |
Socket And Wire, Clearance Lamp
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥1,290 | |
| 81620 — Lamp Assy, Parking & Clearance, LH | ||||
| 81620-20450 |
Lamp Assy, Parking & Clearance, LH
1990-05 → 1992-11
ended
|
AT170,CT170 DX,SV | ¥10,300 | |
| 81620-20460 |
Lamp Assy, Parking & Clearance, LH
1990-05 → 1992-08
ended
|
AT170,175,CT170 SG | ¥10,300 | |
| 81620-20470 |
Lamp Assy, Parking & Clearance, LH
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥10,300 | |
| 81620-20480 |
Lamp Assy, Parking & Clearance, LH
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE,SGEXT | ¥10,600 | |
| 81620-20480 note |
Lamp Assy, Parking & Clearance, LH
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥10,600 | |
| 81620-20480 note |
Lamp Assy, Parking & Clearance, LH
1990-12 → 1992-08
ended
|
CT170 SG | ¥10,600 | |
| 81621 — Lens, Parking & Clearance Lamp, LH | ||||
| 81621-20450 |
Lens, Parking & Clearance Lamp, LH
1990-05 → 1992-11
ended
|
AT170,CT170 DX,SV | ¥8,400 | |
| 81621-20460 |
Lens, Parking & Clearance Lamp, LH
1990-05 → 1992-08
ended
|
AT170,175,CT170 SG | ¥8,400 | |
| 81621-20480 note |
Lens, Parking & Clearance Lamp, LH
1990-12 → 1992-08
ended
|
CT170 SG | ¥8,400 | |
| 81621-20480 |
Lens, Parking & Clearance Lamp, LH
1990-05 → 1992-11
ended
|
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX | ¥8,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
