Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

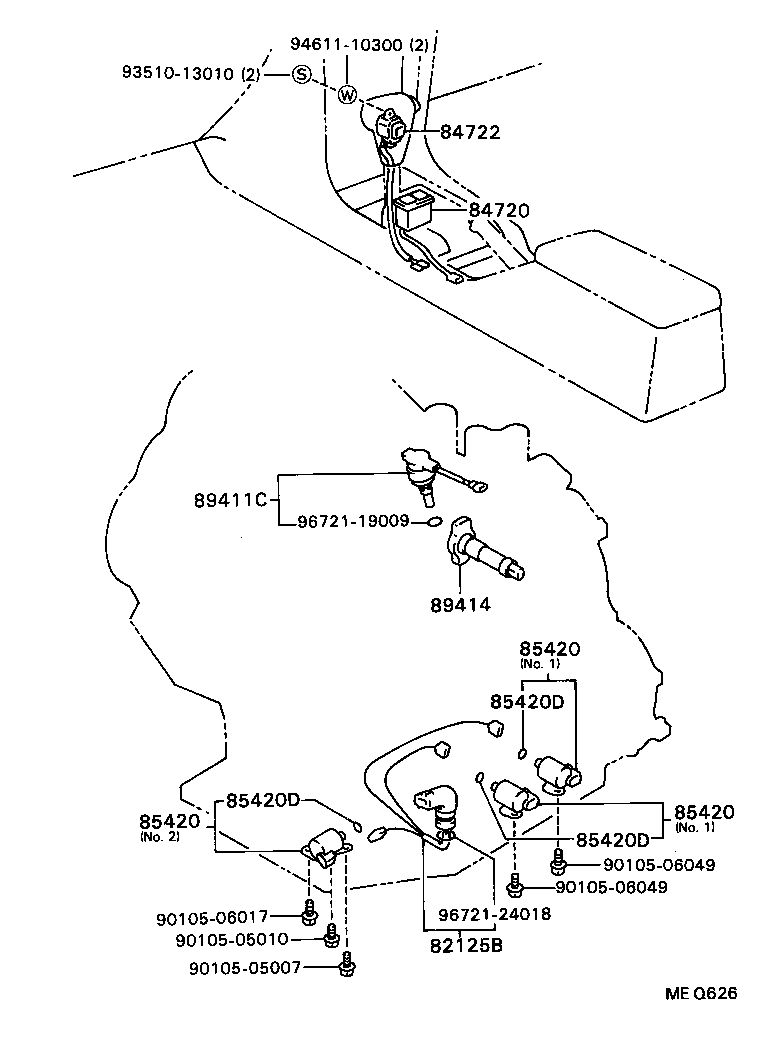

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82125B — Wire, Transmission | ||||
| 82125-17020 |
Wire, Transmission
1988-05 → 1990-05
ended
|
AT171 4FC GLIM | ¥2,320 | |
| 82125-20160 |
Wire, Transmission
1990-05 → 1992-08
ended
|
AT171 4FC EFI | ¥1,830 | |
| 84720 — Switch Assy, Pattern Select | ||||
| 84720-20070 |
Switch Assy, Pattern Select
1988-05 → 1992-08
ended
|
AT171 4FC GLIM | ¥7,400 | |
| 84722 — Switch, Transmission Control | ||||
| 84722-20060-01 note |
Switch, Transmission Control
1988-05 → 1990-05
ended
|
AT171 4FC GLIM | ¥5,500 | |
| 84722-20060-03 note |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT17#,CT170,ST170 4FC (S,SE,SGEXT,SX) | ¥5,500 | |
| 84722-20060-03 note |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT170 4FC SG | ¥5,500 | |
| 84722-20060-03 note |
Switch, Transmission Control
1990-05 → 1992-11
ended
|
AT17#,CT17#,ST170 4FC | ¥5,500 | |
| 84722-20060-03 note |
Switch, Transmission Control
1988-07 → 1990-05
ended
|
AT17#,CT17#,ST170 4FC (DX,S,SE,SG,SGEXT,SV,SX) | ¥5,500 | |
| 84722-20060-04 note |
Switch, Transmission Control
1988-07 → 1990-05
ended
|
AT17#,CT170,ST170 4FC (S,SE,SG,SGEXT) | ¥5,500 | |
| 84722-20060-04 note |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT170 4FC SG | ¥5,500 | |
| 84722-20060-04 note |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT17#,CT170,ST170 4FC (S,SE,SGEXT) | ¥5,500 | |
| 84722-20060-06 note |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT170 4FC SG | ¥5,500 | |
| 84722-20060-06 note |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT17#,CT170,ST170 4FC (S,SE,SGEXT,SX) | ¥5,500 | |
| 84722-20060-06 note |
Switch, Transmission Control
1988-07 → 1990-05
ended
|
AT170 4FC (SE,SG,SV);AT171,175,CT17#,ST170 4FC +1 | ¥5,500 | |
| 84722-20060-06 note |
Switch, Transmission Control
1990-05 → 1992-11
ended
|
AT17#,CT170,ST170 4FC (S,SE,SG,SGEXT,SX) | ¥5,500 | |
| 84722-20060-14 note |
Switch, Transmission Control
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 4FC (S,SE,SG,SGEXT) | ¥5,500 | |
| 84722-32010 |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT170,CT170 4FC (DX,SG,SV) | ¥5,900 | |
| 85420 — Solenoid Assy, Transmission | ||||
| 85420-12020 note |
Solenoid Assy, Transmission
1988-05 → 1988-09
ended
|
AT171 4FC GLIM | ¥14,000 | |
| 85420-12061 note |
Solenoid Assy, Transmission
1988-05 → 1988-11
ended
|
AT171 4FC GLIM | ¥16,300 | |
| 85420-12062 note |
Solenoid Assy, Transmission
1988-11 → 1992-08
ended
|
AT171 4FC GLIM | ¥16,000 | |
| 85420-22080 note |
Solenoid Assy, Transmission
1988-09 → 1992-08
ended
|
AT171 4FC GLIM | ¥13,600 | |
| 85420D — Ring, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
Ring, O (FOR TRANSMISSION SOLENOID)
1988-05 → 1990-05
ended
|
AT171 4FC GLIM | ¥120 | |
| 90301-06004 |
Ring, O (FOR TRANSMISSION SOLENOID)
1990-05 → 1992-08
ended
|
AT171 4FC EFI | ¥120 | |
| 89411C — Sensor, Speed | ||||
| 89411-20040 |
Sensor, Speed
1988-05 → 1992-08
ended
|
AT171 4FC GLIM | ¥6,400 | |
| 89414 — Rotor, Sensor | ||||
| 89414-12010 |
Rotor, Sensor
1988-05 → 1992-08
ended
|
AT171 4FC GLIM | ¥9,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
