Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

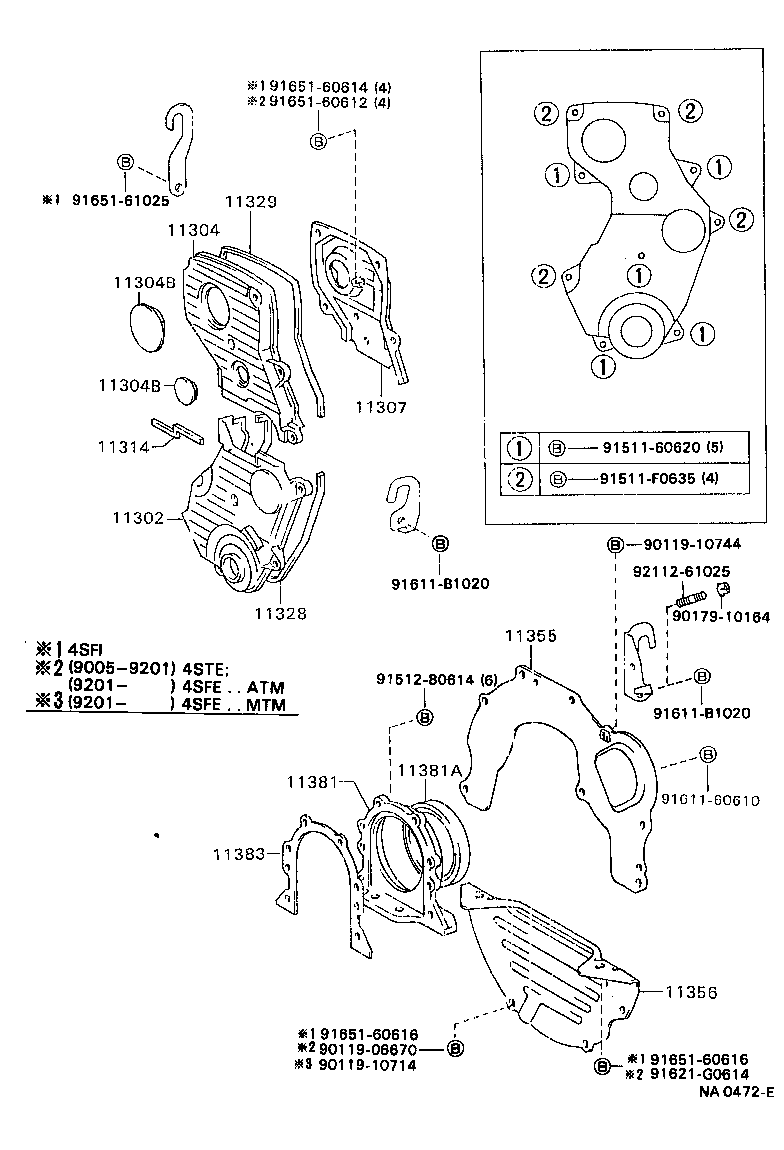

Exploded illustration NA0472E 9165160614 — not listed in this catalogue 9165160612 — not listed in this catalogue 9165161025 — not listed in this catalogue 11329 — GASKET, TIMING GEAR REAR COVER (1 parts) 11304 — COVER, TIMING CHAIN OR BELT, NO.2 (2 parts) 11304B — PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2) (6 parts) 11304B — PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2) (6 parts) 11307 — COVER, SUB-ASSY, TIMING BELT, NO.3 (2 parts) 11314 — GASKET, TIMING CHAIN NO.2 COVER (1 parts) 9151160620 — not listed in this catalogue 91511F0635 — not listed in this catalogue 11302 — COVER SUB-ASSY, TIMING CHAIN OR BELT (4 parts) 9011910744 — not listed in this catalogue 9211261025 — not listed in this catalogue 91611B1020 — not listed in this catalogue 11328 — GASKET, TIMING GEAR OR CHAIN COVER (2 parts) 9017910164 — not listed in this catalogue 11355 — PLATE, REAR END (13 parts) 9151280614 — not listed in this catalogue 91611B1020 — not listed in this catalogue 11381A — SEAL, ENGINE REAR OIL (10 parts) 11381 — RETAINER, ENGINE REAR OIL SEAL (5 parts) 9161160610 — not listed in this catalogue 11383 — GASKET, ENGINE REAR OIL SEAL RETAINER (7 parts) 11356 — PLATE, REAR END, NO.2 (5 parts) 9165160616 — not listed in this catalogue 9011906670 — not listed in this catalogue 9165160616 — not listed in this catalogue 9011910714 — not listed in this catalogue 91621G0614 — not listed in this catalogue
NA0472E · 13 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
11302 — Cover Sub-assy, Timing Chain OR Belt
11302-11031 Cover Sub-assy, Timing Chain OR Belt
1988-05 → 1992-11 ended
3E ET176 ¥5,100
11302-15041 Cover Sub-assy, Timing Chain OR Belt
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥2,910
11302-74010 Cover Sub-assy, Timing Chain OR Belt
1988-05 → 1989-06 ended
4SFI ST170 ¥5,100
11302-74011 Cover Sub-assy, Timing Chain OR Belt
1989-06 → 1992-11 ended
4SF# ST170 ¥5,100
11304 — Cover, Timing Chain OR Belt, NO.2
11303-74010 Cover, Timing Chain OR Belt, NO.2
1988-05 → 1992-11 ended
4SF# ST170 ¥5,100
11304-15020 Cover, Timing Chain OR Belt, NO.2
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥2,910
11304B — Plug, Semi Circular(FOR CHAIN COVER NO.2)
90950-01357 note Plug, Semi Circular(FOR CHAIN COVER NO.2)
1988-05 → 1992-11 ended
2C CT17# ¥610
90950-01489 note Plug, Semi Circular(FOR CHAIN COVER NO.2)
1988-05 → 1992-11 ended
4SFE ST170 ¥190
90950-01489 note Plug, Semi Circular(FOR CHAIN COVER NO.2)
1988-05 → 1992-11 ended
4SFI ST170 ¥190
90950-01497 note Plug, Semi Circular(FOR CHAIN COVER NO.2)
1988-05 → 1992-11 ended
4SFE ST170 ¥400
90950-01497 note Plug, Semi Circular(FOR CHAIN COVER NO.2)
1988-05 → 1992-11 ended
4SFI ST170 ¥400
90950-01535 note Plug, Semi Circular(FOR CHAIN COVER NO.2)
1988-05 → 1992-08 ended
4AGE AT171 ¥200
11307 — Cover, Sub-assy, Timing Belt, NO.3
11304-16030 Cover, Sub-assy, Timing Belt, NO.3
1988-05 → 1992-08 ended
4AGE AT171 ¥6,200
11304-74010 Cover, Sub-assy, Timing Belt, NO.3
1988-05 → 1992-11 ended
4SF# ST170 ¥2,650
11314 — Gasket, Timing Chain NO.2 Cover
11319-63010 Gasket, Timing Chain NO.2 Cover
1988-05 → 1992-11 ended
4SF# ST170 ¥590
11328 — Gasket, Timing Gear OR Chain Cover
11328-11020 Gasket, Timing Gear OR Chain Cover
1988-05 → 1992-11 ended
3E ET176 ¥510
11328-74010 Gasket, Timing Gear OR Chain Cover
1988-05 → 1992-11 ended
4SF# ST170 ¥870
11329 — Gasket, Timing Gear Rear Cover
11329-74010 Gasket, Timing Gear Rear Cover
1988-05 → 1992-11 ended
4SF# ST170 ¥860
11355 — Plate, Rear End
11355-10011 Plate, Rear End
1988-05 → 1992-11 ended
3E ET176 MTM ¥3,450
11355-11011 Plate, Rear End
1988-05 → 1992-11 ended
3E ET176 3FC ¥3,450
11355-15060 Plate, Rear End
1988-05 → 1992-08 ended
4AGE AT171 ¥3,760
11355-15070 Plate, Rear End
1988-05 → 1992-11 ended
4AF#,5AF# AT170,171 MTM ¥5,500
11355-15080 Plate, Rear End
1988-05 → 1992-11 ended
4AF#,5AF# AT170,171 4FC ¥5,200
11355-16010 Plate, Rear End
1988-08 → 1992-08 ended
4AFE AT175 ¥5,700
11355-64032 Plate, Rear End
1988-05 → 1989-04 ended
2C CT17# 5F ¥6,000
11355-64042 Plate, Rear End
1988-05 → 1989-04 ended
2C CT170 4FC ¥6,000
11355-64050 Plate, Rear End
1989-04 → 1991-10 ended
2C CT17# 5F ¥6,000
11355-64051 Plate, Rear End
1991-10 → 1992-11 ended
2C CT17# 5F ¥6,000
11355-64060 Plate, Rear End
1989-04 → 1991-10 ended
2C CT17# 4FC ¥6,000
11355-64061 Plate, Rear End
1991-10 → 1992-11 ended
2C CT17# 4FC ¥6,000
11355-74010 Plate, Rear End
1988-05 → 1992-11 ended
4SF# ST170 ¥2,870
11356 — Plate, Rear End, NO.2
11356-63030 Plate, Rear End, NO.2
1988-05 → 1989-07 ended
4SFI ST170 ¥1,620
11356-63031 Plate, Rear End, NO.2
1989-07 → 1991-09 ended
4SF# ST170 ¥1,620
11356-64010 Plate, Rear End, NO.2
1988-05 → 1989-04 ended
2C CT17# ¥460
11356-64040 Plate, Rear End, NO.2
1989-04 → 1992-11 ended
2C CT17# ¥630
11356-74030 Plate, Rear End, NO.2
1991-09 → 1992-11 ended
4SFE ST170 ¥1,600
11381 — Retainer, Engine Rear Oil Seal
11381-10020 Retainer, Engine Rear Oil Seal
1988-05 → 1992-11 ended
3E ET176 ¥3,450
11381-15010 Retainer, Engine Rear Oil Seal
1988-05 → 1992-11 ended
4AF#,4AGE,5AF# AT17# ¥3,920
11381-63011 Retainer, Engine Rear Oil Seal
1988-05 → 1989-07 ended
4SFI ST170 ¥4,300
11381-63012 Retainer, Engine Rear Oil Seal
1989-07 → 1992-11 ended
4SF# ST170 ¥4,250
11381-64012 Retainer, Engine Rear Oil Seal
1988-05 → 1992-11 ended
2C CT17# ¥4,280
11381A — Seal, Engine Rear Oil
90311-70004 Seal, Engine Rear Oil
1988-05 → 1991-06 ended
4AF#,4AGE,5AF# AT17# ¥1,080
90311-70007 Seal, Engine Rear Oil
1991-06 → 1992-11 ended
4AF#,4AGE,5AFE AT17# ¥1,080
90311-80007 Seal, Engine Rear Oil
1988-05 → 1990-05 ended
3E ET176 ¥890
90311-80007 note Seal, Engine Rear Oil
1990-05 → 1991-08 ended
3E ET176 ¥890
90311-80012 note Seal, Engine Rear Oil
1991-08 → 1992-11 ended
3E ET176 ¥1,270
90311-80012 note Seal, Engine Rear Oil
1990-10 → 1992-11 ended
3E ET176 ¥1,270
90311-85003 Seal, Engine Rear Oil
1988-05 → 1990-10 ended
4SF# ST170 ¥1,270
90311-85006 Seal, Engine Rear Oil
1990-10 → 1992-11 ended
4SFE ST170 ¥1,260
90311-90003 Seal, Engine Rear Oil
1988-05 → 1990-02 ended
2C CT17# ¥1,080
90311-90005 Seal, Engine Rear Oil
1990-02 → 1992-11 ended
2C CT17# ¥1,080
11383 — Gasket, Engine Rear Oil Seal Retainer
11383-15010 Gasket, Engine Rear Oil Seal Retainer
1988-05 → 1989-12 ended
4A#,5AF AT17# ¥510
11383-15011 Gasket, Engine Rear Oil Seal Retainer
1989-12 → 1992-05 ended
4AF#,4AGE,5AF# AT17# ¥500
11383-16010 Gasket, Engine Rear Oil Seal Retainer
1992-05 → 1992-11 ended
4AF#,4AGE,5AFE AT17# ¥480
11383-63010 Gasket, Engine Rear Oil Seal Retainer
1988-05 → 1989-07 ended
4SFI ST170 ¥500
11383-63011 Gasket, Engine Rear Oil Seal Retainer
1989-07 → 1991-11 ended
4SF# ST170 ¥500
11383-74020 Gasket, Engine Rear Oil Seal Retainer
1991-11 → 1992-02 ended
4SFE ST170 ¥500
11383-74021 Gasket, Engine Rear Oil Seal Retainer
1992-02 → 1992-11 ended
4SFE ST170 ¥480
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
