Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

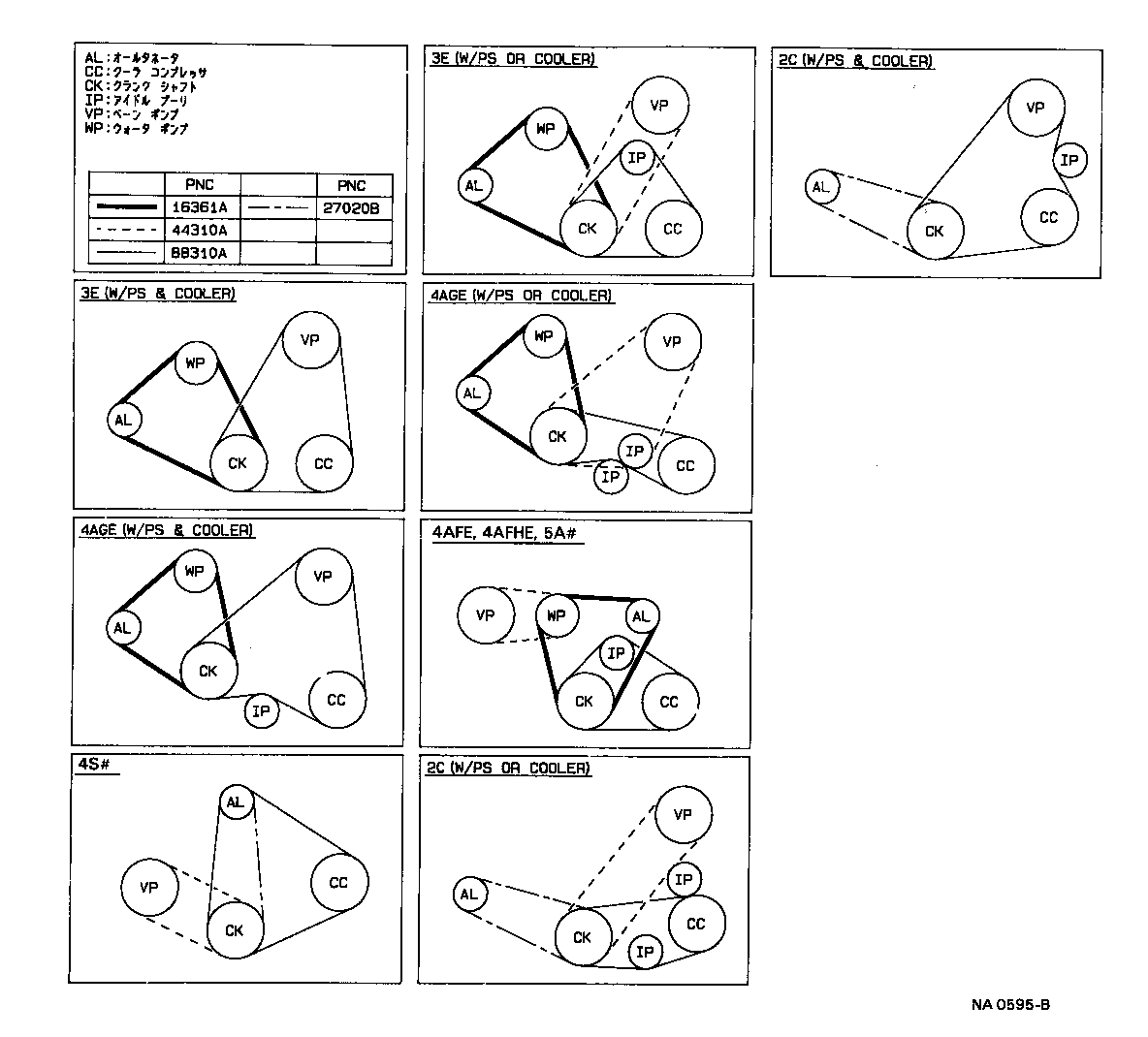

Exploded illustration NA0595B 16361A — BELT, V(FOR FAN & ALTERNATOR) (11 parts) 27020B — BELT, V(FOR ALTERNATOR) (11 parts) 44310A — BELT, V(FOR VANE PUMP) (5 parts) 88310A — BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 (61 parts)
NA0595B · 4 callouts Full size ↗
88 parts on this figure
Part number Description Fitment Price
16361A — Belt, V(FOR FAN & ALTERNATOR)
90916-02135 Belt, V(FOR FAN & ALTERNATOR)
1988-05 → 1989-10 ended
3E ET176 ¥2,740
90916-02135 Belt, V(FOR FAN & ALTERNATOR)
1989-10 → 1990-07 ended
3E ET176 MTM ¥2,740
90916-02148 Belt, V(FOR FAN & ALTERNATOR)
1988-05 → 1992-08 ended
4AGE AT171 ¥3,440
90916-02212 Belt, V(FOR FAN & ALTERNATOR)
1989-10 → 1990-08 ended
3E ET176 3FC ¥2,770
90916-02332 Belt, V(FOR FAN & ALTERNATOR)
1990-07 → 1992-07 ended
3E ET176 MTM ¥2,750
90916-02341 Belt, V(FOR FAN & ALTERNATOR)
1992-07 → 1992-11 ended
3E ET176 ¥2,750
90916-02341 Belt, V(FOR FAN & ALTERNATOR)
1990-08 → 1992-07 ended
3E ET176 3FC ¥2,750
99365-00970 Belt, V(FOR FAN & ALTERNATOR)
1988-05 → 1990-05 ended
4AFE,5AF AT17# MTM ¥3,040
99365-00980 Belt, V(FOR FAN & ALTERNATOR)
1988-05 → 1990-05 ended
4AFE,5AF AT17# 4FC ¥3,040
99365-20970 Belt, V(FOR FAN & ALTERNATOR)
1990-05 → 1992-11 ended
5AFE AT170 4FC DX;4AF#,5AFE +2 ¥3,030
99365-20980 Belt, V(FOR FAN & ALTERNATOR)
1990-05 → 1992-11 ended
4AF#,5AFE AT17# 4FC (S,SE,SG,SGEXT,SV) ¥3,030
27020B — Belt, V(FOR ALTERNATOR)
90916-02140 Belt, V(FOR ALTERNATOR)
1988-05 → 1989-11 ended
2C CT17# 5F ¥3,090
90916-02182 Belt, V(FOR ALTERNATOR)
1988-05 → 1989-11 ended
2C CT170 4FC ¥1,230
90916-02237 Belt, V(FOR ALTERNATOR)
1990-05 → 1991-04 ended
2C CT17# ¥2,400
90916-02293 Belt, V(FOR ALTERNATOR)
1988-05 → 1992-06 ended
4SF# ST170 4FC ¥4,200
90916-02295 Belt, V(FOR ALTERNATOR)
1988-05 → 1992-06 ended
4SF# ST170 5F ¥3,850
90916-02301 Belt, V(FOR ALTERNATOR)
1991-04 → 1992-11 ended
2C CT17# ¥2,400
90916-02301 Belt, V(FOR ALTERNATOR)
1989-11 → 1990-05 ended
2C CT17# ¥2,400
90916-02355 note Belt, V(FOR ALTERNATOR)
1992-06 → 1992-11 ended
4SFE ST170 5F ¥3,860
90916-02356 note Belt, V(FOR ALTERNATOR)
1992-06 → 1992-11 ended
4SFE ST170 5F ¥3,850
90916-02357 note Belt, V(FOR ALTERNATOR)
1992-06 → 1992-11 ended
4SFE ST170 4FC ¥4,200
90916-02358 note Belt, V(FOR ALTERNATOR)
1992-06 → 1992-11 ended
4SFE ST170 4FC ¥4,200
44310A — Belt, V(FOR VANE PUMP)
90916-02207 Belt, V(FOR VANE PUMP)
1988-05 → 1990-05 ended
CT17# ¥4,620
90916-02256 note Belt, V(FOR VANE PUMP)
1990-05 → 1992-11 ended
CT17# ¥4,630
99363-50630 Belt, V(FOR VANE PUMP)
1988-05 → 1992-11 ended
AT17# DX,S,SE,SG,SGEXT,SV ¥1,270
99363-50760 Belt, V(FOR VANE PUMP)
1988-05 → 1992-11 ended
ST170 ¥1,450
99365-50920 Belt, V(FOR VANE PUMP)
1988-05 → 1992-11 ended
AT171,ET176 DX,GLIM,SG,STD ¥3,040
88310A — Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02203 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1988-05 → 1989-03 ended
CT17# SG ¥4,970
90916-02203 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-05 → 1990-11 ended
CT170 SV ¥4,970
90916-02203 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-05 → 1990-11 ended
CT176 DX ¥4,970
90916-02203 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-05 → 1990-11 ended
CT17# SG ¥4,970
90916-02203 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1988-05 → 1990-05 ended
CT176 5F DX ¥4,970
90916-02203 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1988-05 → 1990-11 ended
CT170 SE ¥4,970
90916-02203 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-03 → 1990-05 ended
CT176 5F SG ¥4,970
90916-02203 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-03 → 1990-05 ended
CT170 4FC SG ¥4,970
90916-02203 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-03 → 1990-05 ended
CT170 5F SG ¥4,970
90916-02203 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-11 → 1990-05 ended
CT176 4FC DX ¥4,970
90916-02203 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-11 → 1990-05 ended
CT176 4FC SG ¥4,970
90916-02270 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-05 → 1990-11 ended
ST170 SGEXT,SX ¥4,620
90916-02270 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-05 → 1990-11 ended
ST170 SX ¥4,620
90916-02270 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-04 → 1990-11 ended
ST170 SE CI;ST170 SED +1 ¥4,620
90916-02270 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-04 → 1990-11 ended
ST170 (SE,SX) CI ¥4,620
90916-02270 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-04 → 1990-05 ended
ST170 SGEXT ¥4,620
90916-02270 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-04 → 1990-05 ended
ST170 SGEXT ¥4,620
90916-02271 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-05 → 1990-11 ended
ST170 SX ¥4,630
90916-02271 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-04 → 1990-05 ended
ST170 SGEXT ¥4,630
90916-02271 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-05 → 1990-11 ended
ST170 SGEXT,SX ¥4,630
90916-02271 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-04 → 1990-11 ended
ST170 SE CI;ST170 SED +1 ¥4,630
90916-02344 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1990-12 ended
ST170 SGEXT ¥4,630
90916-02344 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-12 → 1992-11 ended
ST170 ¥4,630
90916-02344 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1990-12 ended
ST170 SE,SX ¥4,630
90916-02345 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1992-11 ended
ST170 ¥4,630
99364-00870 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-03 → 1990-05 ended
AT170 4F SG ¥2,170
99364-00870 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥2,170
99364-00870 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1988-05 → 1989-03 ended
AT170 4F SG ¥2,170
99364-00870 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1988-05 → 1990-11 ended
AT170,175 SED EFI;AT170 (DX,SE,SV) +1 ¥2,170
99364-00870 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1988-05 → 1990-11 ended
AT170,171 (S,SV) (EFI,EFIS) ¥2,170
99364-00870 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-03 → 1990-05 ended
AT170 4FC SG ¥2,170
99364-00870 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-03 → 1990-05 ended
AT170 5F SG ¥2,170
99364-20870 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1990-12 ended
AT170,171 S,SV ¥2,170
99364-20870 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1990-12 ended
AT170,175 SED ¥2,170
99364-20870 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-12 → 1992-08 ended
AT175;AT170 DX,SE,SG ¥2,170
99364-20870 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-12 → 1992-11 ended
AT170,171 S,SGEXT,SV ¥2,170
99365-00880 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1988-05 → 1990-05 ended
ET176 ¥2,710
99365-01080 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1988-05 → 1990-11 ended
ET176 ¥3,310
99365-21080 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1992-11 ended
ET176 ¥3,310
99365-21140 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1992-11 ended
CT170 SV ¥3,650
99365-21140 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1992-11 ended
CT176 DX ¥3,650
99365-21210 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1992-11 ended
CT176 DX ¥3,920
99365-21210 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-12 → 1992-08 ended
CT170 SG ¥3,920
99365-21210 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1992-11 ended
CT170 SV ¥3,920
99365-21210 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-12 → 1992-11 ended
CT176 SG ¥3,920
99365-21210 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1992-08 ended
CT170 SE ¥3,920
99365-21210 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1990-12 ended
CT17# SG ¥3,920
99365-50790 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1988-05 → 1990-05 ended
CT176 5F DX ¥2,430
99365-50870 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-05 → 1990-11 ended
ET176 ¥2,710
99365-51070 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1988-05 → 1990-05 ended
AT171 GLIM ¥3,310
99365-51120 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1988-05 → 1989-03 ended
ST170 ¥3,650
99365-51120 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-03 → 1989-04 ended
ST170 SE,SX ¥3,650
99365-51120 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-03 → 1989-04 ended
ST170 SGEXT ¥3,650
99365-61070 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-05 → 1990-11 ended
AT171 EFI ¥3,310
99365-61140 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-05 → 1990-11 ended
CT170 SV ¥3,650
99365-61140 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-05 → 1990-11 ended
CT176 DX ¥3,650
99365-61140 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1989-11 → 1990-05 ended
CT176 4FC DX ¥3,650
99365-70890 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1992-11 ended
ET176 ¥2,780
99365-71070 Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1992-08 ended
AT171 EFI ¥3,310
99365-71140 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1992-11 ended
CT176 DX ¥3,650
99365-71140 note Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
1990-11 → 1992-11 ended
CT170 SV ¥3,650
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
