Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

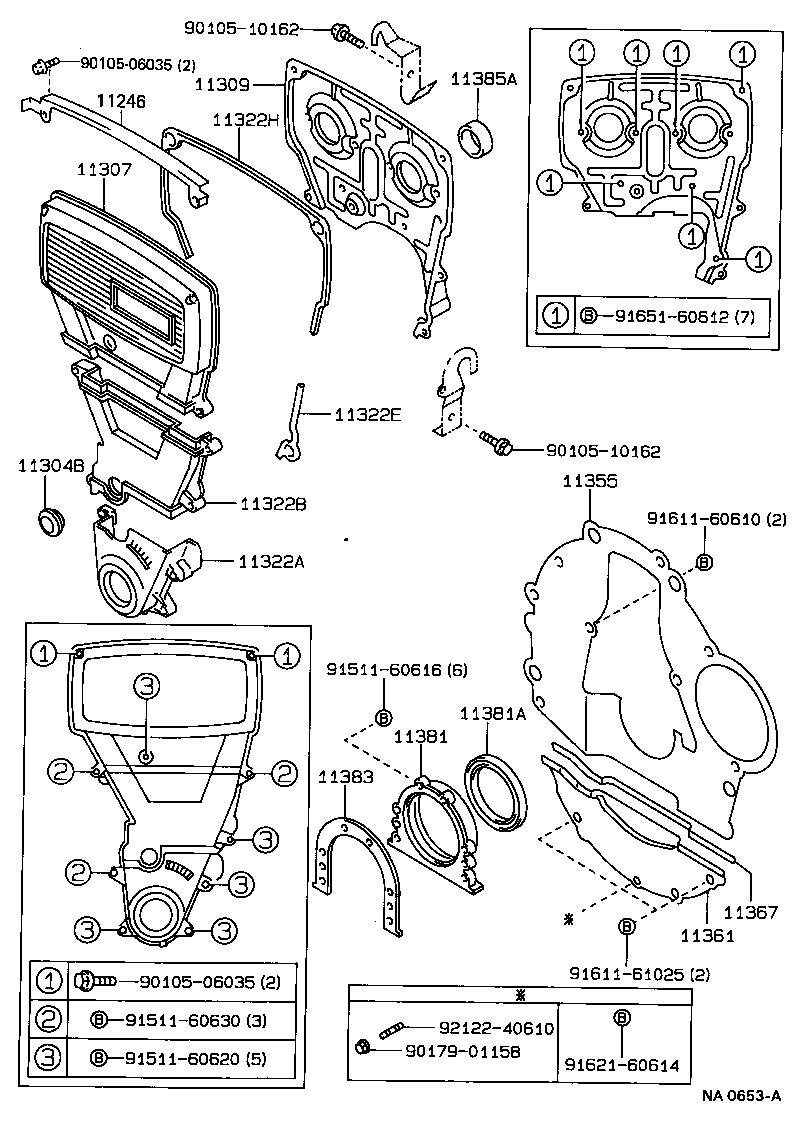

Exploded illustration NA0653A 9010510162 — not listed in this catalogue 9010506035 — not listed in this catalogue 11385A — SEAL, OIL(FOR CAMSHAFT) (3 parts) 11309 — COVER SUB-ASSY, TIMING BELT, NO.4 (1 parts) 11246 — PLATE, CLAMP BASE (1 parts) 11322H — GASKET, TIMING BELT COVER, NO.3 (1 parts) 11307 — COVER, SUB-ASSY, TIMING BELT, NO.3 (2 parts) 9165160612 — not listed in this catalogue 11322E — GASKET, TIMING BELT COVER, NO.2 (2 parts) 9010510162 — not listed in this catalogue 11304B — PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2) (6 parts) 11355 — PLATE, REAR END (13 parts) 11322B — COVER, TIMING BELT, NO.2 (4 parts) 9161160610 — not listed in this catalogue 11322A — COVER, TIMING BELT, NO.1 (3 parts) 9151160616 — not listed in this catalogue 11381A — SEAL, ENGINE REAR OIL (10 parts) 11381 — RETAINER, ENGINE REAR OIL SEAL (5 parts) 11383 — GASKET, ENGINE REAR OIL SEAL RETAINER (7 parts) 11367 — GASKET, FLYWHEEL HOUSING UNDER (1 parts) 11361 — COVER, FLYWHEEL HOUSING UNDER (1 parts) 9161161025 — not listed in this catalogue 9010506035 — not listed in this catalogue 9151160630 — not listed in this catalogue 9212240610 — not listed in this catalogue 9017901158 — not listed in this catalogue 9151160620 — not listed in this catalogue 9162160614 — not listed in this catalogue
NA0653A · 15 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
11246 — Plate, Clamp Base
11246-16010 Plate, Clamp Base
1989-08 → 1992-08 ended
4AGE AT171 ¥850
11304B — Plug, Semi Circular(FOR CHAIN COVER NO.2)
90950-01357 note Plug, Semi Circular(FOR CHAIN COVER NO.2)
1988-05 → 1992-11 ended
2C CT17# ¥610
90950-01489 note Plug, Semi Circular(FOR CHAIN COVER NO.2)
1988-05 → 1992-11 ended
4SFE ST170 ¥190
90950-01489 note Plug, Semi Circular(FOR CHAIN COVER NO.2)
1988-05 → 1992-11 ended
4SFI ST170 ¥190
90950-01497 note Plug, Semi Circular(FOR CHAIN COVER NO.2)
1988-05 → 1992-11 ended
4SFE ST170 ¥400
90950-01497 note Plug, Semi Circular(FOR CHAIN COVER NO.2)
1988-05 → 1992-11 ended
4SFI ST170 ¥400
90950-01535 note Plug, Semi Circular(FOR CHAIN COVER NO.2)
1988-05 → 1992-08 ended
4AGE AT171 ¥200
11307 — Cover, Sub-assy, Timing Belt, NO.3
11304-16030 Cover, Sub-assy, Timing Belt, NO.3
1988-05 → 1992-08 ended
4AGE AT171 ¥6,200
11304-74010 Cover, Sub-assy, Timing Belt, NO.3
1988-05 → 1992-11 ended
4SF# ST170 ¥2,650
11309 — Cover Sub-assy, Timing Belt, NO.4
11325-16020 Cover Sub-assy, Timing Belt, NO.4
1988-05 → 1992-08 ended
4AGE AT171 ¥5,300
11322A — Cover, Timing Belt, NO.1
11302-16011 Cover, Timing Belt, NO.1
1988-05 → 1992-08 ended
4AGE AT171 ¥4,230
11321-64010 Cover, Timing Belt, NO.1
1988-05 → 1989-05 ended
2C CT17# ¥2,220
11321-64020 Cover, Timing Belt, NO.1
1989-05 → 1992-11 ended
2C CT17# ¥3,230
11322B — Cover, Timing Belt, NO.2
11303-11020 Cover, Timing Belt, NO.2
1988-05 → 1989-10 ended
3E ET176 ¥3,950
11303-11021 Cover, Timing Belt, NO.2
1989-10 → 1992-11 ended
3E ET176 ¥3,910
11303-16021 Cover, Timing Belt, NO.2
1988-05 → 1992-08 ended
4AGE AT171 ¥3,030
11322-64010 Cover, Timing Belt, NO.2
1988-05 → 1992-11 ended
2C CT17# ¥2,440
11322E — Gasket, Timing Belt Cover, NO.2
11329-16010 Gasket, Timing Belt Cover, NO.2
1988-05 → 1992-08 ended
4AGE AT171 ¥580
11329-64020 Gasket, Timing Belt Cover, NO.2
1988-05 → 1992-11 ended
2C CT17# ¥1,870
11322H — Gasket, Timing Belt Cover, NO.3
11319-16011 Gasket, Timing Belt Cover, NO.3
1988-05 → 1992-08 ended
4AGE AT171 ¥990
11355 — Plate, Rear End
11355-10011 Plate, Rear End
1988-05 → 1992-11 ended
3E ET176 MTM ¥3,450
11355-11011 Plate, Rear End
1988-05 → 1992-11 ended
3E ET176 3FC ¥3,450
11355-15060 Plate, Rear End
1988-05 → 1992-08 ended
4AGE AT171 ¥3,760
11355-15070 Plate, Rear End
1988-05 → 1992-11 ended
4AF#,5AF# AT170,171 MTM ¥5,500
11355-15080 Plate, Rear End
1988-05 → 1992-11 ended
4AF#,5AF# AT170,171 4FC ¥5,200
11355-16010 Plate, Rear End
1988-08 → 1992-08 ended
4AFE AT175 ¥5,700
11355-64032 Plate, Rear End
1988-05 → 1989-04 ended
2C CT17# 5F ¥6,000
11355-64042 Plate, Rear End
1988-05 → 1989-04 ended
2C CT170 4FC ¥6,000
11355-64050 Plate, Rear End
1989-04 → 1991-10 ended
2C CT17# 5F ¥6,000
11355-64051 Plate, Rear End
1991-10 → 1992-11 ended
2C CT17# 5F ¥6,000
11355-64060 Plate, Rear End
1989-04 → 1991-10 ended
2C CT17# 4FC ¥6,000
11355-64061 Plate, Rear End
1991-10 → 1992-11 ended
2C CT17# 4FC ¥6,000
11355-74010 Plate, Rear End
1988-05 → 1992-11 ended
4SF# ST170 ¥2,870
11361 — Cover, Flywheel Housing Under
11361-16040 Cover, Flywheel Housing Under
1988-05 → 1992-08 ended
4AFE,4AGE AT171,175 GLIM,SE,SG,SGEXT ¥1,340
11367 — Gasket, Flywheel Housing Under
11367-15030 Gasket, Flywheel Housing Under
1988-05 → 1992-08 ended
4AFE,4AGE AT171,175 GLIM,SE,SG,SGEXT ¥580
11381 — Retainer, Engine Rear Oil Seal
11381-10020 Retainer, Engine Rear Oil Seal
1988-05 → 1992-11 ended
3E ET176 ¥3,450
11381-15010 Retainer, Engine Rear Oil Seal
1988-05 → 1992-11 ended
4AF#,4AGE,5AF# AT17# ¥3,920
11381-63011 Retainer, Engine Rear Oil Seal
1988-05 → 1989-07 ended
4SFI ST170 ¥4,300
11381-63012 Retainer, Engine Rear Oil Seal
1989-07 → 1992-11 ended
4SF# ST170 ¥4,250
11381-64012 Retainer, Engine Rear Oil Seal
1988-05 → 1992-11 ended
2C CT17# ¥4,280
11381A — Seal, Engine Rear Oil
90311-70004 Seal, Engine Rear Oil
1988-05 → 1991-06 ended
4AF#,4AGE,5AF# AT17# ¥1,080
90311-70007 Seal, Engine Rear Oil
1991-06 → 1992-11 ended
4AF#,4AGE,5AFE AT17# ¥1,080
90311-80007 Seal, Engine Rear Oil
1988-05 → 1990-05 ended
3E ET176 ¥890
90311-80007 note Seal, Engine Rear Oil
1990-05 → 1991-08 ended
3E ET176 ¥890
90311-80012 note Seal, Engine Rear Oil
1990-10 → 1992-11 ended
3E ET176 ¥1,270
90311-80012 note Seal, Engine Rear Oil
1991-08 → 1992-11 ended
3E ET176 ¥1,270
90311-85003 Seal, Engine Rear Oil
1988-05 → 1990-10 ended
4SF# ST170 ¥1,270
90311-85006 Seal, Engine Rear Oil
1990-10 → 1992-11 ended
4SFE ST170 ¥1,260
90311-90003 Seal, Engine Rear Oil
1988-05 → 1990-02 ended
2C CT17# ¥1,080
90311-90005 Seal, Engine Rear Oil
1990-02 → 1992-11 ended
2C CT17# ¥1,080
11383 — Gasket, Engine Rear Oil Seal Retainer
11383-15010 Gasket, Engine Rear Oil Seal Retainer
1988-05 → 1989-12 ended
4A#,5AF AT17# ¥510
11383-15011 Gasket, Engine Rear Oil Seal Retainer
1989-12 → 1992-05 ended
4AF#,4AGE,5AF# AT17# ¥500
11383-16010 Gasket, Engine Rear Oil Seal Retainer
1992-05 → 1992-11 ended
4AF#,4AGE,5AFE AT17# ¥480
11383-63010 Gasket, Engine Rear Oil Seal Retainer
1988-05 → 1989-07 ended
4SFI ST170 ¥500
11383-63011 Gasket, Engine Rear Oil Seal Retainer
1989-07 → 1991-11 ended
4SF# ST170 ¥500
11383-74020 Gasket, Engine Rear Oil Seal Retainer
1991-11 → 1992-02 ended
4SFE ST170 ¥500
11383-74021 Gasket, Engine Rear Oil Seal Retainer
1992-02 → 1992-11 ended
4SFE ST170 ¥480
11385A — Seal, Oil(FOR CAMSHAFT)
90311-35013 Seal, Oil(FOR CAMSHAFT)
1988-05 → 1992-08 ended
4AGE AT171 ¥280
90311-38025 Seal, Oil(FOR CAMSHAFT)
1988-05 → 1990-10 ended
2C CT17# ¥350
90311-38044 Seal, Oil(FOR CAMSHAFT)
1990-10 → 1992-11 ended
2C CT17# ¥400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
