Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

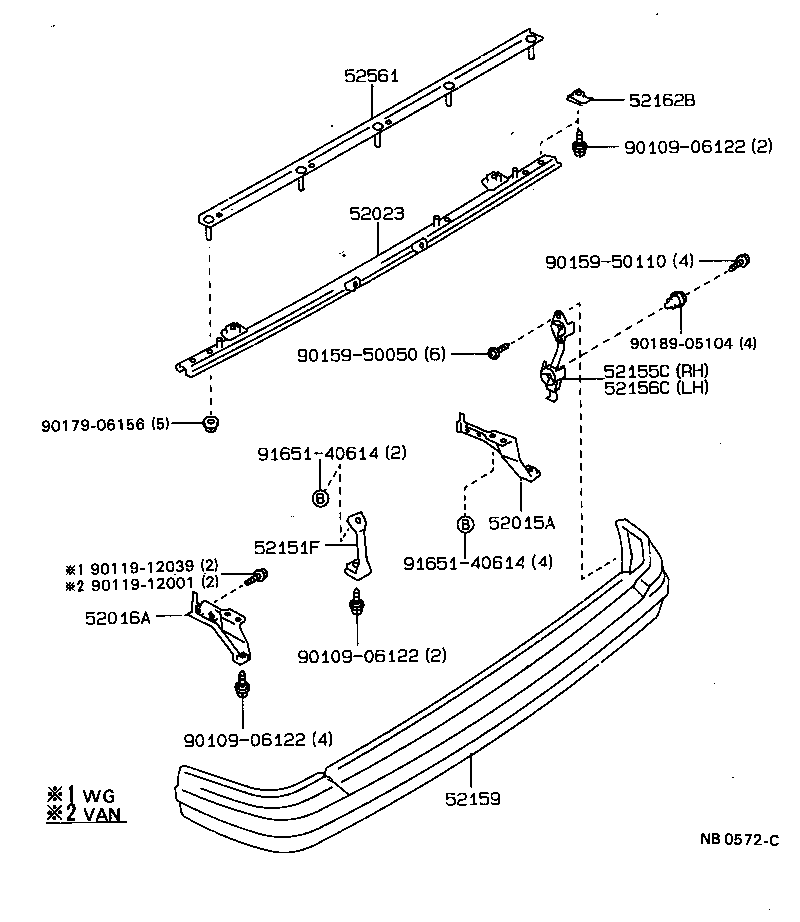

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52015A — Arm Sub-assy, Rear Bumper, RH | ||||
| 52015-20210 |
Arm Sub-assy, Rear Bumper, RH
1988-05 → 1992-08
ended
|
AT17#,CT170,ST170 SED | ¥2,640 | |
| 52181-95502 |
Arm Sub-assy, Rear Bumper, RH
1988-05 → 1992-11
ended
|
AT170,CT170,ST170 WG | ¥4,150 | |
| 52181-95503 |
Arm Sub-assy, Rear Bumper, RH
1988-05 → 1992-11
ended
|
CT176,ET176 | ¥2,180 | |
| 52016A — Arm Sub-assy, Rear Bumper, LH | ||||
| 52016-20090 |
Arm Sub-assy, Rear Bumper, LH
1988-05 → 1992-08
ended
|
AT17#,CT170,ST170 SED | ¥2,640 | |
| 52181-95502 |
Arm Sub-assy, Rear Bumper, LH
1988-05 → 1992-11
ended
|
AT170,CT170,ST170 WG | ¥4,150 | |
| 52182-95501 |
Arm Sub-assy, Rear Bumper, LH
1988-05 → 1992-11
ended
|
CT176,ET176 | ¥2,180 | |
| 52023 — Reinforcement Sub-assy, Rear Bumper | ||||
| 52023-95501 |
Reinforcement Sub-assy, Rear Bumper
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥6,200 | |
| 52151F — Stay, Rear Bumper | ||||
| 52151-95501 |
Stay, Rear Bumper
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥1,210 | |
| 52155C — Support, Rear Bumper Side, NO.1 RH | ||||
| 52155-20200 |
Support, Rear Bumper Side, NO.1 RH
1988-05 → 1992-08
ended
|
AT17#,CT170,ST170 SED | ¥860 | |
| 52155-95500 |
Support, Rear Bumper Side, NO.1 RH
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥650 | |
| 52156C — Support, Rear Bumper Side, NO.1 LH | ||||
| 52155-20200 |
Support, Rear Bumper Side, NO.1 LH
1988-05 → 1992-08
ended
|
AT17#,CT170,ST170 SED | ¥860 | |
| 52155-95500 |
Support, Rear Bumper Side, NO.1 LH
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥650 | |
| 52159 — Cover, Rear Bumper | ||||
| 52159-20470 |
Cover, Rear Bumper
1988-05 → 1992-08
ended
|
AT175 SG;AT170 DX EFI;AT170 +2 | ¥24,000 | |
| 52159-20480-02 note |
Cover, Rear Bumper
1988-05 → 1989-03
ended
|
AT170 SG | ¥39,900 | |
| 52159-20480-02 note |
Cover, Rear Bumper
1989-03 → 1989-08
ended
|
AT170 SG | ¥39,900 | |
| 52159-20480-02 note |
Cover, Rear Bumper
1988-05 → 1989-08
ended
|
CT170;AT17#,ST170 GLIM,S,SE,SGEXT | ¥39,900 | |
| 52159-20480-03 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
AT171,175 S,SGEXT | ¥39,900 | |
| 52159-20480-03 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
CT170 SG | ¥39,900 | |
| 52159-20480-03 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
ST170 SGEXT | ¥39,900 | |
| 52159-20480-03 note |
Cover, Rear Bumper
1989-03 → 1990-05
ended
|
AT170 SG | ¥39,900 | |
| 52159-20480-03 note |
Cover, Rear Bumper
1988-05 → 1989-03
ended
|
AT170 SG | ¥39,900 | |
| 52159-20480-04 note |
Cover, Rear Bumper
1988-05 → 1992-08
ended
|
AT170 SG EFI | ¥39,900 | |
| 52159-20480-04 note |
Cover, Rear Bumper
1989-03 → 1990-05
ended
|
AT170 SG | ¥39,900 | |
| 52159-20480-04 note |
Cover, Rear Bumper
1988-05 → 1989-03
ended
|
AT170 SG | ¥39,900 | |
| 52159-20480-04 note |
Cover, Rear Bumper
1988-05 → 1992-08
ended
|
AT170,175 SE,SGEXT | ¥39,900 | |
| 52159-20480-04 note |
Cover, Rear Bumper
1988-05 → 1992-08
ended
|
AT171,CT170,ST170 SED | ¥39,900 | |
| 52159-20480-07 note |
Cover, Rear Bumper
1989-08 → 1990-05
ended
|
CT170;AT17#,ST170 GLIM,S,SE,SGEXT | ¥39,900 | |
| 52159-20480-07 note |
Cover, Rear Bumper
1989-08 → 1990-05
ended
|
AT170 SG | ¥39,900 | |
| 52159-20480-08 note |
Cover, Rear Bumper
1988-05 → 1989-03
ended
|
AT170 SG | ¥39,900 | |
| 52159-20480-08 note |
Cover, Rear Bumper
1988-05 → 1992-08
ended
|
AT17#,CT170,ST170 S,SG,SGEXT | ¥39,900 | |
| 52159-20480-08 note |
Cover, Rear Bumper
1989-03 → 1990-05
ended
|
AT170 SG | ¥39,900 | |
| 52159-20480-12 note |
Cover, Rear Bumper
1988-05 → 1989-03
ended
|
AT170 SG | ¥39,900 | |
| 52159-20480-12 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
CT170;AT17#,ST170 GLIM,S,SE,SGEXT | ¥39,900 | |
| 52159-20480-12 note |
Cover, Rear Bumper
1989-03 → 1990-05
ended
|
AT170 SG | ¥39,900 | |
| 52159-20480-17 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170,175,CT170,ST170 SG,SGEXT | ¥39,900 | |
| 52159-20480-17 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥39,900 | |
| 52159-20480-22 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT | ¥39,900 | |
| 52159-20490-02 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
AT170 (4FC,5F) SG | ¥39,900 | |
| 52159-20490-03 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
AT170 (4FC,5F) SG | ¥39,900 | |
| 52159-20490-04 note |
Cover, Rear Bumper
1988-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT;AT170 (4FC,5F) +2 | ¥39,900 | |
| 52159-20490-07 note |
Cover, Rear Bumper
1989-08 → 1990-05
ended
|
AT170 (4FC,5F) SG | ¥39,900 | |
| 52159-20490-08 note |
Cover, Rear Bumper
1988-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT;AT170 (4FC,5F) +2 | ¥39,900 | |
| 52159-20490-12 note |
Cover, Rear Bumper
1988-05 → 1989-08
ended
|
AT170 (4FC,5F) SG | ¥39,900 | |
| 52159-20490-17 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT | ¥39,900 | |
| 52159-20490-22 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT | ¥39,900 | |
| 52159-20500-03 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
CT170 SE | ¥39,900 | |
| 52159-20500-03 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
AT170,ST170 SE,SGEXT | ¥39,900 | |
| 52159-20500-03 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
AT171,175 GLIM,S,SGEXT | ¥39,900 | |
| 52159-20500-05 note |
Cover, Rear Bumper
1989-08 → 1990-05
ended
|
AT170,ST170 SE,SG,SGEXT | ¥39,900 | |
| 52159-20500-05 note |
Cover, Rear Bumper
1989-08 → 1990-05
ended
|
AT171,175 GLIM,S,SGEXT | ¥39,900 | |
| 52159-20500-05 note |
Cover, Rear Bumper
1989-08 → 1990-05
ended
|
CT170 | ¥39,900 | |
| 52159-20500-06 note |
Cover, Rear Bumper
1989-03 → 1989-08
ended
|
AT170 SG | ¥39,900 | |
| 52159-20500-06 note |
Cover, Rear Bumper
1988-05 → 1989-08
ended
|
CT170;AT17#,ST170 GLIM,S,SE,SGEXT | ¥39,900 | |
| 52159-20500-06 note |
Cover, Rear Bumper
1988-05 → 1989-03
ended
|
AT170 SG | ¥39,900 | |
| 52159-20500-07 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT | ¥39,900 | |
| 52159-20500-08 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
AT175 SGEXT | ¥39,900 | |
| 52159-20500-08 note |
Cover, Rear Bumper
1988-05 → 1988-12
ended
|
ST170 SGEXT | ¥39,900 | |
| 52159-20500-08 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
AT170,CT170,ST170 SE | ¥39,900 | |
| 52159-20500-08 note |
Cover, Rear Bumper
1988-12 → 1990-05
ended
|
AT171 S | ¥39,900 | |
| 52159-20500-08 note |
Cover, Rear Bumper
1988-05 → 1988-12
ended
|
AT171,175 S,SGEXT | ¥39,900 | |
| 52159-20500-08 note |
Cover, Rear Bumper
1988-12 → 1990-05
ended
|
ST170 SGEXT | ¥39,900 | |
| 52159-20500-08 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
AT171 GLIM | ¥39,900 | |
| 52159-20500-13 note |
Cover, Rear Bumper
1989-03 → 1990-05
ended
|
AT170,CT170 SG | ¥39,900 | |
| 52159-20500-13 note |
Cover, Rear Bumper
1988-05 → 1989-03
ended
|
AT170,CT170 SG | ¥39,900 | |
| 52159-20500-13 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
ST170 SGEXT | ¥39,900 | |
| 52159-20500-13 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
AT170,ST170 SE,SG,SGEXT | ¥39,900 | |
| 52159-20500-13 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
AT171,175 GLIM,S,SGEXT | ¥39,900 | |
| 52159-20500-13 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
CT170 | ¥39,900 | |
| 52159-20500-17 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥39,900 | |
| 52159-20500-17 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥39,900 | |
| 52159-20500-18 note |
Cover, Rear Bumper
1988-05 → 1989-08
ended
|
AT170,CT170,ST170 SE | ¥39,900 | |
| 52159-20500-18 note |
Cover, Rear Bumper
1988-05 → 1989-08
ended
|
CT170 SG;AT171,175,ST170 GLIM,S,SGEXT | ¥39,900 | |
| 52159-20500-23 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT | ¥39,900 | |
| 52159-20500-28 note |
Cover, Rear Bumper
1989-08 → 1990-05
ended
|
ST170 SGEXT | ¥39,900 | |
| 52159-20500-28 note |
Cover, Rear Bumper
1989-08 → 1990-05
ended
|
AT170,CT170,ST170 SE | ¥39,900 | |
| 52159-20500-28 note |
Cover, Rear Bumper
1989-08 → 1990-05
ended
|
AT171,175 GLIM,S,SGEXT | ¥39,900 | |
| 52159-20500-33 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT | ¥39,900 | |
| 52159-20500-38 note |
Cover, Rear Bumper
1990-12 → 1992-04
ended
|
CT170 SE | ¥39,900 | |
| 52159-20500-38 note |
Cover, Rear Bumper
1990-12 → 1992-04
ended
|
AT170,ST170 SE,SGEXT | ¥39,900 | |
| 52159-20500-38 note |
Cover, Rear Bumper
1990-12 → 1992-04
ended
|
AT175 SE | ¥39,900 | |
| 52159-20500-38 note |
Cover, Rear Bumper
1992-04 → 1992-08
ended
|
AT170,175,CT170,ST170 SE | ¥39,900 | |
| 52159-20500-38 note |
Cover, Rear Bumper
1990-05 → 1990-12
ended
|
AT170,175,CT170,ST170 SE | ¥39,900 | |
| 52159-20500-38 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 | ¥39,900 | |
| 52159-20500-48 note |
Cover, Rear Bumper
1992-04 → 1992-08
ended
|
AT17#,CT170,ST170 S,SE | ¥39,900 | |
| 52159-20500-48 note |
Cover, Rear Bumper
1990-05 → 1990-12
ended
|
AT17#,CT170,ST170 S,SE | ¥39,900 | |
| 52159-20500-48 note |
Cover, Rear Bumper
1990-12 → 1992-04
ended
|
AT171 EFIS | ¥39,900 | |
| 52159-20500-48 note |
Cover, Rear Bumper
1990-12 → 1992-04
ended
|
AT170,ST170 SE | ¥39,900 | |
| 52159-20500-48 note |
Cover, Rear Bumper
1990-12 → 1992-04
ended
|
AT175 SE | ¥39,900 | |
| 52159-20500-48 note |
Cover, Rear Bumper
1990-12 → 1992-04
ended
|
CT170 SE | ¥39,900 | |
| 52159-20510-05 note |
Cover, Rear Bumper
1989-08 → 1990-05
ended
|
AT170 (4FC,5F) SG | ¥39,900 | |
| 52159-20510-06 note |
Cover, Rear Bumper
1988-05 → 1989-08
ended
|
AT170 (4FC,5F) SG | ¥39,900 | |
| 52159-20510-07 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT | ¥39,900 | |
| 52159-20510-13 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
AT170 (4FC,5F) SG | ¥39,900 | |
| 52159-20510-23 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT | ¥39,900 | |
| 52159-20510-33 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT | ¥39,900 | |
| 52159-20550-02 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥39,900 | |
| 52159-20550-02 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT | ¥39,900 | |
| 52159-20550-02 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥39,900 | |
| 52159-20550-04 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥39,900 | |
| 52159-20550-04 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT | ¥39,900 | |
| 52159-20550-04 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥39,900 | |
| 52159-20550-07 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥39,900 | |
| 52159-20550-07 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT | ¥39,900 | |
| 52159-20550-08 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥39,900 | |
| 52159-20550-08 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT | ¥39,900 | |
| 52159-20650-03 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥39,900 | |
| 52159-20650-03 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT | ¥39,900 | |
| 52159-20650-03 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥39,900 | |
| 52159-20650-07 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥39,900 | |
| 52159-20650-07 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥39,900 | |
| 52159-20650-07 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT | ¥39,900 | |
| 52159-20650-08 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 EFI | ¥39,900 | |
| 52159-20650-08 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170,175,CT170,ST170 SE | ¥39,900 | |
| 52159-20650-08 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥39,900 | |
| 52159-20650-13 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT | ¥39,900 | |
| 52159-20650-13 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥39,900 | |
| 52159-20650-13 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥39,900 | |
| 52159-20650-17 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥39,900 | |
| 52159-20650-17 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥39,900 | |
| 52159-20650-18 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT170,175,CT170,ST170 SE | ¥39,900 | |
| 52159-20650-18 note |
Cover, Rear Bumper
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥39,900 | |
| 52159-95502 |
Cover, Rear Bumper
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176 VAN,WG | ¥26,600 | |
| 52159-95503-02 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
AT170,ST170 WG | ¥32,500 | |
| 52159-95503-03 note |
Cover, Rear Bumper
1988-05 → 1990-05
ended
|
AT170,ST170 WG | ¥32,500 | |
| 52159-95503-04 note |
Cover, Rear Bumper
1988-05 → 1992-11
ended
|
AT170,CT170,ST170 WG | ¥32,500 | |
| 52159-95503-05 note |
Cover, Rear Bumper
1989-08 → 1990-05
ended
|
AT170,ST170 WG | ¥32,500 | |
| 52159-95503-06 note |
Cover, Rear Bumper
1988-05 → 1989-08
ended
|
AT170,ST170 WG | ¥32,500 | |
| 52159-95503-07 note |
Cover, Rear Bumper
1990-05 → 1992-11
ended
|
AT170,CT170,ST170 WG | ¥32,500 | |
| 52159-95503-08 note |
Cover, Rear Bumper
1988-05 → 1992-11
ended
|
AT170,CT170,ST170 WG | ¥32,500 | |
| 52159-95503-12 note |
Cover, Rear Bumper
1990-05 → 1992-11
ended
|
AT170,CT170,ST170 WG | ¥32,500 | |
| 52159-95503-13 note |
Cover, Rear Bumper
1989-05 → 1989-06
ended
|
ST170 SX | ¥32,500 | |
| 52159-95503-13 note |
Cover, Rear Bumper
1990-05 → 1992-11
ended
|
AT170,CT170,ST170 WG | ¥32,500 | |
| 52159-95503-H0 note |
Cover, Rear Bumper
1991-05 → 1991-07
ended
|
ST170 SX | ¥32,500 | |
| 52162B — Plate, Rear Bumper, NO.1 | ||||
| 52162-95500 |
Plate, Rear Bumper, NO.1
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥310 | |
| 52561 — Retainer, Rear Bumper, Upper Center | ||||
| 52305-20020 |
Retainer, Rear Bumper, Upper Center
1988-05 → 1992-08
ended
|
AT17#,CT170,ST170 SED | ¥4,050 | |
| 52305-20030 note |
Retainer, Rear Bumper, Upper Center
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥4,280 | |
| 52305-20030 note |
Retainer, Rear Bumper, Upper Center
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) SGEXT | ¥4,280 | |
| 52305-20030 note |
Retainer, Rear Bumper, Upper Center
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥4,280 | |
| 52561-95501 |
Retainer, Rear Bumper, Upper Center
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥2,370 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
