Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

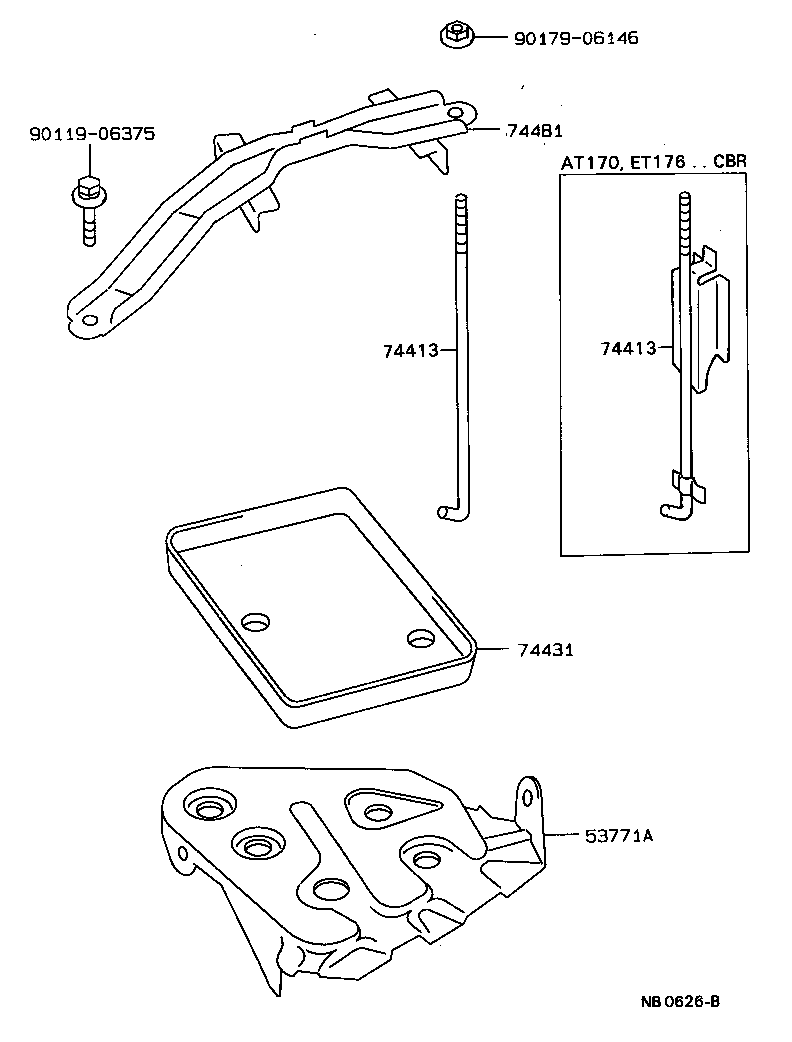

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53771A — Support, Battery Carrier | ||||
| 53771-20040 |
Support, Battery Carrier
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥2,360 | |
| 74413 — Bolt, Battery Clamp | ||||
| 74407-20060 |
Bolt, Battery Clamp
1988-05 → 1992-11
ended
|
AT170,ET176 CBR | ¥2,560 | |
| 74451-14010 |
Bolt, Battery Clamp
1988-05 → 1992-11
ended
|
CT17# 4FC | ¥260 | |
| 74451-14010 note |
Bolt, Battery Clamp
1988-05 → 1992-11
ended
|
CT17# 5F | ¥260 | |
| 74451-30060 |
Bolt, Battery Clamp
1988-05 → 1992-11
ended
|
CT17# 5F;AT17#,ST170 CI,EFI,EFIS | ¥330 | |
| 74431 — Tray, Battery | ||||
| 74431-14010 |
Tray, Battery
1988-05 → 1990-05
ended
|
AT17#,ET176,ST170 3FC,4F,5F | ¥1,520 | |
| 74431-14010 |
Tray, Battery
1990-05 → 1992-11
ended
|
AT17#,ET176,ST170 MTM | ¥1,520 | |
| 74431-14020 |
Tray, Battery
1988-05 → 1990-05
ended
|
AT170,171,ST170 4FC (DX,GLIM,SE,SG,SGEXT,SV,SX) | ¥1,660 | |
| 74431-14020 note |
Tray, Battery
1988-05 → 1990-05
ended
|
AT171 5F GLIM | ¥1,660 | |
| 74431-14020 note |
Tray, Battery
1990-05 → 1992-08
ended
|
AT171,ST170 5F (GLIM,SE) | ¥1,660 | |
| 74431-14020 note |
Tray, Battery
1988-05 → 1992-11
ended
|
AT171,ST170 5F (S,SGEXT,SX);AT170,ET176,ST170 MTM +2 | ¥1,660 | |
| 74431-14020 |
Tray, Battery
1990-05 → 1992-11
ended
|
AT171,ET176,ST170 ATM (CBR,EFI) | ¥1,660 | |
| 74431-20010 |
Tray, Battery
1988-05 → 1992-11
ended
|
CT17# 5F | ¥1,740 | |
| 74431-20020 |
Tray, Battery
1988-05 → 1992-11
ended
|
CT17# 4FC | ¥2,180 | |
| 74431-20020 note |
Tray, Battery
1988-05 → 1992-11
ended
|
CT17# 5F | ¥2,180 | |
| 74431-20040 note |
Tray, Battery
1988-08 → 1992-11
ended
|
AT170,175 MTM EFI | ¥2,420 | |
| 74431-20040 |
Tray, Battery
1988-05 → 1992-11
ended
|
AT17# 4FC (DX,S,SE,SG,SGEXT,SV) (EFI,EFIS) | ¥2,420 | |
| 74481 — Clamp, Battery Hold Down | ||||
| 74404-20250 |
Clamp, Battery Hold Down
1988-05 → 1992-11
ended
|
AT17#,ST170 MTM (CI,EFI,EFIS) | ¥4,020 | |
| 74404-20260 note |
Clamp, Battery Hold Down
1988-05 → 1990-05
ended
|
AT171 5F GLIM | ¥4,020 | |
| 74404-20260 note |
Clamp, Battery Hold Down
1990-05 → 1992-08
ended
|
AT171,ST170 5F (GLIM,SE) | ¥4,020 | |
| 74404-20260 |
Clamp, Battery Hold Down
1988-05 → 1992-11
ended
|
AT171,ST170 4FC (GLIM,SE,SGEXT,SX) | ¥4,020 | |
| 74404-20260 note |
Clamp, Battery Hold Down
1988-05 → 1992-11
ended
|
ST170 5F SE CI;AT171,ST170 +2 | ¥4,020 | |
| 74404-20270 |
Clamp, Battery Hold Down
1988-05 → 1992-11
ended
|
CT17# 5F | ¥4,020 | |
| 74404-20280 |
Clamp, Battery Hold Down
1988-05 → 1992-11
ended
|
CT17# 4FC | ¥4,020 | |
| 74404-20280 note |
Clamp, Battery Hold Down
1988-05 → 1992-11
ended
|
CT17# 5F | ¥4,020 | |
| 74404-20290 |
Clamp, Battery Hold Down
1988-05 → 1992-11
ended
|
AT170,ET176 CBR | ¥3,600 | |
| 74404-20360 |
Clamp, Battery Hold Down
1988-05 → 1992-11
ended
|
AT17# 4FC (DX,S,SE,SG,SGEXT,SV) (EFI,EFIS) | ¥4,300 | |
| 74404-20360 note |
Clamp, Battery Hold Down
1988-08 → 1992-11
ended
|
AT170,175 MTM EFI | ¥4,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
