Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

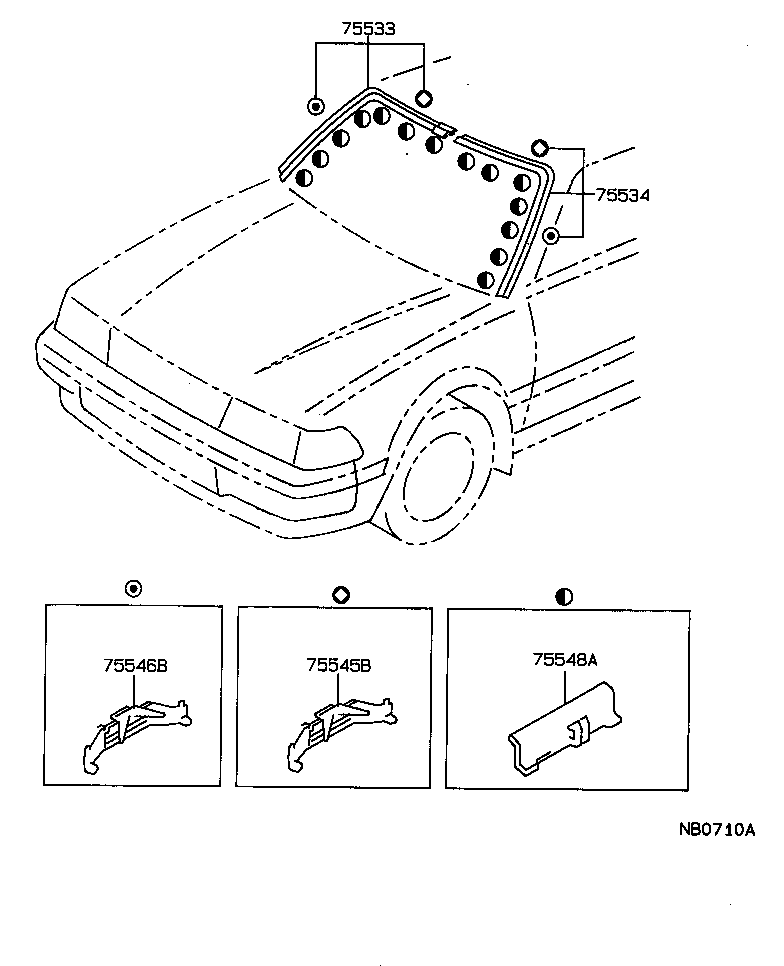

Exploded illustration NB0710A 75533 — MOULDING, WINDSHIELD, OUTSIDE RH (2 parts) 75534 — MOULDING, WINDSHIELD, OUTSIDE LH (2 parts) 75548A — FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1 (1 parts) 75545B — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1 (1 parts) 75546B — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2 (1 parts)
NB0710A · 5 callouts Full size ↗
7 parts on this figure
Part number Description Fitment Price
75533 — Moulding, Windshield, Outside RH
75533-20270 Moulding, Windshield, Outside RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥3,270
75533-20310 note Moulding, Windshield, Outside RH
1989-08 → 1992-08 ended
AT17#,CT170,ST170 SED ¥3,270
75534 — Moulding, Windshield, Outside LH
75534-20280 Moulding, Windshield, Outside LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥3,270
75534-20310 note Moulding, Windshield, Outside LH
1989-08 → 1992-08 ended
AT17#,CT170,ST170 SED ¥3,270
75545B — Clip, Windshield Outside Moulding, NO.1
75545-20080 Clip, Windshield Outside Moulding, NO.1
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥300
75546B — Clip, Windshield Outside Moulding, NO.2
75546-20110 Clip, Windshield Outside Moulding, NO.2
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥300
75548A — Fastener, Windshield Outside Moulding, NO.1
75548-20110 Fastener, Windshield Outside Moulding, NO.1
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥250
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
