Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

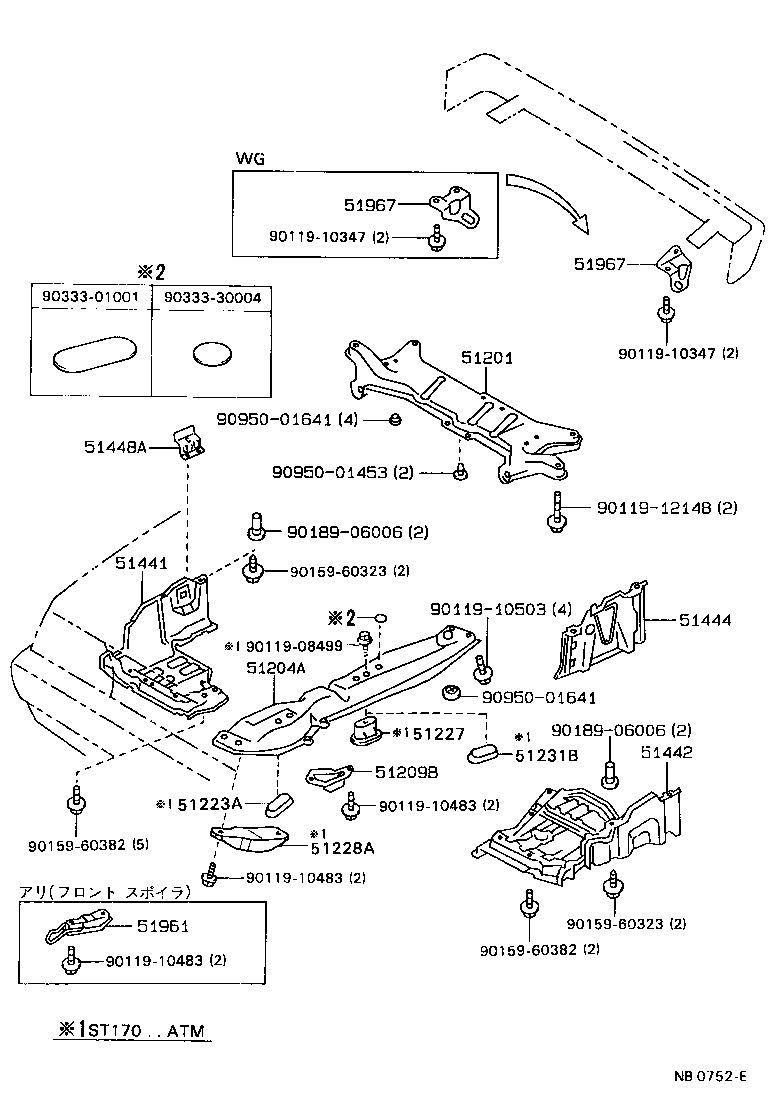

Exploded illustration NB0752E 51967 — HOOK, TRANSPORT, REAR (3 parts) 9011910347 — not listed in this catalogue 51967 — HOOK, TRANSPORT, REAR (3 parts) 9033301001 — not listed in this catalogue 9033330004 — not listed in this catalogue 51201 — CROSSMEMBER SUB-ASSY, FRONT SUSPENSION (1 parts) 9011910347 — not listed in this catalogue 9095001641 — not listed in this catalogue 51448A — COVER, ENGINE SIDE UNDER, RH (1 parts) 9095001453 — not listed in this catalogue 9011912148 — not listed in this catalogue 9018906006 — not listed in this catalogue 51441 — COVER, ENGINE UNDER, NO.1 (2 parts) 9015960323 — not listed in this catalogue 9011910503 — not listed in this catalogue 51444 — COVER, ENGINE UNDER, REAR LH (1 parts) 9011908499 — not listed in this catalogue 51204A — MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER (2 parts) 9095001641 — not listed in this catalogue 9018906006 — not listed in this catalogue 51227 — WEIGHT, FRONT SUSPENSION MEMBER DAMPER (1 parts) 51442 — COVER, ENGINE UNDER, NO.2 (5 parts) 51231B — SEAL, FRONT SUSPENSION MEMBER WEIGHT (1 parts) 51209B — PROTECTOR SUB-ASSY, CENTER MEMBER, FRONT (1 parts) 51223A — COVER, ENGINE MOUNTING HOLE (2 parts) 9011910483 — not listed in this catalogue 9015960382 — not listed in this catalogue 51228A — WEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH (1 parts) 9011910483 — not listed in this catalogue 9015960323 — not listed in this catalogue 51961 — HOOK, NO.1 (8 parts) 9015960382 — not listed in this catalogue 9011910483 — not listed in this catalogue
NB0752E · 14 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
29 parts on this figure
Part number Description Fitment Price
51201 — Crossmember Sub-assy, Front Suspension
51201-20210 Crossmember Sub-assy, Front Suspension
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥54,200
51204A — Member Sub-assy, Engine Mounting, Center
51204-20070 Member Sub-assy, Engine Mounting, Center
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥15,700
51204-20090 Member Sub-assy, Engine Mounting, Center
1988-08 → 1992-08 ended
AT175 ¥27,300
51209B — Protector Sub-assy, Center Member, Front
51209-20010 Protector Sub-assy, Center Member, Front
1988-05 → 1992-11 ended
AT175,CT17#;AT170,ET176 ATM ¥2,130
51223A — Cover, Engine Mounting Hole
51223-20020 Cover, Engine Mounting Hole
1988-05 → 1990-05 ended
ST170 4FC ¥330
51223-20020 Cover, Engine Mounting Hole
1988-05 → 1992-11 ended
ST170 5F CI;AT17#,CT17#,ET176,ST170 CBR,DSL,EFI,EFIS ¥330
51227 — Weight, Front Suspension Member Damper
51227-20040 Weight, Front Suspension Member Damper
1988-05 → 1990-05 ended
ST170 4FC ¥4,920
51228A — Weight, Front Suspension Member Damper, LH
51228-20030 Weight, Front Suspension Member Damper, LH
1988-05 → 1992-11 ended
ST170 4FC ¥4,460
51231B — Seal, Front Suspension Member Weight
51231-20010 Seal, Front Suspension Member Weight
1988-05 → 1990-05 ended
ST170 4FC ¥190
51441 — Cover, Engine Under, NO.1
51441-20150 Cover, Engine Under, NO.1
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥8,000
51441-20180 Cover, Engine Under, NO.1
1988-08 → 1992-08 ended
AT175 ¥8,500
51442 — Cover, Engine Under, NO.2
51442-20090 Cover, Engine Under, NO.2
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥7,700
51442-20110 Cover, Engine Under, NO.2
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176 ATM ¥7,000
51442-20120 Cover, Engine Under, NO.2
1988-05 → 1992-11 ended
ST170 4FC ¥6,100
51442-20170 Cover, Engine Under, NO.2
1988-08 → 1992-08 ended
AT175 5F ¥7,700
51442-20180 Cover, Engine Under, NO.2
1988-08 → 1992-08 ended
AT175 4FC ¥7,000
51444 — Cover, Engine Under, Rear LH
51444-20050 Cover, Engine Under, Rear LH
1988-05 → 1992-11 ended
ST170 4FC ¥5,600
51448A — Cover, Engine Side Under, RH
51448-20030 Cover, Engine Side Under, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥650
51961 — Hook, NO.1
51960-20010 note Hook, NO.1
1989-05 → 1989-06 ended
ST170 SX ¥3,100
51960-20010 Hook, NO.1
1988-05 → 1990-05 ended
CT170 ¥3,100
51960-20010 Hook, NO.1
1988-05 → 1990-05 ended
AT170,ST170 ¥3,100
51960-20010 note Hook, NO.1
1989-03 → 1990-05 ended
ST170 SGEXT ¥3,100
51960-20010 Hook, NO.1
1988-05 → 1992-08 ended
AT171 ¥3,100
51960-20010 note Hook, NO.1
1990-05 → 1992-08 ended
ST170 SE ¥3,100
51960-20010 note Hook, NO.1
1992-04 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥3,100
51960-20010 note Hook, NO.1
1990-05 → 1992-11 ended
ST170 SX ¥3,100
51967 — Hook, Transport, Rear
51095-20120 Hook, Transport, Rear
1988-08 → 1992-08 ended
AT175 ¥6,200
51096-20020 Hook, Transport, Rear
1988-05 → 1992-08 ended
AT170,171,CT170,ST170 SED ¥5,900
51968-95501 Hook, Transport, Rear
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥2,140
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
