Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

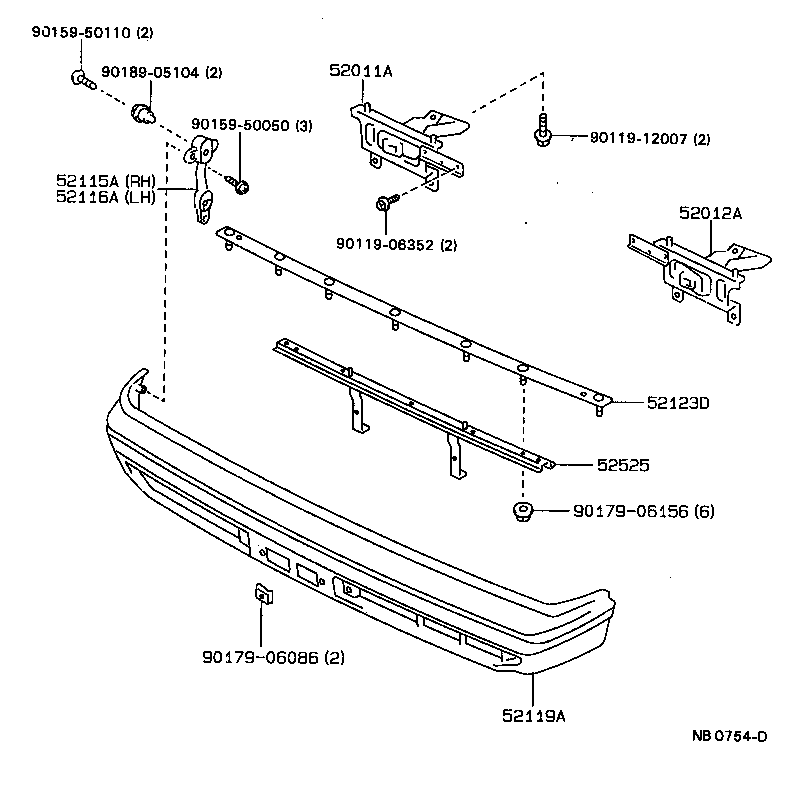

Exploded illustration NB0754D 9015950110 — not listed in this catalogue 52011A — ARM SUB-ASSY, FRONT BUMPER, RH (8 parts) 9018905104 — not listed in this catalogue 9015950050 — not listed in this catalogue 9011912007 — not listed in this catalogue 52115A — SUPPORT, FRONT BUMPER SIDE, RH (1 parts) 52116A — SUPPORT, FRONT BUMPER SIDE, LH (1 parts) 52012A — ARM SUB-ASSY, FRONT BUMPER, LH (8 parts) 9011906352 — not listed in this catalogue 52123D — PLATE, FRONT BUMPER REINFORCEMENT (2 parts) 52525 — RETAINER, FRONT BUMPER, LOWER CENTER (2 parts) 9017906156 — not listed in this catalogue 9017906086 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (153 parts)
NB0754D · 7 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
175 parts on this figure
Part number Description Fitment Price
52011A — Arm Sub-assy, Front Bumper, RH
52011-20210 Arm Sub-assy, Front Bumper, RH
1990-05 → 1992-11 ended
CT176,ET176 ¥4,550
52011-20210 Arm Sub-assy, Front Bumper, RH
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥4,550
52011-20250 note Arm Sub-assy, Front Bumper, RH
1991-06 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥4,550
52011-20250 note Arm Sub-assy, Front Bumper, RH
1991-06 → 1992-08 ended
AT171 EFIS ¥4,550
52011-20250 Arm Sub-assy, Front Bumper, RH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 ¥4,550
52011-20260 note Arm Sub-assy, Front Bumper, RH
1990-05 → 1991-06 ended
AT171,ST170 GLIM,SE ¥5,700
52011-20260 note Arm Sub-assy, Front Bumper, RH
1991-06 → 1992-11 ended
AT170 4FC SV ¥5,700
52011-20260 note Arm Sub-assy, Front Bumper, RH
1991-06 → 1992-11 ended
AT170 SED;AT170 5F SV;AT171,CT170,ST170 ¥5,700
52012A — Arm Sub-assy, Front Bumper, LH
52012-20160 Arm Sub-assy, Front Bumper, LH
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥4,550
52012-20160 Arm Sub-assy, Front Bumper, LH
1990-05 → 1992-11 ended
CT176,ET176 ¥4,550
52012-20210 note Arm Sub-assy, Front Bumper, LH
1991-06 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥4,550
52012-20210 Arm Sub-assy, Front Bumper, LH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 ¥4,550
52012-20210 note Arm Sub-assy, Front Bumper, LH
1991-06 → 1992-08 ended
AT171 EFIS ¥4,550
52012-20220 note Arm Sub-assy, Front Bumper, LH
1991-06 → 1992-11 ended
AT170 4FC SV ¥5,700
52012-20220 note Arm Sub-assy, Front Bumper, LH
1991-06 → 1992-11 ended
AT170 SED;AT170 5F SV;AT171,CT170,ST170 ¥5,700
52012-20220 note Arm Sub-assy, Front Bumper, LH
1990-05 → 1991-06 ended
AT171,ST170 GLIM,SE ¥5,700
52115A — Support, Front Bumper Side, RH
52115-20250 Support, Front Bumper Side, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥650
52116A — Support, Front Bumper Side, LH
52115-20250 Support, Front Bumper Side, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥650
52119A — Cover, Front Bumper
52119-20500 Cover, Front Bumper
1988-05 → 1992-11 ended
AT175 SG;AT170,CT176,ET176 (DX,SG,STD,SV) (CBR,DSL) ¥24,800
52119-20510-02 note Cover, Front Bumper
1989-03 → 1989-08 ended
AT170 (4FC,5F) SG ¥42,100
52119-20510-02 note Cover, Front Bumper
1989-03 → 1989-08 ended
AT170 4F SG ¥42,100
52119-20510-02 note Cover, Front Bumper
1988-05 → 1989-08 ended
CT170;AT17#,ST170 GLIM,S,SE,SGEXT ¥42,100
52119-20510-02 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥42,100
52119-20510-02 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 4F SG ¥42,100
52119-20510-03 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 4F SG ¥42,100
52119-20510-03 note Cover, Front Bumper
1988-05 → 1990-05 ended
CT170 SG ¥42,100
52119-20510-03 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT170 SV ¥42,100
52119-20510-03 note Cover, Front Bumper
1988-05 → 1990-05 ended
ST170 SGEXT,SX ¥42,100
52119-20510-03 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT171,175 S,SGEXT ¥42,100
52119-20510-03 note Cover, Front Bumper
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥42,100
52119-20510-03 note Cover, Front Bumper
1989-03 → 1990-05 ended
AT170 4F SG ¥42,100
52119-20510-03 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥42,100
52119-20510-04 note Cover, Front Bumper
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥42,100
52119-20510-04 note Cover, Front Bumper
1988-05 → 1990-05 ended
CT170;AT17#,ST170 GLIM,S,SE,SGEXT,SV,SX ¥42,100
52119-20510-04 note Cover, Front Bumper
1989-03 → 1990-05 ended
AT170 4F SG ¥42,100
52119-20510-04 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 4F SG ¥42,100
52119-20510-04 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥42,100
52119-20510-07 note Cover, Front Bumper
1989-08 → 1990-05 ended
AT170 (4FC,5F) SG ¥42,100
52119-20510-07 note Cover, Front Bumper
1989-08 → 1990-05 ended
AT170 4F SG ¥42,100
52119-20510-07 note Cover, Front Bumper
1989-08 → 1990-05 ended
CT170;AT17#,ST170 GLIM,S,SE,SGEXT ¥42,100
52119-20510-08 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 4F SG ¥42,100
52119-20510-08 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥42,100
52119-20510-08 note Cover, Front Bumper
1989-03 → 1990-05 ended
AT170 4F SG ¥42,100
52119-20510-08 note Cover, Front Bumper
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥42,100
52119-20510-08 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT171 S ¥42,100
52119-20510-08 note Cover, Front Bumper
1988-05 → 1990-05 ended
CT170 SG ¥42,100
52119-20510-08 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT170 SV ¥42,100
52119-20510-08 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT175 SGEXT ¥42,100
52119-20510-08 note Cover, Front Bumper
1988-05 → 1990-05 ended
ST170 SGEXT,SX ¥42,100
52119-20510-12 note Cover, Front Bumper
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥42,100
52119-20510-12 note Cover, Front Bumper
1989-03 → 1990-05 ended
AT170 4F SG ¥42,100
52119-20510-12 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 4F SG ¥42,100
52119-20510-12 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT170 SE,SV ¥42,100
52119-20510-12 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT175 SGEXT ¥42,100
52119-20510-12 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT171 ¥42,100
52119-20510-12 note Cover, Front Bumper
1988-05 → 1990-05 ended
CT170 ¥42,100
52119-20510-12 note Cover, Front Bumper
1988-05 → 1990-05 ended
ST170 ¥42,100
52119-20510-12 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥42,100
52119-20511-02 note Cover, Front Bumper
1990-05 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥39,900
52119-20511-04 note Cover, Front Bumper
1990-05 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥39,900
52119-20511-08 note Cover, Front Bumper
1990-05 → 1992-11 ended
CT170,ST170 SG,SGEXT,SV,SX ¥39,900
52119-20511-08 note Cover, Front Bumper
1990-05 → 1992-11 ended
AT170 SG,SGEXT,SV ¥39,900
52119-20511-08 note Cover, Front Bumper
1990-05 → 1992-11 ended
AT175 SG,SGEXT ¥39,900
52119-20511-08 note Cover, Front Bumper
1990-05 → 1992-11 ended
AT171 EFIS ¥39,900
52119-20511-17 note Cover, Front Bumper
1990-05 → 1992-11 ended
AT171 EFIS ¥39,900
52119-20511-17 note Cover, Front Bumper
1990-05 → 1992-11 ended
AT170,CT170 SV ¥39,900
52119-20511-17 note Cover, Front Bumper
1990-05 → 1992-11 ended
AT170,175,CT170,ST170 SG,SGEXT,SX ¥39,900
52119-20520-03 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT171,175 GLIM,S,SGEXT ¥42,100
52119-20520-03 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT170,ST170 SE,SGEXT ¥42,100
52119-20520-03 note Cover, Front Bumper
1988-05 → 1990-05 ended
CT170 SE ¥42,100
52119-20520-05 note Cover, Front Bumper
1989-08 → 1990-05 ended
AT170 SE,SG,SV ¥42,100
52119-20520-05 note Cover, Front Bumper
1989-08 → 1990-05 ended
AT171 ¥42,100
52119-20520-05 note Cover, Front Bumper
1989-08 → 1990-05 ended
AT175 SGEXT ¥42,100
52119-20520-05 note Cover, Front Bumper
1989-08 → 1990-05 ended
CT170 ¥42,100
52119-20520-05 note Cover, Front Bumper
1989-08 → 1990-05 ended
ST170 ¥42,100
52119-20520-06 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 4F SG ¥42,100
52119-20520-06 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥42,100
52119-20520-06 note Cover, Front Bumper
1988-05 → 1989-08 ended
CT170;AT17#,ST170 GLIM,S,SE,SGEXT,SV,SX ¥42,100
52119-20520-06 note Cover, Front Bumper
1989-03 → 1989-08 ended
AT170 4F SG ¥42,100
52119-20520-06 note Cover, Front Bumper
1989-03 → 1989-08 ended
AT170 (4FC,5F) SG ¥42,100
52119-20520-08 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT171 S ¥42,100
52119-20520-08 note Cover, Front Bumper
1988-05 → 1988-12 ended
AT171,175 S,SGEXT ¥42,100
52119-20520-08 note Cover, Front Bumper
1988-12 → 1990-05 ended
ST170 SGEXT ¥42,100
52119-20520-08 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT170,CT170,ST170 SE ¥42,100
52119-20520-08 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT171 GLIM ¥42,100
52119-20520-08 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT175 SGEXT ¥42,100
52119-20520-08 note Cover, Front Bumper
1988-05 → 1988-12 ended
ST170 SGEXT ¥42,100
52119-20520-13 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT171,175 GLIM,S,SGEXT ¥42,100
52119-20520-13 note Cover, Front Bumper
1989-03 → 1990-05 ended
AT170 4F SG ¥42,100
52119-20520-13 note Cover, Front Bumper
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥42,100
52119-20520-13 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT170,ST170 SE,SG,SGEXT ¥42,100
52119-20520-13 note Cover, Front Bumper
1988-05 → 1990-05 ended
CT170 ¥42,100
52119-20520-13 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥42,100
52119-20520-13 note Cover, Front Bumper
1988-05 → 1989-03 ended
AT170 4F SG ¥42,100
52119-20520-13 note Cover, Front Bumper
1989-05 → 1989-06 ended
ST170 SX ¥42,100
52119-20520-18 note Cover, Front Bumper
1988-05 → 1989-08 ended
AT175,ST170 SGEXT ¥42,100
52119-20520-18 note Cover, Front Bumper
1988-05 → 1989-08 ended
AT170,CT170,ST170 SE ¥42,100
52119-20520-18 note Cover, Front Bumper
1988-05 → 1989-08 ended
AT171 ¥42,100
52119-20520-18 note Cover, Front Bumper
1988-05 → 1989-08 ended
CT170 SG ¥42,100
52119-20520-18 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT171 GLIM ¥42,100
52119-20520-18 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT171 S ¥42,100
52119-20520-18 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT175 SGEXT ¥42,100
52119-20520-18 note Cover, Front Bumper
1988-05 → 1990-05 ended
AT170,CT170,ST170 SE ¥42,100
52119-20520-28 note Cover, Front Bumper
1989-08 → 1990-05 ended
AT170,CT170,ST170 SE ¥42,100
52119-20520-28 note Cover, Front Bumper
1989-08 → 1990-05 ended
AT171,175 GLIM,S,SGEXT ¥42,100
52119-20520-28 note Cover, Front Bumper
1989-08 → 1990-05 ended
ST170 SGEXT ¥42,100
52119-20521-03 note Cover, Front Bumper
1990-05 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥39,900
52119-20521-07 note Cover, Front Bumper
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT ¥39,900
52119-20521-07 note Cover, Front Bumper
1991-05 → 1991-07 ended
ST170 SX ¥39,900
52119-20521-08 note Cover, Front Bumper
1990-05 → 1992-11 ended
AT171 EFIS ¥39,900
52119-20521-08 note Cover, Front Bumper
1990-12 → 1992-04 ended
AT170,ST170 SE ¥39,900
52119-20521-08 note Cover, Front Bumper
1990-12 → 1992-04 ended
AT175 SE ¥39,900
52119-20521-08 note Cover, Front Bumper
1990-12 → 1992-04 ended
CT170 SE ¥39,900
52119-20521-08 note Cover, Front Bumper
1990-05 → 1992-11 ended
AT171,ST170 GLIM,SX ¥39,900
52119-20521-08 note Cover, Front Bumper
1992-04 → 1992-11 ended
AT170,175,CT170,ST170 SE ¥39,900
52119-20521-08 note Cover, Front Bumper
1990-05 → 1990-12 ended
AT170,175,CT170,ST170 SE ¥39,900
52119-20521-13 note Cover, Front Bumper
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT ¥39,900
52119-20521-17 note Cover, Front Bumper
1990-05 → 1992-11 ended
AT171 EFIS ¥39,900
52119-20521-17 note Cover, Front Bumper
1990-05 → 1992-11 ended
AT17#,CT170,ST170 GLIM,SE,SX ¥39,900
52119-20521-18 note Cover, Front Bumper
1990-05 → 1990-12 ended
AT17#,CT170,ST170 S,SE,SX ¥39,900
52119-20521-18 note Cover, Front Bumper
1992-04 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SX ¥39,900
52119-20521-18 note Cover, Front Bumper
1990-12 → 1992-04 ended
AT171 EFIS ¥39,900
52119-20521-18 note Cover, Front Bumper
1990-12 → 1992-04 ended
AT170 SE ¥39,900
52119-20521-18 note Cover, Front Bumper
1990-12 → 1992-04 ended
AT175 SE ¥39,900
52119-20521-18 note Cover, Front Bumper
1990-12 → 1992-04 ended
ST170 SE,SX ¥39,900
52119-20521-18 note Cover, Front Bumper
1990-12 → 1992-04 ended
CT170 SE ¥39,900
52119-20710 Cover, Front Bumper
1990-05 → 1992-11 ended
AT170,CT170 DX,SV ¥24,000
52119-20740-02 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT171 EFIS ¥39,900
52119-20740-02 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20740-02 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT171 EFIS ¥39,900
52119-20740-02 note Cover, Front Bumper
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥39,900
52119-20740-02 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20740-04 note Cover, Front Bumper
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥39,900
52119-20740-04 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20740-04 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT171 EFIS ¥39,900
52119-20740-04 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20740-04 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT171 EFIS ¥39,900
52119-20740-08 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20740-08 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT171 EFIS ¥39,900
52119-20740-08 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20740-08 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT171 EFIS ¥39,900
52119-20740-17 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20740-17 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT171 EFIS ¥39,900
52119-20740-17 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT171 EFIS ¥39,900
52119-20740-17 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20750-03 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT171 EFIS ¥39,900
52119-20750-03 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20750-03 note Cover, Front Bumper
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥39,900
52119-20750-03 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT171 EFIS ¥39,900
52119-20750-03 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20750-07 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT171 EFIS ¥39,900
52119-20750-07 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20750-07 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT171 EFIS ¥39,900
52119-20750-07 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20750-07 note Cover, Front Bumper
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥39,900
52119-20750-08 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT171 EFIS ¥39,900
52119-20750-08 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT171 EFIS ¥39,900
52119-20750-08 note Cover, Front Bumper
1990-05 → 1992-08 ended
AT171 EFI ¥39,900
52119-20750-08 note Cover, Front Bumper
1990-05 → 1992-08 ended
AT170,175,CT170,ST170 SE ¥39,900
52119-20750-13 note Cover, Front Bumper
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥39,900
52119-20750-13 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT171 EFIS ¥39,900
52119-20750-13 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20750-13 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT171 EFIS ¥39,900
52119-20750-13 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20750-17 note Cover, Front Bumper
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥39,900
52119-20750-17 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT171 EFIS ¥39,900
52119-20750-17 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥39,900
52119-20750-17 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT171 EFIS ¥39,900
52119-20750-18 note Cover, Front Bumper
1990-05 → 1992-08 ended
AT170,175,CT170,ST170 SE ¥39,900
52119-20750-18 note Cover, Front Bumper
1991-06 → 1992-08 ended
AT171 EFIS ¥39,900
52119-20750-18 note Cover, Front Bumper
1990-05 → 1991-06 ended
AT171 EFIS ¥39,900
52123D — Plate, Front Bumper Reinforcement
52123-20080 Plate, Front Bumper Reinforcement
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥1,850
52123-20080 Plate, Front Bumper Reinforcement
1990-05 → 1992-11 ended
CT176,ET176 ¥1,850
52525 — Retainer, Front Bumper, Lower Center
52506-20120 Retainer, Front Bumper, Lower Center
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥3,170
52506-20120 Retainer, Front Bumper, Lower Center
1990-05 → 1992-11 ended
CT176,ET176 ¥3,170
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
