Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

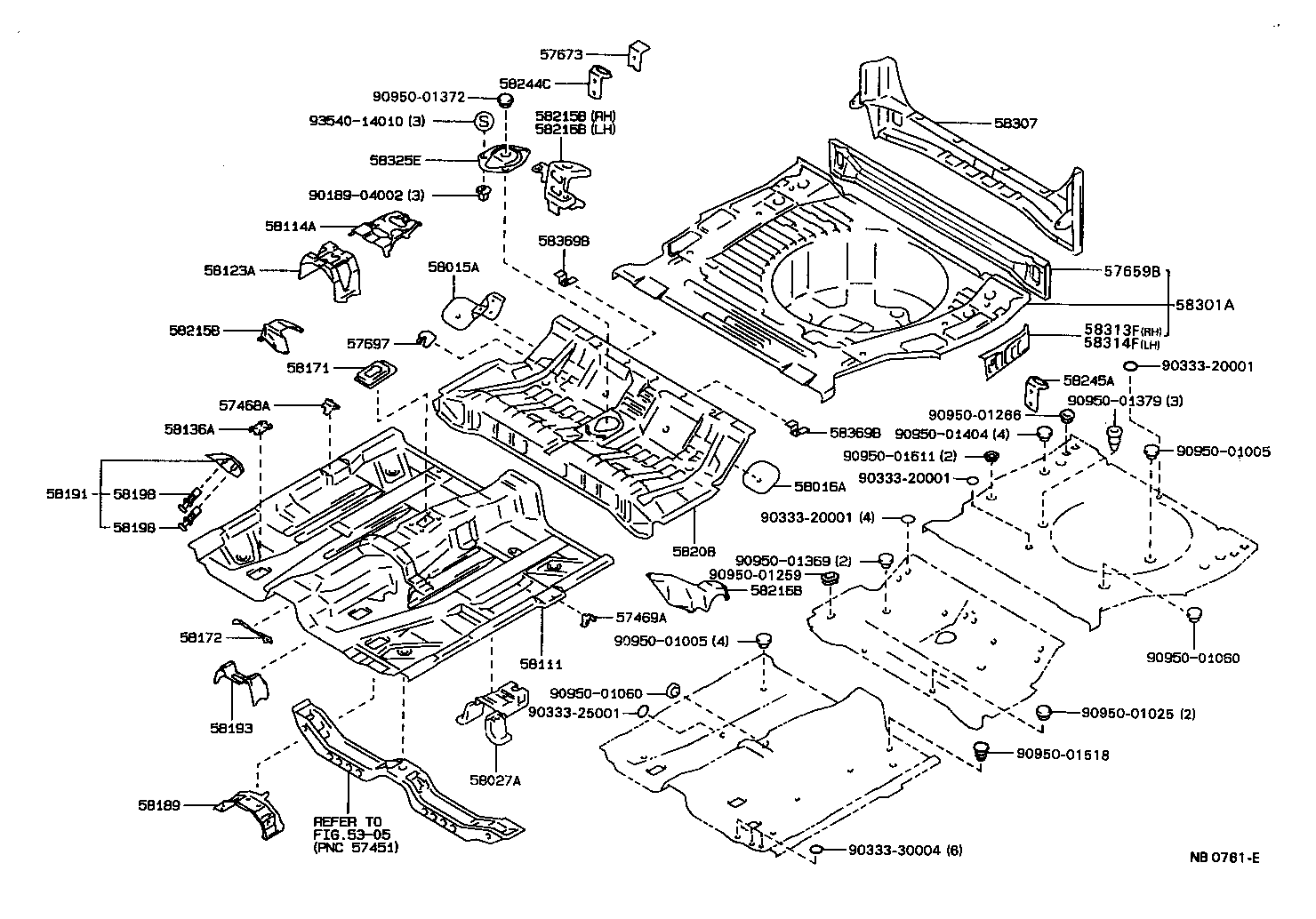

Exploded illustration NB0761E 57673 — BRACKET, REAR SEATBACK HINGE MOUNTING (1 parts) 58244C — BRACKET, REAR SEAT CUSHION MOUNTING, RH (1 parts) 9095001372 — not listed in this catalogue 58215B — BRACKET, REAR SEAT MOUNTING, RH (2 parts) 9354014010 — not listed in this catalogue 58307 — PANEL SUB-ASSY, BODY LOWER BACK (7 parts) 58216B — BRACKET, REAR SEAT MOUNTING, LH (2 parts) 58325E — COVER, REAR FLOOR SERVICE HOLE (3 parts) 9018904002 — not listed in this catalogue 58114A — REINFORCEMENT, FRONT FLOOR PANEL (1 parts) 58369B — BRACKET, FUEL TUBE, NO.3 (1 parts) 58015A — REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH (1 parts) 58123A — SUPPORT, SHIFT & SELECT LEVER (1 parts) 57659B — MEMBER, REAR FLOOR CROSS, REAR INNER (1 parts) 58301A — PANEL SUB-ASSY, REAR FLOOR (6 parts) 58313F — EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH (2 parts) 58215B — BRACKET, REAR SEAT MOUNTING, RH (2 parts) 58314F — EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH (2 parts) 57697 — RETAINER, REAR SEAT CUSHION (1 parts) 9033320001 — not listed in this catalogue 58171 — REINFORCEMENT, PARKING BRAKE BASE (3 parts) 58245A — BRACKET, REAR SEAT HINGE, CENTER NO.1 (1 parts) 9095001379 — not listed in this catalogue 57468A — BRACKET, FRONT SEAT, OUTSIDE, REAR RH (2 parts) 9095001266 — not listed in this catalogue 58136A — COVER, FRONT FLOOR SERVICE HOLE (1 parts) 58369B — BRACKET, FUEL TUBE, NO.3 (1 parts) 9095001404 — not listed in this catalogue 9095001005 — not listed in this catalogue 9095001611 — not listed in this catalogue 9033320001 — not listed in this catalogue 58016A — REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH (1 parts) 58191 — FOOTREST, FRONT FLOOR (2 parts) 58198 — CLIP, FOOTREST (2 parts) 9033320001 — not listed in this catalogue 58198 — CLIP, FOOTREST (2 parts) 58208 — PAN, CENTER FLOOR (2 parts) 9095001369 — not listed in this catalogue 9095001259 — not listed in this catalogue 58216B — BRACKET, REAR SEAT MOUNTING, LH (2 parts) 57469A — BRACKET, FRONT SEAT, OUTSIDE, REAR LH (2 parts) 58172 — BRACKET, COMPUTER MOUNTING, NO.3 (1 parts) 9095001005 — not listed in this catalogue 9095001060 — not listed in this catalogue 58111 — PAN, FRONT FLOOR (3 parts) 9095001060 — not listed in this catalogue 9033325001 — not listed in this catalogue 9095001025 — not listed in this catalogue 58193 — BRACKET, INSTRUMENT PANEL BRACE MOUNTING (2 parts) 9095001518 — not listed in this catalogue 58027A — REINFORCE SUB-ASSY, SEAT BELT ANCHOR (5 parts) 58189 — REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET (1 parts) 5305 — not listed in this catalogue 9033330004 — not listed in this catalogue
NB0761E · 33 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
57468A — Bracket, Front Seat, Outside, Rear RH
57468-20030 Bracket, Front Seat, Outside, Rear RH
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥350
57468-20040 Bracket, Front Seat, Outside, Rear RH
1988-08 → 1992-08 ended
AT175 ¥1,090
57469A — Bracket, Front Seat, Outside, Rear LH
57469-20030 Bracket, Front Seat, Outside, Rear LH
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥350
57469-20040 Bracket, Front Seat, Outside, Rear LH
1988-08 → 1992-08 ended
AT175 ¥1,090
57659B — Member, Rear Floor Cross, Rear Inner
57659-95502 Member, Rear Floor Cross, Rear Inner
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥8,000
57673 — Bracket, Rear Seatback Hinge Mounting
57673-20070 Bracket, Rear Seatback Hinge Mounting
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥700
57697 — Retainer, Rear Seat Cushion
57697-32020 Retainer, Rear Seat Cushion
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥350
58015A — Reinforce Sub-assy, Belt Anchor, NO.3 RH
58015-32030 Reinforce Sub-assy, Belt Anchor, NO.3 RH
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥4,120
58016A — Reinforce Sub-assy, Belt Anchor, NO.3 LH
58016-32020 Reinforce Sub-assy, Belt Anchor, NO.3 LH
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥2,680
58027A — Reinforce Sub-assy, Seat Belt Anchor
58027-20050 Reinforce Sub-assy, Seat Belt Anchor
1988-05 → 1989-11 ended
AT171,ET176 DX,GLIM,SG,STD ¥3,280
58027-20050 Reinforce Sub-assy, Seat Belt Anchor
1989-11 → 1992-08 ended
AT171 EFIS;AT171 GLIM ¥3,280
58027-20070 Reinforce Sub-assy, Seat Belt Anchor
1988-05 → 1989-11 ended
AT170,171,CT17#,ST170 DX,S,SE,SG,SGEXT,SV,SX ¥3,280
58027-20070 Reinforce Sub-assy, Seat Belt Anchor
1989-11 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 (DX,S,SE,SG,SGEXT,STD,SV,SX) (CBR,CI,DSL,EFI) ¥3,280
58027-20090 Reinforce Sub-assy, Seat Belt Anchor
1988-08 → 1992-08 ended
AT175 ¥4,300
58111 — Pan, Front Floor
58111-20111 Pan, Front Floor
1988-08 → 1988-12 ended
AT175 ¥52,000
58111-20113 Pan, Front Floor
1988-12 → 1992-08 ended
AT175 ¥51,900
58111-20120 Pan, Front Floor
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥51,900
58114A — Reinforcement, Front Floor Panel
58114-20040 Reinforcement, Front Floor Panel
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥1,850
58123A — Support, Shift & Select Lever
58123-20040 Support, Shift & Select Lever
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥3,580
58136A — Cover, Front Floor Service Hole
58136-20010 Cover, Front Floor Service Hole
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥390
58171 — Reinforcement, Parking Brake Base
58107-20040 Reinforcement, Parking Brake Base
1988-05 → 1989-12 ended
AT170,171,CT17#,ET176,ST170 ¥1,750
58171-20090 Reinforcement, Parking Brake Base
1988-08 → 1992-08 ended
AT175 ¥680
58171-20100 Reinforcement, Parking Brake Base
1989-12 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥1,470
58172 — Bracket, Computer Mounting, NO.3
58172-20040 Bracket, Computer Mounting, NO.3
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥550
58189 — Reinforcement, Exhaust Pipe Clamp Bracket
58189-20020 Reinforcement, Exhaust Pipe Clamp Bracket
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥2,360
58191 — Footrest, Front Floor
58191-20030 Footrest, Front Floor
1988-08 → 1992-08 ended
AT175 ¥1,460
58191-20040 Footrest, Front Floor
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥1,970
58193 — Bracket, Instrument Panel Brace Mounting
58109-20090 Bracket, Instrument Panel Brace Mounting
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥2,170
58109-20100 Bracket, Instrument Panel Brace Mounting
1988-08 → 1992-08 ended
AT175 ¥10,800
58198 — Clip, Footrest
58198-20020 note Clip, Footrest
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥450
58198-20030 note Clip, Footrest
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥330
58208 — Pan, Center Floor
58201-32090 Pan, Center Floor
1988-08 → 1992-08 ended
AT175 ¥18,700
58211-32051 Pan, Center Floor
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥27,800
58215B — Bracket, Rear Seat Mounting, RH
58215-13020 Bracket, Rear Seat Mounting, RH
1988-05 → 1992-11 ended
CT176,ET176 ¥1,160
58215-20010 Bracket, Rear Seat Mounting, RH
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥750
58216B — Bracket, Rear Seat Mounting, LH
58216-13020 Bracket, Rear Seat Mounting, LH
1988-05 → 1992-11 ended
CT176,ET176 ¥1,160
58216-20010 Bracket, Rear Seat Mounting, LH
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥750
58244C — Bracket, Rear Seat Cushion Mounting, RH
58244-20010 Bracket, Rear Seat Cushion Mounting, RH
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥500
58245A — Bracket, Rear Seat Hinge, Center NO.1
58245-20020 Bracket, Rear Seat Hinge, Center NO.1
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥500
58301A — Panel Sub-assy, Rear Floor
58301-20650 Panel Sub-assy, Rear Floor
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 SED ¥52,500
58301-20680 note Panel Sub-assy, Rear Floor
1988-05 → 1990-05 ended
CT170 SE;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥51,900
58301-20680 Panel Sub-assy, Rear Floor
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 SED ¥51,900
58301-95509 Panel Sub-assy, Rear Floor
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥51,900
58301-95510 Panel Sub-assy, Rear Floor
1988-05 → 1989-05 ended
CT176,ET176 ¥66,900
58301-95512 Panel Sub-assy, Rear Floor
1989-05 → 1992-11 ended
CT176,ET176 ¥66,200
58307 — Panel Sub-assy, Body Lower Back
58307-20670 Panel Sub-assy, Body Lower Back
1988-05 → 1990-05 ended
AT17#,CT170,ST170 DX,S,SG,SGEXT ¥17,200
58307-20670 Panel Sub-assy, Body Lower Back
1990-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥17,200
58307-20680 note Panel Sub-assy, Body Lower Back
1989-02 → 1990-05 ended
ST170 SGEXT ¥17,400
58307-20680 Panel Sub-assy, Body Lower Back
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,SE ¥17,400
58307-20690 note Panel Sub-assy, Body Lower Back
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG ¥17,400
58307-95516 Panel Sub-assy, Body Lower Back
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥15,700
58307-95517 Panel Sub-assy, Body Lower Back
1988-05 → 1992-11 ended
CT176,ET176 ¥15,700
58313F — Extension, Rear Floor Pan TO Quarter Panel, RH
58313-95502 Extension, Rear Floor Pan TO Quarter Panel, RH
1988-05 → 1992-11 ended
CT176,ET176 ¥4,630
58313-95503 Extension, Rear Floor Pan TO Quarter Panel, RH
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥2,970
58314F — Extension, Rear Floor Pan TO Quarter Panel, LH
58314-95502 Extension, Rear Floor Pan TO Quarter Panel, LH
1988-05 → 1992-11 ended
CT176,ET176 ¥4,410
58314-95503 Extension, Rear Floor Pan TO Quarter Panel, LH
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥2,970
58325E — Cover, Rear Floor Service Hole
58325-12020 Cover, Rear Floor Service Hole
1988-05 → 1992-11 ended
CT176,ET176 ¥780
58325-20040 Cover, Rear Floor Service Hole
1988-08 → 1992-08 ended
AT175 ¥1,030
58325-32020 Cover, Rear Floor Service Hole
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥2,050
58369B — Bracket, Fuel Tube, NO.3
58369-32010 Bracket, Fuel Tube, NO.3
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥320
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
