Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

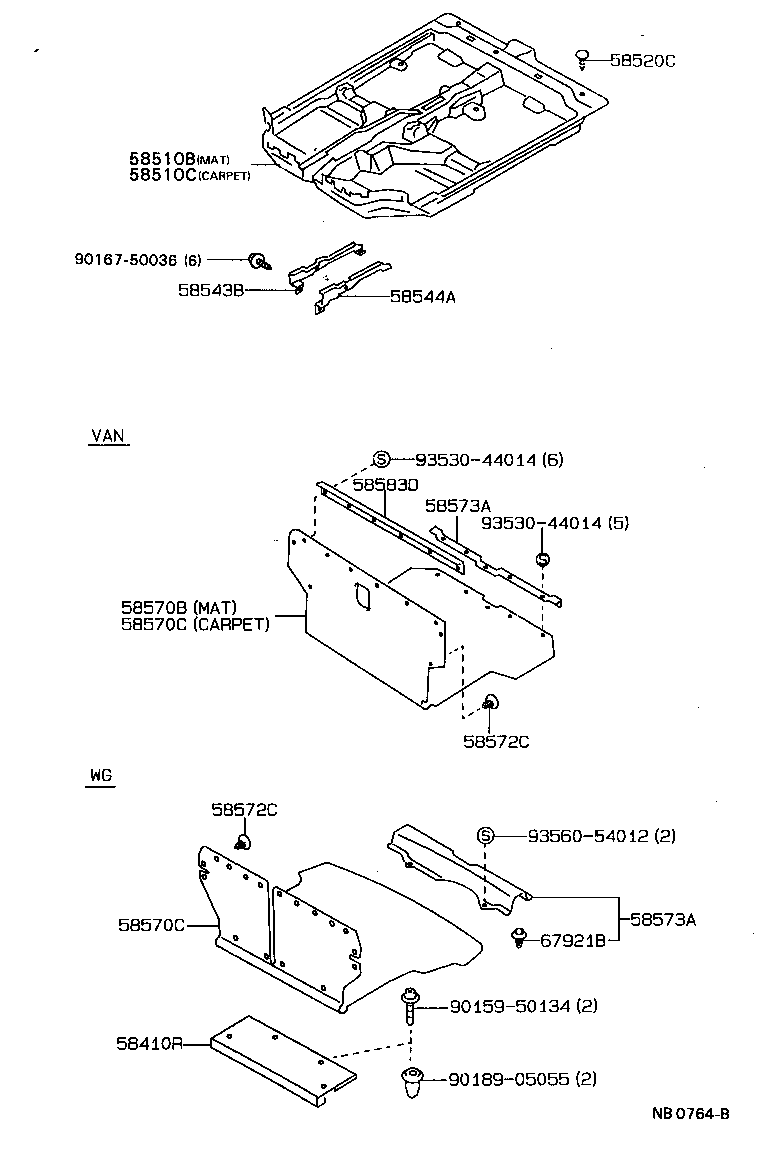

Exploded illustration NB0764B 58520C — CLIP(FOR FRONT FLOOR CARPET) (8 parts) 58510B — MAT, FRONT FLOOR, FRONT (2 parts) 58510C — CARPET ASSY, FRONT FLOOR, FRONT (36 parts) 9016750036 — not listed in this catalogue 58543B — BRACKET, FLOOR CARPET, RH (2 parts) 58544A — BRACKET, FLOOR CARPET, LH (2 parts) 9353044014 — not listed in this catalogue 58583D — PLATE, REAR SEATBACK CARPET SUPPORT (1 parts) 58573A — PLATE, REAR FLOOR MAT SUPPORT (3 parts) 9353044014 — not listed in this catalogue 58570B — MAT ASSY, REAR FLOOR (3 parts) 58570C — CARPET ASSY, REAR FLOOR (6 parts) 58572C — CLIP, REAR FLOOR MAT SET (4 parts) 58572C — CLIP, REAR FLOOR MAT SET (4 parts) 9356054012 — not listed in this catalogue 58573A — PLATE, REAR FLOOR MAT SUPPORT (3 parts) 58570C — CARPET ASSY, REAR FLOOR (6 parts) 67921B — RETAINER, REAR FLOOR MAT SUPPORT (1 parts) 9015950134 — not listed in this catalogue 58410R — BOARD ASSY, DECK (1 parts) 9018905055 — not listed in this catalogue
NB0764B · 15 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
58410R — Board Assy, Deck
58410-95502 Board Assy, Deck
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥10,600
58510B — Mat, Front Floor, Front
58510-95510-03 note Mat, Front Floor, Front
1988-05 → 1992-11 ended
ET176 STD ¥48,400
58510-95511-03 note Mat, Front Floor, Front
1988-05 → 1992-11 ended
ET176 STD ¥49,100
58510C — Carpet Assy, Front Floor, Front
58510-2B410-03 note Carpet Assy, Front Floor, Front
1988-05 → 1992-08 ended
AT171 GLIM ¥68,000
58510-2B410-03 note Carpet Assy, Front Floor, Front
1988-05 → 1992-08 ended
ST170 SE ¥68,000
58510-2B410-04 note Carpet Assy, Front Floor, Front
1988-05 → 1990-05 ended
ST170 SE ¥68,000
58510-2B410-06 note Carpet Assy, Front Floor, Front
1988-05 → 1990-05 ended
AT171 GLIM ¥68,000
58510-2B410-06 note Carpet Assy, Front Floor, Front
1988-05 → 1992-08 ended
ST170 SE ¥68,000
58510-2B410-14 note Carpet Assy, Front Floor, Front
1990-05 → 1992-08 ended
ST170 SE ¥68,000
58510-2B420-03 note Carpet Assy, Front Floor, Front
1988-05 → 1992-08 ended
ST170 SE ¥71,200
58510-2B420-03 note Carpet Assy, Front Floor, Front
1988-05 → 1992-08 ended
AT171 GLIM ¥71,200
58510-2B420-04 note Carpet Assy, Front Floor, Front
1988-05 → 1990-05 ended
ST170 SE ¥71,200
58510-2B420-06 note Carpet Assy, Front Floor, Front
1988-05 → 1990-05 ended
AT171 GLIM ¥71,200
58510-2B420-06 note Carpet Assy, Front Floor, Front
1988-05 → 1992-08 ended
ST170 SE ¥71,200
58510-2B420-14 note Carpet Assy, Front Floor, Front
1990-05 → 1992-08 ended
ST170 SE ¥71,200
58510-2B430-03 note Carpet Assy, Front Floor, Front
1988-05 → 1992-08 ended
AT170,171,CT170,ST170 DX,S,SE,SG,SGEXT ¥55,300
58510-2B430-04 note Carpet Assy, Front Floor, Front
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥55,300
58510-2B430-06 note Carpet Assy, Front Floor, Front
1988-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥55,300
58510-2B430-14 note Carpet Assy, Front Floor, Front
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥55,300
58510-2B490-03 note Carpet Assy, Front Floor, Front
1988-05 → 1992-08 ended
AT170,171,CT170,ST170 DX,S,SE,SG,SGEXT ¥52,500
58510-2B490-04 note Carpet Assy, Front Floor, Front
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥52,500
58510-2B490-06 note Carpet Assy, Front Floor, Front
1988-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥52,500
58510-2B490-14 note Carpet Assy, Front Floor, Front
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥52,500
58510-2B630-03 note Carpet Assy, Front Floor, Front
1988-08 → 1992-08 ended
AT175 ¥50,200
58510-2B630-04 note Carpet Assy, Front Floor, Front
1988-08 → 1990-05 ended
AT175 ¥50,200
58510-2B630-06 note Carpet Assy, Front Floor, Front
1988-08 → 1992-08 ended
AT175 ¥50,200
58510-2B630-14 note Carpet Assy, Front Floor, Front
1990-05 → 1992-08 ended
AT175 ¥50,200
58510-2B640-03 note Carpet Assy, Front Floor, Front
1988-08 → 1992-08 ended
AT175 ¥50,200
58510-2B640-04 note Carpet Assy, Front Floor, Front
1988-08 → 1990-05 ended
AT175 ¥50,200
58510-2B640-06 note Carpet Assy, Front Floor, Front
1988-08 → 1992-08 ended
AT175 ¥50,200
58510-2B640-14 note Carpet Assy, Front Floor, Front
1990-05 → 1992-08 ended
AT175 ¥50,200
58510-95507-03 note Carpet Assy, Front Floor, Front
1988-05 → 1992-11 ended
CT176,ET176 DX,SG ¥54,100
58510-95507-06 note Carpet Assy, Front Floor, Front
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥54,100
58510-95508-03 note Carpet Assy, Front Floor, Front
1988-05 → 1992-11 ended
CT176,ET176 DX,SG ¥54,100
58510-95508-06 note Carpet Assy, Front Floor, Front
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥54,100
58510-95R00-03 note Carpet Assy, Front Floor, Front
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥55,300
58510-95R00-06 note Carpet Assy, Front Floor, Front
1988-05 → 1992-11 ended
ST170 SX;AT170 SV CBR ¥55,300
58510-95R01-03 note Carpet Assy, Front Floor, Front
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥52,400
58510-95R01-06 note Carpet Assy, Front Floor, Front
1988-05 → 1992-11 ended
ST170 SX;AT170 SV CBR ¥52,400
58520C — Clip(FOR FRONT FLOOR CARPET)
90467-05021-13 note Clip(FOR FRONT FLOOR CARPET)
1988-05 → 1992-11 ended
CT176,ET176 ¥140
90467-05021-16 note Clip(FOR FRONT FLOOR CARPET)
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥140
90467-06016-33 note Clip(FOR FRONT FLOOR CARPET)
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥170
90467-06016-40 note Clip(FOR FRONT FLOOR CARPET)
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥180
90467-06016-48 note Clip(FOR FRONT FLOOR CARPET)
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥180
90467-06016-57 note Clip(FOR FRONT FLOOR CARPET)
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥170
90467-06016-57 note Clip(FOR FRONT FLOOR CARPET)
1988-05 → 1990-05 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT ¥170
90467-06016-58 note Clip(FOR FRONT FLOOR CARPET)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SG,SGEXT ¥180
58543B — Bracket, Floor Carpet, RH
58543-20010 Bracket, Floor Carpet, RH
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥1,630
58543-20020 Bracket, Floor Carpet, RH
1988-08 → 1992-08 ended
AT175 ¥1,460
58544A — Bracket, Floor Carpet, LH
58544-20010 Bracket, Floor Carpet, LH
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥1,630
58544-20020 Bracket, Floor Carpet, LH
1988-08 → 1992-08 ended
AT175 ¥1,460
58570B — Mat Assy, Rear Floor
58581-95500-03 note Mat Assy, Rear Floor
1988-05 → 1989-11 ended
CT176,ET176 DX,STD ¥31,300
58581-95500-03 note Mat Assy, Rear Floor
1989-11 → 1992-11 ended
ET176 STD ¥31,300
58581-95500-06 note Mat Assy, Rear Floor
1988-05 → 1989-11 ended
CT176,ET176 DX ¥31,300
58570C — Carpet Assy, Rear Floor
58571-95500-03 note Carpet Assy, Rear Floor
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥23,300
58571-95500-06 note Carpet Assy, Rear Floor
1988-05 → 1992-11 ended
ST170 SX;AT170 SV CBR ¥23,300
58571-95501-03 note Carpet Assy, Rear Floor
1988-05 → 1989-11 ended
CT176,ET176 SG ¥31,100
58571-95501-03 note Carpet Assy, Rear Floor
1989-11 → 1992-11 ended
CT176,ET176 DX,SG ¥31,100
58571-95501-06 note Carpet Assy, Rear Floor
1988-05 → 1989-11 ended
CT176,ET176 SG ¥31,100
58571-95501-06 note Carpet Assy, Rear Floor
1989-11 → 1990-05 ended
CT176,ET176 DX,SG ¥31,100
58572C — Clip, Rear Floor Mat Set
90467-06016-33 note Clip, Rear Floor Mat Set
1988-05 → 1992-11 ended
CT176,ET176 ¥170
90467-06016-33 note Clip, Rear Floor Mat Set
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥170
90467-06016-57 note Clip, Rear Floor Mat Set
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥170
90467-06016-57 note Clip, Rear Floor Mat Set
1988-05 → 1992-11 ended
ST170 SX;AT170 SV CBR ¥170
58573A — Plate, Rear Floor Mat Support
58573-91C01 Plate, Rear Floor Mat Support
1988-05 → 1992-11 ended
CT176,ET176 ¥2,780
58573-95500-03 note Plate, Rear Floor Mat Support
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥9,100
58573-95500-06 note Plate, Rear Floor Mat Support
1988-05 → 1992-11 ended
ST170 SX;AT170 SV CBR ¥9,100
58583D — Plate, Rear Seatback Carpet Support
58583-95500 Plate, Rear Seatback Carpet Support
1988-05 → 1992-11 ended
CT176,ET176 ¥1,900
67921B — Retainer, Rear Floor Mat Support
67921-95501 Retainer, Rear Floor Mat Support
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥110
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
