Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration NB0766D 9356755016 — not listed in this catalogue 9356755016 — not listed in this catalogue 58804A — PANEL SUB-ASSY, CONSOLE, UPPER (15 parts) 9054104079 — not listed in this catalogue 58989 — PANEL, CONSOLE COMPARTMENT DOOR (4 parts) 58965A — STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 (1 parts) 9616000500 — not listed in this catalogue 58976 — STRIKER, CONSOLE COMPARTMENT DOOR LOCK (1 parts) 58905 — DOOR SUB-ASSY, CONSOLE COMPARTMENT (5 parts) 9356754512 — not listed in this catalogue 58964 — STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 (9 parts) 9616000500 — not listed in this catalogue 58811A — BOX, CONSOLE, FRONT (6 parts) 9356755016 — not listed in this catalogue 58964 — STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 (9 parts) 9356754512 — not listed in this catalogue 58976 — STRIKER, CONSOLE COMPARTMENT DOOR LOCK (1 parts) 55604A — HOLDER SUB-ASSY, INSTRUMENT PANEL CUP (10 parts) 58907 — HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR (4 parts) 58805B — PANEL SUB-ASSY, CONSOLE, LOWER (12 parts) 9356754512 — not listed in this catalogue 9616000500 — not listed in this catalogue 9356754512 — not listed in this catalogue 58808 — COVER SUB-ASSY, SHIFTING HOLE (7 parts) 58964 — STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 (9 parts) 9356755016 — not listed in this catalogue 9166540616 — not listed in this catalogue 55539A — COVER, SPARE SWITCH HOLE (7 parts) 55539J — COVER, SPARE SWITCH HOLE (7 parts) 9356755016 — not listed in this catalogue 58959B — CUSHION, CONSOLE COMPARTMENT DOOR (1 parts) 9011906003 — not listed in this catalogue 58901A — BOX SUB-ASSY, CONSOLE, REAR (11 parts) 58901A — BOX SUB-ASSY, CONSOLE, REAR (11 parts) 9046804157 — not listed in this catalogue 7804 — not listed in this catalogue 58821C — PANEL, CONSOLE, UPPER (18 parts)

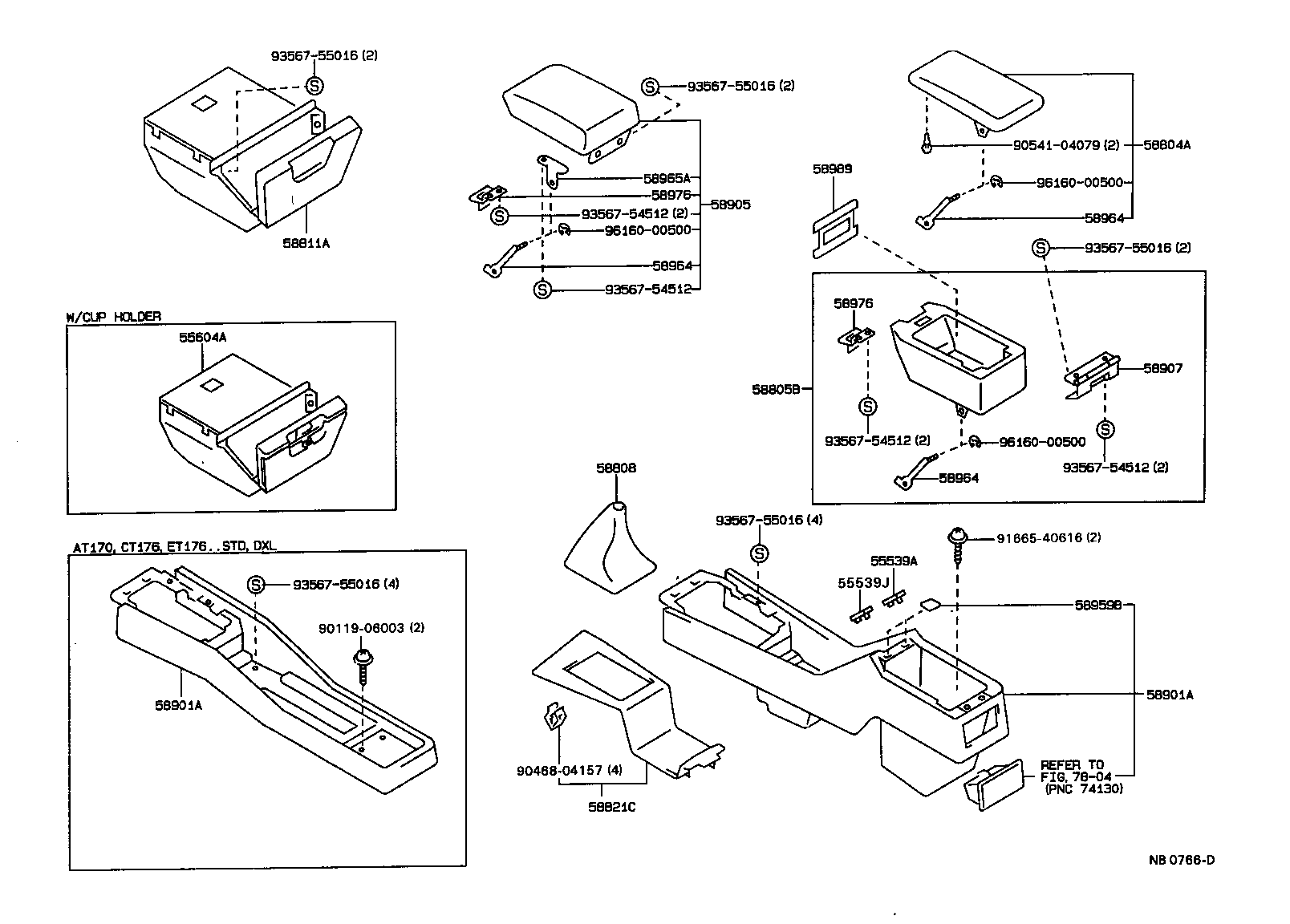

NB0766D · 20 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
118 parts on this figure
Part number Description Fitment Price
55539A — Cover, Spare Switch Hole
55539-20050-03 note Cover, Spare Switch Hole
1989-06 → 1992-11 ended
CT176 5F SG;AT17#,CT170,ET176,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥260
55539-20050-03 note Cover, Spare Switch Hole
1988-05 → 1989-06 ended
AT17#,CT17#,ET176,ST170 ¥260
55539-20050-04 note Cover, Spare Switch Hole
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥260
55539-20050-06 note Cover, Spare Switch Hole
1988-05 → 1989-06 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥260
55539-20050-06 note Cover, Spare Switch Hole
1989-06 → 1990-05 ended
CT176 5F SG;AT17#,CT170,ET176,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥260
55539-20050-06 note Cover, Spare Switch Hole
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥260
55539-20050-14 note Cover, Spare Switch Hole
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥250
55539J — Cover, Spare Switch Hole
55539-20050-03 note Cover, Spare Switch Hole
1988-05 → 1989-06 ended
AT171 5F GLIM;AT17#,CT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX ¥260
55539-20050-03 note Cover, Spare Switch Hole
1989-06 → 1992-11 ended
AT171 5F GLIM;AT17#,CT17#,ET176,ST170 S,SE,SG,SGEXT,SV,SX ¥260
55539-20050-04 note Cover, Spare Switch Hole
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥260
55539-20050-06 note Cover, Spare Switch Hole
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥260
55539-20050-06 note Cover, Spare Switch Hole
1989-06 → 1990-05 ended
AT171 5F GLIM;AT17#,CT17#,ET176,ST170 S,SE,SG,SGEXT,SV,SX ¥260
55539-20050-06 note Cover, Spare Switch Hole
1988-05 → 1989-06 ended
AT17#,CT170,ST170 ) S,SE,SG,SGEXT,SV,SX;AT171,CT176,ET176 (3FC,4F,5F) +1 ¥260
55539-20050-14 note Cover, Spare Switch Hole
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥250
55604A — Holder Sub-assy, Instrument Panel Cup
55604-20030-01 note Holder Sub-assy, Instrument Panel Cup
1988-05 → 1989-09 ended
AT170 (4FC,5F) SG ¥10,500
55604-20030-01 note Holder Sub-assy, Instrument Panel Cup
1988-05 → 1989-09 ended
AT170 4F SG ¥10,500
55604-20030-01 note Holder Sub-assy, Instrument Panel Cup
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥10,500
55604-20030-01 note Holder Sub-assy, Instrument Panel Cup
1988-05 → 1990-05 ended
AT171,ST170 GLIM,SX ¥10,500
55604-20030-01 note Holder Sub-assy, Instrument Panel Cup
1989-09 → 1990-05 ended
AT170 (4FC,5F) SG ¥10,500
55604-20030-01 note Holder Sub-assy, Instrument Panel Cup
1989-09 → 1990-05 ended
AT170 4F SG ¥10,500
55604-20030-01 note Holder Sub-assy, Instrument Panel Cup
1990-12 → 1992-08 ended
CT170 SG ¥10,500
55604-20030-01 note Holder Sub-assy, Instrument Panel Cup
1990-05 → 1992-11 ended
AT171 EFI ¥10,500
55604-20030-01 note Holder Sub-assy, Instrument Panel Cup
1990-05 → 1992-11 ended
ST170 SX ¥10,500
55604-20030-01 note Holder Sub-assy, Instrument Panel Cup
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥10,500
58804A — Panel Sub-assy, Console, Upper
58804-20020-03 note Panel Sub-assy, Console, Upper
1988-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT;AT170 (4FC,5F) +2 ¥4,510
58804-20020-03 note Panel Sub-assy, Console, Upper
1990-05 → 1992-11 ended
ST170 SX ¥4,510
58804-20020-03 note Panel Sub-assy, Console, Upper
1988-05 → 1990-05 ended
AT171 GLIM ¥4,510
58804-20020-03 note Panel Sub-assy, Console, Upper
1988-05 → 1990-05 ended
ST170 SE ¥4,510
58804-20020-04 note Panel Sub-assy, Console, Upper
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG ¥4,510
58804-20020-04 note Panel Sub-assy, Console, Upper
1988-05 → 1990-05 ended
ST170 SE ¥4,510
58804-20020-06 note Panel Sub-assy, Console, Upper
1988-05 → 1990-05 ended
AT171 GLIM ¥4,510
58804-20020-06 note Panel Sub-assy, Console, Upper
1988-05 → 1990-05 ended
ST170 SE ¥4,510
58804-20020-06 note Panel Sub-assy, Console, Upper
1988-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT;AT170 (4FC,5F) +2 ¥4,510
58804-20020-06 note Panel Sub-assy, Console, Upper
1990-05 → 1992-11 ended
ST170 SX ¥4,510
58804-20020-14 note Panel Sub-assy, Console, Upper
1990-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥4,500
58804-20090-03 note Panel Sub-assy, Console, Upper
1990-05 → 1992-08 ended
ST170 SE ¥4,910
58804-20090-04 note Panel Sub-assy, Console, Upper
1990-05 → 1992-08 ended
ST170 SE ¥4,910
58804-20090-06 note Panel Sub-assy, Console, Upper
1990-05 → 1992-08 ended
ST170 SE ¥4,910
58804-20100-03 note Panel Sub-assy, Console, Upper
1990-05 → 1992-08 ended
AT171 EFI ¥4,910
58805B — Panel Sub-assy, Console, Lower
58805-20010-03 note Panel Sub-assy, Console, Lower
1988-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT;AT170 (4FC,5F) +2 ¥11,600
58805-20010-03 note Panel Sub-assy, Console, Lower
1990-05 → 1992-11 ended
ST170 SX ¥11,600
58805-20010-03 note Panel Sub-assy, Console, Lower
1988-05 → 1992-08 ended
ST170 SE ¥11,600
58805-20010-03 note Panel Sub-assy, Console, Lower
1988-05 → 1992-08 ended
AT171 GLIM ¥11,600
58805-20010-04 note Panel Sub-assy, Console, Lower
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG ¥11,600
58805-20010-04 note Panel Sub-assy, Console, Lower
1988-05 → 1990-05 ended
ST170 SE ¥11,600
58805-20010-06 note Panel Sub-assy, Console, Lower
1988-05 → 1990-05 ended
AT171 GLIM ¥11,600
58805-20010-06 note Panel Sub-assy, Console, Lower
1988-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT;AT170 (4FC,5F) +2 ¥11,600
58805-20010-06 note Panel Sub-assy, Console, Lower
1988-05 → 1992-08 ended
ST170 SE ¥11,600
58805-20010-06 note Panel Sub-assy, Console, Lower
1990-05 → 1992-11 ended
ST170 SX ¥11,600
58805-20010-14 note Panel Sub-assy, Console, Lower
1990-05 → 1992-08 ended
ST170 SE ¥11,600
58805-20010-14 note Panel Sub-assy, Console, Lower
1990-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥11,600
58808 — Cover Sub-assy, Shifting Hole
58808-20060-01 note Cover Sub-assy, Shifting Hole
1988-05 → 1990-05 ended
AT171 5F GLIM ¥2,740
58808-20060-03 note Cover Sub-assy, Shifting Hole
1988-05 → 1990-05 ended
CT176;AT17#,CT170,ET176,ST170 MTM (DX,S,SE,SG,SGEXT,STD,SV,SX) ¥2,740
58808-20060-03 note Cover Sub-assy, Shifting Hole
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 MTM ¥2,740
58808-20060-04 note Cover Sub-assy, Shifting Hole
1988-05 → 1990-05 ended
AT17#,CT170,ST170 MTM (S,SE,SG,SGEXT) ¥2,740
58808-20060-06 note Cover Sub-assy, Shifting Hole
1988-05 → 1990-05 ended
CT176,ET176 (4F,4FC,5F) (DX,SG);AT17#,CT170,ST170 MTM +1 ¥2,740
58808-20060-06 note Cover Sub-assy, Shifting Hole
1990-05 → 1992-11 ended
AT17#,CT170,ST170 MTM (S,SE,SG,SGEXT,SX) ¥2,740
58808-20060-14 note Cover Sub-assy, Shifting Hole
1990-05 → 1992-08 ended
AT17#,CT170,ST170 MTM (S,SE,SG,SGEXT) ¥2,740
58811A — Box, Console, Front
58801-20190-01 note Box, Console, Front
1990-05 → 1992-11 ended
CT176,ET176;AT170,CT170 DX,SV ¥8,700
58801-20190-01 note Box, Console, Front
1988-05 → 1990-05 ended
AT170,175,CT170 SG ¥8,700
58801-20190-01 note Box, Console, Front
1990-05 → 1992-11 ended
AT170,175,CT170 SG ¥8,700
58801-20190-01 note Box, Console, Front
1988-05 → 1990-05 ended
AT170,CT176,ET176 (VAN,WG) (DX,SG,SV) ¥8,700
58801-20190-01 note Box, Console, Front
1989-03 → 1989-09 ended
ST170 SGEXT ¥8,700
58801-20190-01 note Box, Console, Front
1988-05 → 1990-05 ended
AT170 DX;ET176 STD ¥8,700
58821C — Panel, Console, Upper
58821-20100-01 note Panel, Console, Upper
1988-05 → 1990-05 ended
AT171 GLIM ¥6,200
58821-20100-03 note Panel, Console, Upper
1990-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥6,200
58821-20100-03 note Panel, Console, Upper
1988-05 → 1990-05 ended
AT170,171,CT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX ¥6,200
58821-20100-04 note Panel, Console, Upper
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥6,200
58821-20100-06 note Panel, Console, Upper
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥6,200
58821-20100-06 note Panel, Console, Upper
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥6,200
58821-20100-14 note Panel, Console, Upper
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥6,200
58821-20130-03 note Panel, Console, Upper
1988-08 → 1992-08 ended
AT175 5F ¥6,200
58821-20130-04 note Panel, Console, Upper
1988-08 → 1990-05 ended
AT175 5F ¥9,400
58821-20130-06 note Panel, Console, Upper
1988-08 → 1992-08 ended
AT175 5F ¥9,400
58821-20130-14 note Panel, Console, Upper
1990-05 → 1992-08 ended
AT175 5F ¥6,200
58821-20140-03 note Panel, Console, Upper
1988-08 → 1992-08 ended
AT175 4FC ¥4,180
58821-20140-04 note Panel, Console, Upper
1988-08 → 1990-05 ended
AT175 4FC ¥4,180
58821-20140-06 note Panel, Console, Upper
1988-08 → 1992-08 ended
AT175 4FC ¥4,180
58821-20140-14 note Panel, Console, Upper
1990-05 → 1992-08 ended
AT175 4FC ¥2,780
58821-20190-03 note Panel, Console, Upper
1990-05 → 1992-08 ended
AT175 5F ¥4,180
58821-20190-04 note Panel, Console, Upper
1990-05 → 1992-08 ended
AT175 5F ¥4,180
58821-20190-06 note Panel, Console, Upper
1990-05 → 1992-08 ended
AT175 5F ¥4,180
58901A — Box Sub-assy, Console, Rear
58901-20100-03 note Box Sub-assy, Console, Rear
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥22,600
58901-20100-04 note Box Sub-assy, Console, Rear
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥22,600
58901-20100-06 note Box Sub-assy, Console, Rear
1988-05 → 1990-05 ended
AT170,171,CT17#,ET176,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥22,600
58901-20100-06 note Box Sub-assy, Console, Rear
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥22,600
58901-20100-14 note Box Sub-assy, Console, Rear
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥18,900
58901-20110-03 note Box Sub-assy, Console, Rear
1988-08 → 1992-08 ended
AT175 ¥23,600
58901-20110-04 note Box Sub-assy, Console, Rear
1988-08 → 1990-05 ended
AT175 ¥23,600
58901-20110-06 note Box Sub-assy, Console, Rear
1988-08 → 1992-08 ended
AT175 ¥23,600
58901-20110-14 note Box Sub-assy, Console, Rear
1990-05 → 1992-08 ended
AT175 ¥19,800
58911-20090-03 note Box Sub-assy, Console, Rear
1988-05 → 1992-11 ended
AT170,CT176,ET176 DX,STD ¥12,800
58911-20090-06 note Box Sub-assy, Console, Rear
1988-05 → 1990-05 ended
CT176,ET176 DX ¥12,800
58905 — Door Sub-assy, Console Compartment
58905-20080-03 note Door Sub-assy, Console Compartment
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 S,SE,SG,SGEXT,SV,SX ¥4,290
58905-20080-04 note Door Sub-assy, Console Compartment
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥4,290
58905-20080-06 note Door Sub-assy, Console Compartment
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 S,SE,SG,SGEXT,SV,SX ¥4,290
58905-20080-06 note Door Sub-assy, Console Compartment
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥4,290
58905-20080-14 note Door Sub-assy, Console Compartment
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥4,440
58907 — Hinge Sub-assy, Console Compartment Door
58907-89101 Hinge Sub-assy, Console Compartment Door
1988-05 → 1992-08 ended
ST170 SE ¥940
58907-89101 Hinge Sub-assy, Console Compartment Door
1990-05 → 1992-11 ended
ST170 SX ¥940
58907-89101 Hinge Sub-assy, Console Compartment Door
1988-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT;AT170 (4FC,5F) +2 ¥940
58907-89101 Hinge Sub-assy, Console Compartment Door
1988-05 → 1992-08 ended
AT171 GLIM ¥940
58959B — Cushion, Console Compartment Door
58959-16010 Cushion, Console Compartment Door
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥100
58964 — Stopper, Console Compartment Door, NO.1
58964-20020 note Stopper, Console Compartment Door, NO.1
1990-05 → 1992-11 ended
ST170 SX ¥360
58964-20020 Stopper, Console Compartment Door, NO.1
1988-08 → 1992-11 ended
AT17#,CT17#,ET176,ST170 S,SE,SG,SGEXT,SV,SX ¥360
58964-20020 note Stopper, Console Compartment Door, NO.1
1988-08 → 1992-08 ended
AT170 (4FC,5F) SGEXT;AT170 (4FC,5F) +2 ¥360
58964-20020 Stopper, Console Compartment Door, NO.1
1988-08 → 1992-08 ended
AT171 GLIM ¥360
58964-20020 note Stopper, Console Compartment Door, NO.1
1988-08 → 1992-08 ended
ST170 SE ¥360
58964-30060 Stopper, Console Compartment Door, NO.1
1988-05 → 1988-08 ended
AT171 GLIM ¥310
58964-30060 note Stopper, Console Compartment Door, NO.1
1988-05 → 1988-08 ended
AT170 (4FC,5F) SG ¥310
58964-30060 note Stopper, Console Compartment Door, NO.1
1988-05 → 1988-08 ended
ST170 SE ¥310
58964-30060 Stopper, Console Compartment Door, NO.1
1988-05 → 1988-08 ended
AT17#,CT17#,ET176,ST170 S,SE,SG,SGEXT,SV,SX ¥310
58965A — Stopper, Console Compartment Door, NO.2
58965-12010 Stopper, Console Compartment Door, NO.2
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 S,SE,SG,SGEXT,SV,SX ¥360
58976 — Striker, Console Compartment Door Lock
58976-22020 Striker, Console Compartment Door Lock
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥840
58989 — Panel, Console Compartment Door
58989-20030 Panel, Console Compartment Door
1988-05 → 1992-08 ended
AT171 GLIM ¥390
58989-20030 Panel, Console Compartment Door
1988-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT;AT170 (4FC,5F) +2 ¥390
58989-20030 Panel, Console Compartment Door
1988-05 → 1992-08 ended
ST170 SE ¥390
58989-20030 Panel, Console Compartment Door
1990-05 → 1992-11 ended
ST170 SX ¥390
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
