Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

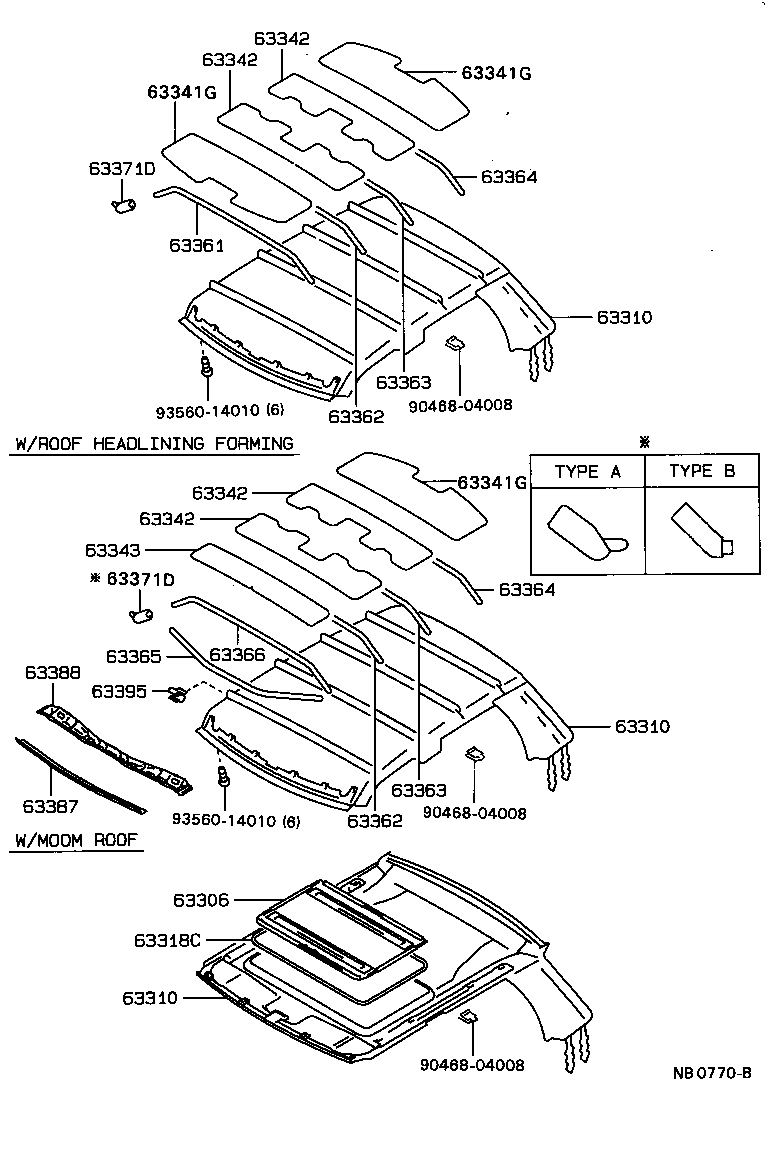

Exploded illustration NB0770B 63342 — PAD, ROOF SILENCER, NO.2 (2 parts) 63342 — PAD, ROOF SILENCER, NO.2 (2 parts) 63341G — PAD, ROOF SILENCER (4 parts) 63341G — PAD, ROOF SILENCER (4 parts) 63371D — RETAINER, ROOF HEADLINING SUPPORT (6 parts) 63364 — SUPPORT, ROOF HEADLINING, NO.4 (6 parts) 63361 — SUPPORT, ROOF HEADLINING, NO.1 (6 parts) 63310 — HEADLINING ASSY, ROOF (55 parts) 63363 — SUPPORT, ROOF HEADLINING, NO.3 (3 parts) 9046804008 — not listed in this catalogue 9356014010 — not listed in this catalogue 63362 — SUPPORT, ROOF HEADLINING, NO.2 (4 parts) 63341G — PAD, ROOF SILENCER (4 parts) 63342 — PAD, ROOF SILENCER, NO.2 (2 parts) 63342 — PAD, ROOF SILENCER, NO.2 (2 parts) 63343 — PAD, ROOF SILENCER, NO.3 (2 parts) 63371D — RETAINER, ROOF HEADLINING SUPPORT (6 parts) 63364 — SUPPORT, ROOF HEADLINING, NO.4 (6 parts) 63366 — SUPPORT, ROOF HEADLINING, NO.6 (6 parts) 63365 — SUPPORT, ROOF HEADLINING, NO.5 (2 parts) 63388 — FRAME, ROOF HEADLINING FORMING (2 parts) 63395 — CLIP, ROOF HEADLINING TRIM (2 parts) 63310 — HEADLINING ASSY, ROOF (55 parts) 63363 — SUPPORT, ROOF HEADLINING, NO.3 (3 parts) 63387 — PAD, ROOF HEADLINING FORMING (2 parts) 9046804008 — not listed in this catalogue 9356014010 — not listed in this catalogue 63362 — SUPPORT, ROOF HEADLINING, NO.2 (4 parts) 63306 — TRIM SUB-ASSY, SUNSHADE (9 parts) 63318C — MOULDING, SUN ROOF OPENING TRIM (9 parts) 63310 — HEADLINING ASSY, ROOF (55 parts) 9046804008 — not listed in this catalogue
NB0770B · 27 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
120 parts on this figure
Part number Description Fitment Price
63306 — Trim Sub-assy, Sunshade
63306-20020-03 note Trim Sub-assy, Sunshade
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥45,600
63306-20020-03 note Trim Sub-assy, Sunshade
1990-05 → 1992-08 ended
ST170 SE ¥45,600
63306-20020-03 note Trim Sub-assy, Sunshade
1990-05 → 1992-11 ended
ST170 SGEXT,SX;AT170,171,CT170 GLIM,S,SE,SV ¥45,600
63306-20020-04 note Trim Sub-assy, Sunshade
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 S,SE,SG,SGEXT ¥45,600
63306-20020-06 note Trim Sub-assy, Sunshade
1990-05 → 1992-11 ended
ST170 SGEXT,SX;AT170,171,CT170 S,SE ¥45,600
63306-20020-06 note Trim Sub-assy, Sunshade
1990-05 → 1992-08 ended
ST170 SE ¥45,600
63306-20020-06 note Trim Sub-assy, Sunshade
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥45,600
63306-20020-24 note Trim Sub-assy, Sunshade
1990-05 → 1992-08 ended
ST170 SE ¥45,600
63306-20020-24 note Trim Sub-assy, Sunshade
1990-05 → 1992-08 ended
ST170 SGEXT;AT170,171,CT170 S,SE ¥45,600
63310 — Headlining Assy, Roof
63310-20660-03 note Headlining Assy, Roof
1988-05 → 1992-08 ended
AT17#,CT170,ST170 DX,S,SG,SGEXT ¥21,400
63310-20660-04 note Headlining Assy, Roof
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SG,SGEXT ¥21,400
63310-20660-06 note Headlining Assy, Roof
1988-05 → 1992-08 ended
AT17#,CT170,ST170 S,SG,SGEXT ¥21,400
63310-20660-14 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SG,SGEXT ¥21,400
63310-20670-03 note Headlining Assy, Roof
1988-05 → 1992-08 ended
AT171 S ¥51,900
63310-20670-03 note Headlining Assy, Roof
1992-04 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥51,900
63310-20670-03 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT175 SE ¥51,900
63310-20670-03 note Headlining Assy, Roof
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥51,900
63310-20670-03 note Headlining Assy, Roof
1988-12 → 1989-03 ended
AT175 SGEXT ¥51,900
63310-20670-03 note Headlining Assy, Roof
1988-05 → 1990-05 ended
AT170,CT170,ST170 SE ¥51,900
63310-20670-04 note Headlining Assy, Roof
1988-05 → 1990-05 ended
AT170,CT170,ST170 SE ¥51,900
63310-20670-04 note Headlining Assy, Roof
1988-05 → 1990-05 ended
AT171 S ¥51,900
63310-20670-06 note Headlining Assy, Roof
1992-04 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥51,900
63310-20670-06 note Headlining Assy, Roof
1988-12 → 1989-03 ended
AT175 SGEXT ¥51,900
63310-20670-06 note Headlining Assy, Roof
1988-05 → 1992-08 ended
AT171 S ¥51,900
63310-20670-06 note Headlining Assy, Roof
1988-05 → 1990-05 ended
AT170,CT170,ST170 SE ¥51,900
63310-20670-06 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT175 SE ¥51,900
63310-20670-06 note Headlining Assy, Roof
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥51,900
63310-20670-14 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT175 SE ¥51,900
63310-20670-14 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT171 EFIS ¥51,900
63310-20840-03 note Headlining Assy, Roof
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥59,800
63310-20840-03 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT171,ST170 S,SGEXT ¥59,800
63310-20840-04 note Headlining Assy, Roof
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 S,SE,SG,SGEXT ¥59,800
63310-20840-06 note Headlining Assy, Roof
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥59,800
63310-20840-06 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT171,ST170 S,SGEXT ¥59,800
63310-20840-14 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT171,ST170 S,SGEXT ¥59,800
63310-20850-03 note Headlining Assy, Roof
1988-05 → 1990-05 ended
AT171 GLIM ¥52,400
63310-20850-03 note Headlining Assy, Roof
1988-05 → 1990-05 ended
ST170 SE ¥52,400
63310-20850-04 note Headlining Assy, Roof
1988-05 → 1990-05 ended
ST170 SE ¥52,400
63310-20850-06 note Headlining Assy, Roof
1988-05 → 1990-05 ended
AT171 GLIM ¥52,400
63310-20850-06 note Headlining Assy, Roof
1988-05 → 1990-05 ended
ST170 SE ¥52,400
63310-20860-03 note Headlining Assy, Roof
1988-05 → 1990-05 ended
AT170 4F DX ¥21,600
63310-2B250-03 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥39,100
63310-2B250-03 note Headlining Assy, Roof
1991-06 → 1992-08 ended
AT175 SE ¥39,100
63310-2B250-04 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥39,100
63310-2B250-04 note Headlining Assy, Roof
1991-06 → 1992-08 ended
AT175 SE ¥39,100
63310-2B250-06 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥39,100
63310-2B250-06 note Headlining Assy, Roof
1991-06 → 1992-08 ended
AT175 SE ¥39,100
63310-2B260-03 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT171 EFI ¥39,100
63310-2B260-03 note Headlining Assy, Roof
1990-05 → 1992-08 ended
ST170 SE ¥39,100
63310-2B260-04 note Headlining Assy, Roof
1990-05 → 1992-08 ended
ST170 SE ¥39,100
63310-2B260-06 note Headlining Assy, Roof
1990-05 → 1992-08 ended
ST170 SE ¥39,100
63310-2B270-03 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥44,800
63310-2B270-04 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥44,800
63310-2B270-06 note Headlining Assy, Roof
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥44,800
63310-2B310-03 note Headlining Assy, Roof
1990-05 → 1992-11 ended
ST170 SX ¥67,100
63310-2B310-06 note Headlining Assy, Roof
1990-05 → 1992-11 ended
ST170 SX ¥67,100
63310-95518-03 note Headlining Assy, Roof
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥71,500
63310-95518-06 note Headlining Assy, Roof
1988-05 → 1992-11 ended
ST170 SX;AT170 SV CBR ¥71,500
63310-95529-03 note Headlining Assy, Roof
1988-05 → 1992-11 ended
CT176,ET176 ¥29,000
63310-95529-06 note Headlining Assy, Roof
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥29,000
63310-95532-03 note Headlining Assy, Roof
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥29,000
63310-95532-06 note Headlining Assy, Roof
1988-05 → 1992-11 ended
ST170 SX;AT170 SV CBR ¥29,000
63310-95R01-03 note Headlining Assy, Roof
1988-05 → 1992-11 ended
CT176,ET176 ¥26,600
63310-95R01-06 note Headlining Assy, Roof
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥26,600
63318C — Moulding, Sun Roof Opening Trim
63318-20070-03 note Moulding, Sun Roof Opening Trim
1990-05 → 1992-08 ended
ST170 SE ¥1,680
63318-20070-03 note Moulding, Sun Roof Opening Trim
1990-05 → 1992-11 ended
ST170 SGEXT,SX;AT170,171,CT170 GLIM,S,SE,SV ¥1,680
63318-20070-03 note Moulding, Sun Roof Opening Trim
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥1,680
63318-20070-04 note Moulding, Sun Roof Opening Trim
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 S,SE,SG,SGEXT ¥1,680
63318-20070-06 note Moulding, Sun Roof Opening Trim
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥1,680
63318-20070-06 note Moulding, Sun Roof Opening Trim
1990-05 → 1992-08 ended
ST170 SE ¥1,680
63318-20070-06 note Moulding, Sun Roof Opening Trim
1990-05 → 1992-11 ended
ST170 SGEXT,SX;AT170,171,CT170 S,SE ¥1,680
63318-20070-24 note Moulding, Sun Roof Opening Trim
1990-05 → 1992-08 ended
ST170 SE ¥1,600
63318-20070-24 note Moulding, Sun Roof Opening Trim
1990-05 → 1992-08 ended
ST170 SGEXT;AT170,171,CT170 S,SE ¥1,600
63341G — Pad, Roof Silencer
63341-32020 Pad, Roof Silencer
1988-05 → 1992-08 ended
AT171 GLIM ¥800
63341-32020 note Pad, Roof Silencer
1988-05 → 1992-08 ended
ST170 SE ¥800
63341-32020 Pad, Roof Silencer
1988-05 → 1992-08 ended
AT17#,CT170,ST170 DX,S,SE,SG,SGEXT ¥800
63341-95503 Pad, Roof Silencer
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥530
63342 — Pad, Roof Silencer, NO.2
63341-95502 Pad, Roof Silencer, NO.2
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥470
63342-32010 Pad, Roof Silencer, NO.2
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥680
63343 — Pad, Roof Silencer, NO.3
63343-20080 Pad, Roof Silencer, NO.3
1988-05 → 1992-08 ended
AT171 GLIM ¥470
63343-20080 Pad, Roof Silencer, NO.3
1988-05 → 1992-08 ended
ST170 SE ¥470
63361 — Support, Roof Headlining, NO.1
63361-20130 note Support, Roof Headlining, NO.1
1988-09 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX ¥610
63361-20140 note Support, Roof Headlining, NO.1
1988-09 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX ¥790
63361-20150 note Support, Roof Headlining, NO.1
1988-09 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX ¥610
63361-95503 note Support, Roof Headlining, NO.1
1988-05 → 1988-09 ended
AT17#,CT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX ¥610
63361-95504 note Support, Roof Headlining, NO.1
1988-05 → 1988-09 ended
AT17#,CT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX ¥610
63361-95505 note Support, Roof Headlining, NO.1
1988-05 → 1988-09 ended
AT17#,CT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX ¥610
63362 — Support, Roof Headlining, NO.2
63362-95504 note Support, Roof Headlining, NO.2
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥610
63362-95505 note Support, Roof Headlining, NO.2
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥610
63362-95506 note Support, Roof Headlining, NO.2
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥610
63362-95506 note Support, Roof Headlining, NO.2
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥610
63363 — Support, Roof Headlining, NO.3
63363-95502 note Support, Roof Headlining, NO.3
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥610
63363-95503 note Support, Roof Headlining, NO.3
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥610
63363-95504 note Support, Roof Headlining, NO.3
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥610
63364 — Support, Roof Headlining, NO.4
63364-20100 note Support, Roof Headlining, NO.4
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥1,550
63364-20110 note Support, Roof Headlining, NO.4
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥1,550
63364-20120 note Support, Roof Headlining, NO.4
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥1,550
63364-95501 note Support, Roof Headlining, NO.4
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥610
63364-95502 note Support, Roof Headlining, NO.4
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥610
63364-95503 note Support, Roof Headlining, NO.4
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥610
63365 — Support, Roof Headlining, NO.5
63365-20010 Support, Roof Headlining, NO.5
1988-05 → 1990-05 ended
AT171 GLIM ¥610
63365-20010 Support, Roof Headlining, NO.5
1988-05 → 1990-05 ended
ST170 SE ¥610
63366 — Support, Roof Headlining, NO.6
63366-20010 note Support, Roof Headlining, NO.6
1988-05 → 1992-08 ended
AT171 GLIM ¥610
63366-20010 note Support, Roof Headlining, NO.6
1988-05 → 1992-08 ended
ST170 SE ¥610
63366-20020 note Support, Roof Headlining, NO.6
1988-05 → 1992-08 ended
AT171 GLIM ¥790
63366-20020 note Support, Roof Headlining, NO.6
1988-05 → 1992-08 ended
ST170 SE ¥790
63366-20030 note Support, Roof Headlining, NO.6
1988-05 → 1992-08 ended
AT171 GLIM ¥610
63366-20030 note Support, Roof Headlining, NO.6
1988-05 → 1992-08 ended
ST170 SE ¥610
63371D — Retainer, Roof Headlining Support
63371-20020 note Retainer, Roof Headlining Support
1988-05 → 1992-08 ended
AT171 GLIM ¥180
63371-20020 note Retainer, Roof Headlining Support
1988-05 → 1992-08 ended
ST170 SE ¥180
63371-20020 Retainer, Roof Headlining Support
1988-05 → 1992-08 ended
AT17#,CT170,ST170 DX,S,SE,SG,SGEXT ¥180
63371-20020 Retainer, Roof Headlining Support
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥180
63371-30050 note Retainer, Roof Headlining Support
1988-05 → 1992-08 ended
AT171 GLIM ¥270
63371-30050 note Retainer, Roof Headlining Support
1988-05 → 1992-08 ended
ST170 SE ¥270
63387 — Pad, Roof Headlining Forming
63387-20010 Pad, Roof Headlining Forming
1988-05 → 1992-08 ended
AT171 GLIM ¥640
63387-20010 Pad, Roof Headlining Forming
1988-05 → 1992-08 ended
ST170 SE ¥640
63388 — Frame, Roof Headlining Forming
63385-20080 Frame, Roof Headlining Forming
1988-05 → 1992-08 ended
AT171 GLIM ¥3,400
63385-20080 Frame, Roof Headlining Forming
1988-05 → 1992-08 ended
ST170 SE ¥3,400
63395 — Clip, Roof Headlining Trim
63395-30010 Clip, Roof Headlining Trim
1988-05 → 1992-08 ended
AT171 GLIM ¥190
63395-30010 Clip, Roof Headlining Trim
1988-05 → 1992-08 ended
ST170 SE ¥190
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
