Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

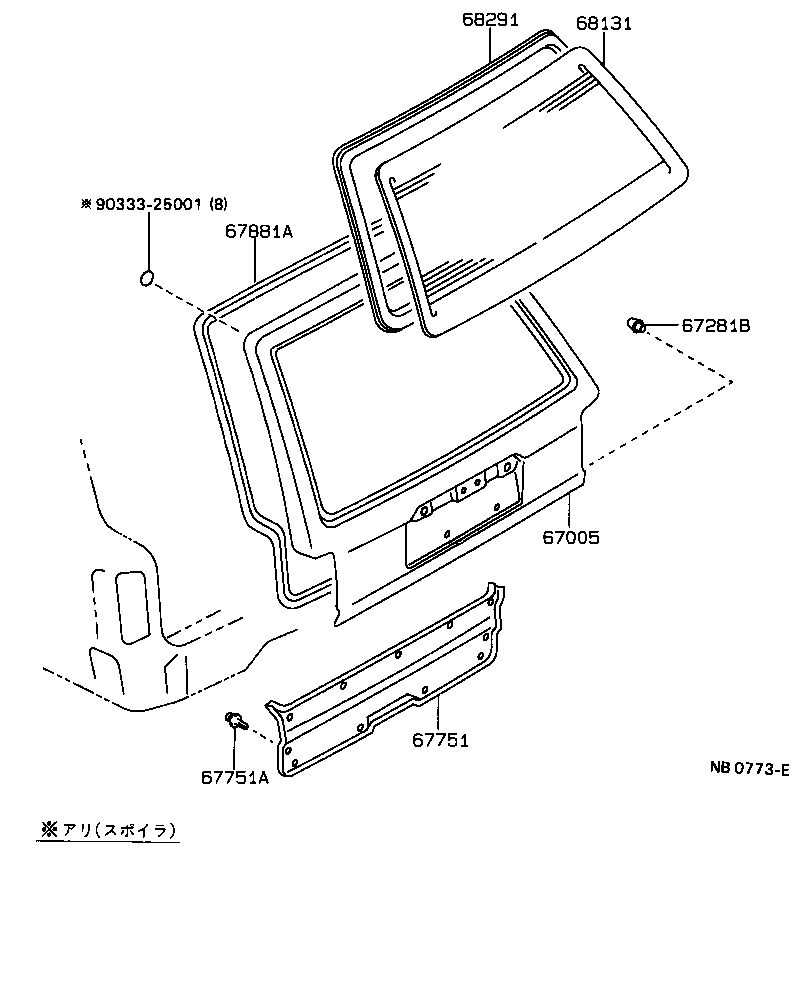

Exploded illustration NB0773E 68291 — WEATHERSTRIP, BACK DOOR GLASS (4 parts) 68131 — GLASS, BACK DOOR (6 parts) 9033325001 — not listed in this catalogue 67881A — WEATHERSTRIP, BACK DOOR (1 parts) 67281B — STOPPER, BACK DOOR, LOWER (1 parts) 67005 — PANEL SUB-ASSY, BACK DOOR (19 parts) 67751 — BOARD, BACK DOOR TRIM (3 parts) 67751A — CLIP(FOR BACK DOOR TRIM BOARD) (9 parts)
NB0773E · 7 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
67005 — Panel Sub-assy, Back Door
67005-21360 note Panel Sub-assy, Back Door
1990-05 → 1991-05 ended
ST170 SX ¥62,700
67005-21360 note Panel Sub-assy, Back Door
1990-05 → 1991-05 ended
AT170,CT170 SV ¥62,700
67005-21370 note Panel Sub-assy, Back Door
1990-05 → 1991-05 ended
ST170 SX ¥62,700
67005-21370 note Panel Sub-assy, Back Door
1990-05 → 1991-05 ended
AT170,CT170 SV ¥62,700
67005-21390 Panel Sub-assy, Back Door
1991-06 → 1992-11 ended
CT176,ET176 DX,STD ¥62,300
67005-21410 Panel Sub-assy, Back Door
1991-06 → 1992-11 ended
CT176,ET176 SG ¥62,300
67005-21410 note Panel Sub-assy, Back Door
1991-06 → 1992-11 ended
CT176,ET176 DX,STD ¥62,300
67005-21440 Panel Sub-assy, Back Door
1991-06 → 1992-11 ended
AT170,CT170 SV ¥62,300
67005-21450 note Panel Sub-assy, Back Door
1991-06 → 1992-11 ended
AT170,CT170 SV ¥62,300
67005-21460 note Panel Sub-assy, Back Door
1991-06 → 1992-11 ended
AT170,CT170 SV ¥62,300
67005-21460 note Panel Sub-assy, Back Door
1991-06 → 1992-11 ended
ST170 SX ¥62,300
67005-21470 note Panel Sub-assy, Back Door
1991-06 → 1992-11 ended
AT170,CT170 SV ¥62,300
67005-21470 note Panel Sub-assy, Back Door
1991-06 → 1992-11 ended
ST170 SX ¥62,300
67005-95501 Panel Sub-assy, Back Door
1988-05 → 1991-05 ended
CT176,ET176 SG ¥62,700
67005-95501 note Panel Sub-assy, Back Door
1988-05 → 1991-05 ended
CT176,ET176 DX,STD ¥62,700
67005-95503 Panel Sub-assy, Back Door
1988-05 → 1991-05 ended
CT176,ET176 DX,STD ¥62,700
67005-95R00 note Panel Sub-assy, Back Door
1988-05 → 1991-05 ended
AT170,CT170 SV ¥62,700
67005-95R01 Panel Sub-assy, Back Door
1988-05 → 1990-05 ended
ST170 SX ¥62,700
67005-95R02 Panel Sub-assy, Back Door
1988-05 → 1991-05 ended
AT170,CT170 SV ¥62,700
67281B — Stopper, Back Door, Lower
67281-95500 Stopper, Back Door, Lower
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥530
67751 — Board, Back Door Trim
64780-91C01-03 note Board, Back Door Trim
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥13,200
64780-91C01-26 note Board, Back Door Trim
1990-05 → 1992-11 ended
ST170 SX ¥13,200
64780-91C01-26 note Board, Back Door Trim
1988-05 → 1990-05 ended
AT170,CT176,ET176,ST170 (VAN,WG) (DX,SG,SV,SX) ¥13,200
67751A — Clip(FOR BACK DOOR TRIM BOARD)
90467-06017-01 note Clip(FOR BACK DOOR TRIM BOARD)
1988-05 → 1990-05 ended
ET176 STD ¥110
90467-06017-01 note Clip(FOR BACK DOOR TRIM BOARD)
1988-05 → 1990-05 ended
AT170,CT176,ET176,ST170 (VAN,WG) (DX,SG,SV,SX) ¥110
90467-06017-01 note Clip(FOR BACK DOOR TRIM BOARD)
1990-05 → 1991-07 ended
ST170 SX ¥110
90467-06017-01 note Clip(FOR BACK DOOR TRIM BOARD)
1990-05 → 1991-07 ended
AT170,CT17#,ET176 VAN,WG ¥110
90467-06017-53 note Clip(FOR BACK DOOR TRIM BOARD)
1988-05 → 1991-07 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥120
90467-06017-58 note Clip(FOR BACK DOOR TRIM BOARD)
1988-05 → 1990-05 ended
AT170,CT176,ET176,ST170 (VAN,WG) (DX,SG,SV,SX) ¥120
90467-06017-58 note Clip(FOR BACK DOOR TRIM BOARD)
1990-05 → 1991-07 ended
ST170 SX ¥120
90467-07041-26 note Clip(FOR BACK DOOR TRIM BOARD)
1991-07 → 1992-11 ended
ST170 SX ¥140
90467-07041-43 note Clip(FOR BACK DOOR TRIM BOARD)
1991-07 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥140
67881A — Weatherstrip, Back Door
67881-95500 Weatherstrip, Back Door
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥7,200
68131 — Glass, Back Door
68105-91C01 note Glass, Back Door
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥46,300
68105-91C02 note Glass, Back Door
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 (VAN,WG) (SG,SV,SX) ¥49,800
68105-95R00 note Glass, Back Door
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG (CI,DSL,EFI) ¥59,400
68105-95R01 note Glass, Back Door
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG (CI,DSL,EFI) ¥64,700
68131-95501 note Glass, Back Door
1988-05 → 1992-11 ended
ET176 STD ¥22,200
68131-95501 note Glass, Back Door
1988-05 → —
CT176,ET176 MTM DX ¥22,200
68291 — Weatherstrip, Back Door Glass
68291-91C01 Weatherstrip, Back Door Glass
1988-05 → 1992-11 ended
CT176,ET176,ST170 (DX,STD,SX) (CBR,DSL,EFI) ¥14,800
68291-91C01 note Weatherstrip, Back Door Glass
1990-05 → 1992-11 ended
AT170,CT170 SV ¥14,800
68291-91C02 Weatherstrip, Back Door Glass
1988-05 → 1992-11 ended
CT176,ET176 SG ¥14,600
68291-95R00 Weatherstrip, Back Door Glass
1988-05 → 1992-11 ended
ST170 SX CI;AT170,CT170 SV ¥15,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
