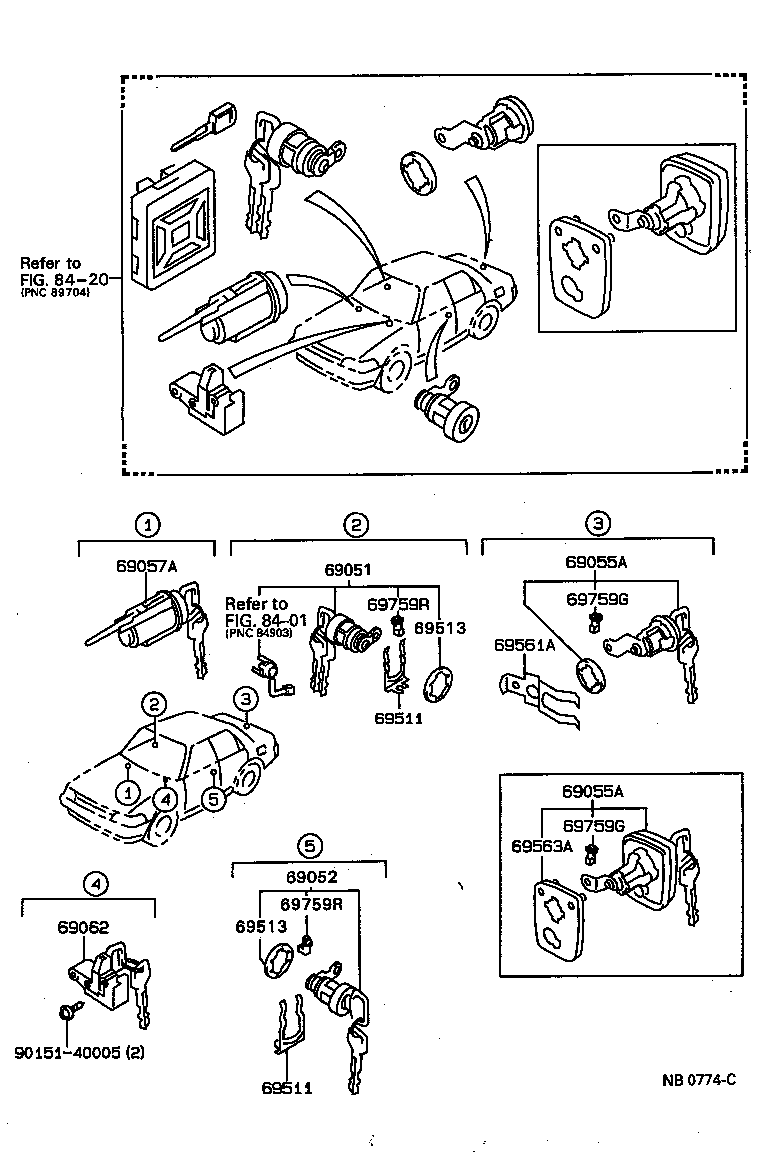

Exploded illustration NB0774C 8420 — not listed in this catalogue 69055A — CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK (12 parts) 69057A — CYLINDER & KEY SET, IGNITION SWITCH LOCK (4 parts) 69051 — CYLINDER & KEY SET, DOOR LOCK, RH (10 parts) 69759G — SNAP, LUGGAGE DOOR LOCK CYLINDER (1 parts) 69759R — SNAP, FRONT DOOR LOCK CYLINDER (2 parts) 8401 — not listed in this catalogue 69513 — PAD, FUEL FILLER LID LOCK CYLINDER (4 parts) 69561A — RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER (3 parts) 69511 — RETAINER, FRONT DOOR LOCK CYLINDER (1 parts) 69055A — CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK (12 parts) 69759G — SNAP, LUGGAGE DOOR LOCK CYLINDER (1 parts) 69563A — PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER (13 parts) 69052 — CYLINDER & KEY SET, DOOR LOCK, LH (2 parts) 69759R — SNAP, FRONT DOOR LOCK CYLINDER (2 parts) 69513 — PAD, FUEL FILLER LID LOCK CYLINDER (4 parts) 69062 — CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK (2 parts) 9015140005 — not listed in this catalogue 69511 — RETAINER, FRONT DOOR LOCK CYLINDER (1 parts)
NB0774C · 16 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
69051 — Cylinder & Key Set, Door Lock, RH
69051-20190 Cylinder & Key Set, Door Lock, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 SED ¥4,270
69051-20190 Cylinder & Key Set, Door Lock, RH
1990-05 → 1992-08 ended
AT17#,CT170 DX,S,SG ¥4,270
69051-20191 Cylinder & Key Set, Door Lock, RH
1990-05 → 1990-11 ended
AT17#,CT170,ST170 GLIM,SE,SGEXT ¥6,000
69051-20191 note Cylinder & Key Set, Door Lock, RH
1990-05 → 1990-11 ended
AT171 EFIS ¥6,000
69051-20192 Cylinder & Key Set, Door Lock, RH
1990-11 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE,SGEXT ¥6,000
69051-20192 note Cylinder & Key Set, Door Lock, RH
1990-11 → 1992-08 ended
AT171 EFIS ¥6,000
69051-20192 note Cylinder & Key Set, Door Lock, RH
1990-12 → 1992-08 ended
CT170 SG ¥6,000
69051-20320 note Cylinder & Key Set, Door Lock, RH
1990-05 → 1990-11 ended
ST170 SX ¥6,000
69051-20321 note Cylinder & Key Set, Door Lock, RH
1990-11 → 1992-11 ended
ST170 SX ¥6,000
69051-95R00 Cylinder & Key Set, Door Lock, RH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥4,270
69052 — Cylinder & Key Set, Door Lock, LH
69052-20220 Cylinder & Key Set, Door Lock, LH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥4,270
69052-95R00 Cylinder & Key Set, Door Lock, LH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥4,270
69055A — Cylinder & Key Set, Luggage Compartment Lock
69055-20360 Cylinder & Key Set, Luggage Compartment Lock
1988-05 → 1992-08 ended
AT170 DX ¥3,990
69055-20370 Cylinder & Key Set, Luggage Compartment Lock
1988-05 → 1992-08 ended
AT17#,CT170,ST170 S,SG,SGEXT ¥3,990
69055-20380 note Cylinder & Key Set, Luggage Compartment Lock
1989-09 → 1990-05 ended
AT175 SGEXT ¥4,270
69055-20380 note Cylinder & Key Set, Luggage Compartment Lock
1990-10 → —
AT170,ST170 (4FC,5F) SGEXT ¥4,270
69055-20380 note Cylinder & Key Set, Luggage Compartment Lock
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥4,270
69055-20380 note Cylinder & Key Set, Luggage Compartment Lock
1990-05 → 1992-08 ended
AT171 EFIS ¥4,270
69055-20380 Cylinder & Key Set, Luggage Compartment Lock
1988-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥4,270
69055-20380 note Cylinder & Key Set, Luggage Compartment Lock
1989-09 → 1990-05 ended
ST170 SGEXT ¥4,270
69055-20380 note Cylinder & Key Set, Luggage Compartment Lock
1989-09 → 1990-05 ended
AT170,CT170 SG ¥4,270
69055-20380 note Cylinder & Key Set, Luggage Compartment Lock
1988-05 → 1990-05 ended
AT171 S ¥4,270
69055-20380 note Cylinder & Key Set, Luggage Compartment Lock
1989-02 → 1989-09 ended
AT175,ST170 SGEXT ¥4,270
69055-20380 note Cylinder & Key Set, Luggage Compartment Lock
1988-08 → 1989-02 ended
AT175 SGEXT ¥4,270
69057A — Cylinder & Key Set, Ignition Switch Lock
69057-20180 Cylinder & Key Set, Ignition Switch Lock
1989-08 → 1992-08 ended
AT17#,CT170,ST170 SED ¥5,700
69057-20210 Cylinder & Key Set, Ignition Switch Lock
1988-05 → 1989-08 ended
AT17#,CT170,ST170 SED ¥7,200
69057-95500 Cylinder & Key Set, Ignition Switch Lock
1988-05 → 1992-11 ended
CT176,ET176 ¥5,700
69057-95R00 Cylinder & Key Set, Ignition Switch Lock
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥7,100
69062 — Cylinder & Key Set, Glove Compartment Lock
69056-20150 Cylinder & Key Set, Glove Compartment Lock
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED —
69056-95500 Cylinder & Key Set, Glove Compartment Lock
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥4,970
69511 — Retainer, Front Door Lock Cylinder
69511-32010 Retainer, Front Door Lock Cylinder
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥160
69513 — Pad, Fuel Filler Lid Lock Cylinder
69513-32010 Pad, Fuel Filler Lid Lock Cylinder
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥120
69513-87001 Pad, Fuel Filler Lid Lock Cylinder
1988-05 → 1990-05 ended
AT170,CT176,ET176,ST170 VAN,WG ¥350
69513-87001 Pad, Fuel Filler Lid Lock Cylinder
1990-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 (VAN,WG) (SG,SV,SX) ¥350
69513-87001 Pad, Fuel Filler Lid Lock Cylinder
1990-05 → 1992-11 ended
CT176,ET176 DX,STD ¥350
69561A — Retainer, Luggage Compartment Lock Cylinder
69561-12170 Retainer, Luggage Compartment Lock Cylinder
1988-05 → 1988-08 ended
AT17#,CT170,ST170 SED ¥200
69561-12170 note Retainer, Luggage Compartment Lock Cylinder
1988-08 → 1988-10 ended
AT170 4F DX ¥200
69561-20110 Retainer, Luggage Compartment Lock Cylinder
1988-08 → 1992-08 ended
AT17#,CT170,ST170 SED ¥310
69563A — Pad, Luggage Compartment Door Lock Cylinder
69563-20030 note Pad, Luggage Compartment Door Lock Cylinder
1989-09 → 1990-05 ended
AT175 SGEXT ¥390
69563-20030 note Pad, Luggage Compartment Door Lock Cylinder
1990-10 → —
AT170,ST170 (4FC,5F) SGEXT ¥390
69563-20030 note Pad, Luggage Compartment Door Lock Cylinder
1990-12 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥390
69563-20030 note Pad, Luggage Compartment Door Lock Cylinder
1990-12 → 1992-08 ended
AT170 4F SGEXT;CT170,ST170 SG,SGEXT ¥390
69563-20030 note Pad, Luggage Compartment Door Lock Cylinder
1990-12 → 1992-08 ended
AT171 EFIS ¥390
69563-20030 Pad, Luggage Compartment Door Lock Cylinder
1988-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥390
69563-20030 note Pad, Luggage Compartment Door Lock Cylinder
1990-05 → 1990-12 ended
AT170,171 (4FC,5F) (S,SGEXT) ¥390
69563-20030 note Pad, Luggage Compartment Door Lock Cylinder
1989-09 → 1990-05 ended
ST170 SGEXT ¥390
69563-20030 note Pad, Luggage Compartment Door Lock Cylinder
1989-09 → 1990-05 ended
AT170,CT170 SG ¥390
69563-20030 note Pad, Luggage Compartment Door Lock Cylinder
1988-05 → 1990-05 ended
AT171 S ¥390
69563-20030 note Pad, Luggage Compartment Door Lock Cylinder
1989-02 → 1989-09 ended
AT175,ST170 SGEXT ¥390
69563-20030 note Pad, Luggage Compartment Door Lock Cylinder
1988-08 → 1989-02 ended
AT175 SGEXT ¥390
69563-32020 Pad, Luggage Compartment Door Lock Cylinder
1990-05 → 1992-08 ended
AT17#,CT170,ST170 DX,S,SG,SGEXT ¥260
69759G — Snap, Luggage Door Lock Cylinder
69759-20080 Snap, Luggage Door Lock Cylinder
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥280
69759R — Snap, Front Door Lock Cylinder
69759-20080 note Snap, Front Door Lock Cylinder
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥280
69759-20090 note Snap, Front Door Lock Cylinder
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥280
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
