Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

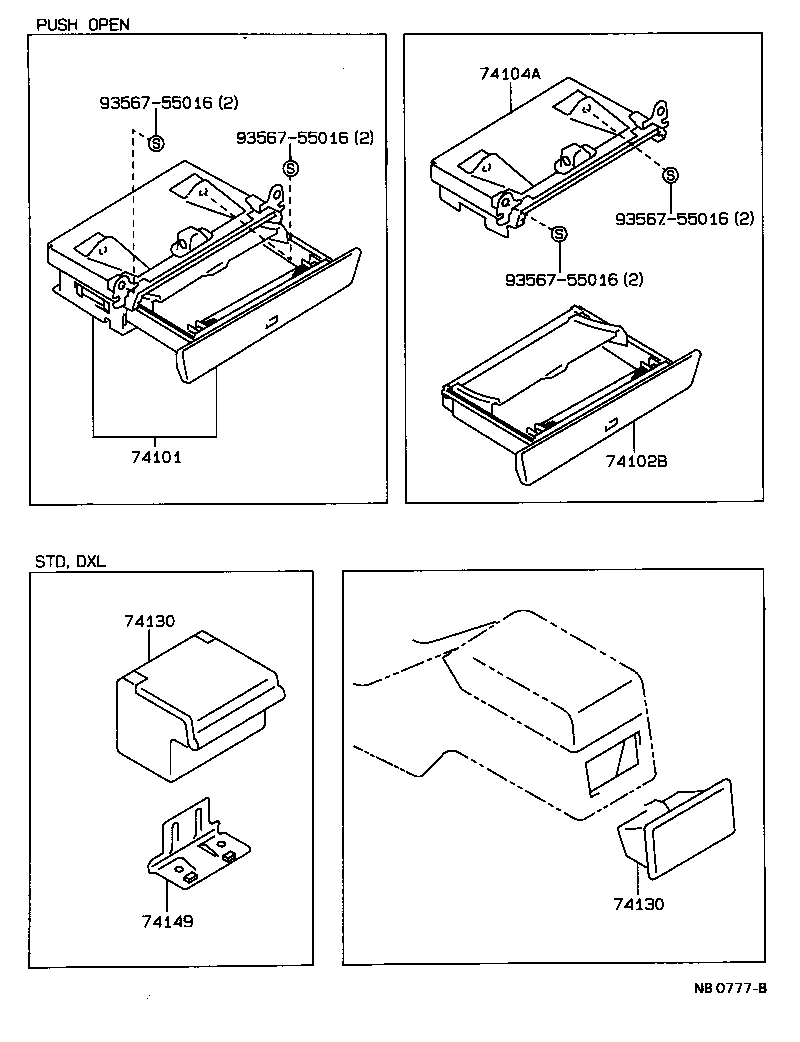

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

26 parts on this figure

Part number	Description	Fitment	Price
74101 — Receptacle Sub-assy, Front Ash
74101-20080-01 note	Receptacle Sub-assy, Front Ash 1988-05 → 1989-09 ended	AT170 4F SG	¥9,900
74101-20080-01 note	Receptacle Sub-assy, Front Ash 1988-05 → 1990-05 ended	AT17#,CT170,ST170 S,SE,SGEXT	¥9,900
74101-20080-01 note	Receptacle Sub-assy, Front Ash 1988-05 → 1990-05 ended	AT171,ST170 GLIM,SX	¥9,900
74101-20080-01 note	Receptacle Sub-assy, Front Ash 1989-09 → 1990-05 ended	AT170 (4FC,5F) SG	¥9,900
74101-20080-01 note	Receptacle Sub-assy, Front Ash 1989-09 → 1990-05 ended	AT170 4F SG	¥9,900
74101-20080-01 note	Receptacle Sub-assy, Front Ash 1990-12 → 1992-08 ended	CT170 SG	¥9,900
74101-20080-01 note	Receptacle Sub-assy, Front Ash 1990-05 → 1992-11 ended	AT171 EFI	¥9,900
74101-20080-01 note	Receptacle Sub-assy, Front Ash 1990-05 → 1992-11 ended	ST170 SX	¥9,900
74101-20080-01 note	Receptacle Sub-assy, Front Ash 1990-05 → 1992-11 ended	AT17#,CT170,ST170 S,SE,SGEXT	¥9,900
74101-20080-01 note	Receptacle Sub-assy, Front Ash 1988-05 → 1989-09 ended	AT170 (4FC,5F) SG	¥9,900
74102B — Box Sub-assy, Front Ash Receptacle
74102-20180-01 note	Box Sub-assy, Front Ash Receptacle 1988-05 → 1990-05 ended	AT170 DX;ET176 STD	¥4,900
74102-20180-01 note	Box Sub-assy, Front Ash Receptacle 1990-05 → 1992-11 ended	CT176,ET176;AT170,CT170 DX,SV	¥4,900
74102-20180-01 note	Box Sub-assy, Front Ash Receptacle 1990-05 → 1992-11 ended	AT170,175,CT170 SG	¥4,900
74102-20180-01 note	Box Sub-assy, Front Ash Receptacle 1988-05 → 1990-05 ended	AT170,CT176,ET176 (VAN,WG) (DX,SG,SV)	¥4,900
74102-20180-01 note	Box Sub-assy, Front Ash Receptacle 1988-05 → 1990-05 ended	AT170,175,CT170 SG	¥4,900
74102-20180-01 note	Box Sub-assy, Front Ash Receptacle 1989-03 → 1989-09 ended	ST170 SGEXT	¥4,900
74104A — Retainer Sub-assy, Front Ash Receptacle
74104-20220	Retainer Sub-assy, Front Ash Receptacle 1989-03 → 1989-09 ended	ST170 SGEXT	¥2,860
74104-20220	Retainer Sub-assy, Front Ash Receptacle 1988-05 → 1992-11 ended	AT170,175,CT17#,ET176 DX,SG,STD,SV	¥2,860
74130 — Receptacle Assy, Rear Ash
74109-20070-03 note	Receptacle Assy, Rear Ash 1988-05 → 1992-11 ended	AT17#,CT17#,ET176,ST170 GLIM,S,SE,SG,SGEXT,SV,SX	¥3,140
74109-20070-04 note	Receptacle Assy, Rear Ash 1988-05 → 1990-05 ended	AT17#,CT170,ST170 S,SE,SG,SGEXT	¥3,140
74109-20070-06 note	Receptacle Assy, Rear Ash 1988-05 → 1990-05 ended	AT17#,CT17#,ET176,ST170 GLIM,S,SE,SG,SGEXT,SV,SX	¥3,140
74109-20070-06 note	Receptacle Assy, Rear Ash 1990-05 → 1992-11 ended	AT17#,CT170,ST170 S,SE,SG,SGEXT,SX	¥3,140
74109-20070-14 note	Receptacle Assy, Rear Ash 1990-05 → 1992-08 ended	AT17#,CT170,ST170 S,SE,SG,SGEXT	¥3,140
74130-20060-10 note	Receptacle Assy, Rear Ash 1988-05 → 1990-05 ended	CT176,ET176 DX	¥4,480
74130-20060-13 note	Receptacle Assy, Rear Ash 1988-05 → 1992-11 ended	AT170,CT176,ET176 DX,STD	¥4,480
74149 — Support, Rear Ash Receptacle
74149-20060	Support, Rear Ash Receptacle 1988-05 → 1992-11 ended	AT170,CT176,ET176 DX,STD	¥1,050

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
