Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

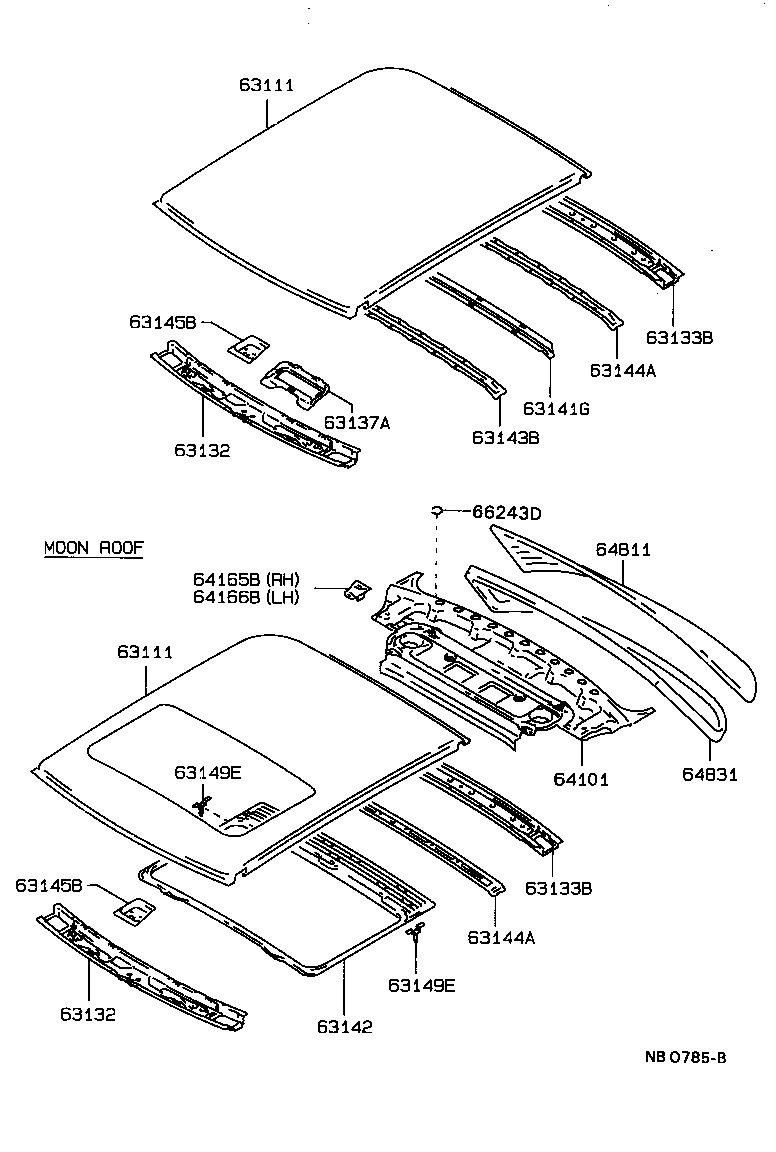

Exploded illustration NB0785B 63111 — PANEL, ROOF (5 parts) 63145B — REINFORCEMENT, WINDSHIELD HEADER PANEL (1 parts) 63133B — FRAME, BACK WINDOW (1 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (3 parts) 63141G — REINFORCEMENT, ROOF PANEL, NO.1 (4 parts) 63137A — BRACKET, DOME LAMP, NO.1 (1 parts) 63143B — REINFORCEMENT, ROOF PANEL, NO.3 (2 parts) 63132 — PANEL, WINDSHIELD HEADER, INNER (1 parts) 66243D — PROTECTOR, REAR BODY, NO.1 (1 parts) 64811 — GLASS, BACK WINDOW (26 parts) 64165B — COVER, UPPER BACK PANEL HOLE, NO.1 (1 parts) 64166B — COVER, UPPER BACK PANEL HOLE, NO.2 (1 parts) 63111 — PANEL, ROOF (5 parts) 63149E — BRACKET, ROOF PANEL REINFORCEMENT, NO.2 (3 parts) 64831 — WEATHERSTRIP, BACK WINDOW GLASS (1 parts) 64101 — PANEL SUB-ASSY, UPPER BACK (9 parts) 63145B — REINFORCEMENT, WINDSHIELD HEADER PANEL (1 parts) 63133B — FRAME, BACK WINDOW (1 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (3 parts) 63149E — BRACKET, ROOF PANEL REINFORCEMENT, NO.2 (3 parts) 63132 — PANEL, WINDSHIELD HEADER, INNER (1 parts) 63142 — REINFORCEMENT, ROOF PANEL, NO.2 (4 parts)
NB0785B · 22 callouts Full size ↗
64 parts on this figure
Part number Description Fitment Price
63111 — Panel, Roof
63111-20350 Panel, Roof
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥26,000
63111-20360 note Panel, Roof
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥26,000
63111-20360 note Panel, Roof
1990-05 → 1992-08 ended
ST170 SED;AT170,171,CT170 GLIM,S,SE ¥26,000
63111-95503 note Panel, Roof
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥50,700
63111-95505 Panel, Roof
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥50,700
63132 — Panel, Windshield Header, Inner
63132-20130 Panel, Windshield Header, Inner
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥3,400
63133B — Frame, Back Window
63133-20160 Frame, Back Window
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥3,270
63137A — Bracket, Dome Lamp, NO.1
63137-20050 Bracket, Dome Lamp, NO.1
1988-05 → 1992-08 ended
AT171,175,CT170,ST170 GLIM,SE ¥1,630
63141G — Reinforcement, Roof Panel, NO.1
63103-20100 Reinforcement, Roof Panel, NO.1
1988-05 → 1992-08 ended
AT17#,CT170,ST170 DX,S,SE,SG,SGEXT ¥2,050
63103-20110 Reinforcement, Roof Panel, NO.1
1988-05 → 1992-08 ended
AT171 GLIM ¥2,260
63103-20110 note Reinforcement, Roof Panel, NO.1
1988-05 → 1992-08 ended
ST170 SE ¥2,260
63103-95500 Reinforcement, Roof Panel, NO.1
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥2,050
63142 — Reinforcement, Roof Panel, NO.2
63142-30030 Reinforcement, Roof Panel, NO.2
1988-05 → 1990-05 ended
ST170 SGEXT;AT175,CT170 SE,SGEXT;AT170,171 GLIM,S,SE,SG ¥12,900
63142-30030 Reinforcement, Roof Panel, NO.2
1988-05 → 1992-08 ended
ST170 SE ¥12,900
63142-30030 Reinforcement, Roof Panel, NO.2
1990-05 → 1992-08 ended
ST170 SGEXT;AT170,171,CT170 GLIM,S,SE ¥12,900
63142-95500 Reinforcement, Roof Panel, NO.2
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥12,900
63143B — Reinforcement, Roof Panel, NO.3
63143-20070 Reinforcement, Roof Panel, NO.3
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥2,140
63143-95501 Reinforcement, Roof Panel, NO.3
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥2,360
63144A — Reinforcement, Roof Panel, NO.4
63144-20010 Reinforcement, Roof Panel, NO.4
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥2,140
63144-95500 Reinforcement, Roof Panel, NO.4
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥2,360
63144-95500 Reinforcement, Roof Panel, NO.4
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥2,360
63145B — Reinforcement, Windshield Header Panel
63145-20070 Reinforcement, Windshield Header Panel
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥930
63149E — Bracket, Roof Panel Reinforcement, NO.2
63149-30030 Bracket, Roof Panel Reinforcement, NO.2
1988-05 → 1990-05 ended
ST170 SGEXT,SX;AT175,CT170 SE,SGEXT;AT170,171 GLIM,S,SE,SG,SV ¥320
63149-30030 Bracket, Roof Panel Reinforcement, NO.2
1988-05 → 1992-08 ended
ST170 SE ¥320
63149-30030 Bracket, Roof Panel Reinforcement, NO.2
1990-05 → 1992-11 ended
ST170 SGEXT,SX;AT170,171,CT170 GLIM,S,SE,SV ¥320
64101 — Panel Sub-assy, Upper Back
64101-20390 Panel Sub-assy, Upper Back
1988-05 → 1990-05 ended
AT17#,CT170,ST170 DX,S,SE,SG,SGEXT ¥24,200
64101-20390 Panel Sub-assy, Upper Back
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 DX,S,SG,SGEXT ¥24,200
64101-20400 Panel Sub-assy, Upper Back
1988-05 → 1990-05 ended
AT171 GLIM ¥24,200
64101-20400 note Panel Sub-assy, Upper Back
1988-05 → 1990-05 ended
ST170 SE ¥24,200
64101-20400 note Panel Sub-assy, Upper Back
1988-05 → 1992-08 ended
AT171 S ¥24,200
64101-20400 Panel Sub-assy, Upper Back
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥24,200
64101-20600 note Panel Sub-assy, Upper Back
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥23,300
64101-20600 note Panel Sub-assy, Upper Back
1990-05 → 1992-08 ended
AT171 EFIS ¥23,300
64101-20610 note Panel Sub-assy, Upper Back
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥23,300
64165B — Cover, Upper Back Panel Hole, NO.1
64165-20050 Cover, Upper Back Panel Hole, NO.1
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥300
64166B — Cover, Upper Back Panel Hole, NO.2
64166-20040 Cover, Upper Back Panel Hole, NO.2
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥300
64811 — Glass, Back Window
64811-20850 note Glass, Back Window
1990-05 → 1992-08 ended
AT17#,CT170,ST170 DX,S,SG,SGEXT ¥59,900
64811-20850 note Glass, Back Window
1988-05 → 1990-05 ended
ST170 SGEXT;AT17#,CT170 DX,S,SG ¥59,900
64811-20860 note Glass, Back Window
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥69,300
64811-20860 note Glass, Back Window
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥69,300
64811-20860 note Glass, Back Window
1988-05 → 1992-08 ended
AT171 S ¥69,300
64811-20860 note Glass, Back Window
1989-02 → 1990-05 ended
ST170 SGEXT ¥69,300
64811-20870 note Glass, Back Window
1990-05 → 1992-08 ended
AT17#,ST170 S,SGEXT ¥72,100
64811-20870 note Glass, Back Window
1989-02 → 1990-05 ended
CT170 SG ¥72,100
64811-20870 note Glass, Back Window
1989-02 → 1990-05 ended
ST170 SGEXT ¥72,100
64811-20870 note Glass, Back Window
1989-02 → 1990-05 ended
AT170 SG ¥72,100
64811-20870 note Glass, Back Window
1990-12 → 1992-08 ended
CT170 SG ¥72,100
64811-20870 note Glass, Back Window
1988-05 → 1989-02 ended
AT170,ST170 SG,SGEXT ¥72,100
64811-20880 note Glass, Back Window
1989-02 → 1990-05 ended
ST170 SGEXT ¥83,200
64811-20880 note Glass, Back Window
1990-05 → 1992-08 ended
AT171 EFIS ¥83,200
64811-20880 note Glass, Back Window
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥83,200
64811-20880 note Glass, Back Window
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥83,200
64811-2B040 note Glass, Back Window
1990-05 → 1992-08 ended
AT17#,ST170 S,SGEXT ¥77,700
64811-2B040 note Glass, Back Window
1990-12 → 1992-08 ended
CT170 SG ¥77,700
64811-2B040 note Glass, Back Window
1989-02 → 1990-05 ended
ST170 SGEXT ¥77,700
64811-2B040 note Glass, Back Window
1989-02 → 1990-05 ended
CT170 SG ¥77,700
64811-2B040 note Glass, Back Window
1989-02 → 1990-05 ended
AT170 SG ¥77,700
64811-2B040 note Glass, Back Window
1988-08 → 1989-02 ended
AT170,ST170 SG,SGEXT ¥77,700
64811-2B050 note Glass, Back Window
1989-02 → 1990-05 ended
ST170 SGEXT ¥89,900
64811-2B050 note Glass, Back Window
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥89,900
64811-2B050 note Glass, Back Window
1990-05 → 1992-08 ended
AT171 EFIS ¥89,900
64811-2B050 note Glass, Back Window
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥89,900
64831 — Weatherstrip, Back Window Glass
64812-20100 Weatherstrip, Back Window Glass
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥9,100
66243D — Protector, Rear Body, NO.1
53393-12020 Protector, Rear Body, NO.1
1989-12 → 1990-05 ended
AT17#,CT170,ST170 SED ¥170
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
