Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

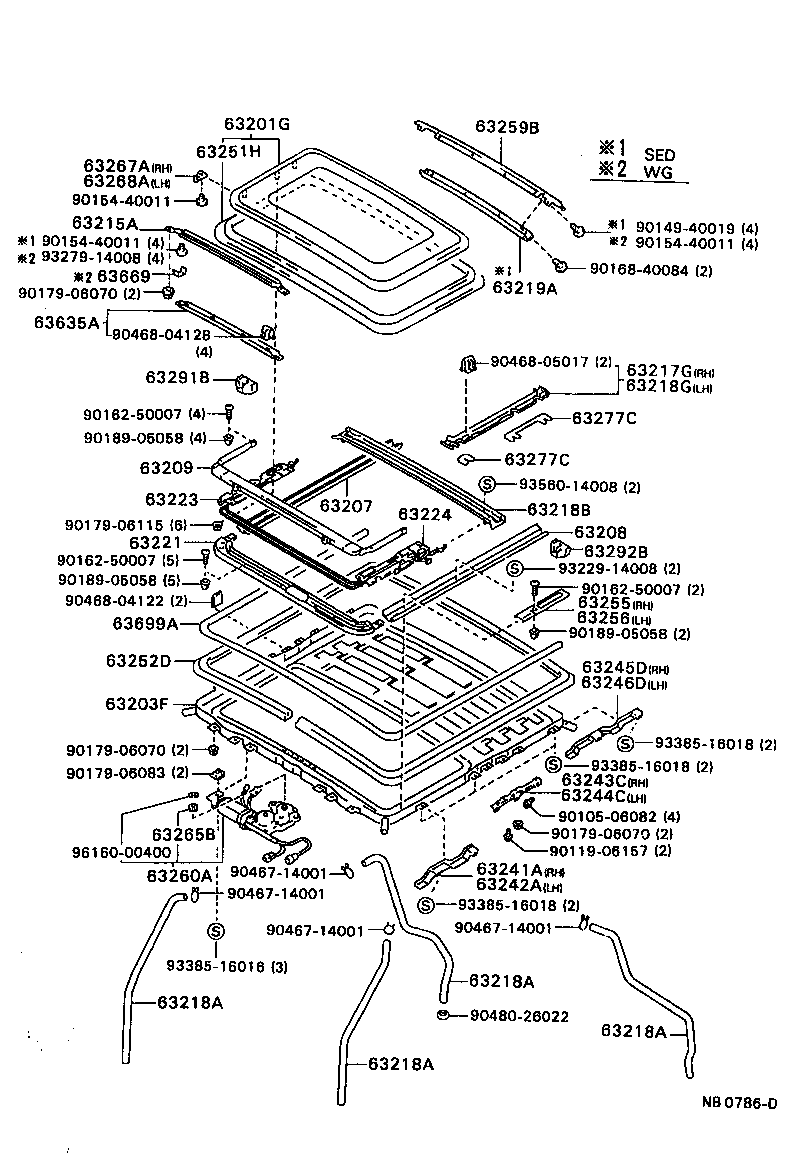

Exploded illustration NB0786D 63201G — GLASS SUB-ASSY, SLIDING ROOF (7 parts) 63259B — HOLDER, SLIDING ROOF WEATHERSTRIP (3 parts) 63251H — WEATHERSTRIP, SLIDING ROOF (2 parts) 63267A — PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH (2 parts) 63268A — PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH (2 parts) 9015440011 — not listed in this catalogue 63215A — MOULDING, ROOF WINDOW, UPPER (2 parts) 9014940019 — not listed in this catalogue 9015440011 — not listed in this catalogue 9015440011 — not listed in this catalogue 9327914008 — not listed in this catalogue 9016840084 — not listed in this catalogue 63669 — CUSHION, ROOF PROTECTOR (1 parts) 63219A — GARNISH, SLIDING ROOF, REAR (5 parts) 9017906070 — not listed in this catalogue 63635A — GARNISH, SLIDING ROOF, FRONT (5 parts) 9046804128 — not listed in this catalogue 9046805017 — not listed in this catalogue 63217G — GARNISH, SLIDING ROOF SIDE, RH (5 parts) 63291B — GARNISH, ROOF WINDOW LOCK, NO.1 RH (1 parts) 63218G — GARNISH, SLIDING ROOF SIDE, LH (5 parts) 9016250007 — not listed in this catalogue 63277C — SHIM, SLIDING ROOF PANEL (8 parts) 9018905058 — not listed in this catalogue 63277C — SHIM, SLIDING ROOF PANEL (8 parts) 63209 — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (3 parts) 9356014008 — not listed in this catalogue 63223 — CABLE, SLIDING ROOF DRIVE, RH (5 parts) 63207 — RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH (2 parts) 63218B — CHANNEL, ROOF DRIP, REAR (2 parts) 63224 — CABLE, SLIDING ROOF DRIVE, LH (5 parts) 9017906115 — not listed in this catalogue 63208 — RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH (2 parts) 63221 — CASING, SLIDING ROOF CABLE GUIDE (2 parts) 63292B — GARNISH, ROOF WINDOW LOCK, NO.1 LH (1 parts) 9016250007 — not listed in this catalogue 9322914008 — not listed in this catalogue 9018905058 — not listed in this catalogue 9016250007 — not listed in this catalogue 9046804122 — not listed in this catalogue 63255 — COVER, SLIDING ROOF GUIDE RAIL, RH (2 parts) 63256 — COVER, SLIDING ROOF GUIDE RAIL, LH (2 parts) 63699A — SEAL, SLIDING ROOF GUIDE RAIL (2 parts) 9018905058 — not listed in this catalogue 63252D — WEATHERSTRIP, SLIDING ROOF HOUSING (3 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (2 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (2 parts) 63203F — HOUSING SUB-ASSY, SLIDING ROOF (2 parts) 9338516018 — not listed in this catalogue 9017906070 — not listed in this catalogue 9338516018 — not listed in this catalogue 9017906083 — not listed in this catalogue 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (2 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (2 parts) 9010506082 — not listed in this catalogue 63265B — GEAR, SLIDING ROOF DRIVE (1 parts) 9017906070 — not listed in this catalogue 9011906157 — not listed in this catalogue 9616000400 — not listed in this catalogue 9046714001 — not listed in this catalogue 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (2 parts) 63260A — GEAR SUB-ASSY, SLIDING ROOF DRIVE (4 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (2 parts) 9046714001 — not listed in this catalogue 9338516018 — not listed in this catalogue 9046714001 — not listed in this catalogue 9046714001 — not listed in this catalogue 9338516016 — not listed in this catalogue 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (4 parts) 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (4 parts) 9048026022 — not listed in this catalogue 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (4 parts) 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (4 parts)
NB0786D · 39 callouts, 34 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
102 parts on this figure
Part number Description Fitment Price
63201G — Glass Sub-assy, Sliding Roof
63201-20060 note Glass Sub-assy, Sliding Roof
1988-05 → 1989-10 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥128,000
63201-20061 note Glass Sub-assy, Sliding Roof
1989-11 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥128,000
63201-20070 note Glass Sub-assy, Sliding Roof
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥128,000
63201-20070 note Glass Sub-assy, Sliding Roof
1990-05 → 1992-08 ended
ST170 SED;AT170,171,CT170 GLIM,S,SE ¥128,000
63201-20110 note Glass Sub-assy, Sliding Roof
1990-05 → 1992-08 ended
ST170 SED;AT170,171,CT170 GLIM,S,SE ¥128,000
63201-95500 note Glass Sub-assy, Sliding Roof
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥128,000
63201-95R00 note Glass Sub-assy, Sliding Roof
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥128,000
63203F — Housing Sub-assy, Sliding Roof
63203-20070 Housing Sub-assy, Sliding Roof
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥29,400
63203-20070 Housing Sub-assy, Sliding Roof
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥29,400
63207 — Rail Sub-assy, Sliding Roof Guide, RH
63207-30040 Rail Sub-assy, Sliding Roof Guide, RH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥8,000
63207-30040 Rail Sub-assy, Sliding Roof Guide, RH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥8,000
63208 — Rail Sub-assy, Sliding Roof Guide, LH
63208-30040 Rail Sub-assy, Sliding Roof Guide, LH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥8,000
63208-30040 Rail Sub-assy, Sliding Roof Guide, LH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥8,000
63209 — Panel Sub-assy, Roof Wind Deflector
63209-20050 Panel Sub-assy, Roof Wind Deflector
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥14,600
63209-20050 Panel Sub-assy, Roof Wind Deflector
1990-05 → 1992-08 ended
ST170 SED;AT170,171,CT170 GLIM,S,SE ¥14,600
63209-95R00 Panel Sub-assy, Roof Wind Deflector
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥14,600
63215A — Moulding, Roof Window, Upper
63215-30020 Moulding, Roof Window, Upper
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥4,240
63215-30020 Moulding, Roof Window, Upper
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥4,240
63217G — Garnish, Sliding Roof Side, RH
63217-30030-01 note Garnish, Sliding Roof Side, RH
1988-05 → 1990-05 ended
AT170,171,ST170 GLIM,SV,SX ¥2,780
63217-30030-01 note Garnish, Sliding Roof Side, RH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 S,SE,SG,SGEXT ¥2,780
63217-30030-01 note Garnish, Sliding Roof Side, RH
1990-05 → 1992-11 ended
ST170 SX ¥2,780
63217-30030-01 note Garnish, Sliding Roof Side, RH
1990-05 → 1992-11 ended
AT170,171,CT170 GLIM,SV ¥2,780
63217-30030-01 note Garnish, Sliding Roof Side, RH
1990-05 → 1992-11 ended
ST170 SED;AT170,171,CT170 S,SE ¥2,780
63218A — Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-20050 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥1,160
63249-20050 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥1,160
63249-95500 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥1,460
63249-95500 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥1,460
63218B — Channel, Roof Drip, Rear
63218-30030 Channel, Roof Drip, Rear
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥6,700
63218-30030 Channel, Roof Drip, Rear
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥6,700
63218G — Garnish, Sliding Roof Side, LH
63218-30040-01 note Garnish, Sliding Roof Side, LH
1988-05 → 1990-05 ended
AT170,171,ST170 GLIM,SV,SX ¥2,780
63218-30040-01 note Garnish, Sliding Roof Side, LH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 S,SE,SG,SGEXT ¥2,780
63218-30040-01 note Garnish, Sliding Roof Side, LH
1990-05 → 1992-11 ended
ST170 SX ¥2,780
63218-30040-01 note Garnish, Sliding Roof Side, LH
1990-05 → 1992-11 ended
AT170,171,CT170 GLIM,SV ¥2,780
63218-30040-01 note Garnish, Sliding Roof Side, LH
1990-05 → 1992-11 ended
ST170 SED;AT170,171,CT170 S,SE ¥2,780
63219A — Garnish, Sliding Roof, Rear
63219-30030 Garnish, Sliding Roof, Rear
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT —
63219-30030 Garnish, Sliding Roof, Rear
1990-05 → 1991-08 ended
ST170 SED;AT170,171,CT170 GLIM,S,SE —
63219-30030-20 note Garnish, Sliding Roof, Rear
1991-08 → 1992-08 ended
ST170 SED;AT170,171,CT170 GLIM,S,SE ¥4,080
63219-30030-E0 note Garnish, Sliding Roof, Rear
1991-08 → 1992-08 ended
ST170 SED;AT170,171,CT170 S,SE ¥4,080
63219-30030-J0 note Garnish, Sliding Roof, Rear
1991-08 → 1992-08 ended
ST170 SED;AT170,171,CT170 S,SE ¥4,080
63221 — Casing, Sliding Roof Cable Guide
63221-30040 Casing, Sliding Roof Cable Guide
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥22,200
63221-30040 Casing, Sliding Roof Cable Guide
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥22,200
63223 — Cable, Sliding Roof Drive, RH
63223-20060 Cable, Sliding Roof Drive, RH
1988-05 → 1989-03 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥16,100
63223-20061 Cable, Sliding Roof Drive, RH
1989-03 → 1989-04 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥16,100
63223-20062 Cable, Sliding Roof Drive, RH
1989-04 → 1989-06 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥16,100
63223-20063 Cable, Sliding Roof Drive, RH
1989-06 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥16,100
63223-20063 Cable, Sliding Roof Drive, RH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥16,100
63224 — Cable, Sliding Roof Drive, LH
63224-20060 Cable, Sliding Roof Drive, LH
1988-05 → 1989-03 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥16,100
63224-20061 Cable, Sliding Roof Drive, LH
1989-03 → 1989-04 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥16,100
63224-20062 Cable, Sliding Roof Drive, LH
1989-04 → 1989-06 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥16,100
63224-20063 Cable, Sliding Roof Drive, LH
1989-06 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥16,100
63224-20063 Cable, Sliding Roof Drive, LH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥16,100
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-20040 Bracket, Sliding Roof Housing Front Mounting, RH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥1,570
63241-20040 Bracket, Sliding Roof Housing Front Mounting, RH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥1,570
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63242-20020 Bracket, Sliding Roof Housing Front Mounting, LH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥1,570
63242-20020 Bracket, Sliding Roof Housing Front Mounting, LH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥1,570
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-20050 Bracket, Sliding Roof Housing Center Mounting, RH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥1,160
63243-20050 Bracket, Sliding Roof Housing Center Mounting, RH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥1,160
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-20050 Bracket, Sliding Roof Housing Center Mounting, LH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥1,160
63244-20050 Bracket, Sliding Roof Housing Center Mounting, LH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥1,160
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-20020 Bracket, Sliding Roof Housing Rear Mounting, RH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥1,570
63245-20020 Bracket, Sliding Roof Housing Rear Mounting, RH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥1,570
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63246-20020 Bracket, Sliding Roof Housing Rear Mounting, LH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥1,570
63246-20020 Bracket, Sliding Roof Housing Rear Mounting, LH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥1,570
63251H — Weatherstrip, Sliding Roof
63251-30020 Weatherstrip, Sliding Roof
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥7,800
63251-30020 Weatherstrip, Sliding Roof
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥7,800
63252D — Weatherstrip, Sliding Roof Housing
63252-20020 Weatherstrip, Sliding Roof Housing
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥4,680
63252-20020 Weatherstrip, Sliding Roof Housing
1990-05 → 1992-08 ended
ST170 SED;AT170,171,CT170 GLIM,S,SE ¥4,680
63252-95500 Weatherstrip, Sliding Roof Housing
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥4,920
63255 — Cover, Sliding Roof Guide Rail, RH
63255-20020 Cover, Sliding Roof Guide Rail, RH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥1,400
63255-20020 Cover, Sliding Roof Guide Rail, RH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥1,400
63256 — Cover, Sliding Roof Guide Rail, LH
63255-20020 Cover, Sliding Roof Guide Rail, LH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥1,400
63255-20020 Cover, Sliding Roof Guide Rail, LH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥1,400
63259B — Holder, Sliding Roof Weatherstrip
63259-30040 Holder, Sliding Roof Weatherstrip
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥2,190
63259-30040 Holder, Sliding Roof Weatherstrip
1990-05 → 1992-08 ended
ST170 SED;AT170,171,CT170 GLIM,S,SE ¥2,190
63259-95500 Holder, Sliding Roof Weatherstrip
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥1,670
63260A — Gear Sub-assy, Sliding Roof Drive
63260-20050 Gear Sub-assy, Sliding Roof Drive
1988-05 → 1989-03 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥42,700
63260-20051 Gear Sub-assy, Sliding Roof Drive
1990-05 → 1991-04 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥47,100
63260-20051 Gear Sub-assy, Sliding Roof Drive
1989-03 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥47,100
63260-20052 Gear Sub-assy, Sliding Roof Drive
1991-04 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥46,700
63265B — Gear, Sliding Roof Drive
63265-20010 Gear, Sliding Roof Drive
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥1,600
63267A — Protector, Sliding Roof Weatherstrip, RH
63267-30040 Protector, Sliding Roof Weatherstrip, RH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥260
63267-30040 Protector, Sliding Roof Weatherstrip, RH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥260
63268A — Protector, Sliding Roof Weatherstrip, LH
63268-30040 Protector, Sliding Roof Weatherstrip, LH
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥260
63268-30040 Protector, Sliding Roof Weatherstrip, LH
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥260
63277C — Shim, Sliding Roof Panel
63277-20020 note Shim, Sliding Roof Panel
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥740
63277-20020 note Shim, Sliding Roof Panel
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥740
63277-20030 note Shim, Sliding Roof Panel
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥280
63277-20030 note Shim, Sliding Roof Panel
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥280
63277-20040 note Shim, Sliding Roof Panel
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥740
63277-20040 note Shim, Sliding Roof Panel
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥740
63277-20050 note Shim, Sliding Roof Panel
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥240
63277-20050 note Shim, Sliding Roof Panel
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥240
63291B — Garnish, Roof Window Lock, NO.1 RH
63291-95500 Garnish, Roof Window Lock, NO.1 RH
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥390
63292B — Garnish, Roof Window Lock, NO.1 LH
63292-95500 Garnish, Roof Window Lock, NO.1 LH
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥390
63635A — Garnish, Sliding Roof, Front
63635-30010 Garnish, Sliding Roof, Front
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX —
63635-30010 Garnish, Sliding Roof, Front
1990-05 → 1991-08 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV —
63635-30010-20 note Garnish, Sliding Roof, Front
1991-08 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥3,230
63635-30010-E0 note Garnish, Sliding Roof, Front
1991-08 → 1992-11 ended
ST170;AT170,171,CT170 S,SE ¥3,230
63635-30010-J0 note Garnish, Sliding Roof, Front
1991-08 → 1992-08 ended
ST170 SED;AT170,171,CT170 S,SE ¥3,230
63669 — Cushion, Roof Protector
63669-95500 Cushion, Roof Protector
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥550
63699A — Seal, Sliding Roof Guide Rail
63699-12040 Seal, Sliding Roof Guide Rail
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥1,800
63699-12040 Seal, Sliding Roof Guide Rail
1990-05 → 1992-11 ended
ST170;AT170,171,CT170 GLIM,S,SE,SV ¥1,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
