Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

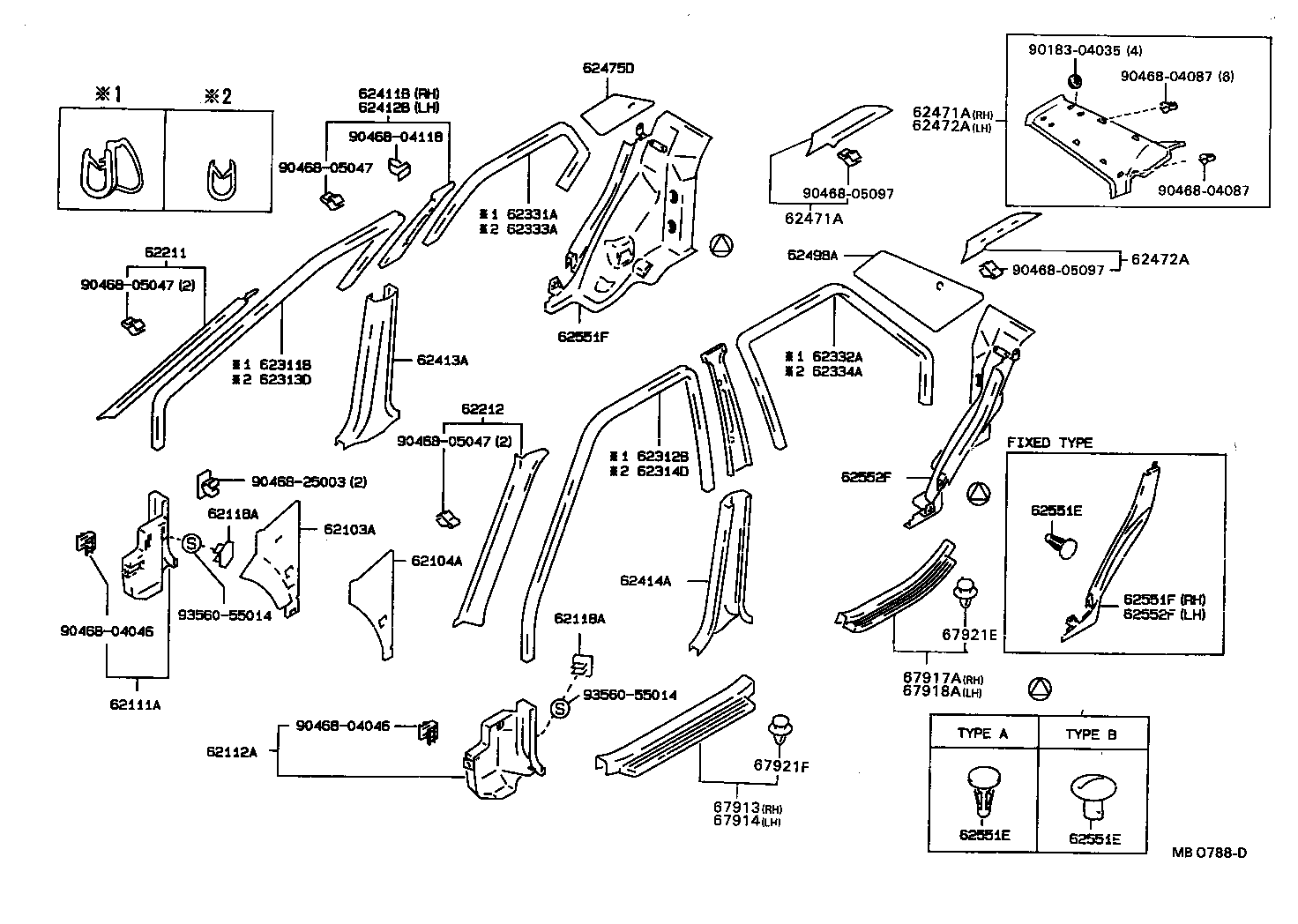

Exploded illustration NB0788D 9018304035 — not listed in this catalogue 62475D — PAD, ROOF SIDE INNER GARNISH, RH (1 parts) 9046804087 — not listed in this catalogue 62411B — GARNISH, CENTER PILLAR, UPPER RH (5 parts) 62412B — GARNISH, CENTER PILLAR, UPPER LH (5 parts) 62471A — GARNISH, ROOF SIDE, INNER RH (15 parts) 62472A — GARNISH, ROOF SIDE, INNER LH (15 parts) 9046804118 — not listed in this catalogue 9046805047 — not listed in this catalogue 9046804087 — not listed in this catalogue 9046805097 — not listed in this catalogue 62331A — WEATHERSTRIP, REAR DOOR OPENING TRIM, RH (23 parts) 62471A — GARNISH, ROOF SIDE, INNER RH (15 parts) 62333A — TRIM, REAR DOOR OPENING, RH (8 parts) 62211 — GARNISH, FRONT PILLAR, RH (8 parts) 62498A — PAD, ROOF SIDE INNER GARNISH, LH (1 parts) 62472A — GARNISH, ROOF SIDE, INNER LH (15 parts) 9046805097 — not listed in this catalogue 9046805047 — not listed in this catalogue 62551F — GARNISH, REAR SEAT SIDE, RH (22 parts) 62332A — WEATHERSTRIP, REAR DOOR OPENING TRIM, LH (22 parts) 62413A — GARNISH, CENTER PILLAR, LOWER RH (8 parts) 62311B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH (23 parts) 62334A — TRIM, REAR DOOR OPENING, LH (8 parts) 62313D — TRIM, FRONT DOOR OPENING, RH (11 parts) 62212 — GARNISH, FRONT PILLAR, LH (8 parts) 9046805047 — not listed in this catalogue 62312B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH (23 parts) 62314D — TRIM, FRONT DOOR OPENING, LH (10 parts) 62552F — GARNISH, REAR SEAT SIDE, LH (22 parts) 9046825003 — not listed in this catalogue 62551E — CLIP(FOR REAR SEAT SIDE GARNISH) (23 parts) 62118A — CAP, COWL SIDE TRIM (5 parts) 62103A — INSULATOR SUB-ASSY, COWL SIDE, RH (1 parts) 62104A — INSULATOR SUB-ASSY, COWL SIDE, LH (1 parts) 62414A — GARNISH, CENTER PILLAR, LOWER LH (8 parts) 62551F — GARNISH, REAR SEAT SIDE, RH (22 parts) 9356055014 — not listed in this catalogue 62552F — GARNISH, REAR SEAT SIDE, LH (22 parts) 62118A — CAP, COWL SIDE TRIM (5 parts) 9046804046 — not listed in this catalogue 67921E — RETAINER, REAR DOOR SCUFF PLATE (5 parts) 67917A — PLATE, REAR DOOR SCUFF, RH (7 parts) 67918A — PLATE, REAR DOOR SCUFF, LH (7 parts) 9356055014 — not listed in this catalogue 62111A — TRIM SUB-ASSY, COWL SIDE, RH (5 parts) 9046804046 — not listed in this catalogue 62112A — TRIM SUB-ASSY, COWL SIDE, LH (5 parts) 67921F — RETAINER, FRONT DOOR SCUFF PLATE (4 parts) 67913 — PLATE, FRONT DOOR SCUFF, RH (5 parts) 67914 — PLATE, FRONT DOOR SCUFF, LH (5 parts) 62551E — CLIP(FOR REAR SEAT SIDE GARNISH) (23 parts) 62551E — CLIP(FOR REAR SEAT SIDE GARNISH) (23 parts)
NB0788D · 39 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
319 parts on this figure
Part number Description Fitment Price
62103A — Insulator Sub-assy, Cowl Side, RH
62105-20100 Insulator Sub-assy, Cowl Side, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥2,050
62104A — Insulator Sub-assy, Cowl Side, LH
62106-20100 Insulator Sub-assy, Cowl Side, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥2,050
62111A — Trim Sub-assy, Cowl Side, RH
62101-20140-03 note Trim Sub-assy, Cowl Side, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥2,890
62101-20140-04 note Trim Sub-assy, Cowl Side, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,890
62101-20140-06 note Trim Sub-assy, Cowl Side, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥2,890
62101-20140-06 note Trim Sub-assy, Cowl Side, RH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥2,890
62101-20140-14 note Trim Sub-assy, Cowl Side, RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,890
62112A — Trim Sub-assy, Cowl Side, LH
62102-20140-03 note Trim Sub-assy, Cowl Side, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥2,890
62102-20140-04 note Trim Sub-assy, Cowl Side, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,890
62102-20140-06 note Trim Sub-assy, Cowl Side, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥2,890
62102-20140-06 note Trim Sub-assy, Cowl Side, LH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥2,890
62102-20140-14 note Trim Sub-assy, Cowl Side, LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,890
62118A — Cap, Cowl Side Trim
62118-20020-03 note Cap, Cowl Side Trim
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥320
62118-20020-04 note Cap, Cowl Side Trim
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥320
62118-20020-06 note Cap, Cowl Side Trim
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥320
62118-20020-06 note Cap, Cowl Side Trim
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥320
62118-20020-14 note Cap, Cowl Side Trim
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥320
62211 — Garnish, Front Pillar, RH
62211-20160-03 note Garnish, Front Pillar, RH
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥5,100
62211-20160-04 note Garnish, Front Pillar, RH
1988-05 → 1988-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥5,100
62211-20160-04 note Garnish, Front Pillar, RH
1988-08 → 1990-05 ended
AT171,175 S,SG,SGEXT ¥5,100
62211-20160-04 note Garnish, Front Pillar, RH
1988-08 → 1990-05 ended
AT170,CT170,ST170 SE,SG,SGEXT ¥5,100
62211-20160-06 note Garnish, Front Pillar, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥5,100
62211-20210-03 note Garnish, Front Pillar, RH
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥5,100
62211-20210-04 note Garnish, Front Pillar, RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥5,100
62211-20210-06 note Garnish, Front Pillar, RH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥5,100
62212 — Garnish, Front Pillar, LH
62212-20160-03 note Garnish, Front Pillar, LH
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥5,100
62212-20160-04 note Garnish, Front Pillar, LH
1988-08 → 1990-05 ended
AT171,175 S,SG,SGEXT ¥5,100
62212-20160-04 note Garnish, Front Pillar, LH
1988-08 → 1990-05 ended
AT170,CT170,ST170 SE,SG,SGEXT ¥5,100
62212-20160-04 note Garnish, Front Pillar, LH
1988-05 → 1988-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥5,100
62212-20160-06 note Garnish, Front Pillar, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥5,100
62212-20210-03 note Garnish, Front Pillar, LH
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥5,100
62212-20210-04 note Garnish, Front Pillar, LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥5,100
62212-20210-06 note Garnish, Front Pillar, LH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥5,100
62311B — Weatherstrip, Front Door Opening Trim, RH
62311-20090-03 note Weatherstrip, Front Door Opening Trim, RH
1988-05 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥3,710
62311-20090-03 note Weatherstrip, Front Door Opening Trim, RH
1989-03 → 1990-05 ended
CT170 SG ¥3,710
62311-20090-03 note Weatherstrip, Front Door Opening Trim, RH
1989-03 → 1990-05 ended
AT170 4F SG ¥3,710
62311-20090-03 note Weatherstrip, Front Door Opening Trim, RH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥3,710
62311-20090-03 note Weatherstrip, Front Door Opening Trim, RH
1990-12 → 1992-11 ended
CT170 SG ¥3,710
62311-20090-03 note Weatherstrip, Front Door Opening Trim, RH
1988-05 → 1989-03 ended
AT170 4F SG ¥3,710
62311-20090-03 note Weatherstrip, Front Door Opening Trim, RH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥3,710
62311-20090-04 note Weatherstrip, Front Door Opening Trim, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥3,710
62311-20090-04 note Weatherstrip, Front Door Opening Trim, RH
1988-05 → 1989-03 ended
AT170 4F SG ¥3,710
62311-20090-04 note Weatherstrip, Front Door Opening Trim, RH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥3,710
62311-20090-04 note Weatherstrip, Front Door Opening Trim, RH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥3,710
62311-20090-04 note Weatherstrip, Front Door Opening Trim, RH
1989-03 → 1990-05 ended
AT170 4F SG ¥3,710
62311-20090-04 note Weatherstrip, Front Door Opening Trim, RH
1989-03 → 1990-05 ended
CT170 SG ¥3,710
62311-20090-06 note Weatherstrip, Front Door Opening Trim, RH
1990-12 → 1992-11 ended
CT170 SG ¥3,710
62311-20090-06 note Weatherstrip, Front Door Opening Trim, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥3,710
62311-20090-06 note Weatherstrip, Front Door Opening Trim, RH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SGEXT,SX ¥3,710
62311-20090-06 note Weatherstrip, Front Door Opening Trim, RH
1989-03 → 1990-05 ended
AT170 4F SG ¥3,710
62311-20090-06 note Weatherstrip, Front Door Opening Trim, RH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥3,710
62311-20090-06 note Weatherstrip, Front Door Opening Trim, RH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥3,710
62311-20090-06 note Weatherstrip, Front Door Opening Trim, RH
1988-05 → 1989-03 ended
AT170 4F SG ¥3,710
62311-20090-06 note Weatherstrip, Front Door Opening Trim, RH
1989-03 → 1990-05 ended
CT170 SG ¥3,710
62311-20090-14 note Weatherstrip, Front Door Opening Trim, RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥3,710
62311-20090-14 note Weatherstrip, Front Door Opening Trim, RH
1990-12 → 1992-11 ended
CT170 SG ¥3,710
62312B — Weatherstrip, Front Door Opening Trim, LH
62312-20090-03 note Weatherstrip, Front Door Opening Trim, LH
1989-03 → 1990-05 ended
AT170 4F SG ¥3,710
62312-20090-03 note Weatherstrip, Front Door Opening Trim, LH
1990-12 → 1992-11 ended
CT170 SG ¥3,710
62312-20090-03 note Weatherstrip, Front Door Opening Trim, LH
1988-05 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥3,710
62312-20090-03 note Weatherstrip, Front Door Opening Trim, LH
1989-03 → 1990-05 ended
CT170 SG ¥3,710
62312-20090-03 note Weatherstrip, Front Door Opening Trim, LH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥3,710
62312-20090-03 note Weatherstrip, Front Door Opening Trim, LH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥3,710
62312-20090-03 note Weatherstrip, Front Door Opening Trim, LH
1988-05 → 1989-03 ended
AT170 4F SG ¥3,710
62312-20090-04 note Weatherstrip, Front Door Opening Trim, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥3,710
62312-20090-04 note Weatherstrip, Front Door Opening Trim, LH
1988-05 → 1989-03 ended
AT170 4F SG ¥3,710
62312-20090-04 note Weatherstrip, Front Door Opening Trim, LH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥3,710
62312-20090-04 note Weatherstrip, Front Door Opening Trim, LH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥3,710
62312-20090-04 note Weatherstrip, Front Door Opening Trim, LH
1989-03 → 1990-05 ended
AT170 4F SG ¥3,710
62312-20090-04 note Weatherstrip, Front Door Opening Trim, LH
1989-03 → 1990-05 ended
CT170 SG ¥3,710
62312-20090-06 note Weatherstrip, Front Door Opening Trim, LH
1989-03 → 1990-05 ended
AT170 4F SG ¥3,710
62312-20090-06 note Weatherstrip, Front Door Opening Trim, LH
1990-12 → 1992-11 ended
CT170 SG ¥3,710
62312-20090-06 note Weatherstrip, Front Door Opening Trim, LH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SGEXT,SX ¥3,710
62312-20090-06 note Weatherstrip, Front Door Opening Trim, LH
1989-03 → 1990-05 ended
CT170 SG ¥3,710
62312-20090-06 note Weatherstrip, Front Door Opening Trim, LH
1988-05 → 1989-03 ended
AT170 4F SG ¥3,710
62312-20090-06 note Weatherstrip, Front Door Opening Trim, LH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥3,710
62312-20090-06 note Weatherstrip, Front Door Opening Trim, LH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥3,710
62312-20090-06 note Weatherstrip, Front Door Opening Trim, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥3,710
62312-20090-14 note Weatherstrip, Front Door Opening Trim, LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥3,710
62312-20090-14 note Weatherstrip, Front Door Opening Trim, LH
1990-12 → 1992-11 ended
CT170 SG ¥3,710
62313D — Trim, Front Door Opening, RH
62313-20100-03 note Trim, Front Door Opening, RH
1988-05 → 1988-07 ended
AT170,CT17#,ET176 DX,SG,STD ¥2,690
62313-20100-03 note Trim, Front Door Opening, RH
1988-07 → 1988-09 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥2,690
62313-20100-04 note Trim, Front Door Opening, RH
1988-05 → 1988-09 ended
AT170,175,CT170 SG ¥2,690
62313-20100-06 note Trim, Front Door Opening, RH
1988-05 → 1988-07 ended
AT170,CT170 SG;CT176,ET176 DX,SG ¥2,690
62313-20100-06 note Trim, Front Door Opening, RH
1988-07 → 1988-09 ended
CT176,ET176 DX,SG;AT170,175,CT170 SG,SV ¥2,690
62313-20130-03 note Trim, Front Door Opening, RH
1988-09 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥2,680
62313-20130-04 note Trim, Front Door Opening, RH
1988-09 → 1990-05 ended
AT170,175,CT170 SG ¥2,680
62313-20130-06 note Trim, Front Door Opening, RH
1990-05 → 1992-08 ended
AT170,175,CT170 SG ¥2,680
62313-20130-06 note Trim, Front Door Opening, RH
1988-09 → 1992-11 ended
AT175,CT17#,ET176 DX,SG ¥2,680
62313-20130-06 note Trim, Front Door Opening, RH
1988-09 → 1992-11 ended
AT170 (SG,SV) CBR ¥2,680
62313-20130-14 note Trim, Front Door Opening, RH
1990-05 → 1992-08 ended
AT170,175,CT170 SG ¥2,680
62314D — Trim, Front Door Opening, LH
62313-20100-03 note Trim, Front Door Opening, LH
1988-07 → 1988-09 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥2,690
62313-20100-03 note Trim, Front Door Opening, LH
1988-05 → 1988-07 ended
AT170,CT17#,ET176 DX,SG,STD ¥2,690
62313-20100-04 note Trim, Front Door Opening, LH
1988-05 → 1988-09 ended
AT170,175,CT170 SG ¥2,690
62313-20100-06 note Trim, Front Door Opening, LH
1988-05 → 1988-07 ended
AT170,CT170 SG;CT176,ET176 DX,SG ¥2,690
62313-20100-06 note Trim, Front Door Opening, LH
1988-07 → 1988-09 ended
CT176,ET176 DX,SG;AT170,175,CT170 SG,SV ¥2,690
62313-20130-03 note Trim, Front Door Opening, LH
1988-09 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥2,680
62313-20130-04 note Trim, Front Door Opening, LH
1988-09 → 1990-05 ended
AT170,175,CT170 SG ¥2,680
62313-20130-06 note Trim, Front Door Opening, LH
1988-09 → 1990-05 ended
CT176,ET176 DX,SG;AT170,175,CT170 SG,SV ¥2,680
62313-20130-06 note Trim, Front Door Opening, LH
1990-05 → 1992-08 ended
AT170,175,CT170 SG ¥2,680
62313-20130-14 note Trim, Front Door Opening, LH
1990-05 → 1992-08 ended
AT170,175,CT170 SG ¥2,680
62331A — Weatherstrip, Rear Door Opening Trim, RH
62331-20040-03 note Weatherstrip, Rear Door Opening Trim, RH
1990-12 → 1992-08 ended
CT170 SG ¥2,830
62331-20040-03 note Weatherstrip, Rear Door Opening Trim, RH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT ¥2,830
62331-20040-03 note Weatherstrip, Rear Door Opening Trim, RH
1989-03 → 1990-05 ended
AT170 4F SG ¥2,830
62331-20040-03 note Weatherstrip, Rear Door Opening Trim, RH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥2,830
62331-20040-03 note Weatherstrip, Rear Door Opening Trim, RH
1989-03 → 1990-05 ended
CT170 SG ¥2,830
62331-20040-03 note Weatherstrip, Rear Door Opening Trim, RH
1988-05 → 1989-03 ended
AT170 4F SG ¥2,830
62331-20040-03 note Weatherstrip, Rear Door Opening Trim, RH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥2,830
62331-20040-04 note Weatherstrip, Rear Door Opening Trim, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥2,830
62331-20040-04 note Weatherstrip, Rear Door Opening Trim, RH
1988-05 → 1989-03 ended
AT170 4F SG ¥2,830
62331-20040-04 note Weatherstrip, Rear Door Opening Trim, RH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥2,830
62331-20040-04 note Weatherstrip, Rear Door Opening Trim, RH
1989-03 → 1990-05 ended
CT170 SG ¥2,830
62331-20040-04 note Weatherstrip, Rear Door Opening Trim, RH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥2,830
62331-20040-04 note Weatherstrip, Rear Door Opening Trim, RH
1989-03 → 1990-05 ended
AT170 4F SG ¥2,830
62331-20040-06 note Weatherstrip, Rear Door Opening Trim, RH
1988-05 → 1989-03 ended
AT170 4F SG ¥2,830
62331-20040-06 note Weatherstrip, Rear Door Opening Trim, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT ¥2,830
62331-20040-06 note Weatherstrip, Rear Door Opening Trim, RH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥2,830
62331-20040-06 note Weatherstrip, Rear Door Opening Trim, RH
1989-03 → 1990-05 ended
CT170 SG ¥2,830
62331-20040-06 note Weatherstrip, Rear Door Opening Trim, RH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥2,830
62331-20040-06 note Weatherstrip, Rear Door Opening Trim, RH
1989-03 → 1990-05 ended
AT170 4F SG ¥2,830
62331-20040-06 note Weatherstrip, Rear Door Opening Trim, RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥2,830
62331-20040-14 note Weatherstrip, Rear Door Opening Trim, RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥2,830
62331-95500-03 note Weatherstrip, Rear Door Opening Trim, RH
1988-05 → 1992-11 ended
ST170 SX ¥3,000
62331-95500-06 note Weatherstrip, Rear Door Opening Trim, RH
1988-05 → 1992-11 ended
ST170 SX ¥3,000
62332A — Weatherstrip, Rear Door Opening Trim, LH
62332-20030-03 note Weatherstrip, Rear Door Opening Trim, LH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥2,830
62332-20030-03 note Weatherstrip, Rear Door Opening Trim, LH
1988-05 → 1989-03 ended
AT170 4F SG ¥2,830
62332-20030-03 note Weatherstrip, Rear Door Opening Trim, LH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT ¥2,830
62332-20030-03 note Weatherstrip, Rear Door Opening Trim, LH
1989-03 → 1990-05 ended
AT170 4F SG ¥2,830
62332-20030-03 note Weatherstrip, Rear Door Opening Trim, LH
1989-03 → 1990-05 ended
CT170 SG ¥2,830
62332-20030-03 note Weatherstrip, Rear Door Opening Trim, LH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥2,830
62332-20030-04 note Weatherstrip, Rear Door Opening Trim, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥2,830
62332-20030-04 note Weatherstrip, Rear Door Opening Trim, LH
1989-03 → 1990-05 ended
AT170 4F SG ¥2,830
62332-20030-04 note Weatherstrip, Rear Door Opening Trim, LH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥2,830
62332-20030-04 note Weatherstrip, Rear Door Opening Trim, LH
1989-03 → 1990-05 ended
CT170 SG ¥2,830
62332-20030-04 note Weatherstrip, Rear Door Opening Trim, LH
1988-05 → 1989-03 ended
AT170 4F SG ¥2,830
62332-20030-04 note Weatherstrip, Rear Door Opening Trim, LH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥2,830
62332-20030-06 note Weatherstrip, Rear Door Opening Trim, LH
1989-03 → 1990-05 ended
AT170 4F SG ¥2,830
62332-20030-06 note Weatherstrip, Rear Door Opening Trim, LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥2,830
62332-20030-06 note Weatherstrip, Rear Door Opening Trim, LH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥2,830
62332-20030-06 note Weatherstrip, Rear Door Opening Trim, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT ¥2,830
62332-20030-06 note Weatherstrip, Rear Door Opening Trim, LH
1988-05 → 1989-03 ended
AT170 4F SG ¥2,830
62332-20030-06 note Weatherstrip, Rear Door Opening Trim, LH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥2,830
62332-20030-06 note Weatherstrip, Rear Door Opening Trim, LH
1989-03 → 1990-05 ended
CT170 SG ¥2,830
62332-20030-14 note Weatherstrip, Rear Door Opening Trim, LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥2,830
62332-95500-03 note Weatherstrip, Rear Door Opening Trim, LH
1988-05 → 1992-11 ended
ST170 SX ¥3,000
62332-95500-06 note Weatherstrip, Rear Door Opening Trim, LH
1988-05 → 1992-11 ended
ST170 SX ¥3,000
62333A — Trim, Rear Door Opening, RH
62333-20080-03 note Trim, Rear Door Opening, RH
1988-05 → 1992-08 ended
AT170,175,CT170 DX,SG ¥2,360
62333-20080-04 note Trim, Rear Door Opening, RH
1988-05 → 1990-05 ended
AT170,175,CT170 SG ¥2,360
62333-20080-06 note Trim, Rear Door Opening, RH
1988-05 → 1992-08 ended
AT170,175,CT170 SG ¥2,360
62333-20080-14 note Trim, Rear Door Opening, RH
1990-05 → 1992-08 ended
AT170,175,CT170 SG ¥2,360
62333-95500-03 note Trim, Rear Door Opening, RH
1988-05 → 1992-11 ended
CT176,ET176 ¥3,110
62333-95500-06 note Trim, Rear Door Opening, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥3,110
62333-95R00-03 note Trim, Rear Door Opening, RH
1988-05 → 1992-11 ended
AT170,CT170 SV ¥2,360
62333-95R00-06 note Trim, Rear Door Opening, RH
1988-05 → 1990-05 ended
AT170 SV ¥2,360
62334A — Trim, Rear Door Opening, LH
62333-20080-03 note Trim, Rear Door Opening, LH
1988-05 → 1992-08 ended
AT170,175,CT170 DX,SG ¥2,360
62333-20080-04 note Trim, Rear Door Opening, LH
1988-05 → 1990-05 ended
AT170,175,CT170 SG ¥2,360
62333-20080-06 note Trim, Rear Door Opening, LH
1988-05 → 1992-08 ended
AT170,175,CT170 SG ¥2,360
62333-20080-14 note Trim, Rear Door Opening, LH
1990-05 → 1992-08 ended
AT170,175,CT170 SG ¥2,360
62333-95500-03 note Trim, Rear Door Opening, LH
1988-05 → 1992-11 ended
CT176,ET176 ¥3,110
62333-95500-06 note Trim, Rear Door Opening, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥3,110
62333-95R00-03 note Trim, Rear Door Opening, LH
1988-05 → 1992-11 ended
AT170,CT170 SV ¥2,360
62333-95R00-06 note Trim, Rear Door Opening, LH
1988-05 → 1990-05 ended
AT170 SV ¥2,360
62411B — Garnish, Center Pillar, Upper RH
62411-20250-03 note Garnish, Center Pillar, Upper RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥3,350
62411-20250-04 note Garnish, Center Pillar, Upper RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥3,350
62411-20250-06 note Garnish, Center Pillar, Upper RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥3,350
62411-20250-06 note Garnish, Center Pillar, Upper RH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥3,350
62411-20250-14 note Garnish, Center Pillar, Upper RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥3,350
62412B — Garnish, Center Pillar, Upper LH
62412-20250-03 note Garnish, Center Pillar, Upper LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥3,350
62412-20250-04 note Garnish, Center Pillar, Upper LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥3,350
62412-20250-06 note Garnish, Center Pillar, Upper LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥3,350
62412-20250-06 note Garnish, Center Pillar, Upper LH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥3,350
62412-20250-14 note Garnish, Center Pillar, Upper LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥3,350
62413A — Garnish, Center Pillar, Lower RH
62413-20120-03 note Garnish, Center Pillar, Lower RH
1988-05 → 1991-06 ended
AT17#,CT17#,ET176,ST170 ¥6,800
62413-20120-04 note Garnish, Center Pillar, Lower RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥6,800
62413-20120-06 note Garnish, Center Pillar, Lower RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥6,800
62413-20120-06 note Garnish, Center Pillar, Lower RH
1990-05 → 1991-06 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥6,800
62413-20120-14 note Garnish, Center Pillar, Lower RH
1990-05 → 1991-06 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥6,800
62413-20150-E0 note Garnish, Center Pillar, Lower RH
1991-06 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥5,100
62413-20150-P0 note Garnish, Center Pillar, Lower RH
1991-06 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥5,100
62413-20150-W3 note Garnish, Center Pillar, Lower RH
1991-06 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥5,100
62414A — Garnish, Center Pillar, Lower LH
62414-20100-03 note Garnish, Center Pillar, Lower LH
1988-05 → 1991-06 ended
AT17#,CT17#,ET176,ST170 ¥6,800
62414-20100-04 note Garnish, Center Pillar, Lower LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥6,800
62414-20100-06 note Garnish, Center Pillar, Lower LH
1990-05 → 1991-06 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥6,800
62414-20100-06 note Garnish, Center Pillar, Lower LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥6,800
62414-20100-14 note Garnish, Center Pillar, Lower LH
1990-05 → 1991-06 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥6,800
62414-20130-E0 note Garnish, Center Pillar, Lower LH
1991-06 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥5,100
62414-20130-P0 note Garnish, Center Pillar, Lower LH
1991-06 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥5,100
62414-20130-W3 note Garnish, Center Pillar, Lower LH
1991-06 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥5,100
62471A — Garnish, Roof Side, Inner RH
62471-20240-03 note Garnish, Roof Side, Inner RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 SED ¥1,750
62471-20240-03 note Garnish, Roof Side, Inner RH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 DX,S,SG,SGEXT ¥1,750
62471-20240-04 note Garnish, Roof Side, Inner RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥1,750
62471-20240-06 note Garnish, Roof Side, Inner RH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥1,750
62471-20240-06 note Garnish, Roof Side, Inner RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT ¥1,750
62471-20240-14 note Garnish, Roof Side, Inner RH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥1,750
62471-20440-03 note Garnish, Roof Side, Inner RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥10,100
62471-20440-03 note Garnish, Roof Side, Inner RH
1991-06 → 1992-08 ended
AT175 SE ¥10,100
62471-20440-04 note Garnish, Roof Side, Inner RH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥10,100
62471-20440-04 note Garnish, Roof Side, Inner RH
1991-06 → 1992-08 ended
AT175 SE ¥10,100
62471-20440-06 note Garnish, Roof Side, Inner RH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥10,100
62471-20440-06 note Garnish, Roof Side, Inner RH
1991-06 → 1992-08 ended
AT175 SE ¥10,100
62471-20450-03 note Garnish, Roof Side, Inner RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥10,100
62471-20450-04 note Garnish, Roof Side, Inner RH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥10,100
62471-20450-06 note Garnish, Roof Side, Inner RH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥10,100
62472A — Garnish, Roof Side, Inner LH
62472-20320-03 note Garnish, Roof Side, Inner LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 SED ¥1,750
62472-20320-03 note Garnish, Roof Side, Inner LH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 DX,S,SG,SGEXT ¥1,750
62472-20320-04 note Garnish, Roof Side, Inner LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥1,750
62472-20320-06 note Garnish, Roof Side, Inner LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT ¥1,750
62472-20320-06 note Garnish, Roof Side, Inner LH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥1,750
62472-20320-14 note Garnish, Roof Side, Inner LH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥1,750
62472-20460-03 note Garnish, Roof Side, Inner LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥10,100
62472-20460-03 note Garnish, Roof Side, Inner LH
1991-06 → 1992-08 ended
AT175 SE ¥10,100
62472-20460-04 note Garnish, Roof Side, Inner LH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥10,100
62472-20460-04 note Garnish, Roof Side, Inner LH
1991-06 → 1992-08 ended
AT175 SE ¥10,100
62472-20460-06 note Garnish, Roof Side, Inner LH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥10,100
62472-20460-06 note Garnish, Roof Side, Inner LH
1991-06 → 1992-08 ended
AT175 SE ¥10,100
62472-20470-03 note Garnish, Roof Side, Inner LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥10,100
62472-20470-04 note Garnish, Roof Side, Inner LH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥10,100
62472-20470-06 note Garnish, Roof Side, Inner LH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥10,100
62475D — Pad, Roof Side Inner Garnish, RH
62475-20210 Pad, Roof Side Inner Garnish, RH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥680
62498A — Pad, Roof Side Inner Garnish, LH
62475-20210 Pad, Roof Side Inner Garnish, LH
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥680
62551E — Clip(FOR REAR SEAT SIDE GARNISH)
90467-05053-03 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1990-05 ended
ST170 SE ¥260
90467-05053-03 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1990-05 ended
AT171 GLIM ¥260
90467-05053-03 note Clip(FOR REAR SEAT SIDE GARNISH)
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥260
90467-05053-03 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1992-08 ended
AT171 S ¥260
90467-05053-04 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1990-05 ended
ST170 SE ¥260
90467-05053-04 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1990-05 ended
AT171 S ¥260
90467-05053-06 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1990-05 ended
AT171 GLIM ¥260
90467-05053-06 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1990-05 ended
ST170 SE ¥260
90467-05053-06 note Clip(FOR REAR SEAT SIDE GARNISH)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥260
90467-05053-06 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1992-08 ended
AT171 S ¥260
90467-05053-14 note Clip(FOR REAR SEAT SIDE GARNISH)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥250
90467-05053-14 note Clip(FOR REAR SEAT SIDE GARNISH)
1990-05 → 1992-08 ended
AT171 EFIS ¥250
90467-06018-01 note Clip(FOR REAR SEAT SIDE GARNISH)
1990-05 → 1992-11 ended
AT171 EFI ¥90
90467-06018-01 note Clip(FOR REAR SEAT SIDE GARNISH)
1990-05 → 1992-11 ended
ST170 SX ¥90
90467-06018-01 note Clip(FOR REAR SEAT SIDE GARNISH)
1990-05 → 1992-11 ended
AT170,CT170 DX,SV ¥90
90467-06018-01 note Clip(FOR REAR SEAT SIDE GARNISH)
1990-05 → 1992-11 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥90
90467-06018-01 note Clip(FOR REAR SEAT SIDE GARNISH)
1990-05 → 1992-11 ended
AT170,CT170,ST170 SE ¥90
90467-06018-01 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1990-05 ended
ST170 SE ¥90
90467-06018-01 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1992-08 ended
AT171 S ¥90
90467-06018-01 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1990-05 ended
AT171 GLIM ¥90
90467-06018-01 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1990-05 ended
AT170,ST170 WG ¥90
90467-06018-01 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1990-05 ended
AT170 DX ¥90
90467-06018-01 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥90
62551F — Garnish, Rear Seat Side, RH
62551-20080-03 note Garnish, Rear Seat Side, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 DX,S,SE,SG,SGEXT ¥4,510
62551-20080-03 note Garnish, Rear Seat Side, RH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 DX,S,SG,SGEXT ¥4,510
62551-20080-04 note Garnish, Rear Seat Side, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥4,510
62551-20080-06 note Garnish, Rear Seat Side, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥4,510
62551-20080-06 note Garnish, Rear Seat Side, RH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥4,510
62551-20080-14 note Garnish, Rear Seat Side, RH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥4,510
62551-20090-03 note Garnish, Rear Seat Side, RH
1988-05 → 1990-05 ended
AT171 GLIM ¥9,900
62551-20090-03 note Garnish, Rear Seat Side, RH
1988-05 → 1990-05 ended
ST170 SE ¥9,900
62551-20090-03 note Garnish, Rear Seat Side, RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥9,900
62551-20090-03 note Garnish, Rear Seat Side, RH
1988-05 → 1992-08 ended
AT171 S ¥9,900
62551-20090-04 note Garnish, Rear Seat Side, RH
1988-05 → 1990-05 ended
AT171 S ¥9,900
62551-20090-04 note Garnish, Rear Seat Side, RH
1988-05 → 1990-05 ended
ST170 SE ¥9,900
62551-20090-06 note Garnish, Rear Seat Side, RH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥9,900
62551-20090-06 note Garnish, Rear Seat Side, RH
1988-05 → 1992-08 ended
AT171 S ¥9,900
62551-20090-06 note Garnish, Rear Seat Side, RH
1988-05 → 1990-05 ended
ST170 SE ¥9,900
62551-20090-06 note Garnish, Rear Seat Side, RH
1988-05 → 1990-05 ended
AT171 GLIM ¥9,900
62551-20090-14 note Garnish, Rear Seat Side, RH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥9,900
62551-20090-14 note Garnish, Rear Seat Side, RH
1990-05 → 1992-08 ended
AT171 EFIS ¥9,900
62551-20110-03 note Garnish, Rear Seat Side, RH
1988-05 → 1990-05 ended
AT170,ST170 WG ¥8,500
62551-20110-06 note Garnish, Rear Seat Side, RH
1988-05 → 1990-05 ended
AT170,ST170 WG ¥8,500
62551-20190-03 note Garnish, Rear Seat Side, RH
1990-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥6,600
62551-20190-06 note Garnish, Rear Seat Side, RH
1990-05 → 1992-11 ended
ST170 SX ¥6,600
62552F — Garnish, Rear Seat Side, LH
62552-20070-03 note Garnish, Rear Seat Side, LH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 DX,S,SG,SGEXT ¥4,510
62552-20070-03 note Garnish, Rear Seat Side, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 DX,S,SE,SG,SGEXT ¥4,510
62552-20070-04 note Garnish, Rear Seat Side, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥4,510
62552-20070-06 note Garnish, Rear Seat Side, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥4,510
62552-20070-06 note Garnish, Rear Seat Side, LH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥4,510
62552-20070-14 note Garnish, Rear Seat Side, LH
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥4,510
62552-20080-03 note Garnish, Rear Seat Side, LH
1988-05 → 1990-05 ended
AT171 GLIM ¥9,900
62552-20080-03 note Garnish, Rear Seat Side, LH
1988-05 → 1990-05 ended
ST170 SE ¥9,900
62552-20080-03 note Garnish, Rear Seat Side, LH
1988-05 → 1992-08 ended
AT171 S ¥9,900
62552-20080-04 note Garnish, Rear Seat Side, LH
1988-05 → 1990-05 ended
AT171 S ¥9,900
62552-20080-04 note Garnish, Rear Seat Side, LH
1988-05 → 1990-05 ended
ST170 SE ¥9,900
62552-20080-06 note Garnish, Rear Seat Side, LH
1988-05 → 1990-05 ended
AT171 GLIM ¥9,900
62552-20080-06 note Garnish, Rear Seat Side, LH
1988-05 → 1990-05 ended
ST170 SE ¥9,900
62552-20080-06 note Garnish, Rear Seat Side, LH
1988-05 → 1992-08 ended
AT171 S ¥9,900
62552-20080-14 note Garnish, Rear Seat Side, LH
1990-05 → 1992-08 ended
AT171 EFIS ¥9,900
62552-20100-03 note Garnish, Rear Seat Side, LH
1988-05 → 1990-05 ended
AT170,ST170 WG ¥8,500
62552-20100-06 note Garnish, Rear Seat Side, LH
1988-05 → 1990-05 ended
AT170,ST170 WG ¥8,500
62552-20160-03 note Garnish, Rear Seat Side, LH
1990-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥6,600
62552-20160-06 note Garnish, Rear Seat Side, LH
1990-05 → 1992-11 ended
ST170 SX ¥6,600
62552-20170-03 note Garnish, Rear Seat Side, LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥8,700
62552-20170-04 note Garnish, Rear Seat Side, LH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥8,700
62552-20170-06 note Garnish, Rear Seat Side, LH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥8,700
67913 — Plate, Front Door Scuff, RH
67913-20150-03 note Plate, Front Door Scuff, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥2,680
67913-20150-04 note Plate, Front Door Scuff, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,680
67913-20150-06 note Plate, Front Door Scuff, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥2,680
67913-20150-06 note Plate, Front Door Scuff, RH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥2,680
67913-20150-14 note Plate, Front Door Scuff, RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,680
67914 — Plate, Front Door Scuff, LH
67914-20110-03 note Plate, Front Door Scuff, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥2,680
67914-20110-04 note Plate, Front Door Scuff, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,680
67914-20110-06 note Plate, Front Door Scuff, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥2,680
67914-20110-06 note Plate, Front Door Scuff, LH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥2,680
67914-20110-14 note Plate, Front Door Scuff, LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,680
67917A — Plate, Rear Door Scuff, RH
67917-20130-03 note Plate, Rear Door Scuff, RH
1988-05 → 1992-11 ended
AT17#,CT170,ST170 ¥3,420
67917-20130-04 note Plate, Rear Door Scuff, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥3,420
67917-20130-06 note Plate, Rear Door Scuff, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥3,420
67917-20130-06 note Plate, Rear Door Scuff, RH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥3,420
67917-20130-14 note Plate, Rear Door Scuff, RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥3,420
67917-95501-03 note Plate, Rear Door Scuff, RH
1988-05 → 1992-11 ended
CT176,ET176 ¥3,420
67917-95501-06 note Plate, Rear Door Scuff, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥3,420
67918A — Plate, Rear Door Scuff, LH
67918-20090-03 note Plate, Rear Door Scuff, LH
1988-05 → 1992-11 ended
AT17#,CT170,ST170 ¥3,420
67918-20090-04 note Plate, Rear Door Scuff, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥3,420
67918-20090-06 note Plate, Rear Door Scuff, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥3,420
67918-20090-06 note Plate, Rear Door Scuff, LH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥3,420
67918-20090-14 note Plate, Rear Door Scuff, LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥3,420
67918-95500-03 note Plate, Rear Door Scuff, LH
1988-05 → 1992-11 ended
CT176,ET176 ¥3,420
67918-95500-06 note Plate, Rear Door Scuff, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG ¥3,420
67921E — Retainer, Rear Door Scuff Plate
67921-20020 Retainer, Rear Door Scuff Plate
1988-05 → 1988-12 ended
AT17#,CT17#,ET176,ST170 ¥190
67921-20020 Retainer, Rear Door Scuff Plate
1988-12 → 1991-10 ended
AT17#,CT17#,ET176,ST170 ¥190
67921-20020 Retainer, Rear Door Scuff Plate
1991-10 → 1991-11 ended
AT17#,CT170,ST170 ¥190
67921-20020 Retainer, Rear Door Scuff Plate
1991-10 → 1992-11 ended
CT176,ET176 ¥190
67921-20020 Retainer, Rear Door Scuff Plate
1991-11 → 1992-11 ended
AT17#,CT170,ST170 ¥190
67921F — Retainer, Front Door Scuff Plate
67921-95501 Retainer, Front Door Scuff Plate
1988-12 → 1991-10 ended
AT17#,CT17#,ET176,ST170 ¥110
67921-95501 Retainer, Front Door Scuff Plate
1991-10 → 1991-11 ended
AT17#,CT170,ST170 ¥110
67921-95501 Retainer, Front Door Scuff Plate
1991-10 → 1992-11 ended
CT176,ET176 ¥110
67921-95501 Retainer, Front Door Scuff Plate
1991-11 → 1992-11 ended
AT17#,CT170,ST170 ¥110
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
