Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

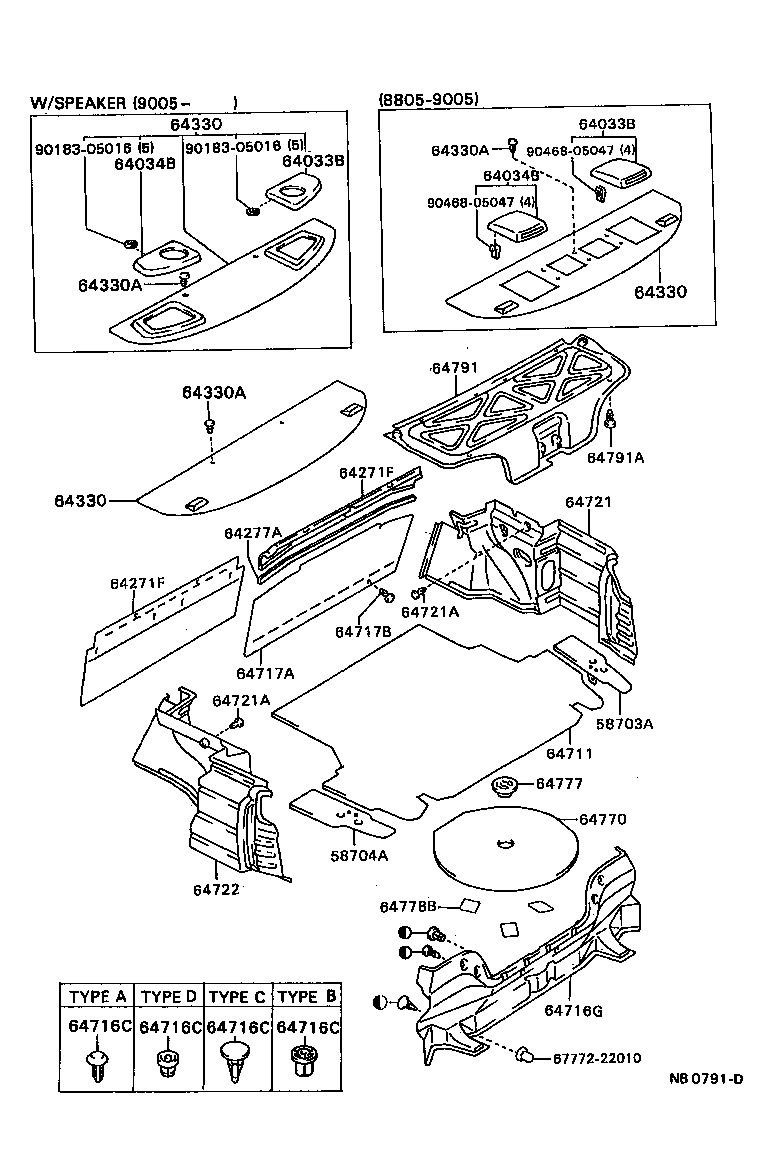

Exploded illustration NB0791D 64330 — PANEL ASSY, PACKAGE TRAY TRIM (104 parts) 64033B — GRILLE SUB-ASSY, REAR SPEAKER, RH (39 parts) 9018305016 — not listed in this catalogue 9018305016 — not listed in this catalogue 64330A — CLIP(FOR PACKAGE TRAY TRIM PANEL) (48 parts) 9046805047 — not listed in this catalogue 64033B — GRILLE SUB-ASSY, REAR SPEAKER, RH (39 parts) 64034B — GRILLE SUB-ASSY, REAR SPEAKER, LH (39 parts) 64034B — GRILLE SUB-ASSY, REAR SPEAKER, LH (39 parts) 9046805047 — not listed in this catalogue 64330A — CLIP(FOR PACKAGE TRAY TRIM PANEL) (48 parts) 64330 — PANEL ASSY, PACKAGE TRAY TRIM (104 parts) 64791 — COVER, BACK DOOR TRIM (5 parts) 64330A — CLIP(FOR PACKAGE TRAY TRIM PANEL) (48 parts) 64791A — CLIP(FOR BACK DOOR TRIM) (4 parts) 64271F — TRIM, ROOM PARTITION (16 parts) 64330 — PANEL ASSY, PACKAGE TRAY TRIM (104 parts) 64721 — COVER, LUGGAGE COMPARTMENT TRIM, INNER RH (8 parts) 64277A — MOULDING, ROOM PARTITION TRIM (12 parts) 64271F — TRIM, ROOM PARTITION (16 parts) 64721A — CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) (7 parts) 64717B — CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) (7 parts) 64717A — COVER, LUGGAGE COMPARTMENT TRIM, FRONT (9 parts) 64721A — CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) (7 parts) 58703A — COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH (2 parts) 64711 — MAT, LUGGAGE COMPARTMENT FLOOR (13 parts) 64777 — CLAMP, SPARE WHEEL COVER (1 parts) 64770 — COVER ASSY, SPARE WHEEL (3 parts) 58704A — COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH (2 parts) 64722 — COVER, LUGGAGE COMPARTMENT TRIM, INNER LH (8 parts) 64778B — PROTECTOR, SPARE WHEEL (2 parts) 64716G — COVER, LUGGAGE COMPARTMENT TRIM, REAR (9 parts) 64716C — CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) (26 parts) 64716C — CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) (26 parts) 64716C — CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) (26 parts) 64716C — CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) (26 parts) 6777222010 — not listed in this catalogue
NB0791D · 32 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
364 parts on this figure
Part number Description Fitment Price
58703A — Cover Sub-assy, Luggage Compartment Side, RH
58703-20130 Cover Sub-assy, Luggage Compartment Side, RH
1988-08 → 1992-08 ended
AT175 ¥1,390
58703-20140 Cover Sub-assy, Luggage Compartment Side, RH
1988-05 → 1992-08 ended
AT170,171,CT170,ST170 SED ¥1,280
58704A — Cover Sub-assy, Luggage Compartment Side, LH
58704-20130 Cover Sub-assy, Luggage Compartment Side, LH
1988-08 → 1992-08 ended
AT175 ¥1,390
58704-20140 Cover Sub-assy, Luggage Compartment Side, LH
1988-05 → 1992-08 ended
AT170,171,CT170,ST170 SED ¥1,280
64033B — Grille Sub-assy, Rear Speaker, RH
64033-20120-03 note Grille Sub-assy, Rear Speaker, RH
1988-05 → 1988-12 ended
AT175 SGEXT;AT170,171,CT170,ST170 GLIM,SE,SG,SGEXT ¥5,300
64033-20120-03 note Grille Sub-assy, Rear Speaker, RH
1988-12 → 1989-03 ended
AT170,171,CT170,ST170 GLIM,SE,SG,SGEXT ¥5,300
64033-20120-03 note Grille Sub-assy, Rear Speaker, RH
1988-05 → 1990-05 ended
AT171 S ¥5,300
64033-20120-03 note Grille Sub-assy, Rear Speaker, RH
1988-12 → 1990-05 ended
AT175 SGEXT ¥5,300
64033-20120-03 note Grille Sub-assy, Rear Speaker, RH
1989-03 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,SE,SG ¥5,300
64033-20120-03 note Grille Sub-assy, Rear Speaker, RH
1989-03 → 1990-05 ended
ST170 SGEXT ¥5,300
64033-20120-04 note Grille Sub-assy, Rear Speaker, RH
1988-05 → 1988-12 ended
AT175 SGEXT;AT170,CT170,ST170 SE,SG,SGEXT ¥5,300
64033-20120-04 note Grille Sub-assy, Rear Speaker, RH
1988-12 → 1989-03 ended
AT170,CT170,ST170 SE,SG,SGEXT ¥5,300
64033-20120-04 note Grille Sub-assy, Rear Speaker, RH
1988-05 → 1990-05 ended
AT171 S ¥5,300
64033-20120-04 note Grille Sub-assy, Rear Speaker, RH
1988-12 → 1990-05 ended
AT175 SGEXT ¥5,300
64033-20120-04 note Grille Sub-assy, Rear Speaker, RH
1989-03 → 1990-05 ended
ST170 SGEXT ¥5,300
64033-20120-04 note Grille Sub-assy, Rear Speaker, RH
1989-03 → 1990-05 ended
AT170,CT170,ST170 SE,SG ¥5,300
64033-20120-06 note Grille Sub-assy, Rear Speaker, RH
1988-12 → 1990-05 ended
AT175 SGEXT ¥5,300
64033-20120-06 note Grille Sub-assy, Rear Speaker, RH
1989-03 → 1990-05 ended
ST170 SGEXT ¥5,300
64033-20120-06 note Grille Sub-assy, Rear Speaker, RH
1989-03 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,SE,SG ¥5,300
64033-20120-06 note Grille Sub-assy, Rear Speaker, RH
1988-05 → 1990-05 ended
AT171 S ¥5,300
64033-20120-06 note Grille Sub-assy, Rear Speaker, RH
1988-12 → 1989-03 ended
AT170,171,CT170,ST170 GLIM,SE,SG,SGEXT ¥5,300
64033-20120-06 note Grille Sub-assy, Rear Speaker, RH
1988-05 → 1988-12 ended
AT175 SGEXT;AT170,171,CT170,ST170 GLIM,SE,SG,SGEXT ¥5,300
64033-20250-03 note Grille Sub-assy, Rear Speaker, RH
1990-12 → 1991-08 ended
CT170 SG ¥4,620
64033-20250-03 note Grille Sub-assy, Rear Speaker, RH
1991-08 → 1992-08 ended
AT170,ST170 SGEXT ¥4,620
64033-20250-03 note Grille Sub-assy, Rear Speaker, RH
1991-08 → 1992-08 ended
CT170 SG ¥4,620
64033-20250-03 note Grille Sub-assy, Rear Speaker, RH
1990-12 → 1992-08 ended
AT175 SE,SGEXT;AT170,171,CT170,ST170 GLIM,SE ¥4,620
64033-20250-03 note Grille Sub-assy, Rear Speaker, RH
1990-05 → 1992-08 ended
AT171 EFIS ¥4,620
64033-20250-03 note Grille Sub-assy, Rear Speaker, RH
1990-12 → 1991-08 ended
AT170,ST170 SGEXT ¥4,620
64033-20250-03 note Grille Sub-assy, Rear Speaker, RH
1990-05 → 1990-12 ended
AT17#,CT170,ST170 GLIM,SE,SGEXT ¥4,620
64033-20250-04 note Grille Sub-assy, Rear Speaker, RH
1990-12 → 1991-08 ended
AT170,ST170 SGEXT ¥4,620
64033-20250-04 note Grille Sub-assy, Rear Speaker, RH
1991-08 → 1992-04 ended
CT170 SG ¥4,620
64033-20250-04 note Grille Sub-assy, Rear Speaker, RH
1990-05 → 1992-08 ended
AT171 EFIS ¥4,620
64033-20250-04 note Grille Sub-assy, Rear Speaker, RH
1991-08 → 1992-08 ended
AT170,ST170 SGEXT ¥4,620
64033-20250-04 note Grille Sub-assy, Rear Speaker, RH
1990-12 → 1992-08 ended
AT175 SE,SGEXT;AT170,CT170,ST170 SE ¥4,620
64033-20250-04 note Grille Sub-assy, Rear Speaker, RH
1990-12 → 1991-08 ended
CT170 SG ¥4,620
64033-20250-04 note Grille Sub-assy, Rear Speaker, RH
1990-05 → 1990-12 ended
AT170,175,CT170,ST170 SE,SGEXT ¥4,620
64033-20250-06 note Grille Sub-assy, Rear Speaker, RH
1990-12 → 1992-08 ended
AT175 SE,SGEXT;AT170,CT170,ST170 SE ¥4,620
64033-20250-06 note Grille Sub-assy, Rear Speaker, RH
1991-08 → 1992-08 ended
AT170,ST170 SGEXT ¥4,620
64033-20250-06 note Grille Sub-assy, Rear Speaker, RH
1991-08 → 1992-08 ended
CT170 SG ¥4,620
64033-20250-06 note Grille Sub-assy, Rear Speaker, RH
1990-05 → 1990-12 ended
AT170,175,CT170,ST170 SE,SGEXT ¥4,620
64033-20250-06 note Grille Sub-assy, Rear Speaker, RH
1990-05 → 1992-08 ended
AT171 EFIS ¥4,620
64033-20250-06 note Grille Sub-assy, Rear Speaker, RH
1990-12 → 1991-08 ended
AT170,ST170 SGEXT ¥4,620
64033-20250-06 note Grille Sub-assy, Rear Speaker, RH
1990-12 → 1991-08 ended
CT170 SG ¥4,620
64034B — Grille Sub-assy, Rear Speaker, LH
64033-20120-03 note Grille Sub-assy, Rear Speaker, LH
1989-03 → 1990-05 ended
ST170 SGEXT ¥5,300
64033-20120-03 note Grille Sub-assy, Rear Speaker, LH
1989-03 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,SE,SG ¥5,300
64033-20120-03 note Grille Sub-assy, Rear Speaker, LH
1988-12 → 1990-05 ended
AT175 SGEXT ¥5,300
64033-20120-03 note Grille Sub-assy, Rear Speaker, LH
1988-05 → 1990-05 ended
AT171 S ¥5,300
64033-20120-03 note Grille Sub-assy, Rear Speaker, LH
1988-12 → 1989-03 ended
AT170,171,CT170,ST170 GLIM,SE,SG,SGEXT ¥5,300
64033-20120-03 note Grille Sub-assy, Rear Speaker, LH
1988-05 → 1988-12 ended
AT175 SGEXT;AT170,171,CT170,ST170 GLIM,SE,SG,SGEXT ¥5,300
64033-20120-04 note Grille Sub-assy, Rear Speaker, LH
1988-12 → 1989-03 ended
AT170,CT170,ST170 SE,SG,SGEXT ¥5,300
64033-20120-04 note Grille Sub-assy, Rear Speaker, LH
1988-05 → 1990-05 ended
AT171 S ¥5,300
64033-20120-04 note Grille Sub-assy, Rear Speaker, LH
1988-12 → 1990-05 ended
AT175 SGEXT ¥5,300
64033-20120-04 note Grille Sub-assy, Rear Speaker, LH
1989-03 → 1990-05 ended
ST170 SGEXT ¥5,300
64033-20120-04 note Grille Sub-assy, Rear Speaker, LH
1988-05 → 1988-12 ended
AT175 SGEXT;AT170,CT170,ST170 SE,SG,SGEXT ¥5,300
64033-20120-04 note Grille Sub-assy, Rear Speaker, LH
1989-03 → 1990-05 ended
AT170,CT170,ST170 SE,SG ¥5,300
64033-20120-06 note Grille Sub-assy, Rear Speaker, LH
1988-12 → 1989-03 ended
AT170,171,CT170,ST170 GLIM,SE,SG,SGEXT ¥5,300
64033-20120-06 note Grille Sub-assy, Rear Speaker, LH
1989-03 → 1990-05 ended
ST170 SGEXT ¥5,300
64033-20120-06 note Grille Sub-assy, Rear Speaker, LH
1989-03 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,SE,SG ¥5,300
64033-20120-06 note Grille Sub-assy, Rear Speaker, LH
1988-12 → 1990-05 ended
AT175 SGEXT ¥5,300
64033-20120-06 note Grille Sub-assy, Rear Speaker, LH
1988-05 → 1988-12 ended
AT175 SGEXT;AT170,171,CT170,ST170 GLIM,SE,SG,SGEXT ¥5,300
64033-20120-06 note Grille Sub-assy, Rear Speaker, LH
1988-05 → 1990-05 ended
AT171 S ¥5,300
64034-20220-03 note Grille Sub-assy, Rear Speaker, LH
1990-05 → 1990-12 ended
AT17#,CT170,ST170 GLIM,SE,SGEXT ¥4,620
64034-20220-03 note Grille Sub-assy, Rear Speaker, LH
1991-08 → 1992-08 ended
AT170,ST170 SGEXT ¥4,620
64034-20220-03 note Grille Sub-assy, Rear Speaker, LH
1990-12 → 1991-08 ended
CT170 SG ¥4,620
64034-20220-03 note Grille Sub-assy, Rear Speaker, LH
1990-12 → 1991-08 ended
AT170,ST170 SGEXT ¥4,620
64034-20220-03 note Grille Sub-assy, Rear Speaker, LH
1991-08 → 1992-08 ended
CT170 SG ¥4,620
64034-20220-03 note Grille Sub-assy, Rear Speaker, LH
1990-12 → 1992-08 ended
AT175 SE,SGEXT;AT170,171,CT170,ST170 GLIM,SE ¥4,620
64034-20220-03 note Grille Sub-assy, Rear Speaker, LH
1990-05 → 1992-08 ended
AT171 EFIS ¥4,620
64034-20220-04 note Grille Sub-assy, Rear Speaker, LH
1991-08 → 1992-08 ended
AT170,ST170 SGEXT ¥4,620
64034-20220-04 note Grille Sub-assy, Rear Speaker, LH
1990-12 → 1992-08 ended
AT175 SE,SGEXT;AT170,CT170,ST170 SE ¥4,620
64034-20220-04 note Grille Sub-assy, Rear Speaker, LH
1990-05 → 1992-08 ended
AT171 EFIS ¥4,620
64034-20220-04 note Grille Sub-assy, Rear Speaker, LH
1991-08 → 1992-04 ended
CT170 SG ¥4,620
64034-20220-04 note Grille Sub-assy, Rear Speaker, LH
1990-12 → 1991-08 ended
AT170,ST170 SGEXT ¥4,620
64034-20220-04 note Grille Sub-assy, Rear Speaker, LH
1990-05 → 1990-12 ended
AT170,175,CT170,ST170 SE,SGEXT ¥4,620
64034-20220-04 note Grille Sub-assy, Rear Speaker, LH
1990-12 → 1991-08 ended
CT170 SG ¥4,620
64034-20220-06 note Grille Sub-assy, Rear Speaker, LH
1990-12 → 1991-08 ended
AT170,ST170 SGEXT ¥4,620
64034-20220-06 note Grille Sub-assy, Rear Speaker, LH
1991-08 → 1992-08 ended
AT170,ST170 SGEXT ¥4,620
64034-20220-06 note Grille Sub-assy, Rear Speaker, LH
1991-08 → 1992-08 ended
CT170 SG ¥4,620
64034-20220-06 note Grille Sub-assy, Rear Speaker, LH
1990-05 → 1990-12 ended
AT170,175,CT170,ST170 SE,SGEXT ¥4,620
64034-20220-06 note Grille Sub-assy, Rear Speaker, LH
1990-12 → 1992-08 ended
AT175 SE,SGEXT;AT170,CT170,ST170 SE ¥4,620
64034-20220-06 note Grille Sub-assy, Rear Speaker, LH
1990-12 → 1991-08 ended
CT170 SG ¥4,620
64034-20220-06 note Grille Sub-assy, Rear Speaker, LH
1990-05 → 1992-08 ended
AT171 EFIS ¥4,620
64271F — Trim, Room Partition
64271-20160-B0 note Trim, Room Partition
1988-05 → 1990-05 ended
AT171,175 S,SG,SGEXT ¥2,140
64271-20160-B0 note Trim, Room Partition
1988-05 → 1990-05 ended
AT170,CT170,ST170 SED ¥2,140
64271-20160-B0 note Trim, Room Partition
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥2,140
64271-20160-B0 note Trim, Room Partition
1990-05 → 1992-08 ended
AT170 DX ¥2,140
64271-20170-03 note Trim, Room Partition
1988-05 → 1990-05 ended
AT171 GLIM ¥2,330
64271-20170-03 note Trim, Room Partition
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥2,330
64271-20170-03 note Trim, Room Partition
1988-05 → 1992-08 ended
AT171 S ¥2,330
64271-20170-03 note Trim, Room Partition
1988-05 → 1990-05 ended
ST170 SE ¥2,330
64271-20170-04 note Trim, Room Partition
1988-05 → 1990-05 ended
AT171 S ¥2,330
64271-20170-04 note Trim, Room Partition
1988-05 → 1990-05 ended
ST170 SE ¥2,330
64271-20170-06 note Trim, Room Partition
1988-05 → 1990-05 ended
ST170 SE ¥2,330
64271-20170-06 note Trim, Room Partition
1988-05 → 1990-05 ended
AT171 GLIM ¥2,330
64271-20170-06 note Trim, Room Partition
1988-05 → 1992-08 ended
AT171 S ¥2,330
64271-20170-06 note Trim, Room Partition
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥2,330
64271-20170-14 note Trim, Room Partition
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥2,330
64271-20170-14 note Trim, Room Partition
1990-05 → 1992-08 ended
AT171 EFIS ¥2,330
64277A — Moulding, Room Partition Trim
64277-20020-03 note Moulding, Room Partition Trim
1988-05 → 1990-05 ended
AT171 GLIM ¥1,400
64277-20020-03 note Moulding, Room Partition Trim
1988-05 → 1990-05 ended
ST170 SE ¥1,400
64277-20020-03 note Moulding, Room Partition Trim
1988-05 → 1992-08 ended
AT171 S ¥1,400
64277-20020-03 note Moulding, Room Partition Trim
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥1,400
64277-20020-04 note Moulding, Room Partition Trim
1988-05 → 1990-05 ended
ST170 SE ¥1,400
64277-20020-04 note Moulding, Room Partition Trim
1988-05 → 1990-05 ended
AT171 S ¥1,400
64277-20020-06 note Moulding, Room Partition Trim
1988-05 → 1990-05 ended
AT171 GLIM ¥1,400
64277-20020-06 note Moulding, Room Partition Trim
1988-05 → 1990-05 ended
ST170 SE ¥1,400
64277-20020-06 note Moulding, Room Partition Trim
1988-05 → 1992-08 ended
AT171 S ¥1,400
64277-20020-06 note Moulding, Room Partition Trim
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥1,400
64277-20020-14 note Moulding, Room Partition Trim
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥1,400
64277-20020-14 note Moulding, Room Partition Trim
1990-05 → 1992-08 ended
AT171 EFIS ¥1,400
64330 — Panel Assy, Package Tray Trim
64330-20610-03 note Panel Assy, Package Tray Trim
1988-05 → 1992-08 ended
AT17#,CT170,ST170 DX,S,SG,SGEXT ¥4,760
64330-20610-04 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SG,SGEXT ¥4,760
64330-20610-06 note Panel Assy, Package Tray Trim
1988-05 → 1992-08 ended
AT17#,CT170,ST170 S,SG,SGEXT ¥4,760
64330-20610-14 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SG,SGEXT ¥4,760
64330-20640-03 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT170,171 S,SE ¥9,800
64330-20640-03 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT171,CT170,ST170 GLIM,SE ¥9,800
64330-20640-03 note Panel Assy, Package Tray Trim
1988-08 → 1990-05 ended
AT175 SGEXT ¥9,800
64330-20640-03 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT170,CT170,ST170 SG,SGEXT ¥9,800
64330-20640-04 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT170,CT170,ST170 SG,SGEXT ¥9,800
64330-20640-04 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT170,171 S,SE ¥9,800
64330-20640-04 note Panel Assy, Package Tray Trim
1988-08 → 1990-05 ended
AT175 SGEXT ¥9,800
64330-20640-04 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
CT170,ST170 SE ¥9,800
64330-20640-06 note Panel Assy, Package Tray Trim
1988-08 → 1990-05 ended
AT175 SGEXT ¥9,800
64330-20640-06 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT170,CT170,ST170 SG,SGEXT ¥9,800
64330-20640-06 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT170,171 S,SE ¥9,800
64330-20640-06 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT171,CT170,ST170 GLIM,SE ¥9,800
64330-20650-03 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT171 S ¥8,700
64330-20650-03 note Panel Assy, Package Tray Trim
1988-12 → 1989-03 ended
AT175 SGEXT ¥8,700
64330-20650-03 note Panel Assy, Package Tray Trim
1988-05 → 1992-08 ended
AT175 SE;AT170 SE CBR ¥8,700
64330-20650-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT171 EFIS ¥8,700
64330-20650-03 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT171 GLIM ¥8,700
64330-20650-03 note Panel Assy, Package Tray Trim
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥8,700
64330-20650-04 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT170 SE ¥8,700
64330-20650-04 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT171 S ¥8,700
64330-20650-06 note Panel Assy, Package Tray Trim
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥8,700
64330-20650-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT171 EFIS ¥8,700
64330-20650-06 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT171 S ¥8,700
64330-20650-06 note Panel Assy, Package Tray Trim
1988-05 → 1992-08 ended
AT175 SE;AT170 SE CBR ¥8,700
64330-20650-06 note Panel Assy, Package Tray Trim
1988-05 → 1990-05 ended
AT171 GLIM ¥8,700
64330-20650-06 note Panel Assy, Package Tray Trim
1988-12 → 1989-03 ended
AT175 SGEXT ¥8,700
64330-20650-14 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT171 EFIS ¥8,700
64330-20650-14 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT175 SE ¥8,700
64330-2B360-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥9,800
64330-2B360-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥9,800
64330-2B360-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT175;AT170,171,CT170,ST170 S,SG,SGEXT ¥9,800
64330-2B430-03 note Panel Assy, Package Tray Trim
1991-06 → 1992-08 ended
AT175 SE ¥9,800
64330-2B430-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170 SE ¥9,800
64330-2B430-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT171,CT170,ST170 GLIM,SE ¥9,800
64330-2B430-04 note Panel Assy, Package Tray Trim
1991-06 → 1992-08 ended
AT175 SE ¥9,800
64330-2B430-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
CT170,ST170 SE ¥9,800
64330-2B430-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170 SE ¥9,800
64330-2B430-06 note Panel Assy, Package Tray Trim
1991-06 → 1992-08 ended
AT175 SE ¥9,800
64330-2B430-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
CT170,ST170 SE ¥9,800
64330-2B430-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170 SE ¥9,800
64330-2B440-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170 SE ¥9,800
64330-2B440-03 note Panel Assy, Package Tray Trim
1991-06 → 1992-08 ended
AT175 SE ¥9,800
64330-2B440-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT171,CT170,ST170 GLIM,SE ¥9,800
64330-2B440-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
CT170,ST170 SE ¥9,800
64330-2B440-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170 SE ¥9,800
64330-2B440-04 note Panel Assy, Package Tray Trim
1991-06 → 1992-08 ended
AT175 SE ¥9,800
64330-2B440-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
CT170,ST170 SE ¥9,800
64330-2B440-06 note Panel Assy, Package Tray Trim
1991-06 → 1992-08 ended
AT175 SE ¥9,800
64330-2B440-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170 SE ¥9,800
64330-2B450-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT171,CT170,ST170 GLIM,SE ¥9,800
64330-2B450-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170 SE ¥9,800
64330-2B450-03 note Panel Assy, Package Tray Trim
1991-06 → 1992-08 ended
AT175 SE ¥9,800
64330-2B450-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
CT170,ST170 SE ¥9,800
64330-2B450-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170 SE ¥9,800
64330-2B450-04 note Panel Assy, Package Tray Trim
1991-06 → 1992-08 ended
AT175 SE ¥9,800
64330-2B450-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170 SE ¥9,800
64330-2B450-06 note Panel Assy, Package Tray Trim
1991-06 → 1992-08 ended
AT175 SE ¥9,800
64330-2B450-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
CT170,ST170 SE ¥9,800
64330-2B460-03 note Panel Assy, Package Tray Trim
1991-06 → 1992-08 ended
AT175 SE ¥9,800
64330-2B460-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170 SE ¥9,800
64330-2B460-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT171,CT170,ST170 GLIM,SE ¥9,800
64330-2B460-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
CT170,ST170 SE ¥9,800
64330-2B460-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170 SE ¥9,800
64330-2B460-04 note Panel Assy, Package Tray Trim
1991-06 → 1992-08 ended
AT175 SE ¥9,800
64330-2B460-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
CT170,ST170 SE ¥9,800
64330-2B460-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170 SE ¥9,800
64330-2B460-06 note Panel Assy, Package Tray Trim
1991-06 → 1992-08 ended
AT175 SE ¥9,800
64330-2B470-03 note Panel Assy, Package Tray Trim
1990-12 → 1992-08 ended
AT175 SGEXT ¥9,800
64330-2B470-03 note Panel Assy, Package Tray Trim
1991-08 → 1992-08 ended
CT170 SG ¥9,800
64330-2B470-03 note Panel Assy, Package Tray Trim
1990-12 → 1991-08 ended
AT170,ST170 SGEXT ¥9,800
64330-2B470-03 note Panel Assy, Package Tray Trim
1990-12 → 1991-08 ended
CT170 SG ¥9,800
64330-2B470-03 note Panel Assy, Package Tray Trim
1991-08 → 1992-08 ended
AT170,ST170 SGEXT ¥9,800
64330-2B470-03 note Panel Assy, Package Tray Trim
1990-05 → 1990-12 ended
AT170,175,ST170 SGEXT ¥9,800
64330-2B470-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT171 EFIS ¥9,800
64330-2B470-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT175 SE ¥9,800
64330-2B470-04 note Panel Assy, Package Tray Trim
1991-08 → 1992-08 ended
AT170,ST170 SGEXT ¥9,800
64330-2B470-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT171 EFIS ¥9,800
64330-2B470-04 note Panel Assy, Package Tray Trim
1990-12 → 1992-08 ended
AT175 SGEXT ¥9,800
64330-2B470-04 note Panel Assy, Package Tray Trim
1990-05 → 1990-12 ended
AT170,175,ST170 SGEXT ¥9,800
64330-2B470-04 note Panel Assy, Package Tray Trim
1990-12 → 1991-08 ended
CT170 SG ¥9,800
64330-2B470-04 note Panel Assy, Package Tray Trim
1990-12 → 1991-08 ended
AT170,ST170 SGEXT ¥9,800
64330-2B470-04 note Panel Assy, Package Tray Trim
1991-08 → 1992-04 ended
CT170 SG ¥9,800
64330-2B470-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT175 SE ¥9,800
64330-2B470-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT171 EFIS ¥9,800
64330-2B470-06 note Panel Assy, Package Tray Trim
1991-08 → 1992-08 ended
CT170 SG ¥9,800
64330-2B470-06 note Panel Assy, Package Tray Trim
1990-05 → 1990-12 ended
AT170,175,ST170 SGEXT ¥9,800
64330-2B470-06 note Panel Assy, Package Tray Trim
1990-12 → 1991-08 ended
CT170 SG ¥9,800
64330-2B470-06 note Panel Assy, Package Tray Trim
1990-12 → 1991-08 ended
AT170,ST170 SGEXT ¥9,800
64330-2B470-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT175 SE ¥9,800
64330-2B470-06 note Panel Assy, Package Tray Trim
1990-12 → 1992-08 ended
AT175 SGEXT ¥9,800
64330-2B470-06 note Panel Assy, Package Tray Trim
1991-08 → 1992-08 ended
AT170,ST170 SGEXT ¥9,800
64330-2B480-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT175 SE ¥9,800
64330-2B480-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170,175,ST170 SGEXT ¥9,800
64330-2B480-03 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT171 EFIS ¥9,800
64330-2B480-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT175 SE ¥9,800
64330-2B480-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170,175,ST170 SGEXT ¥9,800
64330-2B480-04 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT171 EFIS ¥9,800
64330-2B480-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT171 EFIS ¥9,800
64330-2B480-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT170,175,ST170 SGEXT ¥9,800
64330-2B480-06 note Panel Assy, Package Tray Trim
1990-05 → 1992-08 ended
AT175 SE ¥9,800
64330A — Clip(FOR PACKAGE TRAY TRIM PANEL)
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1990-09 ended
AT171,CT170,ST170 GLIM,SE ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1990-09 ended
AT170,175 SE ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1990-09 ended
AT170,175,CT170,ST170 SG,SGEXT ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1990-09 ended
AT171 EFIS ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1990-09 ended
CT170,ST170 SED;AT17# DX,GLIM,S,SG,SGEXT ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1990-09 ended
AT170 SE ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1990-09 ended
AT175 SE ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1989-03 → 1990-05 ended
AT170,CT170 SG ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1989-03 → 1990-05 ended
ST170 SGEXT ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-12 → 1990-05 ended
AT175 SGEXT ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,SE ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-05 → 1990-05 ended
AT171 S ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-05 → 1990-05 ended
AT17#,CT170,ST170 DX,S,SG,SGEXT ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-08 → 1988-12 ended
AT175 SGEXT ¥120
90467-08046-03 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-05 → 1989-03 ended
AT170,CT170,ST170 SG,SGEXT ¥120
90467-08046-24 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-05 → 1988-07 ended
AT171 S ¥120
90467-08046-24 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-05 → 1988-07 ended
AT170,CT170,ST170 SG,SGEXT ¥120
90467-08046-24 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-05 → 1988-07 ended
AT17#,CT170,ST170 S,SG,SGEXT ¥120
90467-08046-24 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-05 → 1988-07 ended
AT170,CT170,ST170 SE ¥120
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
AT170 SE ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
CT170,ST170 SED;AT17# S,SG,SGEXT ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
AT175 SE ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
AT171 EFIS ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
CT170,ST170 SE ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
AT170,175,CT170,ST170 SG,SGEXT ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
AT170,175 SE ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SG,SGEXT ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-08 → 1988-12 ended
AT175 SGEXT ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1989-03 → 1990-05 ended
AT170,CT170 SG ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1989-03 → 1990-05 ended
ST170 SGEXT ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-05 → 1989-03 ended
AT170,CT170,ST170 SG,SGEXT ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-12 → 1990-05 ended
AT175 SGEXT ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,SE ¥110
90467-08046-26 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-05 → 1990-05 ended
AT171 S ¥110
90467-08046-34 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
AT170,175 SE ¥120
90467-08046-34 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
AT170,175,CT170,ST170 SG,SGEXT ¥120
90467-08046-34 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
CT170,ST170 SE ¥120
90467-08046-34 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
CT170,ST170 SED;AT17# S,SG,SGEXT ¥120
90467-08046-34 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
AT170 SE ¥120
90467-08046-34 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
AT175 SE ¥120
90467-08046-34 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-05 → 1992-08 ended
AT171 EFIS ¥120
90467-08046-B1 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-09 → 1992-08 ended
AT175 SE ¥110
90467-08046-B1 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-09 → 1992-08 ended
AT170 SE ¥110
90467-08046-B1 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-09 → 1992-08 ended
CT170,ST170 SED;AT17# DX,GLIM,S,SG,SGEXT ¥110
90467-08046-B1 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-09 → 1992-08 ended
AT171 EFIS ¥110
90467-08046-B1 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-09 → 1992-08 ended
AT171,CT170,ST170 GLIM,SE ¥110
90467-08046-B1 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-09 → 1992-08 ended
AT170,175,CT170,ST170 SG,SGEXT ¥110
90467-08046-B1 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1990-09 → 1992-08 ended
AT170,175 SE ¥110
64711 — Mat, Luggage Compartment Floor
64711-20490-03 note Mat, Luggage Compartment Floor
1988-05 → 1992-08 ended
AT170 DX ¥15,400
64711-20500-03 note Mat, Luggage Compartment Floor
1988-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SG,SGEXT ¥13,900
64711-20520-03 note Mat, Luggage Compartment Floor
1988-05 → 1990-05 ended
AT171 GLIM ¥13,900
64711-20520-03 note Mat, Luggage Compartment Floor
1988-05 → 1992-08 ended
AT171 S ¥13,900
64711-20520-03 note Mat, Luggage Compartment Floor
1990-05 → 1992-08 ended
AT171 EFI ¥13,900
64711-20520-03 note Mat, Luggage Compartment Floor
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥13,900
64711-20520-03 note Mat, Luggage Compartment Floor
1988-05 → 1990-05 ended
ST170 SE ¥13,900
64711-20530-03 note Mat, Luggage Compartment Floor
1988-05 → 1990-05 ended
AT170,CT170,ST170 SE ¥14,000
64711-20530-03 note Mat, Luggage Compartment Floor
1989-03 → 1990-05 ended
ST170 SGEXT ¥14,000
64711-20550-03 note Mat, Luggage Compartment Floor
1988-08 → 1990-05 ended
AT175 ¥7,900
64711-20600-03 note Mat, Luggage Compartment Floor
1988-12 → 1990-05 ended
AT175 SGEXT ¥13,500
64711-20660-03 note Mat, Luggage Compartment Floor
1990-05 → 1992-08 ended
AT175 SE ¥15,400
64711-20750-03 note Mat, Luggage Compartment Floor
1990-05 → 1992-08 ended
AT175 SG,SGEXT ¥7,600
64716C — Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-05027 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,SE ¥170
90467-05027 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1988-05 → 1990-05 ended
AT171 S ¥170
90467-05027 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1990-12 → 1992-08 ended
CT170 SG ¥170
90467-05027 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT ¥170
90467-05027 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1989-03 → 1990-05 ended
ST170 SGEXT ¥170
90467-06083-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1988-05 → 1990-05 ended
AT170,CT170,ST170 SE ¥70
90467-06083-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1990-12 → 1992-04 ended
CT170 SG ¥70
90467-06083-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1990-05 → 1992-04 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥70
90467-06083-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1990-05 → 1992-04 ended
AT171 EFI ¥70
90467-06083-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1989-03 → 1990-05 ended
ST170 SGEXT ¥70
90467-06083-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1988-05 → 1990-05 ended
AT171 S ¥70
90467-06083-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1988-05 → 1990-05 ended
AT171 GLIM ¥70
90467-06158-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1992-04 → 1992-08 ended
AT171 EFI ¥190
90467-06158-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1992-04 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥190
90467-06158-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1992-04 → 1992-08 ended
CT170 SG ¥190
90467-09032-13 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1989-03 → 1990-05 ended
ST170 SGEXT ¥260
90467-09032-13 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1992-04 → 1992-08 ended
CT170 SG ¥260
90467-09032-13 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1988-05 → 1990-05 ended
AT171 S ¥260
90467-09032-13 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1988-05 → 1990-05 ended
AT170,CT170,ST170 SE ¥260
90467-09032-13 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1988-05 → 1990-05 ended
AT171 GLIM ¥260
90467-09032-13 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1990-12 → 1992-04 ended
CT170 SG ¥260
90467-09032-13 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1990-05 → 1992-08 ended
AT171 EFI ¥260
90467-09032-13 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥260
90467-09032-23 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,SE ¥260
90467-09032-23 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1988-05 → 1990-05 ended
AT171 S ¥260
90467-09032-23 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1989-03 → 1990-05 ended
ST170 SGEXT ¥260
64716G — Cover, Luggage Compartment Trim, Rear
64716-20290-03 note Cover, Luggage Compartment Trim, Rear
1988-05 → 1990-05 ended
AT171 S ¥20,800
64716-20290-03 note Cover, Luggage Compartment Trim, Rear
1992-04 → 1992-08 ended
CT170 SG ¥20,800
64716-20290-03 note Cover, Luggage Compartment Trim, Rear
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SGEXT ¥20,800
64716-20290-03 note Cover, Luggage Compartment Trim, Rear
1990-05 → 1992-08 ended
AT171 EFI ¥20,800
64716-20290-03 note Cover, Luggage Compartment Trim, Rear
1989-03 → 1990-05 ended
ST170 SGEXT ¥20,800
64716-20290-03 note Cover, Luggage Compartment Trim, Rear
1988-05 → 1990-05 ended
AT171 GLIM ¥20,800
64716-20290-03 note Cover, Luggage Compartment Trim, Rear
1988-05 → 1990-05 ended
AT170,CT170,ST170 SE ¥20,800
64716-20290-03 note Cover, Luggage Compartment Trim, Rear
1990-12 → 1992-04 ended
CT170 SG ¥20,800
64716-20420-03 note Cover, Luggage Compartment Trim, Rear
1990-05 → 1992-08 ended
AT175 SE,SGEXT ¥17,800
64717A — Cover, Luggage Compartment Trim, Front
64717-20170-03 note Cover, Luggage Compartment Trim, Front
1988-05 → 1992-08 ended
ST170 SGEXT CI;AT170,171,CT170 (S,SG) +1 ¥3,140
64717-20220-03 note Cover, Luggage Compartment Trim, Front
1988-08 → 1990-05 ended
AT175 ¥6,800
64717-20220-03 note Cover, Luggage Compartment Trim, Front
1990-05 → 1992-08 ended
AT175 SG ¥6,800
64717-20230-03 note Cover, Luggage Compartment Trim, Front
1990-12 → 1992-04 ended
CT170 SG ¥3,690
64717-20230-03 note Cover, Luggage Compartment Trim, Front
1992-04 → 1992-08 ended
CT170 SG ¥3,690
64717-20230-03 note Cover, Luggage Compartment Trim, Front
1990-05 → 1992-08 ended
AT170,171,ST170 S,SGEXT ¥3,690
64717-20230-03 note Cover, Luggage Compartment Trim, Front
1989-03 → 1990-05 ended
ST170 SGEXT ¥3,690
64717-20230-03 note Cover, Luggage Compartment Trim, Front
1988-05 → 1990-05 ended
AT170,CT170,ST170 SE ¥3,690
64717-20270-03 note Cover, Luggage Compartment Trim, Front
1990-05 → 1992-08 ended
AT175 SE,SGEXT ¥5,900
64717B — Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
90467-06016-58 note Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
1990-05 → 1992-08 ended
AT175 SG ¥180
90467-06016-58 note Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
1988-12 → 1990-05 ended
AT175 SG ¥180
90467-06016-58 note Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
1988-12 → 1990-05 ended
AT175 SGEXT ¥180
90467-06016-58 note Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
1988-08 → 1988-12 ended
AT175 ¥180
90467-09066-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
1988-05 → 1990-05 ended
AT171 S ¥180
90467-09066-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
1990-05 → 1992-08 ended
AT175 SE,SGEXT;AT170,171,CT170,ST170 S,SG,SGEXT ¥180
90467-09066-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
1988-05 → 1990-05 ended
AT170,CT170,ST170 SE,SG,SGEXT ¥180
64721 — Cover, Luggage Compartment Trim, Inner RH
64721-20210-03 note Cover, Luggage Compartment Trim, Inner RH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥4,330
64721-20210-03 note Cover, Luggage Compartment Trim, Inner RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SG,SGEXT ¥4,330
64721-20220-03 note Cover, Luggage Compartment Trim, Inner RH
1988-05 → 1990-05 ended
AT171 GLIM ¥4,140
64721-20220-03 note Cover, Luggage Compartment Trim, Inner RH
1988-05 → 1990-05 ended
ST170 SE ¥4,140
64721-20220-03 note Cover, Luggage Compartment Trim, Inner RH
1988-05 → 1992-08 ended
AT171 S ¥4,140
64721-20220-03 note Cover, Luggage Compartment Trim, Inner RH
1990-05 → 1992-08 ended
AT171 EFI ¥4,140
64721-20220-03 note Cover, Luggage Compartment Trim, Inner RH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥4,140
64721-20230-03 note Cover, Luggage Compartment Trim, Inner RH
1988-08 → 1992-08 ended
AT175 ¥3,680
64721A — Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-07042-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1988-05 → 1988-07 ended
AT171 GLIM ¥120
90467-07042-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1988-05 → 1988-07 ended
AT17#,CT170,ST170 S,SG,SGEXT ¥120
90467-07042-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1988-05 → 1988-07 ended
AT170,CT170,ST170 SE ¥120
90467-07042-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1988-07 → 1990-05 ended
AT171 GLIM ¥110
90467-07042-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1988-07 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥110
90467-07042-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1990-05 → 1992-08 ended
AT171 EFI ¥110
90467-07042-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥110
64722 — Cover, Luggage Compartment Trim, Inner LH
64722-20180-03 note Cover, Luggage Compartment Trim, Inner LH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥4,330
64722-20180-03 note Cover, Luggage Compartment Trim, Inner LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SG,SGEXT ¥4,330
64722-20190-03 note Cover, Luggage Compartment Trim, Inner LH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥4,140
64722-20190-03 note Cover, Luggage Compartment Trim, Inner LH
1988-05 → 1990-05 ended
ST170 SE ¥4,140
64722-20190-03 note Cover, Luggage Compartment Trim, Inner LH
1990-05 → 1992-08 ended
AT171 EFI ¥4,140
64722-20190-03 note Cover, Luggage Compartment Trim, Inner LH
1988-05 → 1992-08 ended
AT171 S ¥4,140
64722-20190-03 note Cover, Luggage Compartment Trim, Inner LH
1988-05 → 1990-05 ended
AT171 GLIM ¥4,140
64722-20200-03 note Cover, Luggage Compartment Trim, Inner LH
1988-08 → 1992-08 ended
AT175 ¥3,680
64770 — Cover Assy, Spare Wheel
64770-32050 note Cover Assy, Spare Wheel
1988-08 → 1992-08 ended
AT175 ¥3,500
64770-32060 note Cover Assy, Spare Wheel
1990-05 → 1992-08 ended
AT175 ¥3,500
64771-32040 Cover Assy, Spare Wheel
1988-05 → 1992-08 ended
AT170,171,CT170,ST170 SED ¥3,730
64777 — Clamp, Spare Wheel Cover
64777-32030 Clamp, Spare Wheel Cover
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥850
64778B — Protector, Spare Wheel
64778-14020 Protector, Spare Wheel
1988-05 → 1992-08 ended
AT17#,ST170 SED ¥650
64778-20040 Protector, Spare Wheel
1988-05 → 1992-08 ended
CT170 SED ¥440
64791 — Cover, Back Door Trim
64791-20040-03 note Cover, Back Door Trim
1988-05 → 1990-05 ended
AT171 GLIM ¥17,500
64791-20040-03 note Cover, Back Door Trim
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥17,500
64791-20040-03 note Cover, Back Door Trim
1990-05 → 1992-08 ended
AT171 EFI ¥17,500
64791-20040-03 note Cover, Back Door Trim
1988-05 → 1992-08 ended
AT171 S ¥17,500
64791-20040-03 note Cover, Back Door Trim
1988-05 → 1990-05 ended
ST170 SE ¥17,500
64791A — Clip(FOR BACK DOOR TRIM)
90467-05027 note Clip(FOR BACK DOOR TRIM)
1988-05 → 1990-05 ended
AT171 GLIM ¥170
90467-05027 note Clip(FOR BACK DOOR TRIM)
1988-05 → 1990-05 ended
ST170 SE ¥170
90467-05027 note Clip(FOR BACK DOOR TRIM)
1988-05 → 1992-08 ended
AT171 S ¥170
90467-05027 note Clip(FOR BACK DOOR TRIM)
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥170
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
