Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

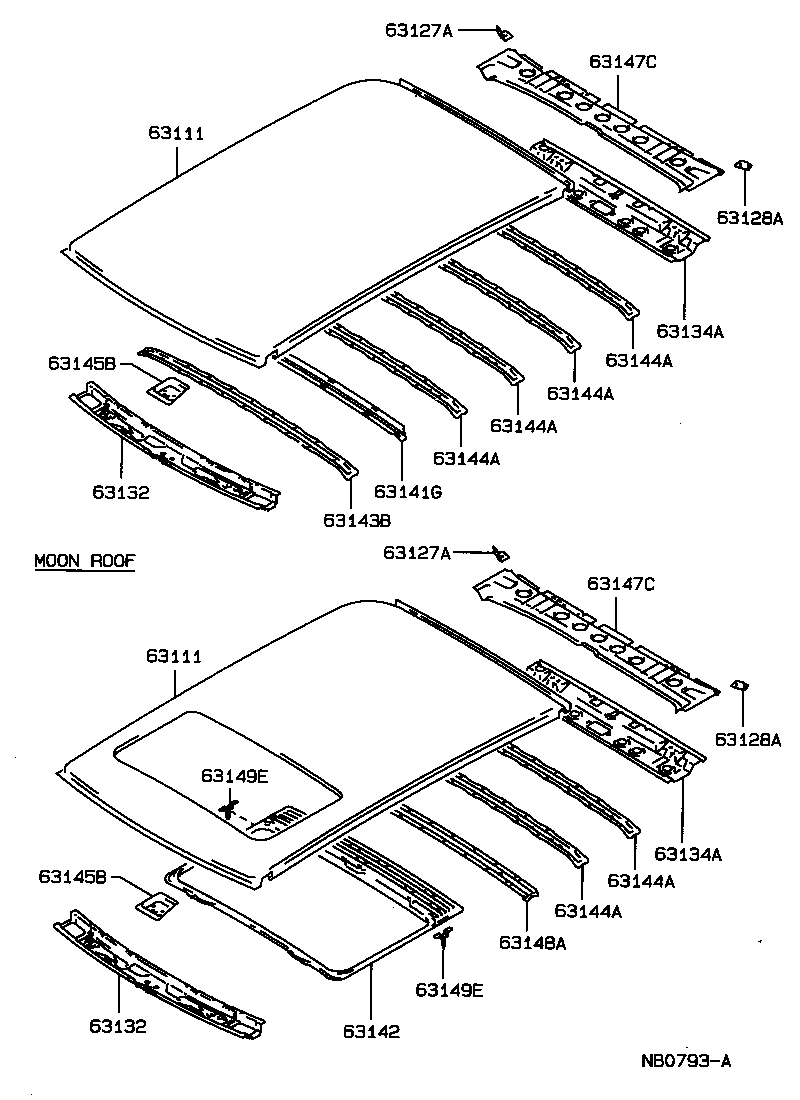

Exploded illustration NB0793A 63127A — EXTENSION, ROOF PANEL, REAR RH (1 parts) 63147C — REINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER (1 parts) 63111 — PANEL, ROOF (5 parts) 63128A — EXTENSION, ROOF PANEL, REAR LH (1 parts) 63134A — FRAME, BACK DOOR OPENING, UPPER (1 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (3 parts) 63145B — REINFORCEMENT, WINDSHIELD HEADER PANEL (1 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (3 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (3 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (3 parts) 63141G — REINFORCEMENT, ROOF PANEL, NO.1 (4 parts) 63132 — PANEL, WINDSHIELD HEADER, INNER (1 parts) 63143B — REINFORCEMENT, ROOF PANEL, NO.3 (2 parts) 63127A — EXTENSION, ROOF PANEL, REAR RH (1 parts) 63147C — REINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER (1 parts) 63111 — PANEL, ROOF (5 parts) 63128A — EXTENSION, ROOF PANEL, REAR LH (1 parts) 63149E — BRACKET, ROOF PANEL REINFORCEMENT, NO.2 (3 parts) 63134A — FRAME, BACK DOOR OPENING, UPPER (1 parts) 63145B — REINFORCEMENT, WINDSHIELD HEADER PANEL (1 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (3 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (3 parts) 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (1 parts) 63149E — BRACKET, ROOF PANEL REINFORCEMENT, NO.2 (3 parts) 63132 — PANEL, WINDSHIELD HEADER, INNER (1 parts) 63142 — REINFORCEMENT, ROOF PANEL, NO.2 (4 parts)
NB0793A · 26 callouts Full size ↗
28 parts on this figure
Part number Description Fitment Price
63111 — Panel, Roof
63111-20350 Panel, Roof
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥26,000
63111-20360 note Panel, Roof
1990-05 → 1992-08 ended
ST170 SED;AT170,171,CT170 GLIM,S,SE ¥26,000
63111-20360 note Panel, Roof
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥26,000
63111-95503 note Panel, Roof
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥50,700
63111-95505 Panel, Roof
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥50,700
63127A — Extension, Roof Panel, Rear RH
63127-95500 Extension, Roof Panel, Rear RH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥390
63128A — Extension, Roof Panel, Rear LH
63128-95500 Extension, Roof Panel, Rear LH
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥390
63132 — Panel, Windshield Header, Inner
63132-20130 Panel, Windshield Header, Inner
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥3,400
63134A — Frame, Back Door Opening, Upper
63134-95500 Frame, Back Door Opening, Upper
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥5,400
63141G — Reinforcement, Roof Panel, NO.1
63103-20100 Reinforcement, Roof Panel, NO.1
1988-05 → 1992-08 ended
AT17#,CT170,ST170 DX,S,SE,SG,SGEXT ¥2,050
63103-20110 Reinforcement, Roof Panel, NO.1
1988-05 → 1992-08 ended
AT171 GLIM ¥2,260
63103-20110 note Reinforcement, Roof Panel, NO.1
1988-05 → 1992-08 ended
ST170 SE ¥2,260
63103-95500 Reinforcement, Roof Panel, NO.1
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥2,050
63142 — Reinforcement, Roof Panel, NO.2
63142-30030 Reinforcement, Roof Panel, NO.2
1988-05 → 1992-08 ended
ST170 SE ¥12,900
63142-30030 Reinforcement, Roof Panel, NO.2
1990-05 → 1992-08 ended
ST170 SGEXT;AT170,171,CT170 GLIM,S,SE ¥12,900
63142-30030 Reinforcement, Roof Panel, NO.2
1988-05 → 1990-05 ended
ST170 SGEXT;AT175,CT170 SE,SGEXT;AT170,171 GLIM,S,SE,SG ¥12,900
63142-95500 Reinforcement, Roof Panel, NO.2
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥12,900
63143B — Reinforcement, Roof Panel, NO.3
63143-20070 Reinforcement, Roof Panel, NO.3
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥2,140
63143-95501 Reinforcement, Roof Panel, NO.3
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥2,360
63144A — Reinforcement, Roof Panel, NO.4
63144-20010 Reinforcement, Roof Panel, NO.4
1988-05 → 1992-08 ended
AT17#,CT170,ST170 SED ¥2,140
63144-95500 Reinforcement, Roof Panel, NO.4
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥2,360
63144-95500 Reinforcement, Roof Panel, NO.4
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥2,360
63145B — Reinforcement, Windshield Header Panel
63145-20070 Reinforcement, Windshield Header Panel
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥930
63147C — Reinforcement, Back Door Opening Frame, Upper Center
63147-95501 Reinforcement, Back Door Opening Frame, Upper Center
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥6,600
63148A — Reinforcement, Roof Panel, NO.7
63148-95500 Reinforcement, Roof Panel, NO.7
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥2,360
63149E — Bracket, Roof Panel Reinforcement, NO.2
63149-30030 Bracket, Roof Panel Reinforcement, NO.2
1988-05 → 1990-05 ended
ST170 SGEXT,SX;AT175,CT170 SE,SGEXT;AT170,171 GLIM,S,SE,SG,SV ¥320
63149-30030 Bracket, Roof Panel Reinforcement, NO.2
1988-05 → 1992-08 ended
ST170 SE ¥320
63149-30030 Bracket, Roof Panel Reinforcement, NO.2
1990-05 → 1992-11 ended
ST170 SGEXT,SX;AT170,171,CT170 GLIM,S,SE,SV ¥320
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
