Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

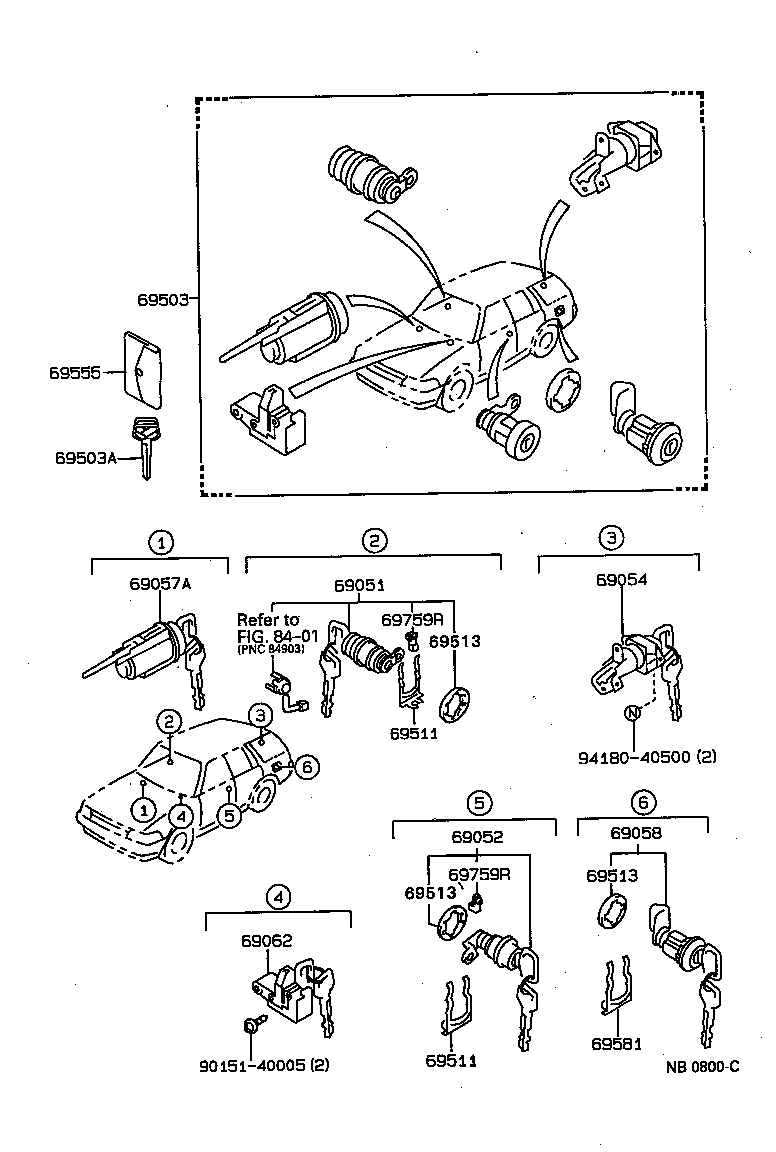

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

68 parts on this figure

Part number	Description	Fitment	Price
69051 — Cylinder & Key Set, Door Lock, RH
69051-20190	Cylinder & Key Set, Door Lock, RH 1988-05 → 1990-05 ended	AT17#,CT170,ST170 SED	¥4,270
69051-20190	Cylinder & Key Set, Door Lock, RH 1990-05 → 1992-08 ended	AT17#,CT170 DX,S,SG	¥4,270
69051-20191	Cylinder & Key Set, Door Lock, RH 1990-05 → 1990-11 ended	AT17#,CT170,ST170 GLIM,SE,SGEXT	¥6,000
69051-20191 note	Cylinder & Key Set, Door Lock, RH 1990-05 → 1990-11 ended	AT171 EFIS	¥6,000
69051-20192	Cylinder & Key Set, Door Lock, RH 1990-11 → 1992-08 ended	AT17#,CT170,ST170 GLIM,SE,SGEXT	¥6,000
69051-20192 note	Cylinder & Key Set, Door Lock, RH 1990-11 → 1992-08 ended	AT171 EFIS	¥6,000
69051-20192 note	Cylinder & Key Set, Door Lock, RH 1990-12 → 1992-08 ended	CT170 SG	¥6,000
69051-20320 note	Cylinder & Key Set, Door Lock, RH 1990-05 → 1990-11 ended	ST170 SX	¥6,000
69051-20321 note	Cylinder & Key Set, Door Lock, RH 1990-11 → 1992-11 ended	ST170 SX	¥6,000
69051-95R00	Cylinder & Key Set, Door Lock, RH 1988-05 → 1992-11 ended	AT170,CT17#,ET176,ST170 VAN,WG	¥4,270
69052 — Cylinder & Key Set, Door Lock, LH
69052-20220	Cylinder & Key Set, Door Lock, LH 1988-05 → 1992-08 ended	AT17#,CT170,ST170 SED	¥4,270
69052-95R00	Cylinder & Key Set, Door Lock, LH 1988-05 → 1992-11 ended	AT170,CT17#,ET176,ST170 VAN,WG	¥4,270
69054 — Cylinder & Key Set, Back Door Lock
69055-95501 note	Cylinder & Key Set, Back Door Lock 1988-05 → 1989-02 ended	ST170 SX	¥6,200
69055-95501	Cylinder & Key Set, Back Door Lock 1988-05 → 1992-11 ended	CT176,ET176 DX,STD	¥6,200
69055-95502	Cylinder & Key Set, Back Door Lock 1988-05 → 1992-11 ended	AT170,CT17#,ET176,ST170 (VAN,WG) (SG,SV,SX)	¥6,200
69057A — Cylinder & Key Set, Ignition Switch Lock
69057-20180	Cylinder & Key Set, Ignition Switch Lock 1989-08 → 1992-08 ended	AT17#,CT170,ST170 SED	¥5,700
69057-20210	Cylinder & Key Set, Ignition Switch Lock 1988-05 → 1989-08 ended	AT17#,CT170,ST170 SED	¥7,200
69057-95500	Cylinder & Key Set, Ignition Switch Lock 1988-05 → 1992-11 ended	CT176,ET176	¥5,700
69057-95R00	Cylinder & Key Set, Ignition Switch Lock 1988-05 → 1992-11 ended	AT170,CT170,ST170 WG	¥7,100
69058 — Cylinder & Key Set, Fuel Filler Lid
69058-95500	Cylinder & Key Set, Fuel Filler Lid 1988-05 → 1992-11 ended	CT176,ET176 DX,STD	¥4,180
69062 — Cylinder & Key Set, Glove Compartment Lock
69056-20150	Cylinder & Key Set, Glove Compartment Lock 1988-05 → 1992-08 ended	AT17#,CT170,ST170 SED	—
69056-95500	Cylinder & Key Set, Glove Compartment Lock 1988-05 → 1992-11 ended	AT170,CT170,ST170 WG	¥4,970
69503 — Cylinder Set, Lock
69005-20830	Cylinder Set, Lock 1988-05 → 1990-05 ended	AT17#,CT170,ST170 S,SG,SGEXT	¥21,200
69005-20830	Cylinder Set, Lock 1990-05 → 1992-08 ended	AT17#,CT170 S,SG	¥21,200
69005-20831 note	Cylinder Set, Lock 1990-05 → 1990-11 ended	AT171 EFIS	¥25,100
69005-20831	Cylinder Set, Lock 1990-05 → 1990-11 ended	AT170,175,ST170 SGEXT	¥25,100
69005-20832	Cylinder Set, Lock 1990-11 → 1992-08 ended	AT170,175,ST170 SGEXT	¥23,500
69005-20832 note	Cylinder Set, Lock 1990-11 → 1992-08 ended	AT171 EFIS	¥23,500
69005-20840	Cylinder Set, Lock 1988-05 → 1992-08 ended	AT170 DX	¥21,200
69005-20860 note	Cylinder Set, Lock 1988-05 → 1990-05 ended	AT170 4F DX	—
69005-20870 note	Cylinder Set, Lock 1988-05 → 1990-05 ended	AT171 S	¥18,000
69005-20870	Cylinder Set, Lock 1988-05 → 1990-05 ended	AT170,171,CT170,ST170 GLIM,SE	¥18,000
69005-20870 note	Cylinder Set, Lock 1989-02 → 1990-05 ended	AT175,ST170 SGEXT	¥18,000
69005-20870 note	Cylinder Set, Lock 1989-09 → 1990-05 ended	AT170,CT170 SG	¥18,000
69005-20870 note	Cylinder Set, Lock 1988-12 → 1989-02 ended	AT175 SGEXT	¥18,000
69005-20871	Cylinder Set, Lock 1990-05 → 1990-11 ended	AT17#,CT170,ST170 GLIM,SE	¥25,100
69005-20871 note	Cylinder Set, Lock 1990-10 → 1990-12 ended	AT170,ST170 (4FC,5F) SGEXT	¥25,100
69005-20871 note	Cylinder Set, Lock 1990-05 → 1990-11 ended	AT171 EFIS	¥25,100
69005-20872 note	Cylinder Set, Lock 1990-12 → 1992-08 ended	CT170 SG;AT170,ST170 SGEXT	¥28,300
69005-20872 note	Cylinder Set, Lock 1990-11 → 1992-08 ended	AT171 EFIS	¥28,300
69005-20872	Cylinder Set, Lock 1990-11 → 1992-08 ended	AT17#,CT170,ST170 GLIM,SE	¥28,300
69005-21030	Cylinder Set, Lock 1990-05 → 1992-11 ended	CT176,ET176 DX,STD	¥18,100
69005-21040	Cylinder Set, Lock 1990-05 → 1992-11 ended	CT176,ET176 SG	¥18,100
69005-21050 note	Cylinder Set, Lock 1988-05 → —	ST170 SX EFI	—
69005-2B160 note	Cylinder Set, Lock 1990-05 → 1990-11 ended	ST170 SX	¥23,500
69005-2B161 note	Cylinder Set, Lock 1990-11 → 1992-11 ended	ST170 SX	¥25,900
69005-95R00 note	Cylinder Set, Lock 1988-05 → 1989-02 ended	ST170 SX	¥17,800
69005-95R03	Cylinder Set, Lock 1988-05 → 1990-05 ended	CT176,ET176 DX,STD	¥15,400
69005-95R04	Cylinder Set, Lock 1988-05 → 1992-11 ended	AT170,CT170,ST170 WG	¥17,600
69005-95R05	Cylinder Set, Lock 1988-05 → 1990-05 ended	CT176,ET176 SG	¥14,100
69005-95R06 note	Cylinder Set, Lock 1988-05 → —	CT176,ET176 DX	¥18,800
69005-95R07 note	Cylinder Set, Lock 1988-05 → —	ST170 SX CI	—
69503A — Key, Blank
90999-00130 note	Key, Blank 1988-05 → 1992-08 ended	AT17#,CT170,ST170 SED	¥1,550
90999-00132 note	Key, Blank 1988-05 → 1992-08 ended	AT17#,CT170,ST170 SED	¥2,070
90999-00137 note	Key, Blank 1988-05 → 1992-08 ended	AT17#,CT170,ST170 SED	¥1,550
90999-00146 note	Key, Blank 1988-05 → 1992-11 ended	AT170,CT17#,ET176,ST170 VAN,WG	¥2,060
90999-00147 note	Key, Blank 1988-05 → 1992-11 ended	AT170,CT17#,ET176,ST170 VAN,WG	¥1,550
90999-00148 note	Key, Blank 1988-05 → 1990-05 ended	AT170,CT176,ET176,ST170 VAN,WG	¥1,550
90999-00148 note	Key, Blank 1990-05 → 1992-11 ended	AT170,CT170,ST170 WG	¥1,550
69511 — Retainer, Front Door Lock Cylinder
69511-32010	Retainer, Front Door Lock Cylinder 1988-05 → 1992-11 ended	AT17#,CT17#,ET176,ST170	¥160
69513 — Pad, Fuel Filler Lid Lock Cylinder
69513-32010	Pad, Fuel Filler Lid Lock Cylinder 1988-05 → 1992-08 ended	AT17#,CT170,ST170 SED	¥120
69513-87001	Pad, Fuel Filler Lid Lock Cylinder 1988-05 → 1990-05 ended	AT170,CT176,ET176,ST170 VAN,WG	¥350
69513-87001	Pad, Fuel Filler Lid Lock Cylinder 1990-05 → 1992-11 ended	AT170,CT17#,ET176,ST170 (VAN,WG) (SG,SV,SX)	¥350
69513-87001	Pad, Fuel Filler Lid Lock Cylinder 1990-05 → 1992-11 ended	CT176,ET176 DX,STD	¥350
69555 — Cover, Key
69555-20010	Cover, Key 1988-05 → 1992-11 ended	AT17#,CT17#,ET176,ST170	¥780
69581 — Retainer, Fuel Filler Lid Cylinder
69511-32010	Retainer, Fuel Filler Lid Cylinder 1988-05 → 1992-11 ended	CT176,ET176 DX,STD	¥160
69759R — Snap, Front Door Lock Cylinder
69759-20080 note	Snap, Front Door Lock Cylinder 1988-05 → 1992-11 ended	AT17#,CT17#,ET176,ST170	¥280
69759-20090 note	Snap, Front Door Lock Cylinder 1988-05 → 1992-11 ended	AT17#,CT17#,ET176,ST170	¥280

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
