Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

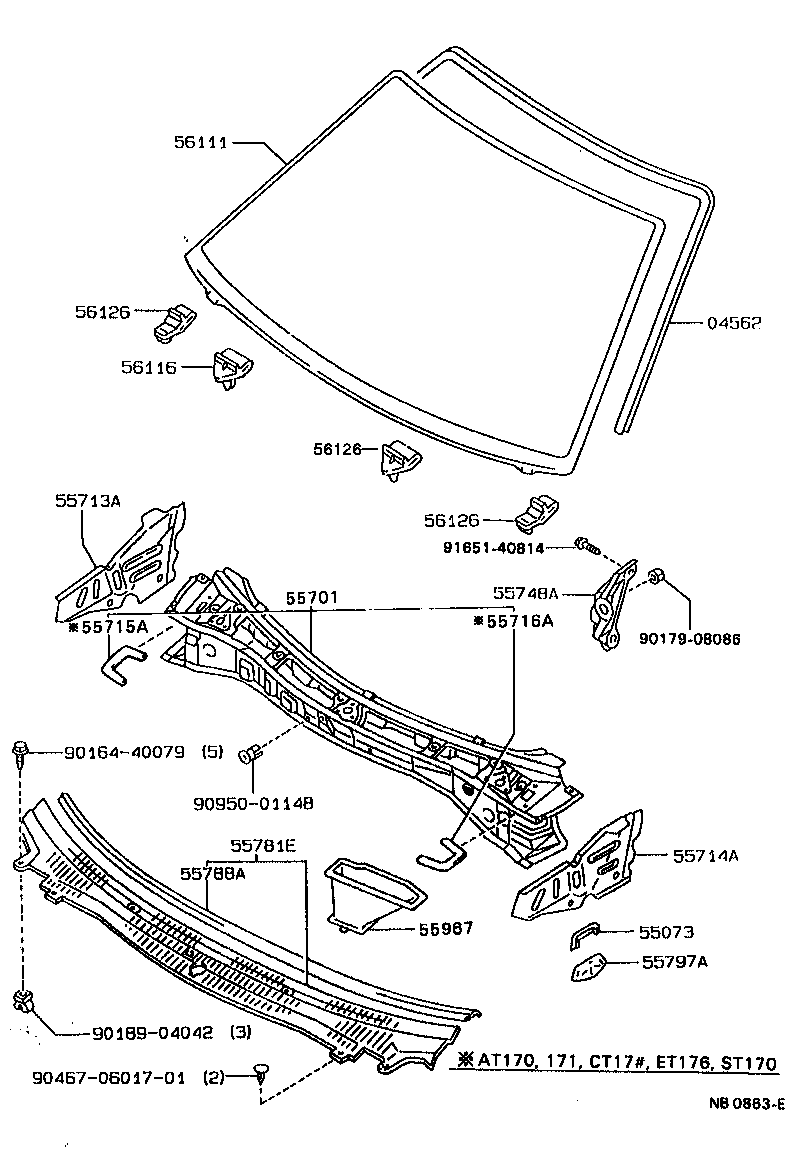

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04562 — Dam Kit, Windshield Glass | ||||
| 04562-20020 |
Dam Kit, Windshield Glass
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥1,920 | |
| 55073 — Nozzle Sub-assy, Cowl Panel Water Extract | ||||
| 55073-20020 |
Nozzle Sub-assy, Cowl Panel Water Extract
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥740 | |
| 55701 — Panel Sub-assy, Cowl | ||||
| 55700-20690 |
Panel Sub-assy, Cowl
1988-05 → 1989-11
ended
|
CT17#,ET176 | ¥46,600 | |
| 55700-20690 |
Panel Sub-assy, Cowl
1989-11 → 1990-05
ended
|
CT17# | ¥46,600 | |
| 55700-20700 |
Panel Sub-assy, Cowl
1988-05 → 1989-03
ended
|
AT170,171 | ¥46,900 | |
| 55700-20710 |
Panel Sub-assy, Cowl
1988-05 → 1992-11
ended
|
ST170 | ¥46,600 | |
| 55700-20770 |
Panel Sub-assy, Cowl
1989-03 → 1992-11
ended
|
AT170,171 | ¥46,600 | |
| 55700-20780 |
Panel Sub-assy, Cowl
1988-08 → 1992-08
ended
|
AT175 | ¥46,600 | |
| 55700-20800 |
Panel Sub-assy, Cowl
1990-05 → 1992-11
ended
|
CT17# | ¥46,600 | |
| 55700-20860 |
Panel Sub-assy, Cowl
1989-11 → 1992-11
ended
|
ET176 | ¥39,800 | |
| 55713A — Panel, Cowl Top Side, RH | ||||
| 55713-20100 |
Panel, Cowl Top Side, RH
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥2,140 | |
| 55714A — Panel, Cowl Top Side, LH | ||||
| 55714-20100 |
Panel, Cowl Top Side, LH
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥2,140 | |
| 55715A — Brace, Cowl Top TO Apron, RH | ||||
| 55715-20090 |
Brace, Cowl Top TO Apron, RH
1988-05 → 1992-11
ended
|
AT170,171,CT17#,ET176,ST170 | ¥1,670 | |
| 55715-20100 |
Brace, Cowl Top TO Apron, RH
1988-08 → 1992-08
ended
|
AT175 | ¥2,090 | |
| 55716A — Brace, Cowl Top TO Apron, LH | ||||
| 55716-20060 |
Brace, Cowl Top TO Apron, LH
1988-05 → 1992-11
ended
|
AT170,171,CT17#,ET176,ST170 | ¥1,670 | |
| 55716-20070 |
Brace, Cowl Top TO Apron, LH
1988-08 → 1992-08
ended
|
AT175 | ¥2,090 | |
| 55748A — Brace, Cowl Top Inner TO Pillar | ||||
| 55748-20100 |
Brace, Cowl Top Inner TO Pillar
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥2,840 | |
| 55781E — Louver Sub-assy, Cowl Top Ventilator | ||||
| 55708-20040 |
Louver Sub-assy, Cowl Top Ventilator
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥10,500 | |
| 55708-20080 note |
Louver Sub-assy, Cowl Top Ventilator
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥13,200 | |
| 55788A — Protector, Cowl Top Ventilator Louver | ||||
| 55788-20080 |
Protector, Cowl Top Ventilator Louver
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥400 | |
| 55797A — Seal, Cowl Water Extract | ||||
| 55797-20030 |
Seal, Cowl Water Extract
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥260 | |
| 55967 — Nozzle, Defroster, Lower | ||||
| 55967-20020 |
Nozzle, Defroster, Lower
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥2,300 | |
| 56111 — Glass, Windshield | ||||
| 56111-20570 note |
Glass, Windshield
1990-05 → 1992-11
ended
|
CT176,ET176 SG;AT17#,CT170,ST170 DX,S,SG,SGEXT,SV,SX | ¥93,600 | |
| 56111-20570 note |
Glass, Windshield
1988-05 → 1990-05
ended
|
AT17#,CT170 DX,S,SG,SV;CT176,ET176,ST170 SG,SGEXT | ¥93,600 | |
| 56111-20580 note |
Glass, Windshield
1988-05 → 1990-05
ended
|
ST170 SE,SX;AT17#,CT170 GLIM,SE,SGEXT | ¥101,000 | |
| 56111-20580 note |
Glass, Windshield
1989-03 → 1990-05
ended
|
ST170 SGEXT | ¥101,000 | |
| 56111-20581 note |
Glass, Windshield
1990-12 → 1992-11
ended
|
ST170 SX | ¥101,000 | |
| 56111-20581 note |
Glass, Windshield
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥101,000 | |
| 56111-20581 note |
Glass, Windshield
1990-05 → 1990-12
ended
|
ST170 SX | ¥101,000 | |
| 56111-20590 note |
Glass, Windshield
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | ¥103,000 | |
| 56111-20590 note |
Glass, Windshield
1990-12 → 1992-08
ended
|
CT170 SG | ¥103,000 | |
| 56111-20590 note |
Glass, Windshield
1988-05 → 1990-05
ended
|
ST170 SGEXT | ¥103,000 | |
| 56111-20590 note |
Glass, Windshield
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥103,000 | |
| 56111-20590 note |
Glass, Windshield
1990-05 → 1992-11
ended
|
AT17#,ST170 S,SGEXT,SX | ¥103,000 | |
| 56111-20590 note |
Glass, Windshield
1989-03 → 1990-05
ended
|
CT170 SG | ¥103,000 | |
| 56111-20590 note |
Glass, Windshield
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥103,000 | |
| 56111-20590 note |
Glass, Windshield
1989-03 → 1990-05
ended
|
AT170 (4FC,5F) SG | ¥103,000 | |
| 56111-20610 note |
Glass, Windshield
1988-05 → 1992-11
ended
|
CT176,ET176 DX,STD | ¥86,800 | |
| 56111-20630 note |
Glass, Windshield
1988-05 → 1990-05
ended
|
ST170 SE,SX;AT17#,CT170 GLIM,SE,SGEXT | ¥111,000 | |
| 56111-20630 note |
Glass, Windshield
1989-03 → 1990-05
ended
|
ST170 SGEXT | ¥111,000 | |
| 56111-20631 note |
Glass, Windshield
1990-05 → 1990-12
ended
|
AT17#,CT170,ST170 GLIM,SE,SX | ¥111,000 | |
| 56111-20631 note |
Glass, Windshield
1990-12 → 1992-11
ended
|
ST170 SX | ¥111,000 | |
| 56111-20631 note |
Glass, Windshield
1990-12 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥111,000 | |
| 56111-20640 note |
Glass, Windshield
1989-03 → 1990-05
ended
|
ST170 SGEXT | ¥122,000 | |
| 56111-20640 note |
Glass, Windshield
1988-05 → 1990-05
ended
|
ST170 SE,SX;AT17#,CT170 GLIM,SE,SGEXT | ¥122,000 | |
| 56111-20641 note |
Glass, Windshield
1990-12 → 1992-11
ended
|
ST170 SX | ¥122,000 | |
| 56111-20641 note |
Glass, Windshield
1990-12 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥122,000 | |
| 56111-20641 note |
Glass, Windshield
1990-05 → 1990-12
ended
|
AT17#,CT170,ST170 GLIM,SE,SX | ¥122,000 | |
| 56111-20660 note |
Glass, Windshield
1990-05 → 1990-12
ended
|
CT176,ET176 SG;AT17#,CT170,ST170 DX,S,SG,SGEXT,SV | ¥105,000 | |
| 56111-20660 note |
Glass, Windshield
1990-12 → 1992-11
ended
|
AT17#,ST170 DX,S,SG,SGEXT,SV;CT17#,ET176 (VAN,WG) (SG,SV) | ¥105,000 | |
| 56111-20660 note |
Glass, Windshield
1990-12 → 1992-11
ended
|
CT170,ST170 SG,SX | ¥105,000 | |
| 56111-20660 note |
Glass, Windshield
1990-05 → 1990-12
ended
|
ST170 SX | ¥105,000 | |
| 56111-20671 note |
Glass, Windshield
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥105,000 | |
| 56111-20671 note |
Glass, Windshield
1990-12 → 1992-11
ended
|
ST170 SX | ¥105,000 | |
| 56111-20671 note |
Glass, Windshield
1990-05 → 1990-12
ended
|
ST170 SX | ¥105,000 | |
| 56111-20681 note |
Glass, Windshield
1990-12 → 1992-11
ended
|
ST170 SX | ¥122,000 | |
| 56111-20681 note |
Glass, Windshield
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥122,000 | |
| 56111-20681 note |
Glass, Windshield
1990-05 → 1990-12
ended
|
ST170 SX | ¥122,000 | |
| 56111-20691 note |
Glass, Windshield
1990-12 → 1992-11
ended
|
ST170 SX | ¥144,000 | |
| 56111-20691 note |
Glass, Windshield
1990-12 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥144,000 | |
| 56111-20691 note |
Glass, Windshield
1990-05 → 1990-12
ended
|
AT17#,CT170,ST170 GLIM,SE,SX | ¥144,000 | |
| 56111-2B010 note |
Glass, Windshield
1990-05 → 1992-11
ended
|
CT176,ET176 DX,STD | ¥101,000 | |
| 56111-2B020 note |
Glass, Windshield
1990-05 → 1992-11
ended
|
ST170 SX | ¥105,000 | |
| 56111-2B020 note |
Glass, Windshield
1990-12 → 1992-08
ended
|
CT170 SG | ¥105,000 | |
| 56111-2B020 note |
Glass, Windshield
1990-05 → 1992-08
ended
|
AT17#,ST170 S,SGEXT | ¥105,000 | |
| 56116 — Spacer, Windshield Glass | ||||
| 56116-20050 note |
Spacer, Windshield Glass
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥320 | |
| 56116-20070 note |
Spacer, Windshield Glass
1990-09 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥390 | |
| 56116-20080 note |
Spacer, Windshield Glass
1988-05 → 1990-05
ended
|
AT17#,CT17#,ET176,ST170 | ¥320 | |
| 56116-20080 note |
Spacer, Windshield Glass
1990-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥320 | |
| 56116-20090 note |
Spacer, Windshield Glass
1988-05 → 1990-09
ended
|
AT17#,CT17#,ET176,ST170 | ¥310 | |
| 56126 — Spacer, Windshield Glass, NO.2 | ||||
| 56126-20010 |
Spacer, Windshield Glass, NO.2
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
