Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

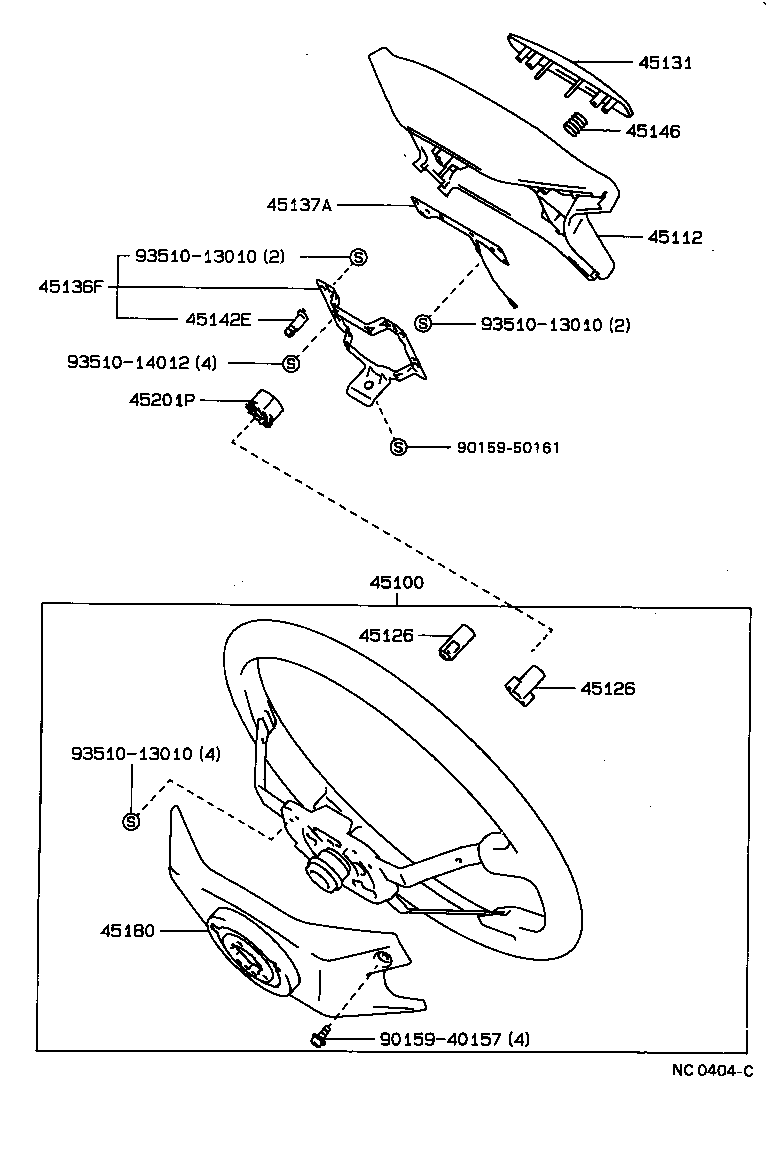

Exploded illustration NC0404C 45131 — BUTTON, HORN, NO.1 (26 parts) 45146 — SPRING, HORN BUTTON CONTACT (6 parts) 45137A — PLATE, HORN BUTTON CONTACT, NO.2 (5 parts) 45112 — PAD, STEERING WHEEL (29 parts) 9351013010 — not listed in this catalogue 45136F — PLATE, HORN BUTTON CONTACT, NO.1 (4 parts) 45142E — PIECE, HORN CONTACT (6 parts) 9351013010 — not listed in this catalogue 9351014012 — not listed in this catalogue 45201P — NUT, STEERING WHEEL SET (1 parts) 9015950161 — not listed in this catalogue 45100 — WHEEL ASSY, STEERING (70 parts) 45126 — PLATE, STEERING WHEEL PAD SET (5 parts) 45126 — PLATE, STEERING WHEEL PAD SET (5 parts) 9351013010 — not listed in this catalogue 45180 — COVER SUB-ASSY, STEERING WHEEL (57 parts) 9015940157 — not listed in this catalogue
NC0404C · 11 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
209 parts on this figure
Part number Description Fitment Price
45100 — Wheel Assy, Steering
45100-20570-03 note Wheel Assy, Steering
1988-05 → 1990-05 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥16,700
45100-20570-04 note Wheel Assy, Steering
1988-05 → 1990-05 ended
AT170,175,CT170 SG ¥16,700
45100-20570-06 note Wheel Assy, Steering
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT170,175,CT170 SG,SV ¥16,700
45100-20580-03 note Wheel Assy, Steering
1989-03 → 1990-05 ended
AT170 4F SG ¥25,600
45100-20580-03 note Wheel Assy, Steering
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥25,600
45100-20580-03 note Wheel Assy, Steering
1989-03 → 1990-05 ended
AT170,CT170,ST170 SG,SGEXT ¥25,600
45100-20580-03 note Wheel Assy, Steering
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SGEXT,SX ¥25,600
45100-20580-03 note Wheel Assy, Steering
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥25,600
45100-20580-03 note Wheel Assy, Steering
1988-05 → 1989-03 ended
AT170 4F SG ¥25,600
45100-20580-04 note Wheel Assy, Steering
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥25,600
45100-20580-04 note Wheel Assy, Steering
1988-05 → 1989-03 ended
AT170 4F SG ¥25,600
45100-20580-04 note Wheel Assy, Steering
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥25,600
45100-20580-04 note Wheel Assy, Steering
1989-03 → 1990-05 ended
AT170 4F SG ¥25,600
45100-20580-04 note Wheel Assy, Steering
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥25,600
45100-20580-06 note Wheel Assy, Steering
1989-08 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SGEXT,SX ¥25,600
45100-20580-06 note Wheel Assy, Steering
1989-02 → 1989-08 ended
AT171,175,ST170 S,SGEXT,SX ¥25,600
45100-20580-06 note Wheel Assy, Steering
1988-05 → 1989-02 ended
AT17#,CT170,ST170 S,SE,SGEXT,SX ¥25,600
45100-20580-06 note Wheel Assy, Steering
1988-05 → 1989-03 ended
AT170 4F SG ¥25,600
45100-20580-06 note Wheel Assy, Steering
1989-03 → 1990-05 ended
AT170,CT170,ST170 SG,SGEXT ¥25,600
45100-20580-06 note Wheel Assy, Steering
1989-03 → 1990-05 ended
AT170 4F SG ¥25,600
45100-20580-06 note Wheel Assy, Steering
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥25,600
45100-20580-06 note Wheel Assy, Steering
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥25,600
45100-20600-01 note Wheel Assy, Steering
1988-05 → 1990-05 ended
AT171 GLIM ¥35,900
45100-20600-03 note Wheel Assy, Steering
1989-03 → 1990-05 ended
ST170 SGEXT ¥35,900
45100-20600-03 note Wheel Assy, Steering
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥35,900
45100-20600-03 note Wheel Assy, Steering
1988-12 → —
AT175 SGEXT ¥35,900
45100-20600-03 note Wheel Assy, Steering
1988-05 → 1990-05 ended
AT171 S ¥35,900
45100-20600-03 note Wheel Assy, Steering
1988-12 → 1989-03 ended
AT175 SGEXT ¥35,900
45100-20600-04 note Wheel Assy, Steering
1988-05 → 1990-05 ended
AT171 S ¥35,900
45100-20600-06 note Wheel Assy, Steering
1988-12 → —
AT175 SGEXT ¥35,900
45100-20600-06 note Wheel Assy, Steering
1988-05 → 1990-05 ended
AT171 S ¥35,900
45100-20600-06 note Wheel Assy, Steering
1989-03 → 1990-05 ended
ST170 SGEXT ¥35,900
45100-20610-01 note Wheel Assy, Steering
1988-05 → 1990-05 ended
AT171 GLIM ¥39,600
45100-20770-03 note Wheel Assy, Steering
1991-06 → 1992-11 ended
AT170,171,CT170,ST170 ¥63,500
45100-20770-03 note Wheel Assy, Steering
1990-05 → 1991-06 ended
AT171,ST170 GLIM,SE ¥63,500
45100-20770-04 note Wheel Assy, Steering
1990-05 → 1991-06 ended
ST170 SE ¥63,500
45100-20770-04 note Wheel Assy, Steering
1991-06 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥63,500
45100-20770-06 note Wheel Assy, Steering
1991-06 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥63,500
45100-20770-06 note Wheel Assy, Steering
1990-05 → 1991-06 ended
ST170 SE ¥63,500
45100-20840-03 note Wheel Assy, Steering
1990-11 → —
AT175 SGEXT ¥18,200
45100-20840-03 note Wheel Assy, Steering
1990-05 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥18,200
45100-20840-04 note Wheel Assy, Steering
1990-05 → 1992-08 ended
AT170,175,CT170 SG ¥18,200
45100-20840-04 note Wheel Assy, Steering
1990-11 → —
AT175 SGEXT ¥18,200
45100-20840-06 note Wheel Assy, Steering
1990-05 → 1992-08 ended
AT170,175,CT170 SG ¥18,200
45100-20840-06 note Wheel Assy, Steering
1990-11 → —
AT175 SGEXT ¥18,200
45100-20850-03 note Wheel Assy, Steering
1990-12 → 1992-11 ended
AT170 SV;CT170 SG,SV ¥27,900
45100-20850-03 note Wheel Assy, Steering
1990-05 → 1990-12 ended
AT170,CT170 SV ¥27,900
45100-20850-03 note Wheel Assy, Steering
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SGEXT,SX ¥27,900
45100-20850-04 note Wheel Assy, Steering
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥27,900
45100-20850-04 note Wheel Assy, Steering
1990-12 → 1992-08 ended
CT170 SG ¥27,900
45100-20850-06 note Wheel Assy, Steering
1990-12 → 1992-08 ended
CT170 SG ¥27,900
45100-20850-06 note Wheel Assy, Steering
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SGEXT,SX ¥27,900
45100-20860-03 note Wheel Assy, Steering
1990-05 → 1992-11 ended
ST170 SE,SX ¥27,900
45100-20860-04 note Wheel Assy, Steering
1990-05 → 1992-08 ended
ST170 SE ¥27,900
45100-20860-06 note Wheel Assy, Steering
1990-05 → 1992-11 ended
ST170 SE,SX ¥27,900
45100-20870-03 note Wheel Assy, Steering
1990-05 → 1992-08 ended
AT171 EFI ¥39,100
45100-20870-03 note Wheel Assy, Steering
1990-05 → 1992-11 ended
AT171,ST170 S,SE,SX ¥39,100
45100-20870-04 note Wheel Assy, Steering
1990-05 → 1992-08 ended
AT171,ST170 S,SE ¥39,100
45100-20870-06 note Wheel Assy, Steering
1990-05 → 1992-11 ended
AT171,ST170 S,SE,SX ¥39,100
45100-20880-03 note Wheel Assy, Steering
1990-05 → 1992-08 ended
AT171 EFI ¥39,100
45100-20890-03 note Wheel Assy, Steering
1990-05 → 1992-11 ended
ST170 SE,SX ¥39,100
45100-20890-04 note Wheel Assy, Steering
1990-05 → 1992-08 ended
ST170 SE ¥39,100
45100-20890-06 note Wheel Assy, Steering
1990-05 → 1992-11 ended
ST170 SE,SX ¥39,100
45100-2B010-13 note Wheel Assy, Steering
1990-05 → 1992-08 ended
AT171 EFI ¥63,500
45102-20510-03 note Wheel Assy, Steering
1988-05 → 1990-05 ended
ST170 SE,SX ¥25,600
45102-20510-04 note Wheel Assy, Steering
1988-05 → 1990-05 ended
ST170 SE ¥25,600
45102-20510-06 note Wheel Assy, Steering
1988-05 → 1989-02 ended
ST170 SE,SX ¥25,600
45102-20510-06 note Wheel Assy, Steering
1989-02 → 1989-08 ended
ST170 SX ¥25,600
45102-20510-06 note Wheel Assy, Steering
1989-02 → 1989-03 ended
ST170 SE ¥25,600
45102-20510-06 note Wheel Assy, Steering
1989-08 → 1990-05 ended
ST170 SE,SX ¥25,600
45112 — Pad, Steering Wheel
45112-20410-01 note Pad, Steering Wheel
1988-05 → 1990-05 ended
AT171 GLIM ¥4,150
45112-20410-03 note Pad, Steering Wheel
1988-12 → 1989-03 ended
AT175 SGEXT ¥4,150
45112-20410-03 note Pad, Steering Wheel
1988-05 → 1990-05 ended
AT171 S ¥4,150
45112-20410-03 note Pad, Steering Wheel
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥4,150
45112-20410-04 note Pad, Steering Wheel
1988-12 → 1989-03 ended
AT175 SGEXT ¥4,150
45112-20410-04 note Pad, Steering Wheel
1988-05 → 1990-05 ended
AT171 S ¥4,150
45112-20410-04 note Pad, Steering Wheel
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥4,150
45112-20410-06 note Pad, Steering Wheel
1988-05 → 1990-05 ended
AT171 S ¥4,150
45112-20410-06 note Pad, Steering Wheel
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥4,150
45112-20410-06 note Pad, Steering Wheel
1988-12 → 1989-03 ended
AT175 SGEXT ¥4,150
45112-20540-03 note Pad, Steering Wheel
1990-05 → 1990-12 ended
CT170 SE,SV ¥5,500
45112-20540-03 note Pad, Steering Wheel
1990-12 → 1992-11 ended
CT170;AT17#,ST170 S,SE,SGEXT,SV,SX ¥5,500
45112-20540-03 note Pad, Steering Wheel
1990-05 → 1990-12 ended
AT170 SE,SGEXT,SV ¥5,500
45112-20540-03 note Pad, Steering Wheel
1990-05 → 1990-12 ended
AT175 SE,SGEXT ¥5,500
45112-20540-03 note Pad, Steering Wheel
1990-05 → 1990-12 ended
AT171 EFIS ¥5,500
45112-20540-03 note Pad, Steering Wheel
1990-05 → 1990-12 ended
ST170 ¥5,500
45112-20540-04 note Pad, Steering Wheel
1990-05 → 1992-08 ended
AT171,CT170 SED (DSL,EFIS) ¥5,500
45112-20540-04 note Pad, Steering Wheel
1990-05 → 1992-08 ended
AT170,175,ST170 SE,SGEXT ¥5,500
45112-20540-06 note Pad, Steering Wheel
1990-12 → 1992-11 ended
CT170 SED;AT17#,ST170 S,SE,SGEXT,SX ¥5,500
45112-20540-06 note Pad, Steering Wheel
1990-05 → 1990-12 ended
ST170 ¥5,500
45112-20540-06 note Pad, Steering Wheel
1990-05 → 1990-12 ended
AT171 EFIS ¥5,500
45112-20540-06 note Pad, Steering Wheel
1990-05 → 1990-12 ended
AT170,175,CT170 SE,SGEXT ¥5,500
45112-20550-03 note Pad, Steering Wheel
1990-05 → 1990-11 ended
ST170 SE,SX ¥5,700
45112-20550-03 note Pad, Steering Wheel
1990-05 → 1992-08 ended
AT171 EFI ¥5,700
45112-20550-03 note Pad, Steering Wheel
1990-05 → 1990-11 ended
AT171 EFIS ¥5,700
45112-20550-04 note Pad, Steering Wheel
1990-05 → 1992-08 ended
AT171 EFIS ¥5,700
45112-20550-04 note Pad, Steering Wheel
1990-05 → 1992-08 ended
ST170 SE ¥5,700
45112-20550-06 note Pad, Steering Wheel
1990-05 → 1990-11 ended
ST170 SE,SX ¥5,700
45112-20550-06 note Pad, Steering Wheel
1990-05 → 1990-11 ended
AT171 EFIS ¥5,700
45126 — Plate, Steering Wheel Pad Set
45126-20060 Plate, Steering Wheel Pad Set
1988-05 → 1990-05 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥1,320
45126-20090 note Plate, Steering Wheel Pad Set
1988-12 → 1989-03 ended
AT175 SGEXT ¥1,080
45126-20090 Plate, Steering Wheel Pad Set
1988-05 → 1990-05 ended
AT171 GLIM ¥1,080
45126-20090 note Plate, Steering Wheel Pad Set
1988-05 → 1990-05 ended
AT171 S ¥1,080
45126-20090 note Plate, Steering Wheel Pad Set
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥1,080
45131 — Button, Horn, NO.1
45131-20230-01 note Button, Horn, NO.1
1988-05 → 1990-05 ended
AT171 GLIM ¥720
45131-20230-03 note Button, Horn, NO.1
1988-12 → 1989-03 ended
AT175 SGEXT ¥720
45131-20230-03 note Button, Horn, NO.1
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥720
45131-20230-03 note Button, Horn, NO.1
1988-05 → 1990-05 ended
AT171 S ¥720
45131-20230-04 note Button, Horn, NO.1
1988-05 → 1990-05 ended
AT171 S ¥720
45131-20230-04 note Button, Horn, NO.1
1988-12 → 1989-03 ended
AT175 SGEXT ¥720
45131-20230-04 note Button, Horn, NO.1
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥720
45131-20230-06 note Button, Horn, NO.1
1988-05 → 1990-05 ended
AT171 S ¥720
45131-20230-06 note Button, Horn, NO.1
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥720
45131-20230-06 note Button, Horn, NO.1
1988-12 → 1989-03 ended
AT175 SGEXT ¥720
45131-20240-03 note Button, Horn, NO.1
1990-05 → 1991-06 ended
AT171,ST170 GLIM,SE ¥470
45131-20240-03 note Button, Horn, NO.1
1991-06 → 1992-01 ended
AT170,171,CT170,ST170 ¥470
45131-20240-06 note Button, Horn, NO.1
1991-06 → 1992-01 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥470
45131-20240-06 note Button, Horn, NO.1
1990-05 → 1991-06 ended
ST170 SE ¥470
45131-20240-14 note Button, Horn, NO.1
1990-05 → 1991-06 ended
ST170 SE ¥470
45131-20240-14 note Button, Horn, NO.1
1991-06 → 1992-01 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥470
45131-20240-14 note Button, Horn, NO.1
1992-04 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥470
45131-33010-B0 note Button, Horn, NO.1
1992-01 → 1992-04 ended
CT170 SE,SV;AT170,171,ST170 DX,GLIM,S,SE,SG,SV,SX ¥470
45131-33010-B0 note Button, Horn, NO.1
1992-01 → 1992-04 ended
CT170 SG;AT170,ST170 SGEXT ¥470
45131-33010-B0 note Button, Horn, NO.1
1992-04 → 1992-11 ended
AT170,171,CT170,ST170 ¥470
45131-33010-E1 note Button, Horn, NO.1
1992-01 → 1992-04 ended
CT170 SE;AT170,171,ST170 S,SE,SG,SX ¥470
45131-33010-E1 note Button, Horn, NO.1
1992-01 → 1992-04 ended
CT170 SG;AT170,ST170 SGEXT ¥470
45131-33010-E1 note Button, Horn, NO.1
1992-04 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥470
45131-33010-J0 note Button, Horn, NO.1
1992-01 → 1992-04 ended
CT170 SG;AT170,ST170 SGEXT ¥470
45131-33010-J0 note Button, Horn, NO.1
1992-04 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥470
45131-33010-J0 note Button, Horn, NO.1
1992-01 → 1992-04 ended
CT170 SE;AT170,171,ST170 S,SE,SG ¥470
45136F — Plate, Horn Button Contact, NO.1
45136-20210 Plate, Horn Button Contact, NO.1
1988-12 → 1989-03 ended
AT175 SGEXT ¥720
45136-20210 Plate, Horn Button Contact, NO.1
1988-05 → 1990-05 ended
AT171 GLIM ¥720
45136-20210 Plate, Horn Button Contact, NO.1
1988-05 → 1990-05 ended
AT171 S ¥720
45136-20210 Plate, Horn Button Contact, NO.1
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥720
45137A — Plate, Horn Button Contact, NO.2
45137-20050 note Plate, Horn Button Contact, NO.2
1988-12 → 1989-03 ended
AT175 SGEXT ¥580
45137-20050 Plate, Horn Button Contact, NO.2
1988-05 → 1990-05 ended
AT171 GLIM ¥580
45137-20050 note Plate, Horn Button Contact, NO.2
1988-05 → 1990-05 ended
AT171 S ¥580
45137-20050 note Plate, Horn Button Contact, NO.2
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥580
45137-20060 note Plate, Horn Button Contact, NO.2
1988-05 → 1990-05 ended
AT171 GLIM ¥580
45142E — Piece, Horn Contact
45142-20060 Piece, Horn Contact
1988-12 → 1989-03 ended
AT175 SGEXT ¥400
45142-20060 Piece, Horn Contact
1990-12 → 1992-11 ended
CT170;AT17#,ST170 GLIM,S,SE,SGEXT,SV,SX ¥400
45142-20060 Piece, Horn Contact
1990-05 → 1990-12 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SV,SX ¥400
45142-20060 Piece, Horn Contact
1988-05 → 1990-05 ended
AT171 S ¥400
45142-20060 Piece, Horn Contact
1988-05 → 1990-05 ended
AT171 GLIM ¥400
45142-20060 Piece, Horn Contact
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥400
45146 — Spring, Horn Button Contact
45146-20180 note Spring, Horn Button Contact
1988-12 → 1989-03 ended
AT175 SGEXT ¥250
45146-20180 Spring, Horn Button Contact
1988-05 → 1990-05 ended
AT171 GLIM ¥250
45146-20180 note Spring, Horn Button Contact
1988-05 → 1990-05 ended
AT171 S ¥250
45146-20180 note Spring, Horn Button Contact
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥250
45146-20230 Spring, Horn Button Contact
1990-05 → 1991-06 ended
AT171,ST170 GLIM,SE ¥110
45146-20230 Spring, Horn Button Contact
1991-06 → 1992-11 ended
AT170,171,CT170,ST170 ¥110
45180 — Cover Sub-assy, Steering Wheel
45180-20060-03 note Cover Sub-assy, Steering Wheel
1988-05 → 1990-05 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥1,920
45180-20060-04 note Cover Sub-assy, Steering Wheel
1988-05 → 1990-05 ended
AT170,175,CT170 SG ¥1,920
45180-20060-06 note Cover Sub-assy, Steering Wheel
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT170,175,CT170 SG,SV ¥1,920
45180-20070-03 note Cover Sub-assy, Steering Wheel
1989-03 → 1990-05 ended
CT170 SG ¥1,920
45180-20070-03 note Cover Sub-assy, Steering Wheel
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SGEXT,SX ¥1,920
45180-20070-03 note Cover Sub-assy, Steering Wheel
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥1,920
45180-20070-03 note Cover Sub-assy, Steering Wheel
1989-03 → 1990-05 ended
AT170 4F SG ¥1,920
45180-20070-03 note Cover Sub-assy, Steering Wheel
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥1,920
45180-20070-03 note Cover Sub-assy, Steering Wheel
1988-05 → 1989-03 ended
AT170 4F SG ¥1,920
45180-20070-04 note Cover Sub-assy, Steering Wheel
1989-03 → 1990-05 ended
AT170 4F SG ¥1,920
45180-20070-04 note Cover Sub-assy, Steering Wheel
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥1,920
45180-20070-04 note Cover Sub-assy, Steering Wheel
1989-03 → 1990-05 ended
CT170 SG ¥1,920
45180-20070-04 note Cover Sub-assy, Steering Wheel
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥1,920
45180-20070-04 note Cover Sub-assy, Steering Wheel
1988-05 → 1989-03 ended
AT170 4F SG ¥1,920
45180-20070-04 note Cover Sub-assy, Steering Wheel
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥1,920
45180-20070-06 note Cover Sub-assy, Steering Wheel
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥1,920
45180-20070-06 note Cover Sub-assy, Steering Wheel
1989-03 → 1990-05 ended
CT170 SG ¥1,920
45180-20070-06 note Cover Sub-assy, Steering Wheel
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥1,920
45180-20070-06 note Cover Sub-assy, Steering Wheel
1989-03 → 1990-05 ended
AT170 4F SG ¥1,920
45180-20070-06 note Cover Sub-assy, Steering Wheel
1989-08 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SGEXT,SX ¥1,920
45180-20070-06 note Cover Sub-assy, Steering Wheel
1988-05 → 1989-02 ended
AT17#,CT170,ST170 S,SE,SGEXT,SX ¥1,920
45180-20070-06 note Cover Sub-assy, Steering Wheel
1988-05 → 1989-03 ended
AT170 4F SG ¥1,920
45180-20070-06 note Cover Sub-assy, Steering Wheel
1989-02 → 1989-08 ended
AT171,175,ST170 S,SGEXT,SX ¥1,920
45180-20080-01 note Cover Sub-assy, Steering Wheel
1988-05 → 1990-05 ended
AT171 GLIM ¥1,920
45180-20080-03 note Cover Sub-assy, Steering Wheel
1988-05 → 1990-05 ended
AT171 S ¥1,920
45180-20080-03 note Cover Sub-assy, Steering Wheel
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥1,920
45180-20080-03 note Cover Sub-assy, Steering Wheel
1988-12 → 1989-03 ended
AT175 SGEXT ¥1,920
45180-20080-04 note Cover Sub-assy, Steering Wheel
1988-05 → 1990-05 ended
AT171 S ¥1,920
45180-20080-04 note Cover Sub-assy, Steering Wheel
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥1,920
45180-20080-04 note Cover Sub-assy, Steering Wheel
1988-12 → 1989-03 ended
AT175 SGEXT ¥1,920
45180-20080-06 note Cover Sub-assy, Steering Wheel
1988-12 → 1989-03 ended
AT175 SGEXT ¥1,920
45180-20080-06 note Cover Sub-assy, Steering Wheel
1988-05 → 1990-05 ended
AT171 S ¥1,920
45180-20080-06 note Cover Sub-assy, Steering Wheel
1989-03 → 1990-05 ended
AT175,ST170 SGEXT ¥1,920
45180-20160-03 note Cover Sub-assy, Steering Wheel
1990-11 → —
ST170 4FC SGEXT ¥2,100
45180-20160-03 note Cover Sub-assy, Steering Wheel
1990-05 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥2,100
45180-20160-04 note Cover Sub-assy, Steering Wheel
1990-05 → 1992-08 ended
AT170,175,CT170 SG ¥2,100
45180-20160-04 note Cover Sub-assy, Steering Wheel
1990-11 → —
ST170 4FC SGEXT ¥2,100
45180-20160-06 note Cover Sub-assy, Steering Wheel
1990-11 → —
ST170 4FC SGEXT ¥2,100
45180-20160-06 note Cover Sub-assy, Steering Wheel
1990-05 → 1992-08 ended
AT170,175,CT170 SG ¥2,100
45180-20170-03 note Cover Sub-assy, Steering Wheel
1990-12 → 1992-11 ended
AT170 SV;CT170 SG,SV ¥2,100
45180-20170-03 note Cover Sub-assy, Steering Wheel
1990-05 → 1990-12 ended
AT170,CT170 SV ¥2,100
45180-20170-03 note Cover Sub-assy, Steering Wheel
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SGEXT,SX ¥2,100
45180-20170-04 note Cover Sub-assy, Steering Wheel
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SGEXT ¥2,100
45180-20170-04 note Cover Sub-assy, Steering Wheel
1990-12 → 1992-08 ended
CT170 SG ¥2,100
45180-20170-06 note Cover Sub-assy, Steering Wheel
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SGEXT,SX ¥2,100
45180-20170-06 note Cover Sub-assy, Steering Wheel
1990-12 → 1992-08 ended
CT170 SG ¥2,100
45180-20180-03 note Cover Sub-assy, Steering Wheel
1990-05 → 1992-11 ended
AT171,ST170 S,SE,SX ¥1,900
45180-20180-03 note Cover Sub-assy, Steering Wheel
1990-05 → 1992-08 ended
AT171 EFI ¥1,900
45180-20180-04 note Cover Sub-assy, Steering Wheel
1990-05 → 1992-08 ended
AT171,ST170 S,SE ¥1,920
45180-20180-06 note Cover Sub-assy, Steering Wheel
1990-05 → 1992-11 ended
AT171,ST170 S,SE,SX ¥1,900
45184-20200-03 note Cover Sub-assy, Steering Wheel
1988-05 → 1990-05 ended
ST170 SE,SX ¥1,590
45184-20200-04 note Cover Sub-assy, Steering Wheel
1988-05 → 1990-05 ended
ST170 SE ¥1,590
45184-20200-06 note Cover Sub-assy, Steering Wheel
1989-08 → 1990-05 ended
ST170 SE,SX ¥1,590
45184-20200-06 note Cover Sub-assy, Steering Wheel
1988-05 → 1989-02 ended
ST170 SE,SX ¥1,590
45184-20200-06 note Cover Sub-assy, Steering Wheel
1989-02 → 1989-03 ended
ST170 SE ¥1,590
45184-20200-06 note Cover Sub-assy, Steering Wheel
1989-02 → 1989-08 ended
ST170 SX ¥1,590
45184-20220-01 note Cover Sub-assy, Steering Wheel
1988-05 → 1990-05 ended
AT171 GLIM ¥1,950
45201P — Nut, Steering Wheel Set
90179-12086 Nut, Steering Wheel Set
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
