Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

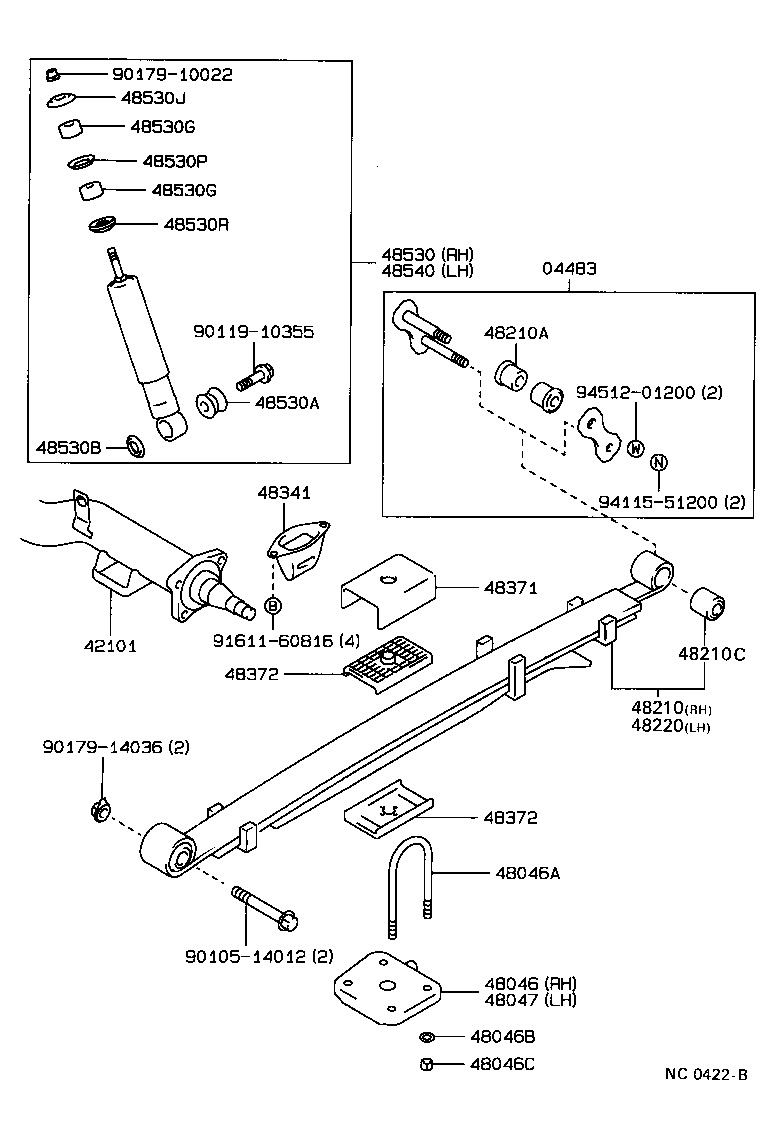

Exploded illustration NC0422B 9017910022 — not listed in this catalogue 48530J — RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) (1 parts) 48530G — CUSHION, REAR SHOCK ABSORBER, NO.1 (2 parts) 48530P — RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) (1 parts) 48530G — CUSHION, REAR SHOCK ABSORBER, NO.1 (2 parts) 48530R — RETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER) (1 parts) 48530 — ABSORBER ASSY, SHOCK, REAR RH (6 parts) 04483 — SHACKLE KIT, REAR SPRING (1 parts) 48540 — ABSORBER ASSY, SHOCK, REAR LH (6 parts) 9011910355 — not listed in this catalogue 48210A — BUSH(FOR REAR SPRING SHACKLE UPPER) (1 parts) 9451201200 — not listed in this catalogue 48530A — BUSH(FOR REAR SHOCK ABSORBER) (1 parts) 48530B — WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 (1 parts) 48341 — BUMPER, REAR SPRING (8 parts) 9411551200 — not listed in this catalogue 48371 — RETAINER, REAR SPRING PAD (3 parts) 9161160816 — not listed in this catalogue 42101 — TUBE SUB-ASSY, REAR AXLE (1 parts) 48210C — BUSH(FOR REAR SPRING LEAF) (2 parts) 48372 — PAD, REAR SPRING (3 parts) 48210 — SPRING ASSY, REAR RH (2 parts) 48220 — SPRING ASSY, REAR LH (1 parts) 9017914036 — not listed in this catalogue 48372 — PAD, REAR SPRING (3 parts) 48046A — BOLT, U(FOR REAR SPRING) (2 parts) 9010514012 — not listed in this catalogue 48046 — SEAT SUB-ASSY, SPRING U BOLT, RH (2 parts) 48047 — SEAT SUB-ASSY, SPRING U BOLT, LH (2 parts) 48046B — WASHER(FOR REAR SPRING U BOLT) (2 parts) 48046C — NUT(FOR REAR SPRING U BOLT) (2 parts)
NC0422B · 24 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
51 parts on this figure
Part number Description Fitment Price
04483 — Shackle Kit, Rear Spring
04483-21060 Shackle Kit, Rear Spring
1988-05 → 1992-11 ended
CT176,ET176 ¥3,050
42101 — Tube Sub-assy, Rear Axle
42101-21080 Tube Sub-assy, Rear Axle
1988-05 → 1992-11 ended
CT176,ET176 ¥53,100
48046 — Seat Sub-assy, Spring U Bolt, RH
48046-21030 Seat Sub-assy, Spring U Bolt, RH
1988-05 → 1990-05 ended
CT176,ET176 3FC,4F,5F ¥1,070
48046-21030 Seat Sub-assy, Spring U Bolt, RH
1990-05 → 1992-11 ended
CT176,ET176 ¥1,070
48046A — Bolt, U(FOR REAR SPRING)
90117-10010 note Bolt, U(FOR REAR SPRING)
1988-05 → 1990-05 ended
CT176,ET176 3FC,4F,5F ¥910
90117-10010 note Bolt, U(FOR REAR SPRING)
1990-05 → 1992-11 ended
CT176,ET176 ¥910
48046B — Washer(FOR REAR SPRING U BOLT)
94621-11000 Washer(FOR REAR SPRING U BOLT)
1988-05 → 1990-05 ended
CT176,ET176 3FC,4F,5F ¥220
94621-11000 Washer(FOR REAR SPRING U BOLT)
1990-05 → 1992-11 ended
CT176,ET176 ¥220
48046C — Nut(FOR REAR SPRING U BOLT)
90170-10022 Nut(FOR REAR SPRING U BOLT)
1988-05 → 1990-05 ended
CT176,ET176 3FC,4F,5F ¥140
90170-10022 Nut(FOR REAR SPRING U BOLT)
1990-05 → 1992-11 ended
CT176,ET176 ¥140
48047 — Seat Sub-assy, Spring U Bolt, LH
48047-21030 Seat Sub-assy, Spring U Bolt, LH
1988-05 → 1990-05 ended
CT176,ET176 3FC,4F,5F ¥1,070
48047-21030 Seat Sub-assy, Spring U Bolt, LH
1990-05 → 1992-11 ended
CT176,ET176 ¥1,070
48210 — Spring Assy, Rear RH
48210-20460 note Spring Assy, Rear RH
1988-05 → —
CT176,ET176 MTM DX ¥45,900
48210-21250 Spring Assy, Rear RH
1988-05 → 1992-11 ended
CT176,ET176 ¥29,700
48210A — Bush(FOR REAR SPRING SHACKLE UPPER)
90385-15003 Bush(FOR REAR SPRING SHACKLE UPPER)
1988-05 → 1992-11 ended
CT176,ET176 ¥390
48210C — Bush(FOR REAR SPRING LEAF)
90389-12010 note Bush(FOR REAR SPRING LEAF)
1988-05 → 1992-11 ended
CT176,ET176 ¥990
90389-14035 note Bush(FOR REAR SPRING LEAF)
1988-05 → 1992-11 ended
CT176,ET176 ¥1,350
48220 — Spring Assy, Rear LH
48210-21250 Spring Assy, Rear LH
1988-05 → 1992-11 ended
CT176,ET176 ¥29,700
48341 — Bumper, Rear Spring
48341-20090 Bumper, Rear Spring
1988-05 → 1990-05 ended
AT171 GLIM ¥1,890
48341-20090 Bumper, Rear Spring
1990-05 → 1992-08 ended
AT171 EFI ¥1,890
48341-20100 Bumper, Rear Spring
1988-08 → 1990-05 ended
AT175 ¥1,510
48341-20100 Bumper, Rear Spring
1990-05 → 1992-08 ended
AT175 ¥1,510
48341-20120 Bumper, Rear Spring
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 DX,S,SE,SG,SGEXT,SV,SX ¥1,890
48341-20120 Bumper, Rear Spring
1990-05 → 1992-11 ended
AT170,ST170 ¥1,890
48341-21010 Bumper, Rear Spring
1990-05 → 1992-11 ended
CT176,ET176 ¥3,720
48341-21010 Bumper, Rear Spring
1988-05 → 1990-05 ended
CT176,ET176 3FC,4F,5F ¥3,720
48371 — Retainer, Rear Spring Pad
48371-20200 note Retainer, Rear Spring Pad
1988-05 → —
CT176,ET176 MTM DX ¥1,400
48371-21070 Retainer, Rear Spring Pad
1988-05 → 1990-05 ended
CT176,ET176 3FC,4F,5F ¥1,670
48371-21070 Retainer, Rear Spring Pad
1990-05 → 1992-11 ended
CT176,ET176 ¥1,670
48372 — Pad, Rear Spring
48372-20060 note Pad, Rear Spring
1988-05 → —
CT176,ET176 MTM DX ¥1,160
48372-28010 Pad, Rear Spring
1988-05 → 1990-05 ended
CT176,ET176 3FC,4F,5F ¥760
48372-28010 Pad, Rear Spring
1990-05 → 1992-11 ended
CT176,ET176 ¥760
48530 — Absorber Assy, Shock, Rear RH
48530-20200 note Absorber Assy, Shock, Rear RH
1988-05 → 1992-08 ended
AT171 GLIM ¥51,400
48530-20450 Absorber Assy, Shock, Rear RH
1988-08 → 1992-08 ended
AT175 ¥23,300
48530-20460 Absorber Assy, Shock, Rear RH
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 DX,S,SE,SG,SGEXT,SV,SX ¥25,500
48530-20490 Absorber Assy, Shock, Rear RH
1988-05 → 1992-08 ended
AT171 GLIM ¥25,500
48531-80200 Absorber Assy, Shock, Rear RH
1988-05 → 1992-11 ended
CT176,ET176 ¥8,000
48531-80205 note Absorber Assy, Shock, Rear RH
1988-05 → —
CT176,ET176 MTM DX ¥8,000
48530A — Bush(FOR REAR SHOCK ABSORBER)
90385-16004 Bush(FOR REAR SHOCK ABSORBER)
1988-05 → 1992-11 ended
CT176,ET176 ¥620
48530B — Washer, Rear Shock Absorber Cushion, NO.1
90948-03004 Washer, Rear Shock Absorber Cushion, NO.1
1988-05 → 1992-11 ended
CT176,ET176 ¥200
48530G — Cushion, Rear Shock Absorber, NO.1
90540-10005 note Cushion, Rear Shock Absorber, NO.1
1988-05 → 1992-11 ended
CT176,ET176 ¥230
90948-01003 note Cushion, Rear Shock Absorber, NO.1
1988-05 → 1992-11 ended
CT176,ET176 ¥220
48530J — Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER)
90948-02045 Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER)
1988-05 → 1992-11 ended
CT176,ET176 ¥320
48530P — Retainer, Cushion, NO.2(FOR REAR SHOCK ABSORBER)
90948-02007 Retainer, Cushion, NO.2(FOR REAR SHOCK ABSORBER)
1988-05 → 1992-11 ended
CT176,ET176 ¥170
48530R — Retainer, Cushion, NO.3(FOR REAR SHOCK ABSORBER)
90948-02002 Retainer, Cushion, NO.3(FOR REAR SHOCK ABSORBER)
1988-05 → 1992-11 ended
CT176,ET176 ¥170
48540 — Absorber Assy, Shock, Rear LH
48531-80200 Absorber Assy, Shock, Rear LH
1988-05 → 1992-11 ended
CT176,ET176 ¥8,000
48531-80205 note Absorber Assy, Shock, Rear LH
1988-05 → —
CT176,ET176 MTM DX ¥8,000
48540-20200 note Absorber Assy, Shock, Rear LH
1988-05 → 1992-08 ended
AT171 GLIM ¥51,400
48540-20450 Absorber Assy, Shock, Rear LH
1988-08 → 1992-08 ended
AT175 ¥23,300
48540-20460 Absorber Assy, Shock, Rear LH
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 DX,S,SE,SG,SGEXT,SV,SX ¥25,500
48540-20490 Absorber Assy, Shock, Rear LH
1988-05 → 1992-08 ended
AT171 GLIM ¥25,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
