Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

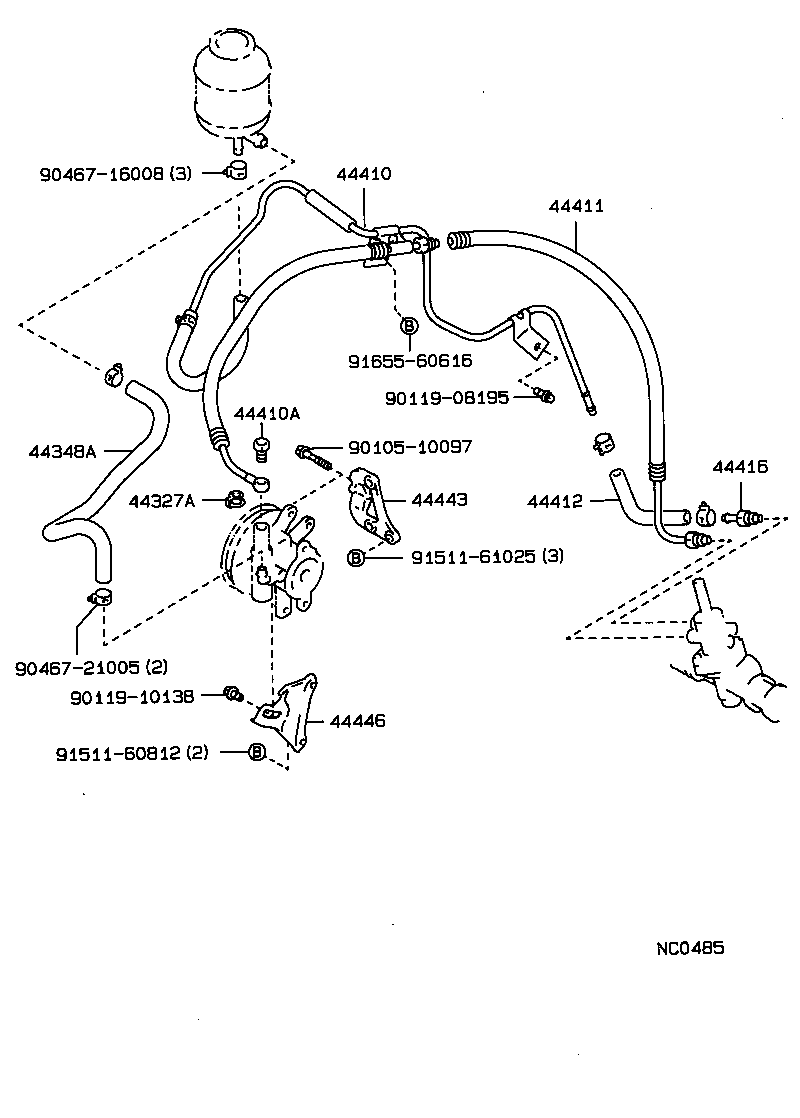

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44327A — Gasket, Pressure Port, NO.1 | ||||
| 44327-12010 |
Gasket, Pressure Port, NO.1
1990-05 → 1992-11
ended
|
CT17# 4FC (DX,SV) | ¥260 | |
| 44327-12010 |
Gasket, Pressure Port, NO.1
1990-05 → 1992-11
ended
|
CT170 SED;AT17#,ET176,ST170;CT17# (VAN,WG) 5F | ¥260 | |
| 44327-12010 |
Gasket, Pressure Port, NO.1
1988-05 → 1990-05
ended
|
AT17#,CT17#,ET176,ST170 | ¥260 | |
| 44348A — Hose, Oil Reservoir TO Pump, NO.1 | ||||
| 44348-20160 |
Hose, Oil Reservoir TO Pump, NO.1
1988-05 → 1990-05
ended
|
CT17# | ¥3,500 | |
| 44348-20160 |
Hose, Oil Reservoir TO Pump, NO.1
1990-05 → 1992-11
ended
|
CT170 SED;CT17# (VAN,WG) 5F | ¥3,500 | |
| 44348-20160 |
Hose, Oil Reservoir TO Pump, NO.1
1990-05 → 1992-11
ended
|
CT17# 4FC (DX,SV) | ¥3,500 | |
| 44348-20170 note |
Hose, Oil Reservoir TO Pump, NO.1
1988-08 → 1990-05
ended
|
ST170 SE | ¥6,600 | |
| 44348-20190 |
Hose, Oil Reservoir TO Pump, NO.1
1988-05 → 1992-11
ended
|
ET176 | ¥4,710 | |
| 44348-20210 |
Hose, Oil Reservoir TO Pump, NO.1
1988-05 → 1992-08
ended
|
AT171 GLIM | ¥3,970 | |
| 44348-20240 |
Hose, Oil Reservoir TO Pump, NO.1
1990-05 → 1992-11
ended
|
ST170 | ¥6,200 | |
| 44348-20250 |
Hose, Oil Reservoir TO Pump, NO.1
1988-05 → 1990-05
ended
|
ST170 | ¥9,300 | |
| 44348-20380 note |
Hose, Oil Reservoir TO Pump, NO.1
1990-05 → 1992-08
ended
|
ST170 SED | ¥6,500 | |
| 44410 — Tube Assy, Pressure Feed | ||||
| 44410-20380 |
Tube Assy, Pressure Feed
1988-05 → 1990-10
ended
|
AT170,171 DX,S,SE,SG,SGEXT,SV | ¥24,700 | |
| 44410-20381 |
Tube Assy, Pressure Feed
1990-12 → 1992-11
ended
|
AT170 | ¥24,300 | |
| 44410-20381 |
Tube Assy, Pressure Feed
1990-10 → 1992-11
ended
|
AT171 EFIS | ¥24,300 | |
| 44410-20400 |
Tube Assy, Pressure Feed
1988-05 → 1990-05
ended
|
CT17# | ¥36,900 | |
| 44410-20430 |
Tube Assy, Pressure Feed
1988-05 → 1992-11
ended
|
ST170 | ¥15,300 | |
| 44410-20451 |
Tube Assy, Pressure Feed
1988-05 → 1992-11
ended
|
ET176 | ¥26,000 | |
| 44410-20461 |
Tube Assy, Pressure Feed
1988-05 → 1992-08
ended
|
AT171 GLIM | ¥31,400 | |
| 44410-20480 |
Tube Assy, Pressure Feed
1988-08 → 1989-11
ended
|
AT175 | ¥26,200 | |
| 44410-20640 |
Tube Assy, Pressure Feed
1989-11 → 1990-10
ended
|
AT175 | ¥26,200 | |
| 44410-20641 |
Tube Assy, Pressure Feed
1990-12 → 1992-08
ended
|
AT175 | ¥25,700 | |
| 44410-20650 |
Tube Assy, Pressure Feed
1990-05 → 1992-11
ended
|
CT170 SED;CT17# (VAN,WG) 5F | ¥36,500 | |
| 44410-20650 |
Tube Assy, Pressure Feed
1990-05 → 1992-11
ended
|
CT17# 4FC (DX,SV) | ¥36,500 | |
| 44410A — Bolt, Union(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
Bolt, Union(FOR PRESSURE FEED TUBE)
1988-05 → 1990-05
ended
|
AT17#,CT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX | ¥610 | |
| 90401-16008 |
Bolt, Union(FOR PRESSURE FEED TUBE)
1990-05 → 1992-11
ended
|
CT17# 4FC (DX,SV) | ¥610 | |
| 90401-16008 |
Bolt, Union(FOR PRESSURE FEED TUBE)
1990-05 → 1992-11
ended
|
CT170 SED;CT17# (VAN,WG) 5F;AT17#,ET176,ST170 +1 | ¥610 | |
| 90401-16013 |
Bolt, Union(FOR PRESSURE FEED TUBE)
1988-05 → 1992-08
ended
|
AT171 GLIM | ¥510 | |
| 44411 — Hose, Pressure Feed | ||||
| 44411-20230 |
Hose, Pressure Feed
1988-05 → 1990-05
ended
|
ST170 | ¥14,700 | |
| 44411-20260 |
Hose, Pressure Feed
1988-05 → 1992-11
ended
|
ET176 | ¥16,000 | |
| 44411-20370 |
Hose, Pressure Feed
1990-05 → 1992-11
ended
|
ST170 | ¥12,900 | |
| 44412 — Hose, Return | ||||
| 44412-20180 |
Hose, Return
1988-05 → 1992-11
ended
|
ET176 | ¥1,020 | |
| 44416 — Tube, Return(FOR STEERING GEAR OUTLET) | ||||
| 44416-20110 |
Tube, Return(FOR STEERING GEAR OUTLET)
1988-05 → 1990-05
ended
|
AT171,CT17#,ET176,ST170 DX,GLIM,SE,SG,SGEXT,STD,SX | ¥710 | |
| 44416-20110 |
Tube, Return(FOR STEERING GEAR OUTLET)
1990-05 → 1992-11
ended
|
CT17# (VAN,WG) 5F;AT171,CT170,ET176,ST170 DX,GLIM,SE,SG,SGEXT,STD,SX | ¥710 | |
| 44416-20110 |
Tube, Return(FOR STEERING GEAR OUTLET)
1990-05 → 1992-11
ended
|
CT17# 4FC (DX,SV) | ¥710 | |
| 44443 — Bracket, Pump | ||||
| 44443-12050 |
Bracket, Pump
1988-05 → 1992-11
ended
|
AT17# DX,S,SE,SG,SGEXT,SV | ¥8,500 | |
| 44443-12060 |
Bracket, Pump
1988-05 → 1992-08
ended
|
AT171 GLIM | ¥14,100 | |
| 44443-13010 |
Bracket, Pump
1988-05 → 1992-11
ended
|
ET176 | ¥3,730 | |
| 44443-20050 |
Bracket, Pump
1990-05 → 1992-11
ended
|
ST170 | ¥5,300 | |
| 44443-20060 |
Bracket, Pump
1988-05 → 1990-05
ended
|
ST170 | ¥5,300 | |
| 44446 — Strut, Adjusting | ||||
| 44446-12040 |
Strut, Adjusting
1988-05 → 1992-11
ended
|
AT17# DX,S,SE,SG,SGEXT,SV | ¥1,810 | |
| 44446-12050 |
Strut, Adjusting
1988-05 → 1992-11
ended
|
ET176 | ¥1,320 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
