Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

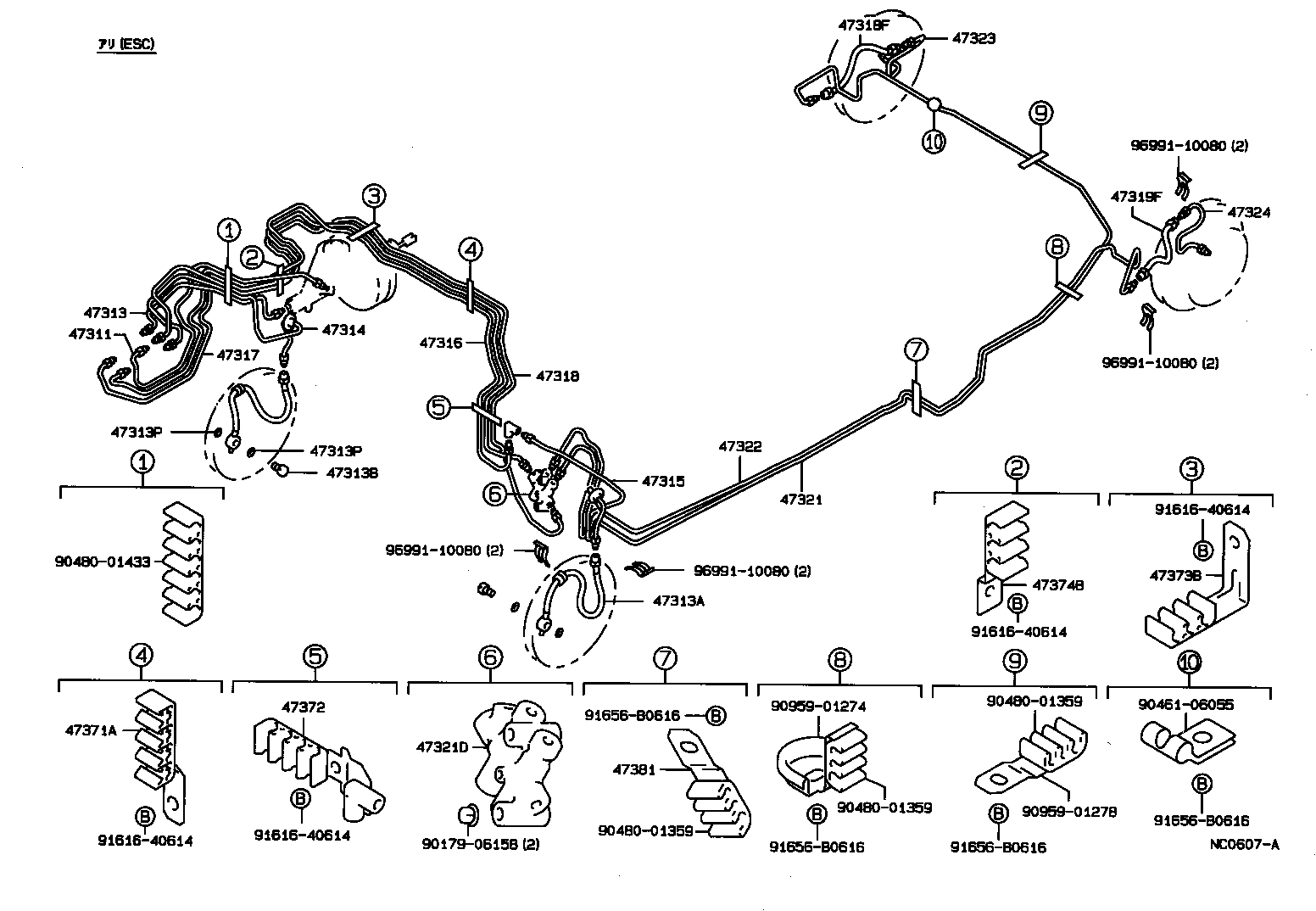

Exploded illustration NC0607A 47318F — HOSE, FLEXIBLE(FOR REAR RH) (4 parts) 47323 — TUBE, REAR BRAKE, NO.3 (2 parts) 9699110080 — not listed in this catalogue 47319F — HOSE, FLEXIBLE(FOR REAR LH) (4 parts) 47324 — TUBE, REAR BRAKE, NO.4 (2 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (9 parts) 47314 — TUBE, FRONT BRAKE, NO.4 (10 parts) 47311 — TUBE, FRONT BRAKE, NO.1 (16 parts) 47316 — TUBE, FRONT BRAKE, NO.6 (7 parts) 47317 — TUBE, FRONT BRAKE, NO.7 (6 parts) 9699110080 — not listed in this catalogue 47318 — TUBE, FRONT BRAKE, NO.8 (6 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (2 parts) 47322 — TUBE, REAR BRAKE, NO.2 (3 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (2 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (1 parts) 47315 — TUBE, FRONT BRAKE, NO.5 (7 parts) 47321 — TUBE, REAR BRAKE, NO.1 (4 parts) 9161640614 — not listed in this catalogue 9699110080 — not listed in this catalogue 9048001433 — not listed in this catalogue 9699110080 — not listed in this catalogue 47373B — CLAMP, BRAKE TUBE, NO.3 (3 parts) 47374B — CLAMP, BRAKE TUBE, NO.4 (3 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (2 parts) 9161640614 — not listed in this catalogue 9048001359 — not listed in this catalogue 9046106055 — not listed in this catalogue 9095901274 — not listed in this catalogue 47372 — CLAMP, BRAKE TUBE, NO.2 (3 parts) 91656B0616 — not listed in this catalogue 47371A — CLAMP, BRAKE TUBE, NO.1 (3 parts) 47321D — WAY, NO.1(FOR REAR BRAKE TUBE) (3 parts) 47381 — BRACKET, BRAKE TUBE CLAMP NO.1 (1 parts) 9048001359 — not listed in this catalogue 9095901278 — not listed in this catalogue 91656B0616 — not listed in this catalogue 9048001359 — not listed in this catalogue 9161640614 — not listed in this catalogue 9161640614 — not listed in this catalogue 9017906158 — not listed in this catalogue 91656B0616 — not listed in this catalogue 91656B0616 — not listed in this catalogue
NC0607A · 23 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
101 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-20520 Tube, Front Brake, NO.1
1988-05 → 1990-05 ended
CT17#,ET176,ST170;AT170,171 GLIM,S,SV ¥1,480
47311-20540 note Tube, Front Brake, NO.1
1988-08 → 1990-05 ended
ST170 SE ¥1,320
47311-20550 note Tube, Front Brake, NO.1
1988-08 → 1990-05 ended
AT170,171 S,SE ¥1,090
47311-20600 note Tube, Front Brake, NO.1
1988-05 → 1992-08 ended
AT171 GLIM ¥1,320
47311-20640 Tube, Front Brake, NO.1
1990-06 → 1992-11 ended
AT170 ¥1,460
47311-20640 Tube, Front Brake, NO.1
1988-05 → 1990-06 ended
AT170 SED ¥1,460
47311-20650 note Tube, Front Brake, NO.1
1990-05 → 1992-08 ended
AT171 EFIS ¥1,090
47311-20650 note Tube, Front Brake, NO.1
1990-05 → 1992-08 ended
AT170 SE,SG,SGEXT ¥1,090
47311-20660 Tube, Front Brake, NO.1
1988-08 → 1992-08 ended
AT175 ¥1,320
47311-20670 Tube, Front Brake, NO.1
1990-05 → 1992-11 ended
CT17#,ET176 ¥1,090
47311-20750 note Tube, Front Brake, NO.1
1990-05 → 1992-08 ended
ST170 SED ¥980
47311-20760 Tube, Front Brake, NO.1
1990-05 → 1992-11 ended
ST170 ¥1,090
47311-20770 note Tube, Front Brake, NO.1
1990-05 → 1992-08 ended
AT175 ¥1,320
47311-20780 Tube, Front Brake, NO.1
1990-05 → 1990-06 ended
AT170,171 GLIM,S,SV ¥1,090
47311-20780 note Tube, Front Brake, NO.1
1990-11 → —
ST170 4FC SGEXT ¥1,090
47311-20780 Tube, Front Brake, NO.1
1990-06 → 1992-08 ended
AT171 ¥1,090
47313 — Tube, Front Brake, NO.3
47313-20340 Tube, Front Brake, NO.3
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥1,320
47313-20360 note Tube, Front Brake, NO.3
1988-08 → 1990-05 ended
ST170 SE ¥580
47313-20370 note Tube, Front Brake, NO.3
1988-08 → 1990-05 ended
AT170,171 S,SE ¥740
47313-20420 note Tube, Front Brake, NO.3
1988-05 → 1992-08 ended
AT171 GLIM ¥740
47313-20450 Tube, Front Brake, NO.3
1988-08 → 1992-08 ended
AT175 ¥1,090
47313-20510 note Tube, Front Brake, NO.3
1990-05 → 1992-08 ended
AT171 EFIS ¥1,090
47313-20510 note Tube, Front Brake, NO.3
1990-05 → 1992-08 ended
AT170 SE,SG,SGEXT ¥1,090
47313-20530 note Tube, Front Brake, NO.3
1990-05 → 1992-08 ended
ST170 SED ¥1,090
47313-20570 note Tube, Front Brake, NO.3
1990-05 → 1992-08 ended
AT175 ¥980
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-02550 Hose, Flexible, NO.1(FOR FRONT)
1988-08 → 1992-08 ended
AT175 ¥2,660
90947-02565 Hose, Flexible, NO.1(FOR FRONT)
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥2,650
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥200
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
47389-30010 Gasket(FOR FRONT FLEXIBLE HOSE)
1992-03 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥310
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
1988-05 → 1992-03 ended
AT17#,CT17#,ET176,ST170 ¥100
47314 — Tube, Front Brake, NO.4
47314-20270 note Tube, Front Brake, NO.4
1988-08 → 1990-05 ended
ST170 SE ¥1,320
47314-20280 note Tube, Front Brake, NO.4
1988-08 → 1990-05 ended
AT170,171 S,SE ¥1,320
47314-20300 Tube, Front Brake, NO.4
1988-05 → 1992-05 ended
AT170,171,CT17#,ET176,ST170 ¥740
47314-20330 note Tube, Front Brake, NO.4
1988-05 → 1992-08 ended
AT171 GLIM ¥1,320
47314-20340 Tube, Front Brake, NO.4
1988-08 → 1992-08 ended
AT175 ¥580
47314-20420 note Tube, Front Brake, NO.4
1990-05 → 1992-08 ended
AT171 EFIS ¥1,630
47314-20420 note Tube, Front Brake, NO.4
1990-05 → 1992-08 ended
AT170 SE,SG,SGEXT ¥1,630
47314-20440 note Tube, Front Brake, NO.4
1990-05 → 1992-08 ended
ST170 SED ¥1,320
47314-20460 note Tube, Front Brake, NO.4
1990-05 → 1992-08 ended
AT175 ¥1,320
47314-20560 Tube, Front Brake, NO.4
1992-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥740
47315 — Tube, Front Brake, NO.5
47315-20320 Tube, Front Brake, NO.5
1988-08 → 1992-08 ended
AT175 ¥790
47315-20390 note Tube, Front Brake, NO.5
1988-05 → 1988-08 ended
AT171 GLIM ¥1,090
47315-20390 note Tube, Front Brake, NO.5
1988-08 → 1992-08 ended
AT171 EFI;AT170,ST170 SE (CBR,CI) ¥1,090
47315-20390 note Tube, Front Brake, NO.5
1990-05 → 1992-08 ended
AT171 EFIS ¥1,090
47315-20390 note Tube, Front Brake, NO.5
1990-05 → 1992-08 ended
AT170,ST170 SE,SG,SGEXT ¥1,090
47315-20400 Tube, Front Brake, NO.5
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥980
47315-20510 note Tube, Front Brake, NO.5
1990-05 → 1992-08 ended
AT175 ¥1,090
47316 — Tube, Front Brake, NO.6
47316-20390 Tube, Front Brake, NO.6
1988-08 → 1990-05 ended
ST170 SE ¥2,380
47316-20400 Tube, Front Brake, NO.6
1988-08 → 1988-11 ended
AT170,171 S,SE ¥2,170
47316-20401 Tube, Front Brake, NO.6
1988-11 → 1990-05 ended
AT170,171 S,SE ¥2,160
47316-20430 Tube, Front Brake, NO.6
1988-05 → 1992-08 ended
AT171 GLIM ¥2,160
47316-20480 Tube, Front Brake, NO.6
1990-05 → 1992-08 ended
AT170,171 S,SE,SG,SGEXT ¥2,160
47316-20500 Tube, Front Brake, NO.6
1990-05 → 1992-08 ended
ST170 SED ¥2,160
47316-20520 Tube, Front Brake, NO.6
1990-05 → 1992-08 ended
AT175 ¥2,520
47317 — Tube, Front Brake, NO.7
47317-20040 Tube, Front Brake, NO.7
1988-08 → 1990-05 ended
ST170 SE ¥2,520
47317-20060 Tube, Front Brake, NO.7
1988-08 → 1990-05 ended
AT170,171 S,SE ¥2,160
47317-20080 Tube, Front Brake, NO.7
1988-05 → 1992-08 ended
AT171 GLIM ¥2,380
47317-20120 Tube, Front Brake, NO.7
1990-05 → 1992-08 ended
AT170,171 S,SE,SG,SGEXT ¥2,380
47317-20140 Tube, Front Brake, NO.7
1990-05 → 1992-08 ended
ST170 SED ¥2,380
47317-20160 Tube, Front Brake, NO.7
1990-05 → 1992-08 ended
AT175 ¥2,710
47318 — Tube, Front Brake, NO.8
47318-20170 Tube, Front Brake, NO.8
1988-08 → 1990-05 ended
ST170 SE ¥2,380
47318-20190 Tube, Front Brake, NO.8
1988-08 → 1990-05 ended
AT170,171 S,SE ¥2,160
47318-20210 Tube, Front Brake, NO.8
1988-05 → 1992-08 ended
AT171 GLIM ¥2,160
47318-20250 Tube, Front Brake, NO.8
1990-05 → 1992-08 ended
AT170,171 S,SE,SG,SGEXT ¥2,710
47318-20270 Tube, Front Brake, NO.8
1990-05 → 1992-08 ended
ST170 SED ¥2,520
47318-20290 Tube, Front Brake, NO.8
1990-05 → 1992-08 ended
AT175 ¥2,520
47318F — Hose, Flexible(FOR REAR RH)
90947-02497 Hose, Flexible(FOR REAR RH)
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 DX,S,SE,SG,SGEXT,SV,SX ¥1,960
90947-02498 Hose, Flexible(FOR REAR RH)
1988-05 → 1992-08 ended
AT171 GLIM ¥2,870
90947-02539 Hose, Flexible(FOR REAR RH)
1988-05 → 1992-11 ended
CT176,ET176 ¥1,740
90947-02549 Hose, Flexible(FOR REAR RH)
1988-08 → 1992-08 ended
AT175 ¥2,470
47319F — Hose, Flexible(FOR REAR LH)
90947-02497 Hose, Flexible(FOR REAR LH)
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 DX,S,SE,SG,SGEXT,SV,SX ¥1,960
90947-02498 Hose, Flexible(FOR REAR LH)
1988-05 → 1992-08 ended
AT171 GLIM ¥2,870
90947-02539 Hose, Flexible(FOR REAR LH)
1988-05 → 1992-11 ended
CT176,ET176 ¥1,740
90947-02549 Hose, Flexible(FOR REAR LH)
1988-08 → 1992-08 ended
AT175 ¥2,470
47321 — Tube, Rear Brake, NO.1
47321-20190 Tube, Rear Brake, NO.1
1988-05 → 1990-04 ended
AT170,171,CT170,ST170 ¥3,960
47321-20191 Tube, Rear Brake, NO.1
1990-04 → 1992-11 ended
AT170,171,CT170,ST170 ¥3,910
47321-20230 Tube, Rear Brake, NO.1
1988-05 → 1992-11 ended
CT176,ET176 ¥3,910
47321-20270 Tube, Rear Brake, NO.1
1988-08 → 1992-08 ended
AT175 ¥4,270
47321D — Way, NO.1(FOR REAR BRAKE TUBE)
90412-10140 Way, NO.1(FOR REAR BRAKE TUBE)
1988-05 → 1988-08 ended
AT171 GLIM ¥2,300
90412-10140 Way, NO.1(FOR REAR BRAKE TUBE)
1988-08 → 1990-05 ended
AT170,171,ST170 GLIM,S,SE ¥2,300
90412-10140 Way, NO.1(FOR REAR BRAKE TUBE)
1990-05 → 1992-08 ended
AT171,175 EFI ¥2,300
47322 — Tube, Rear Brake, NO.2
47322-20310 Tube, Rear Brake, NO.2
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥3,100
47322-20350 Tube, Rear Brake, NO.2
1988-05 → 1992-11 ended
CT176,ET176 ¥2,710
47322-20400 Tube, Rear Brake, NO.2
1988-08 → 1992-08 ended
AT175 ¥4,090
47323 — Tube, Rear Brake, NO.3
47323-13020 Tube, Rear Brake, NO.3
1988-05 → 1992-11 ended
CT176,ET176 ¥580
47323-32040 Tube, Rear Brake, NO.3
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 DX,S,SE,SG,SGEXT,SV,SX ¥590
47324 — Tube, Rear Brake, NO.4
47324-13060 Tube, Rear Brake, NO.4
1988-05 → 1992-11 ended
CT176,ET176 ¥580
47324-32040 Tube, Rear Brake, NO.4
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 DX,S,SE,SG,SGEXT,SV,SX ¥590
47371A — Clamp, Brake Tube, NO.1
47371-14021 Clamp, Brake Tube, NO.1
1990-05 → 1992-08 ended
AT175 ¥470
47371-20060 Clamp, Brake Tube, NO.1
1988-08 → 1992-08 ended
ST170 SE CI;AT170 SG +3 ¥390
47371-20060 Clamp, Brake Tube, NO.1
1988-05 → 1988-08 ended
AT171 GLIM ¥390
47372 — Clamp, Brake Tube, NO.2
47371-20080 Clamp, Brake Tube, NO.2
1988-05 → 1988-08 ended
AT171 GLIM ¥1,710
47371-20080 Clamp, Brake Tube, NO.2
1988-08 → 1990-05 ended
AT170,171,ST170 GLIM,S,SE ¥1,710
47371-20080 Clamp, Brake Tube, NO.2
1990-05 → 1992-08 ended
AT17#,ST170 GLIM,S,SE,SG,SGEXT ¥1,710
47373B — Clamp, Brake Tube, NO.3
47371-20090 Clamp, Brake Tube, NO.3
1988-05 → 1988-08 ended
AT171 GLIM ¥670
47371-20090 Clamp, Brake Tube, NO.3
1988-08 → 1990-05 ended
AT170,171,ST170 GLIM,S,SE ¥670
47371-20090 Clamp, Brake Tube, NO.3
1990-05 → 1992-08 ended
AT17#,ST170 GLIM,S,SE,SG,SGEXT ¥670
47374B — Clamp, Brake Tube, NO.4
47371-20120 Clamp, Brake Tube, NO.4
1988-05 → 1988-08 ended
AT171 GLIM ¥470
47371-20120 Clamp, Brake Tube, NO.4
1988-08 → 1990-05 ended
AT170,171,ST170 GLIM,S,SE ¥470
47371-20120 Clamp, Brake Tube, NO.4
1990-05 → 1992-08 ended
AT17#,ST170 GLIM,S,SE,SG,SGEXT ¥470
47381 — Bracket, Brake Tube Clamp NO.1
47381-20060 Bracket, Brake Tube Clamp NO.1
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥240
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
