Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

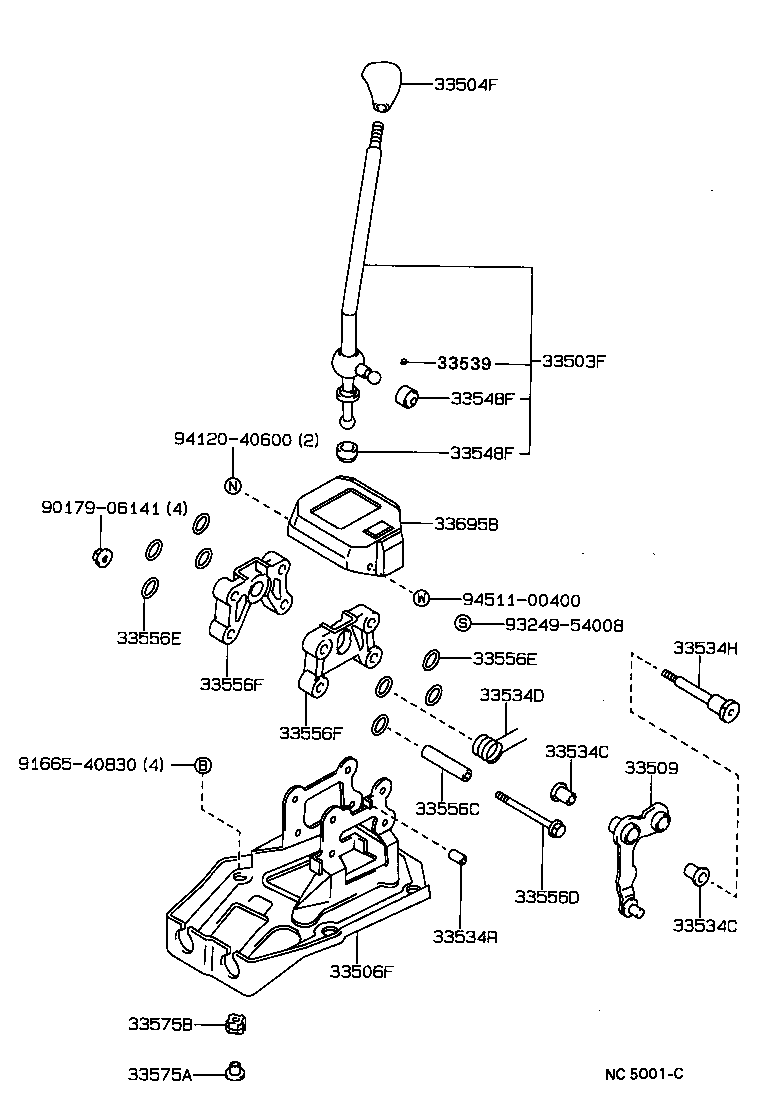

Exploded illustration NC5001C 33504F — KNOB SUB-ASSY, SHIFT LEVER (45 parts) 33503F — LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) (5 parts) 33539 — CUSHION, SHIFT LEVER ANTI-RATTLE (1 parts) 33548F — BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) (2 parts) 9412040600 — not listed in this catalogue 33548F — BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) (2 parts) 9017906141 — not listed in this catalogue 33695B — COVER, SELECTING SPRING (FOR FLOOR SHIFT) (2 parts) 9451100400 — not listed in this catalogue 9324954008 — not listed in this catalogue 33556E — CUSHION (FOR TRANSMISSION SHIFT LEVER BALL SEAT) (1 parts) 33534H — BOLT (FOR SELECTING BELLCRANK NO.1) (1 parts) 33556E — CUSHION (FOR TRANSMISSION SHIFT LEVER BALL SEAT) (1 parts) 33556F — SEAT, TRANSMISSION SHIFT LEVER BALL (2 parts) 33534D — SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) (1 parts) 33556F — SEAT, TRANSMISSION SHIFT LEVER BALL (2 parts) 33534C — BUSH (FOR SELECTING BELLCRANK NO.1) (2 parts) 9166540830 — not listed in this catalogue 33509 — CRANK SUB-ASSY, SELECTING BELL, NO.1 (2 parts) 33556C — COLLAR (FOR TRANSMISSION SHIFT LEVER BALL SEAT) (1 parts) 33556D — BOLT (FOR TRANSMISSION SHIFT LEVER BALL SEAT) (1 parts) 33534C — BUSH (FOR SELECTING BELLCRANK NO.1) (2 parts) 33534R — CUSHION (FOR SELECTING BELLCRANK NO.1) (2 parts) 33506F — RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) (2 parts) 33575B — BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) (1 parts) 33575A — BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) (1 parts)
NC5001C · 21 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
72 parts on this figure
Part number Description Fitment Price
33503F — Lever Sub-assy, Shift(FOR FLOOR SHIFT)
33055-20040 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1988-08 → 1989-11 ended
AT175 5F ¥2,510
33055-20130 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1989-11 → 1992-08 ended
AT175 5F ¥4,410
33503-20410 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1988-05 → 1989-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥2,550
33503-20450 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ATM ¥5,500
33503-20500 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1989-11 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥2,510
33504F — Knob Sub-assy, Shift Lever
33504-14040-33 note Knob Sub-assy, Shift Lever
1988-05 → 1992-11 ended
AT170,ET176 4F (DX,STD) ¥2,960
33504-14040-36 note Knob Sub-assy, Shift Lever
1988-05 → 1990-05 ended
ET176 4F DX ¥2,960
33504-14050-43 note Knob Sub-assy, Shift Lever
1990-05 → 1990-09 ended
AT170,CT17# 5F (DX,SV) ¥3,000
33504-14050-B0 note Knob Sub-assy, Shift Lever
1990-09 → 1992-11 ended
AT170,CT17# 5F (DX,SV) ¥3,000
33504-14070-46 note Knob Sub-assy, Shift Lever
1988-05 → 1990-05 ended
AT170,CT176 5F (DX,SV) ¥2,730
33504-20080-01 note Knob Sub-assy, Shift Lever
1988-05 → 1990-05 ended
AT171 5F GLIM ¥7,300
33504-20080-03 note Knob Sub-assy, Shift Lever
1988-12 → 1989-03 ended
AT175 5F SGEXT ¥7,300
33504-20080-03 note Knob Sub-assy, Shift Lever
1989-03 → 1990-05 ended
AT175,ST170 5F SGEXT ¥7,300
33504-20080-03 note Knob Sub-assy, Shift Lever
1988-05 → 1992-11 ended
AT171,ST170 5F (S,SX) (EFI,EFIS) ¥7,300
33504-20080-03 note Knob Sub-assy, Shift Lever
1990-05 → 1992-08 ended
AT171 5F EFI ¥7,300
33504-20080-03 note Knob Sub-assy, Shift Lever
1990-05 → 1992-08 ended
ST170 5F SE ¥7,300
33504-20080-04 note Knob Sub-assy, Shift Lever
1989-03 → 1990-05 ended
AT175,ST170 5F SGEXT ¥7,300
33504-20080-04 note Knob Sub-assy, Shift Lever
1988-05 → 1990-05 ended
AT171 5F S ¥7,300
33504-20080-04 note Knob Sub-assy, Shift Lever
1988-12 → 1989-03 ended
AT175 5F SGEXT ¥7,300
33504-20080-06 note Knob Sub-assy, Shift Lever
1990-05 → 1992-08 ended
ST170 5F SE ¥7,300
33504-20080-06 note Knob Sub-assy, Shift Lever
1988-05 → 1992-11 ended
AT171,ST170 5F (S,SX) (EFI,EFIS) ¥7,300
33504-20080-06 note Knob Sub-assy, Shift Lever
1989-03 → 1990-05 ended
AT175,ST170 5F SGEXT ¥7,300
33504-20080-06 note Knob Sub-assy, Shift Lever
1988-12 → 1989-03 ended
AT175 5F SGEXT ¥7,300
33504-20080-14 note Knob Sub-assy, Shift Lever
1990-05 → 1992-08 ended
AT171 5F EFIS ¥7,300
33504-20080-14 note Knob Sub-assy, Shift Lever
1990-05 → 1992-08 ended
ST170 5F SE ¥7,300
33504-20090-03 note Knob Sub-assy, Shift Lever
1988-05 → 1992-11 ended
AT170,ET176 4F (SG,SGEXT) ¥2,970
33504-20090-04 note Knob Sub-assy, Shift Lever
1988-05 → 1990-05 ended
AT170 4F SG ¥2,970
33504-20090-06 note Knob Sub-assy, Shift Lever
1988-05 → 1990-05 ended
AT170,ET176 4F SG ¥2,970
33504-20090-06 note Knob Sub-assy, Shift Lever
1990-05 → 1992-08 ended
AT170 4F (SG,SGEXT) ¥2,970
33504-20090-14 note Knob Sub-assy, Shift Lever
1990-05 → 1992-08 ended
AT170 4F (SG,SGEXT) ¥2,970
33504-20100-03 note Knob Sub-assy, Shift Lever
1989-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 5F (S,SE,SG,SGEXT,SX) ¥2,980
33504-20100-03 note Knob Sub-assy, Shift Lever
1988-05 → 1989-05 ended
AT17#,CT17#,ET176,ST170 5F (S,SG,SGEXT,SX) ¥2,980
33504-20100-04 note Knob Sub-assy, Shift Lever
1989-05 → 1990-05 ended
AT17#,CT170,ST170 5F (S,SE,SG,SGEXT) ¥2,980
33504-20100-04 note Knob Sub-assy, Shift Lever
1988-05 → 1989-05 ended
AT17#,CT170,ST170 5F (S,SG,SGEXT) ¥2,980
33504-20100-06 note Knob Sub-assy, Shift Lever
1990-05 → 1992-11 ended
AT17#,CT170,ST170 5F (S,SE,SG,SGEXT,SX) ¥2,980
33504-20100-06 note Knob Sub-assy, Shift Lever
1988-05 → 1989-08 ended
AT17#,CT17#,ET176,ST170 5F (S,SG,SGEXT,SX) ¥2,980
33504-20100-06 note Knob Sub-assy, Shift Lever
1989-08 → 1990-05 ended
AT17#,CT17#,ET176,ST170 5F (S,SE,SG,SGEXT,SX) ¥2,980
33504-20100-14 note Knob Sub-assy, Shift Lever
1990-05 → 1992-08 ended
AT17#,CT170,ST170 5F (S,SE,SG,SGEXT) ¥2,980
33542-20080-01 note Knob Sub-assy, Shift Lever
1988-05 → 1990-05 ended
AT171 4FC GLIM ¥4,900
33542-20080-03 note Knob Sub-assy, Shift Lever
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ATM ¥4,900
33542-20080-03 note Knob Sub-assy, Shift Lever
1988-05 → 1989-05 ended
AT17#,CT170,ET176,ST170 ATM (DX,S,SG,SGEXT,SV,SX) ¥4,900
33542-20080-03 note Knob Sub-assy, Shift Lever
1989-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ATM (DX,S,SE,SG,SGEXT,SV,SX) ¥4,900
33542-20080-04 note Knob Sub-assy, Shift Lever
1988-05 → 1989-05 ended
AT170,171,CT170,ST170 4FC (S,SG,SGEXT) ¥4,900
33542-20080-04 note Knob Sub-assy, Shift Lever
1989-05 → 1990-05 ended
AT170,171,CT170,ST170 4FC (S,SE,SG,SGEXT) ¥4,900
33542-20080-06 note Knob Sub-assy, Shift Lever
1988-10 → 1990-05 ended
AT175 4FC ¥4,900
33542-20080-06 note Knob Sub-assy, Shift Lever
1988-05 → 1988-10 ended
AT175 4FC ¥4,900
33542-20080-06 note Knob Sub-assy, Shift Lever
1990-05 → 1992-11 ended
AT17#,CT170,ST170 4FC (S,SE,SG,SGEXT,SX) ¥4,900
33542-20080-06 note Knob Sub-assy, Shift Lever
1988-05 → 1989-08 ended
AT170 4FC (SG,SV);AT171,CT170,ET176,ST170 ATM +1 ¥4,900
33542-20080-06 note Knob Sub-assy, Shift Lever
1989-08 → 1990-05 ended
AT170 4FC (SE,SG,SV);AT171,CT17#,ET176,ST170 ATM +1 ¥4,900
33542-20080-34 note Knob Sub-assy, Shift Lever
1990-05 → 1992-08 ended
AT17#,CT170,ST170 4FC (S,SE,SG,SGEXT) ¥4,900
33506F — Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33506-20220 Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1988-08 → 1992-08 ended
AT175 5F ¥4,850
33506-20230 Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥6,000
33509 — Crank Sub-assy, Selecting Bell, NO.1
33509-12080 Crank Sub-assy, Selecting Bell, NO.1
1988-08 → 1992-08 ended
AT175 5F ¥2,760
33509-20020 Crank Sub-assy, Selecting Bell, NO.1
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥1,960
33534C — Bush (FOR SELECTING BELLCRANK NO.1)
90386-12013 Bush (FOR SELECTING BELLCRANK NO.1)
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥260
90386-12034 Bush (FOR SELECTING BELLCRANK NO.1)
1988-08 → 1992-08 ended
AT175 5F ¥110
33534D — Spring, Torsion (FOR SELECTING BELLCRANK NO.1)
90508-20084 Spring, Torsion (FOR SELECTING BELLCRANK NO.1)
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 MTM ¥200
33534H — Bolt (FOR SELECTING BELLCRANK NO.1)
90109-06137 Bolt (FOR SELECTING BELLCRANK NO.1)
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥260
33534R — Cushion (FOR SELECTING BELLCRANK NO.1)
90540-04005 Cushion (FOR SELECTING BELLCRANK NO.1)
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥190
90540-06029 Cushion (FOR SELECTING BELLCRANK NO.1)
1988-08 → 1992-08 ended
AT175 5F ¥200
33539 — Cushion, Shift Lever Anti-rattle
33539-12010 Cushion, Shift Lever Anti-rattle
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 MTM ¥120
33548F — Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33548-12021 Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
1988-08 → 1989-11 ended
AT17#,CT17#,ET176,ST170 MTM ¥310
33548-12040 Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
1989-11 → 1992-11 ended
AT17#,CT17#,ET176,ST170 MTM ¥190
33556C — Collar (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
90387-06041 Collar (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥260
33556D — Bolt (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
90105-06107 Bolt (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥170
33556E — Cushion (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
90540-08017 Cushion (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥190
33556F — Seat, Transmission Shift Lever Ball
33556-20020 Seat, Transmission Shift Lever Ball
1988-08 → 1992-08 ended
AT175 5F ¥610
33556-20030 Seat, Transmission Shift Lever Ball
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥1,070
33575A — Bush, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)
90389-08031 Bush, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 MTM ¥200
33575B — Bush, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)
90389-10020 Bush, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 MTM ¥220
33695B — Cover, Selecting Spring (FOR FLOOR SHIFT)
33695-20010 Cover, Selecting Spring (FOR FLOOR SHIFT)
1988-08 → 1992-08 ended
AT175 5F ¥880
33695-20020 Cover, Selecting Spring (FOR FLOOR SHIFT)
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥780
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
