Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

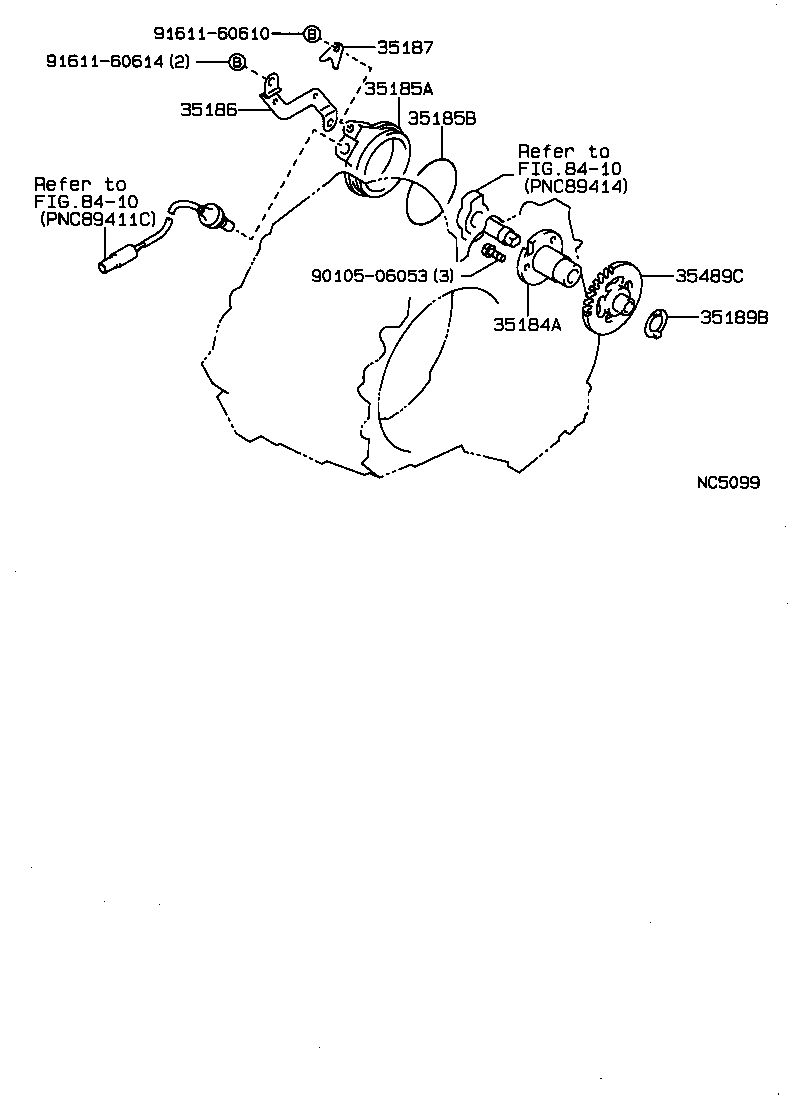

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35184A — Adapter, Sensor Rotor | ||||
| 35184-12010 |
Adapter, Sensor Rotor
1988-05 → 1992-08
ended
|
AT171 4FC GLIM | ¥2,330 | |
| 35185A — Cover, Speed Sensor | ||||
| 35185-12010 |
Cover, Speed Sensor
1988-05 → 1992-08
ended
|
AT171 4FC GLIM | ¥2,430 | |
| 35185B — Ring, O (FOR SPEED SENSOR COVER) | ||||
| 90301-68001 |
Ring, O (FOR SPEED SENSOR COVER)
1988-05 → 1992-08
ended
|
AT171 4FC GLIM | ¥310 | |
| 35186 — Bracket, Speed Sensor Cover | ||||
| 35186-12010 |
Bracket, Speed Sensor Cover
1988-05 → 1992-08
ended
|
AT171 4FC GLIM | ¥1,020 | |
| 35187 — Plate, Speed Sensor Lock | ||||
| 35187-12010 |
Plate, Speed Sensor Lock
1988-05 → 1992-08
ended
|
AT171 4FC GLIM | ¥320 | |
| 35189B — Washer, Governor Thrust, NO.2 | ||||
| 35189-12010 |
Washer, Governor Thrust, NO.2
1988-05 → 1992-11
ended
|
AT17#,CT17# 4FC | ¥340 | |
| 35489C — Gear, Governor Driven | ||||
| 35489-12010 |
Gear, Governor Driven
1988-05 → 1992-11
ended
|
AT17#,CT17# 4FC | ¥2,520 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
