Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

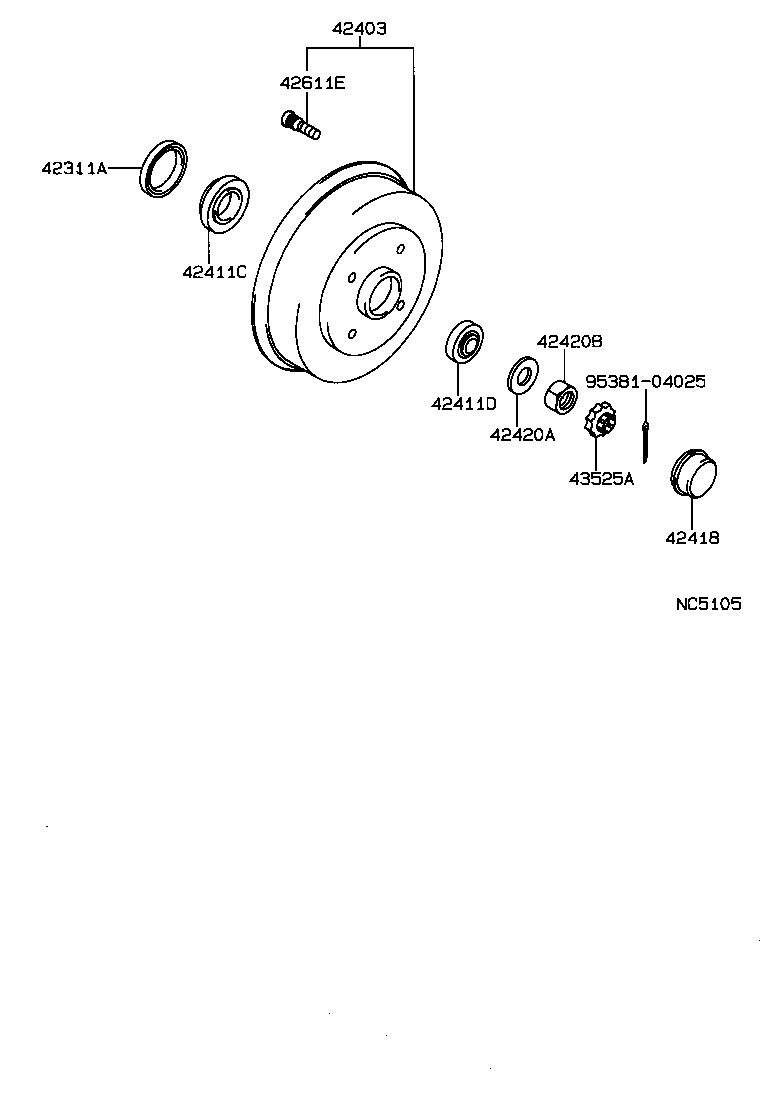

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42311A — Seal, Oil(FOR REAR AXLE SHAFT) | ||||
| 90311-42018 |
Seal, Oil(FOR REAR AXLE SHAFT)
1988-05 → 1992-08
ended
|
AT170 CBR;ST170 SX CI;AT170,171,CT170,ST170 +2 | ¥270 | |
| 90311-42018 note |
Seal, Oil(FOR REAR AXLE SHAFT)
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥270 | |
| 90311-42018 note |
Seal, Oil(FOR REAR AXLE SHAFT)
1990-05 → 1992-08
ended
|
AT170,ST170 SE,SG,SGEXT | ¥270 | |
| 90311-42018 |
Seal, Oil(FOR REAR AXLE SHAFT)
1990-05 → 1992-11
ended
|
AT170,CT170,ST170 WG | ¥270 | |
| 90311-48001 |
Seal, Oil(FOR REAR AXLE SHAFT)
1988-05 → 1992-11
ended
|
CT176,ET176 | ¥490 | |
| 90311-52005 note |
Seal, Oil(FOR REAR AXLE SHAFT)
1990-05 → 1992-08
ended
|
AT175 | ¥520 | |
| 90311-52005 note |
Seal, Oil(FOR REAR AXLE SHAFT)
1988-08 → 1990-05
ended
|
AT175 | ¥520 | |
| 90311-56007 note |
Seal, Oil(FOR REAR AXLE SHAFT)
1988-08 → 1990-05
ended
|
AT175 | ¥520 | |
| 90311-56007 note |
Seal, Oil(FOR REAR AXLE SHAFT)
1990-05 → 1992-08
ended
|
AT175 | ¥520 | |
| 42403 — Drum Sub-assy, Rear Brake | ||||
| 42403-20040 |
Drum Sub-assy, Rear Brake
1988-05 → 1992-11
ended
|
CT176,ET176 | ¥21,900 | |
| 42431-20080 |
Drum Sub-assy, Rear Brake
1988-05 → 1992-11
ended
|
AT170,171,CT170,ST170 (DX,S,SE,SG,SGEXT,SV,SX) (CBR,CI,DSL,EFI) | ¥9,400 | |
| 42431-32020 |
Drum Sub-assy, Rear Brake
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥9,400 | |
| 42411C — Bearing, Tapered Roller (FOR REAR AXLE INNER BEARING) | ||||
| 90368-35004 |
Bearing, Tapered Roller (FOR REAR AXLE INNER BEARING)
1988-05 → 1992-11
ended
|
CT176,ET176 | ¥2,620 | |
| 42411D — Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-22001 |
Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING)
1988-05 → 1992-11
ended
|
CT176,ET176 | ¥2,050 | |
| 42418 — Cap, Rear Hub Grease | ||||
| 42418-13010 |
Cap, Rear Hub Grease
1988-05 → 1991-12
ended
|
CT176,ET176 | ¥470 | |
| 42418-13011 |
Cap, Rear Hub Grease
1991-12 → 1992-11
ended
|
CT176,ET176 | ¥440 | |
| 42420A — Washer, Claw (FOR REAR AXLE SHAFT) | ||||
| 90214-20005 |
Washer, Claw (FOR REAR AXLE SHAFT)
1988-05 → 1992-11
ended
|
CT176,ET176 | ¥190 | |
| 42420B — Nut (FOR REAR AXLE SHAFT) | ||||
| 90170-19185 |
Nut (FOR REAR AXLE SHAFT)
1988-05 → 1992-11
ended
|
CT176,ET176 | ¥300 | |
| 42611E — Bolt, Hub (FOR REAR AXLE) | ||||
| 90942-02047 note |
Bolt, Hub (FOR REAR AXLE)
1988-05 → 1990-05
ended
|
AT171 GLIM | ¥230 | |
| 90942-02047 |
Bolt, Hub (FOR REAR AXLE)
1988-05 → 1992-08
ended
|
AT171 EFIS;AT171,175 GLIM,SE,SG,SGEXT | ¥230 | |
| 90942-02047 note |
Bolt, Hub (FOR REAR AXLE)
1990-05 → 1992-08
ended
|
AT171 EFI | ¥230 | |
| 90942-02047 note |
Bolt, Hub (FOR REAR AXLE)
1990-05 → 1992-08
ended
|
AT171 EFIS | ¥230 | |
| 90942-02047 |
Bolt, Hub (FOR REAR AXLE)
1988-05 → 1992-11
ended
|
AT170 T,STD) CBR;ST170 (CBR,CI,DSL,EFI) +5 | ¥230 | |
| 90942-02047 |
Bolt, Hub (FOR REAR AXLE)
1990-05 → 1992-11
ended
|
AT170,CT170,ST170 WG | ¥230 | |
| 43525A — Cap, Rear Wheel Adjusting Lock | ||||
| 43525-20020 |
Cap, Rear Wheel Adjusting Lock
1988-08 → 1991-01
ended
|
AT175 | ¥240 | |
| 43525-20040 |
Cap, Rear Wheel Adjusting Lock
1991-01 → 1992-08
ended
|
AT175 | ¥300 | |
| 43525-22010 |
Cap, Rear Wheel Adjusting Lock
1988-05 → 1992-11
ended
|
CT176,ET176 | ¥240 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
