Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

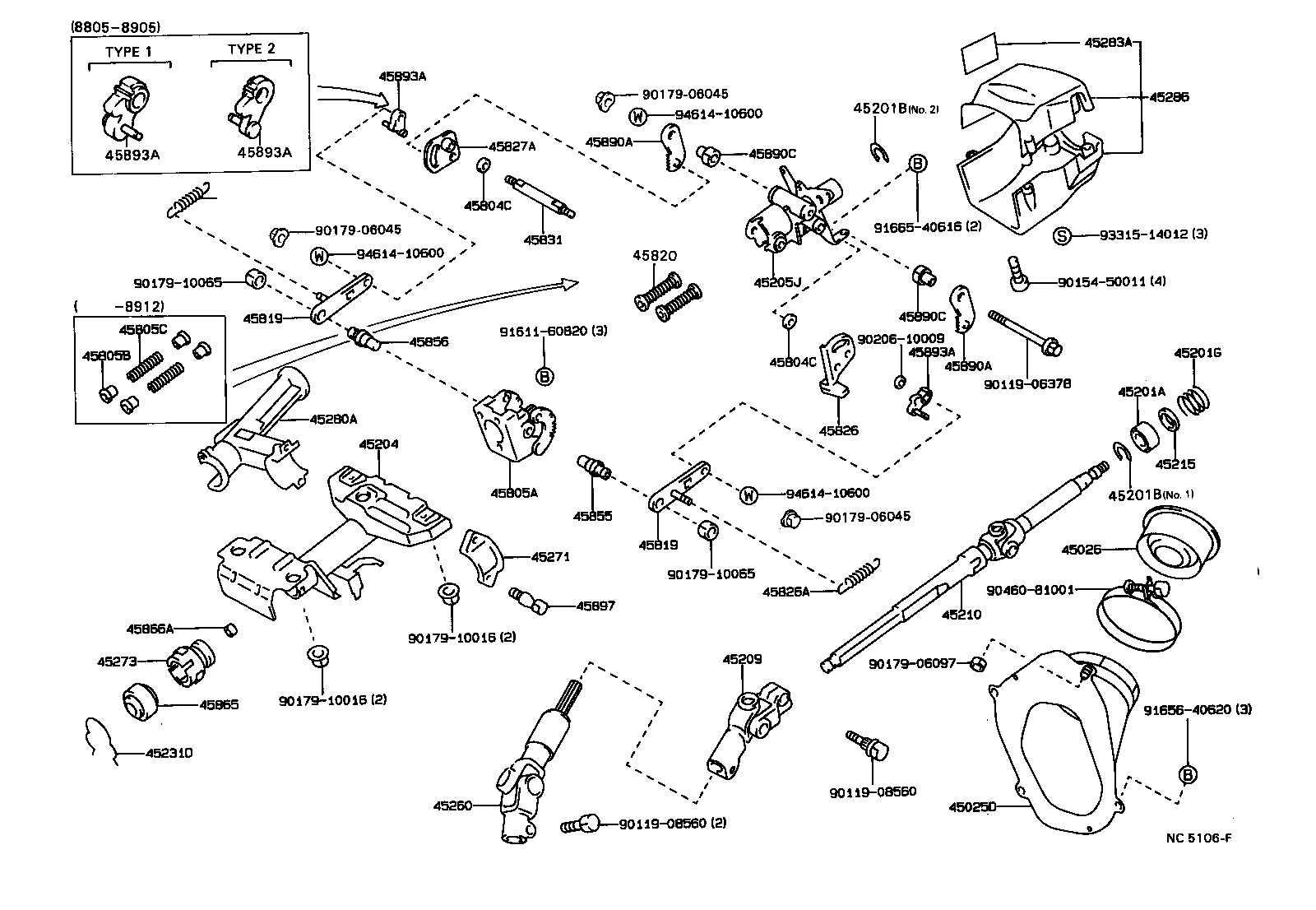

Exploded illustration NC5106F 45283A — PLATE, BEAM CHANGE & TURN SIGNAL CAUTION (1 parts) 45893A — STOPPER, TILT STEERING PAWL (34 parts) 9017906045 — not listed in this catalogue 45286 — COVER, STEERING COLUMN (30 parts) 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (9 parts) 9461410600 — not listed in this catalogue 45890A — PAWL ASSY, TILT STEERING (8 parts) 45827A — LEVER, STEERING TILT SUB (5 parts) 45893A — STOPPER, TILT STEERING PAWL (34 parts) 45890C — COLLAR(FOR TILT STEERING PAWL) (24 parts) 45893A — STOPPER, TILT STEERING PAWL (34 parts) 45804C — WASHER, PLATE(FOR STEERING TILT LEVER) (3 parts) 9166540616 — not listed in this catalogue 9017906045 — not listed in this catalogue 9331514012 — not listed in this catalogue 45831 — BOLT, TILT LEVER LOCK, NO.1 (3 parts) 9461410600 — not listed in this catalogue 45820 — SPRING ASSY, TILT STEERING SUPPORT (6 parts) 9015450011 — not listed in this catalogue 45205J — TUBE SUB-ASSY, STEERING COLUMN, UPPER (4 parts) 9017910065 — not listed in this catalogue 45890C — COLLAR(FOR TILT STEERING PAWL) (24 parts) 45819 — RETAINER, TILT LEVER (4 parts) 45805C — SPRING, COMPRESSION(FOR TILT STEERING SUPPORT) (2 parts) 9161160820 — not listed in this catalogue 9020610009 — not listed in this catalogue 45856 — BOLT, TILT STEERING, NO.2 (8 parts) 45893A — STOPPER, TILT STEERING PAWL (34 parts) 45201G — SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) (3 parts) 45805B — BUSH(FOR TILT STEERING SUPPORT) (2 parts) 45804C — WASHER, PLATE(FOR STEERING TILT LEVER) (3 parts) 45890A — PAWL ASSY, TILT STEERING (8 parts) 9011906378 — not listed in this catalogue 45201A — BEARING(FOR STEERING MAIN SHAFT) (4 parts) 45280A — BRACKET ASSY, STEERING COLUMN, UPPER (20 parts) 45826 — LEVER, STEERING TILT (4 parts) 45204 — TUBE ASSY, STEERING COLUMN, LOWER (5 parts) 45215 — COLLAR, MAIN SHAFT BEARING THRUST (3 parts) 45805A — SUPPORT SUB-ASSY, TILT STEERING (3 parts) 9461410600 — not listed in this catalogue 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (9 parts) 45855 — BOLT, TILT STEERING, NO.1 (8 parts) 9017906045 — not listed in this catalogue 45819 — RETAINER, TILT LEVER (4 parts) 45026 — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 (2 parts) 45271 — CLAMP, STEERING COLUMN, UPPER (9 parts) 9017910065 — not listed in this catalogue 9046081001 — not listed in this catalogue 45826A — SPRING, TENSION(FOR STEERING TILT LEVER) (3 parts) 45897 — BOLT, STEERING LOCK SET (1 parts) 45210 — SHAFT ASSY, STEERING MAIN (10 parts) 45866A — STOPPER, STEERING MAIN SHAFT BUSH (3 parts) 9017910016 — not listed in this catalogue 45209 — YOKE SUB-ASSY, STEERING SLIDING (3 parts) 45273 — BUSH, STEERING MAIN SHAFT (6 parts) 9017906097 — not listed in this catalogue 9017910016 — not listed in this catalogue 45865 — COLLAR, STEERING MAIN SHAFT (4 parts) 9165640620 — not listed in this catalogue 45231D — RING, HOLE SNAP(FOR STEERING MAIN SHAFT) (3 parts) 9011908560 — not listed in this catalogue 45260 — SHAFT ASSY, STEERING INTERMEDIATE, NO.2 (9 parts) 45025D — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 (7 parts) 9011908560 — not listed in this catalogue
NC5106F · 43 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
253 parts on this figure
Part number Description Fitment Price
45025D — Cover Sub-assy, Steering Column Hole, NO.1
45025-20180 Cover Sub-assy, Steering Column Hole, NO.1
1988-05 → 1989-02 ended
CT176 DX;AT170,171,ET176 DX,S,SG,STD,SV ¥7,300
45025-20180 Cover Sub-assy, Steering Column Hole, NO.1
1989-02 → 1992-11 ended
ET176;AT170,CT17# DX,SV ¥7,300
45025-20200 Cover Sub-assy, Steering Column Hole, NO.1
1988-05 → 1989-02 ended
CT17# SE,SG;AT170,171,ST170 GLIM,SE,SGEXT,SX ¥7,300
45025-20200 note Cover Sub-assy, Steering Column Hole, NO.1
1989-02 → 1992-11 ended
ET176;AT170,CT17# DX,SV ¥7,300
45025-20200 Cover Sub-assy, Steering Column Hole, NO.1
1989-02 → 1992-11 ended
AT170,171,CT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥7,300
45025-20200 note Cover Sub-assy, Steering Column Hole, NO.1
1988-05 → 1989-02 ended
CT176 DX;AT170,171,ET176 DX,S,SG,STD,SV ¥7,300
45025-20260 Cover Sub-assy, Steering Column Hole, NO.1
1988-08 → 1992-08 ended
AT175 ¥7,300
45026 — Cover Sub-assy, Steering Column Hole, NO.2
45025-20220 Cover Sub-assy, Steering Column Hole, NO.2
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥3,590
45025-20270 Cover Sub-assy, Steering Column Hole, NO.2
1988-08 → 1992-08 ended
AT175 ¥4,640
45201A — Bearing(FOR STEERING MAIN SHAFT)
90363-18004 Bearing(FOR STEERING MAIN SHAFT)
1988-05 → 1988-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥610
90363-18005 Bearing(FOR STEERING MAIN SHAFT)
1988-09 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥600
90363-18005 Bearing(FOR STEERING MAIN SHAFT)
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥600
90363-18005 Bearing(FOR STEERING MAIN SHAFT)
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥600
45201B — Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1988-05 → 1992-04 ended
AT17#,CT17#,ET176,ST170 ¥120
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1992-04 → 1992-11 ended
AT170,CT17#,ET176 VAN,WG ¥120
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1992-04 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥120
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1992-04 → 1992-11 ended
AT170,175,CT170 DX,SG ¥120
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1990-11 → —
ST170 4FC SGEXT ¥120
90520-17196 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175,CT17#,ET176 DX,SG,STD,SV ¥210
90520-17196 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1989-09 → 1992-04 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥210
90520-17196 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1990-11 → —
ST170 4FC SGEXT ¥210
90520-17269 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1992-04 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥120
45201G — Spring, Compression(FOR STEERING MAIN SHAFT)
90501-40017 Spring, Compression(FOR STEERING MAIN SHAFT)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥240
90501-40017 Spring, Compression(FOR STEERING MAIN SHAFT)
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥240
90501-40017 Spring, Compression(FOR STEERING MAIN SHAFT)
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥240
45204 — Tube Assy, Steering Column, Lower
45204-20120 Tube Assy, Steering Column, Lower
1988-05 → 1989-05 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥4,560
45204-20121 Tube Assy, Steering Column, Lower
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥8,800
45204-20121 Tube Assy, Steering Column, Lower
1989-09 → 1990-07 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥8,800
45204-20122 Tube Assy, Steering Column, Lower
1990-07 → 1991-06 ended
AT17#,CT170,ST170 ¥4,540
45204-20122 Tube Assy, Steering Column, Lower
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥4,540
45205J — Tube Sub-assy, Steering Column, Upper
45205-12250 Tube Sub-assy, Steering Column, Upper
1988-05 → 1988-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥4,710
45205-12251 Tube Sub-assy, Steering Column, Upper
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥7,400
45205-12251 Tube Sub-assy, Steering Column, Upper
1988-09 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥7,400
45205-12251 Tube Sub-assy, Steering Column, Upper
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥7,400
45209 — Yoke Sub-assy, Steering Sliding
45209-32010 Yoke Sub-assy, Steering Sliding
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥8,600
45209-32010 Yoke Sub-assy, Steering Sliding
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥8,600
45209-32010 Yoke Sub-assy, Steering Sliding
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥8,600
45210 — Shaft Assy, Steering Main
45210-12400 Shaft Assy, Steering Main
1988-05 → 1989-09 ended
ST170 SE,SX;AT17#,CT170 GLIM,S,SE,SGEXT ¥14,700
45210-12400 note Shaft Assy, Steering Main
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175 SG ¥14,700
45210-12400 note Shaft Assy, Steering Main
1989-09 → 1990-05 ended
CT170 SG ¥14,700
45210-12400 note Shaft Assy, Steering Main
1989-09 → 1990-05 ended
AT170,175 SG ¥14,700
45210-12400 note Shaft Assy, Steering Main
1990-05 → 1991-06 ended
AT170,175,CT170 DX,SG,SV ¥14,700
45210-12400 note Shaft Assy, Steering Main
1991-06 → 1992-08 ended
CT170 SG ¥14,700
45210-12400 Shaft Assy, Steering Main
1989-09 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥14,700
45210-20260 note Shaft Assy, Steering Main
1990-11 → —
AT175 SGEXT ¥16,500
45210-20260 Shaft Assy, Steering Main
1989-09 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥16,500
45210-20260 Shaft Assy, Steering Main
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175,CT17#,ET176 DX,SG,STD,SV ¥16,500
45215 — Collar, Main Shaft Bearing Thrust
45215-12010 Collar, Main Shaft Bearing Thrust
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥250
45215-12010 Collar, Main Shaft Bearing Thrust
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥250
45215-12010 Collar, Main Shaft Bearing Thrust
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥250
45231D — Ring, Hole Snap(FOR STEERING MAIN SHAFT)
90521-01005 Ring, Hole Snap(FOR STEERING MAIN SHAFT)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥170
90521-01005 Ring, Hole Snap(FOR STEERING MAIN SHAFT)
1989-09 → 1992-11 ended
AT170 (SE,SG) CBR ¥170
90521-01005 Ring, Hole Snap(FOR STEERING MAIN SHAFT)
1989-09 → 1992-11 ended
AT17#,CT170,ST170 CI,DSL,EFI,EFIS ¥170
45260 — Shaft Assy, Steering Intermediate, NO.2
45260-20070 Shaft Assy, Steering Intermediate, NO.2
1988-05 → 1989-02 ended
CT176 DX;AT170,171,ET176 DX,S,SG,STD,SV ¥10,900
45260-20070 Shaft Assy, Steering Intermediate, NO.2
1989-02 → 1992-11 ended
ET176;AT170,CT17# DX,SV ¥10,900
45260-20090 Shaft Assy, Steering Intermediate, NO.2
1988-05 → 1989-02 ended
CT17# SE,SG;AT170,171,ST170 GLIM,SE,SGEXT,SX ¥11,200
45260-20090 note Shaft Assy, Steering Intermediate, NO.2
1988-05 → 1989-02 ended
CT176 DX;AT170,171,ET176 DX,S,SG,STD,SV ¥11,200
45260-20090 Shaft Assy, Steering Intermediate, NO.2
1989-02 → 1989-11 ended
AT170,171,CT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥11,200
45260-20090 note Shaft Assy, Steering Intermediate, NO.2
1989-02 → 1989-11 ended
ET176;AT170,CT176 DX,SV ¥11,200
45260-20150 Shaft Assy, Steering Intermediate, NO.2
1988-08 → 1992-08 ended
AT175 ¥14,700
45260-20220 note Shaft Assy, Steering Intermediate, NO.2
1989-11 → 1992-11 ended
ET176;AT170,CT17# DX,SV ¥14,700
45260-20220 Shaft Assy, Steering Intermediate, NO.2
1989-11 → 1992-11 ended
AT170,171,CT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥14,700
45271 — Clamp, Steering Column, Upper
45271-12050 Clamp, Steering Column, Upper
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175,CT17#,ET176 DX,SG,STD,SV ¥970
45271-12050 Clamp, Steering Column, Upper
1989-09 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥970
45271-12060 Clamp, Steering Column, Upper
1988-05 → 1989-09 ended
ST170 SE,SX;AT17#,CT170 GLIM,S,SE,SGEXT ¥840
45271-12060 note Clamp, Steering Column, Upper
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175 SG ¥840
45271-12060 note Clamp, Steering Column, Upper
1989-09 → 1990-05 ended
AT170,175 SG ¥840
45271-12060 note Clamp, Steering Column, Upper
1989-09 → 1990-05 ended
CT170 SG ¥840
45271-12060 note Clamp, Steering Column, Upper
1990-05 → 1991-06 ended
AT170,175,CT170 DX,SG,SV ¥840
45271-12060 note Clamp, Steering Column, Upper
1991-06 → 1992-08 ended
CT170 SG ¥840
45271-12060 Clamp, Steering Column, Upper
1989-09 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥840
45273 — Bush, Steering Main Shaft
45273-16010 Bush, Steering Main Shaft
1988-05 → 1990-07 ended
AT17#,CT17#,ET176,ST170 ¥540
45273-16010 note Bush, Steering Main Shaft
1990-11 → —
ST170 4FC SGEXT ¥540
45273-16010 Bush, Steering Main Shaft
1990-07 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥540
45273-22020 Bush, Steering Main Shaft
1990-07 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥520
45273-22020 note Bush, Steering Main Shaft
1991-06 → 1992-08 ended
CT170 SG ¥520
45273-22020 note Bush, Steering Main Shaft
1990-07 → 1991-06 ended
AT170,175,CT170 DX,SG,SV ¥520
45280A — Bracket Assy, Steering Column, Upper
45280-20430 Bracket Assy, Steering Column, Upper
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175,CT17#,ET176 DX,SG,STD,SV ¥15,400
45280-20430 Bracket Assy, Steering Column, Upper
1989-09 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥15,400
45280-20440 note Bracket Assy, Steering Column, Upper
1988-05 → 1989-09 ended
AT170,ST170 SG,SGEXT ¥15,400
45280-20440 note Bracket Assy, Steering Column, Upper
1989-09 → 1990-05 ended
AT170 SG ¥15,400
45280-20450 Bracket Assy, Steering Column, Upper
1988-05 → 1989-09 ended
AT171,ST170 S,SX ¥15,400
45280-20450 note Bracket Assy, Steering Column, Upper
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175 SG ¥15,400
45280-20450 Bracket Assy, Steering Column, Upper
1989-09 → 1992-11 ended
ST170 SGEXT CI;AT171,ST170 S,SX ¥15,400
45280-20450 note Bracket Assy, Steering Column, Upper
1989-09 → 1990-05 ended
AT170,175 SG ¥15,400
45280-20450 note Bracket Assy, Steering Column, Upper
1990-05 → 1991-06 ended
AT170,175,CT170 DX,SG,SV ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1990-12 → 1991-06 ended
CT170 SG ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1991-06 → 1992-11 ended
AT171,ST170 S,SX ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1991-06 → 1992-08 ended
CT170 SG ¥15,400
45280-20460 Bracket Assy, Steering Column, Upper
1988-05 → 1992-08 ended
ST170 SE CI;AT17#,CT170,ST170 (GLIM,SE,SGEXT) +1 ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1989-09 → 1990-05 ended
CT170 SG;AT170 4F SG ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1989-09 → 1990-05 ended
ST170 SGEXT ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1988-05 → 1990-05 ended
AT171 S ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1988-05 → 1990-05 ended
ST170 SX ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1988-05 → 1989-09 ended
ST170 SGEXT;AT170 4F SG ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1990-05 → 1991-06 ended
AT171,ST170 S,SX ¥15,400
45283A — Plate, Beam Change & Turn Signal Caution
45283-22010 Plate, Beam Change & Turn Signal Caution
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥150
45286 — Cover, Steering Column
45286-20931-03 note Cover, Steering Column
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SG,SGEXT,STD,SV,SX ¥5,900
45286-20931-04 note Cover, Steering Column
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SG,SGEXT,STD,SV,SX ¥5,900
45286-20931-06 note Cover, Steering Column
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SG,SGEXT,STD,SV,SX ¥5,900
45286-20933-03 note Cover, Steering Column
1989-09 → 1990-05 ended
AT170,175 SG ¥5,400
45286-20933-03 note Cover, Steering Column
1990-05 → 1991-06 ended
AT170,175,CT170 DX,SG,SV ¥5,400
45286-20933-03 note Cover, Steering Column
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175 SG ¥5,400
45286-20933-04 note Cover, Steering Column
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175 SG ¥5,400
45286-20933-04 note Cover, Steering Column
1989-09 → 1990-05 ended
AT170,175 SG ¥5,400
45286-20933-06 note Cover, Steering Column
1989-09 → 1990-05 ended
AT170,175 SG ¥5,400
45286-20933-06 note Cover, Steering Column
1990-05 → 1991-06 ended
AT170,175,CT170 SG ¥5,400
45286-20933-06 note Cover, Steering Column
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175 SG ¥5,400
45286-20933-14 note Cover, Steering Column
1990-05 → 1992-08 ended
ST170 SGEXT;AT17# S,SE,SGEXT ¥5,400
45286-20933-14 note Cover, Steering Column
1990-05 → 1991-06 ended
AT170,175,CT170 SG ¥5,400
45286-20934-01 note Cover, Steering Column
1988-05 → 1990-05 ended
AT171 GLIM ¥5,400
45286-20934-03 note Cover, Steering Column
1988-05 → 1990-05 ended
CT170,ST170 SE ¥5,400
45286-20934-03 note Cover, Steering Column
1989-09 → 1990-05 ended
ST170 SGEXT ¥5,400
45286-20934-03 note Cover, Steering Column
1989-09 → 1990-05 ended
AT170,CT170 SG ¥5,400
45286-20934-03 note Cover, Steering Column
1990-12 → —
AT170,CT170,ST170 SG,SGEXT ¥5,400
45286-20934-03 note Cover, Steering Column
1989-03 → 1989-09 ended
ST170 SGEXT ¥5,400
45286-20934-04 note Cover, Steering Column
1988-05 → 1990-05 ended
CT170,ST170 SE ¥5,400
45286-20934-04 note Cover, Steering Column
1989-09 → 1990-05 ended
AT170,CT170 SG ¥5,400
45286-20934-04 note Cover, Steering Column
1989-09 → 1990-05 ended
ST170 SGEXT ¥5,400
45286-20934-04 note Cover, Steering Column
1989-03 → 1989-09 ended
ST170 SGEXT ¥5,400
45286-20934-06 note Cover, Steering Column
1990-12 → —
AT170,CT170,ST170 SG,SGEXT ¥5,400
45286-20934-06 note Cover, Steering Column
1989-08 → 1992-08 ended
CT170,ST170 SE ¥5,400
45286-20934-06 note Cover, Steering Column
1989-09 → 1990-05 ended
AT170,CT170 SG ¥5,400
45286-20934-06 note Cover, Steering Column
1989-09 → 1990-05 ended
ST170 SGEXT ¥5,400
45286-20934-06 note Cover, Steering Column
1988-05 → 1989-02 ended
CT170,ST170 SE ¥5,400
45286-20934-14 note Cover, Steering Column
1990-05 → 1992-08 ended
CT170,ST170 SE ¥5,400
45286-20934-14 note Cover, Steering Column
1990-12 → —
AT170,CT170,ST170 SG,SGEXT ¥5,400
45804C — Washer, Plate(FOR STEERING TILT LEVER)
90201-10283 Washer, Plate(FOR STEERING TILT LEVER)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥180
90201-10283 Washer, Plate(FOR STEERING TILT LEVER)
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥180
90201-10283 Washer, Plate(FOR STEERING TILT LEVER)
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥180
45805A — Support Sub-assy, Tilt Steering
45805-12010 Support Sub-assy, Tilt Steering
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥7,600
45805-12010 Support Sub-assy, Tilt Steering
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥7,600
45805-12010 Support Sub-assy, Tilt Steering
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥7,600
45805B — Bush(FOR TILT STEERING SUPPORT)
90386-06031 Bush(FOR TILT STEERING SUPPORT)
1989-09 → 1989-12 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥190
90386-06031 Bush(FOR TILT STEERING SUPPORT)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥190
45805C — Spring, Compression(FOR TILT STEERING SUPPORT)
90501-20072 Spring, Compression(FOR TILT STEERING SUPPORT)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥340
90501-20072 Spring, Compression(FOR TILT STEERING SUPPORT)
1989-09 → 1989-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥340
45819 — Retainer, Tilt Lever
45819-12010 Retainer, Tilt Lever
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥380
45819-12010 Retainer, Tilt Lever
1989-09 → 1991-05 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥380
45819-12020 Retainer, Tilt Lever
1991-05 → 1991-06 ended
AT17#,CT170,ST170 ¥350
45819-12020 Retainer, Tilt Lever
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥350
45820 — Spring Assy, Tilt Steering Support
45820-12010 Spring Assy, Tilt Steering Support
1989-12 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥240
45820-12010 Spring Assy, Tilt Steering Support
1991-06 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥240
45820-12010 Spring Assy, Tilt Steering Support
1991-06 → 1992-08 ended
CT170 SG ¥240
45820-20010 note Spring Assy, Tilt Steering Support
1991-06 → 1992-08 ended
CT170 SG ¥400
45820-20010 note Spring Assy, Tilt Steering Support
1990-05 → 1991-06 ended
AT171,ST170 GLIM,SE ¥400
45820-20010 note Spring Assy, Tilt Steering Support
1991-06 → 1992-11 ended
AT170,171,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥400
45826 — Lever, Steering Tilt
45826-12020 Lever, Steering Tilt
1988-05 → 1989-05 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥1,020
45826-12021 Lever, Steering Tilt
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥2,470
45826-12021 Lever, Steering Tilt
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥2,470
45826-12021 Lever, Steering Tilt
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥2,470
45826A — Spring, Tension(FOR STEERING TILT LEVER)
90507-12029 Spring, Tension(FOR STEERING TILT LEVER)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥200
90507-12029 Spring, Tension(FOR STEERING TILT LEVER)
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥200
90507-12029 Spring, Tension(FOR STEERING TILT LEVER)
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥200
45827A — Lever, Steering Tilt Sub
45827-12010 Lever, Steering Tilt Sub
1988-05 → 1989-05 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥460
45827-12011 Lever, Steering Tilt Sub
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥370
45827-12011 Lever, Steering Tilt Sub
1989-09 → 1991-05 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥370
45827-12020 Lever, Steering Tilt Sub
1991-05 → 1991-06 ended
AT17#,CT170,ST170 ¥350
45827-12020 Lever, Steering Tilt Sub
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥350
45831 — Bolt, Tilt Lever Lock, NO.1
45831-12010 Bolt, Tilt Lever Lock, NO.1
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥930
45831-12010 Bolt, Tilt Lever Lock, NO.1
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥930
45831-12010 Bolt, Tilt Lever Lock, NO.1
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥930
45855 — Bolt, Tilt Steering, NO.1
45855-12010 note Bolt, Tilt Steering, NO.1
1989-09 → 1991-05 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥620
45855-12010 note Bolt, Tilt Steering, NO.1
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥620
45855-12020 note Bolt, Tilt Steering, NO.1
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥620
45855-12020 note Bolt, Tilt Steering, NO.1
1989-09 → 1991-05 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥620
45855-12030 note Bolt, Tilt Steering, NO.1
1991-05 → 1991-06 ended
AT17#,CT170,ST170 ¥400
45855-12030 note Bolt, Tilt Steering, NO.1
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥400
45855-12040 note Bolt, Tilt Steering, NO.1
1991-05 → 1991-06 ended
AT17#,CT170,ST170 ¥610
45855-12040 note Bolt, Tilt Steering, NO.1
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥610
45856 — Bolt, Tilt Steering, NO.2
45856-12010 note Bolt, Tilt Steering, NO.2
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥590
45856-12010 note Bolt, Tilt Steering, NO.2
1989-09 → 1991-05 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥590
45856-12020 note Bolt, Tilt Steering, NO.2
1989-09 → 1991-05 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥590
45856-12020 note Bolt, Tilt Steering, NO.2
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥590
45856-12030 note Bolt, Tilt Steering, NO.2
1991-05 → 1991-06 ended
AT17#,CT170,ST170 ¥370
45856-12030 note Bolt, Tilt Steering, NO.2
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥370
45856-12040 note Bolt, Tilt Steering, NO.2
1991-05 → 1991-06 ended
AT17#,CT170,ST170 ¥370
45856-12040 note Bolt, Tilt Steering, NO.2
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥370
45865 — Collar, Steering Main Shaft
45865-12050 Collar, Steering Main Shaft
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥1,330
45865-12050 Collar, Steering Main Shaft
1989-09 → 1991-05 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥1,330
45865-12060 Collar, Steering Main Shaft
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥1,330
45865-12060 Collar, Steering Main Shaft
1991-05 → 1991-06 ended
AT17#,CT170,ST170 ¥1,330
45866A — Stopper, Steering Main Shaft Bush
45866-12010 Stopper, Steering Main Shaft Bush
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥170
45866-12010 Stopper, Steering Main Shaft Bush
1989-09 → 1992-11 ended
AT170 (SE,SG) CBR ¥170
45866-12010 Stopper, Steering Main Shaft Bush
1989-09 → 1992-11 ended
AT17#,CT170,ST170 CI,DSL,EFI,EFIS ¥170
45890A — Pawl Assy, Tilt Steering
45890-12020 note Pawl Assy, Tilt Steering
1988-05 → 1989-05 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥1,120
45890-12021 note Pawl Assy, Tilt Steering
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥1,090
45890-12021 note Pawl Assy, Tilt Steering
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥1,090
45890-12021 note Pawl Assy, Tilt Steering
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥1,090
45890-12030 note Pawl Assy, Tilt Steering
1988-05 → 1989-05 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥990
45890-12031 note Pawl Assy, Tilt Steering
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥980
45890-12031 note Pawl Assy, Tilt Steering
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥980
45890-12031 note Pawl Assy, Tilt Steering
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥980
45890C — Collar(FOR TILT STEERING PAWL)
90389-07004 note Collar(FOR TILT STEERING PAWL)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥260
90389-07004 note Collar(FOR TILT STEERING PAWL)
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥260
90389-07004 note Collar(FOR TILT STEERING PAWL)
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥260
90389-07005 note Collar(FOR TILT STEERING PAWL)
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥260
90389-07005 note Collar(FOR TILT STEERING PAWL)
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥260
90389-07005 note Collar(FOR TILT STEERING PAWL)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥260
90389-07006 note Collar(FOR TILT STEERING PAWL)
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥260
90389-07006 note Collar(FOR TILT STEERING PAWL)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥260
90389-07006 note Collar(FOR TILT STEERING PAWL)
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥260
90389-07007 note Collar(FOR TILT STEERING PAWL)
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥260
90389-07007 note Collar(FOR TILT STEERING PAWL)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥260
90389-07007 note Collar(FOR TILT STEERING PAWL)
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥260
90389-07008 note Collar(FOR TILT STEERING PAWL)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥260
90389-07008 note Collar(FOR TILT STEERING PAWL)
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥260
90389-07008 note Collar(FOR TILT STEERING PAWL)
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥260
90389-07009 note Collar(FOR TILT STEERING PAWL)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥260
90389-07009 note Collar(FOR TILT STEERING PAWL)
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥260
90389-07009 note Collar(FOR TILT STEERING PAWL)
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥260
90389-07010 note Collar(FOR TILT STEERING PAWL)
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥260
90389-07010 note Collar(FOR TILT STEERING PAWL)
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥260
90389-07010 note Collar(FOR TILT STEERING PAWL)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥260
90389-07011 note Collar(FOR TILT STEERING PAWL)
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥260
90389-07011 note Collar(FOR TILT STEERING PAWL)
1988-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥260
90389-07011 note Collar(FOR TILT STEERING PAWL)
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥260
45893A — Stopper, Tilt Steering Pawl
45893-12020 note Stopper, Tilt Steering Pawl
1988-05 → 1989-05 ended
ST170 SE,SX;AT17#,CT170 GLIM,S,SE,SGEXT ¥540
45893-12020 note Stopper, Tilt Steering Pawl
1988-05 → 1989-05 ended
ST170 SGEXT;AT170,175 SG ¥540
45893-12021 note Stopper, Tilt Steering Pawl
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥370
45893-12021 note Stopper, Tilt Steering Pawl
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥370
45893-12021 note Stopper, Tilt Steering Pawl
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥370
45893-12070 note Stopper, Tilt Steering Pawl
1988-05 → 1989-05 ended
ST170 SGEXT;AT170,175 SG ¥480
45893-12070 note Stopper, Tilt Steering Pawl
1988-05 → 1989-05 ended
ST170 SE,SX;AT17#,CT170 GLIM,S,SE,SGEXT ¥480
45893-12071 note Stopper, Tilt Steering Pawl
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥350
45893-12071 note Stopper, Tilt Steering Pawl
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥350
45893-12071 note Stopper, Tilt Steering Pawl
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥350
45893-12120 note Stopper, Tilt Steering Pawl
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥370
45893-12120 note Stopper, Tilt Steering Pawl
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥370
45893-12120 note Stopper, Tilt Steering Pawl
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥370
45893-12130 note Stopper, Tilt Steering Pawl
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥370
45893-12130 note Stopper, Tilt Steering Pawl
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥370
45893-12130 note Stopper, Tilt Steering Pawl
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥370
45893-12140 note Stopper, Tilt Steering Pawl
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥370
45893-12140 note Stopper, Tilt Steering Pawl
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥370
45893-12140 note Stopper, Tilt Steering Pawl
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥370
45893-12150 note Stopper, Tilt Steering Pawl
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥370
45893-12150 note Stopper, Tilt Steering Pawl
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥370
45893-12150 note Stopper, Tilt Steering Pawl
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥370
45893-12160 note Stopper, Tilt Steering Pawl
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥350
45893-12160 note Stopper, Tilt Steering Pawl
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥350
45893-12160 note Stopper, Tilt Steering Pawl
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥350
45893-12170 note Stopper, Tilt Steering Pawl
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥350
45893-12170 note Stopper, Tilt Steering Pawl
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥350
45893-12170 note Stopper, Tilt Steering Pawl
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥350
45893-12180 note Stopper, Tilt Steering Pawl
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥350
45893-12180 note Stopper, Tilt Steering Pawl
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥350
45893-12180 note Stopper, Tilt Steering Pawl
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥350
45893-12190 note Stopper, Tilt Steering Pawl
1989-09 → 1991-06 ended
AT170 SE,SG,SGEXT;AT170 (DX,SV) EFI;AT171,175,CT170,ST170 ¥350
45893-12190 note Stopper, Tilt Steering Pawl
1989-05 → 1989-09 ended
CT170 SE;AT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥350
45893-12190 note Stopper, Tilt Steering Pawl
1991-06 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥350
45897 — Bolt, Steering Lock Set
45897-12020 Bolt, Steering Lock Set
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥210
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
