Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

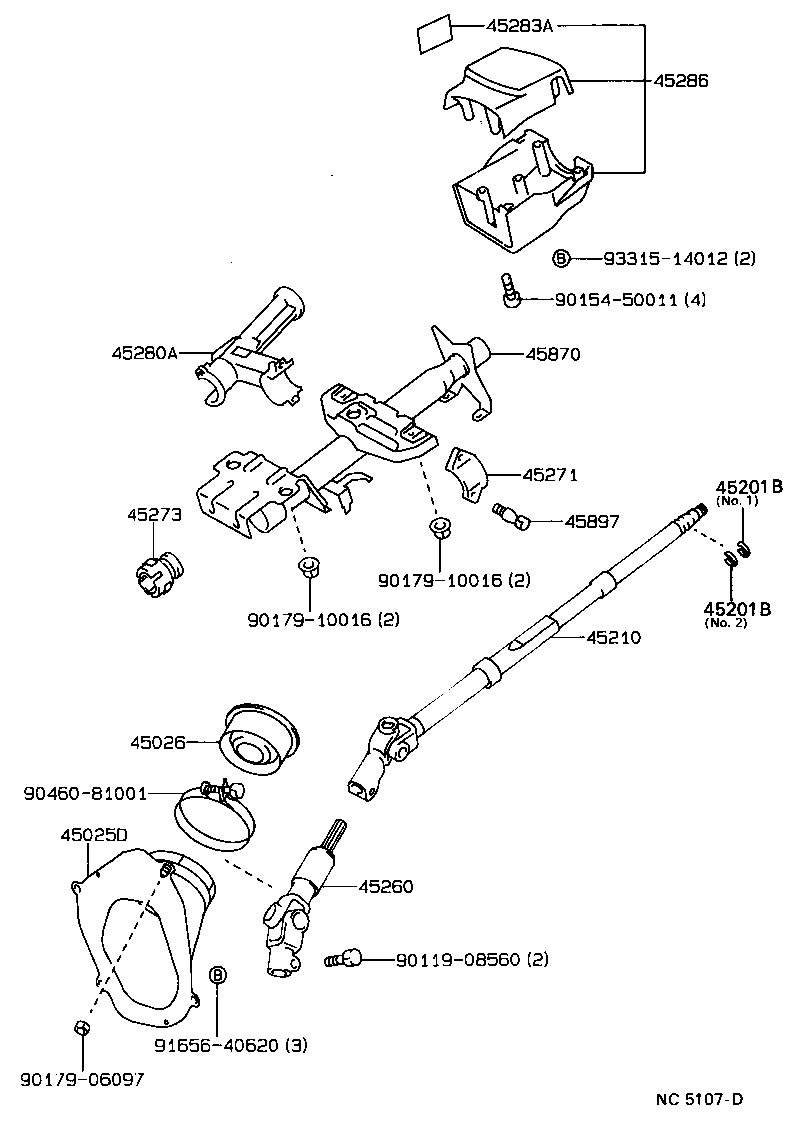

Exploded illustration NC5107D 45283A — PLATE, BEAM CHANGE & TURN SIGNAL CAUTION (1 parts) 45286 — COVER, STEERING COLUMN (30 parts) 9331514012 — not listed in this catalogue 9015450011 — not listed in this catalogue 45280A — BRACKET ASSY, STEERING COLUMN, UPPER (20 parts) 45870 — TUBE ASSY, STEERING COLUMN (6 parts) 45271 — CLAMP, STEERING COLUMN, UPPER (9 parts) 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (9 parts) 45273 — BUSH, STEERING MAIN SHAFT (6 parts) 45897 — BOLT, STEERING LOCK SET (1 parts) 9017910016 — not listed in this catalogue 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (9 parts) 9017910016 — not listed in this catalogue 45210 — SHAFT ASSY, STEERING MAIN (10 parts) 45026 — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 (2 parts) 9046081001 — not listed in this catalogue 45025D — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 (7 parts) 45260 — SHAFT ASSY, STEERING INTERMEDIATE, NO.2 (9 parts) 9011908560 — not listed in this catalogue 9165640620 — not listed in this catalogue 9017906097 — not listed in this catalogue
NC5107D · 13 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
110 parts on this figure
Part number Description Fitment Price
45025D — Cover Sub-assy, Steering Column Hole, NO.1
45025-20180 Cover Sub-assy, Steering Column Hole, NO.1
1989-02 → 1992-11 ended
ET176;AT170,CT17# DX,SV ¥7,300
45025-20180 Cover Sub-assy, Steering Column Hole, NO.1
1988-05 → 1989-02 ended
CT176 DX;AT170,171,ET176 DX,S,SG,STD,SV ¥7,300
45025-20200 Cover Sub-assy, Steering Column Hole, NO.1
1988-05 → 1989-02 ended
CT17# SE,SG;AT170,171,ST170 GLIM,SE,SGEXT,SX ¥7,300
45025-20200 note Cover Sub-assy, Steering Column Hole, NO.1
1988-05 → 1989-02 ended
CT176 DX;AT170,171,ET176 DX,S,SG,STD,SV ¥7,300
45025-20200 Cover Sub-assy, Steering Column Hole, NO.1
1989-02 → 1992-11 ended
AT170,171,CT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥7,300
45025-20200 note Cover Sub-assy, Steering Column Hole, NO.1
1989-02 → 1992-11 ended
ET176;AT170,CT17# DX,SV ¥7,300
45025-20260 Cover Sub-assy, Steering Column Hole, NO.1
1988-08 → 1992-08 ended
AT175 ¥7,300
45026 — Cover Sub-assy, Steering Column Hole, NO.2
45025-20220 Cover Sub-assy, Steering Column Hole, NO.2
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥3,590
45025-20270 Cover Sub-assy, Steering Column Hole, NO.2
1988-08 → 1992-08 ended
AT175 ¥4,640
45201B — Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1990-11 → —
ST170 4FC SGEXT ¥120
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1992-04 → 1992-11 ended
AT170,175,CT170 DX,SG ¥120
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1992-04 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥120
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1988-05 → 1992-04 ended
AT17#,CT17#,ET176,ST170 ¥120
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1992-04 → 1992-11 ended
AT170,CT17#,ET176 VAN,WG ¥120
90520-17196 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1989-09 → 1992-04 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥210
90520-17196 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175,CT17#,ET176 DX,SG,STD,SV ¥210
90520-17196 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1990-11 → —
ST170 4FC SGEXT ¥210
90520-17269 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1992-04 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥120
45210 — Shaft Assy, Steering Main
45210-12400 note Shaft Assy, Steering Main
1989-09 → 1990-05 ended
AT170,175 SG ¥14,700
45210-12400 Shaft Assy, Steering Main
1989-09 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥14,700
45210-12400 note Shaft Assy, Steering Main
1991-06 → 1992-08 ended
CT170 SG ¥14,700
45210-12400 note Shaft Assy, Steering Main
1990-05 → 1991-06 ended
AT170,175,CT170 DX,SG,SV ¥14,700
45210-12400 note Shaft Assy, Steering Main
1989-09 → 1990-05 ended
CT170 SG ¥14,700
45210-12400 note Shaft Assy, Steering Main
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175 SG ¥14,700
45210-12400 Shaft Assy, Steering Main
1988-05 → 1989-09 ended
ST170 SE,SX;AT17#,CT170 GLIM,S,SE,SGEXT ¥14,700
45210-20260 Shaft Assy, Steering Main
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175,CT17#,ET176 DX,SG,STD,SV ¥16,500
45210-20260 Shaft Assy, Steering Main
1989-09 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥16,500
45210-20260 note Shaft Assy, Steering Main
1990-11 → —
AT175 SGEXT ¥16,500
45260 — Shaft Assy, Steering Intermediate, NO.2
45260-20070 Shaft Assy, Steering Intermediate, NO.2
1988-05 → 1989-02 ended
CT176 DX;AT170,171,ET176 DX,S,SG,STD,SV ¥10,900
45260-20070 Shaft Assy, Steering Intermediate, NO.2
1989-02 → 1992-11 ended
ET176;AT170,CT17# DX,SV ¥10,900
45260-20090 note Shaft Assy, Steering Intermediate, NO.2
1988-05 → 1989-02 ended
CT176 DX;AT170,171,ET176 DX,S,SG,STD,SV ¥11,200
45260-20090 note Shaft Assy, Steering Intermediate, NO.2
1989-02 → 1989-11 ended
ET176;AT170,CT176 DX,SV ¥11,200
45260-20090 Shaft Assy, Steering Intermediate, NO.2
1988-05 → 1989-02 ended
CT17# SE,SG;AT170,171,ST170 GLIM,SE,SGEXT,SX ¥11,200
45260-20090 Shaft Assy, Steering Intermediate, NO.2
1989-02 → 1989-11 ended
AT170,171,CT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥11,200
45260-20150 Shaft Assy, Steering Intermediate, NO.2
1988-08 → 1992-08 ended
AT175 ¥14,700
45260-20220 Shaft Assy, Steering Intermediate, NO.2
1989-11 → 1992-11 ended
AT170,171,CT17#,ST170 GLIM,S,SE,SG,SGEXT,SX ¥14,700
45260-20220 note Shaft Assy, Steering Intermediate, NO.2
1989-11 → 1992-11 ended
ET176;AT170,CT17# DX,SV ¥14,700
45271 — Clamp, Steering Column, Upper
45271-12050 Clamp, Steering Column, Upper
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175,CT17#,ET176 DX,SG,STD,SV ¥970
45271-12050 Clamp, Steering Column, Upper
1989-09 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥970
45271-12060 note Clamp, Steering Column, Upper
1989-09 → 1990-05 ended
AT170,175 SG ¥840
45271-12060 Clamp, Steering Column, Upper
1989-09 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥840
45271-12060 note Clamp, Steering Column, Upper
1991-06 → 1992-08 ended
CT170 SG ¥840
45271-12060 note Clamp, Steering Column, Upper
1990-05 → 1991-06 ended
AT170,175,CT170 DX,SG,SV ¥840
45271-12060 note Clamp, Steering Column, Upper
1989-09 → 1990-05 ended
CT170 SG ¥840
45271-12060 note Clamp, Steering Column, Upper
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175 SG ¥840
45271-12060 Clamp, Steering Column, Upper
1988-05 → 1989-09 ended
ST170 SE,SX;AT17#,CT170 GLIM,S,SE,SGEXT ¥840
45273 — Bush, Steering Main Shaft
45273-16010 Bush, Steering Main Shaft
1988-05 → 1990-07 ended
AT17#,CT17#,ET176,ST170 ¥540
45273-16010 note Bush, Steering Main Shaft
1990-11 → —
ST170 4FC SGEXT ¥540
45273-16010 Bush, Steering Main Shaft
1990-07 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥540
45273-22020 note Bush, Steering Main Shaft
1991-06 → 1992-08 ended
CT170 SG ¥520
45273-22020 Bush, Steering Main Shaft
1990-07 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥520
45273-22020 note Bush, Steering Main Shaft
1990-07 → 1991-06 ended
AT170,175,CT170 DX,SG,SV ¥520
45280A — Bracket Assy, Steering Column, Upper
45280-20430 Bracket Assy, Steering Column, Upper
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175,CT17#,ET176 DX,SG,STD,SV ¥15,400
45280-20430 Bracket Assy, Steering Column, Upper
1989-09 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥15,400
45280-20440 note Bracket Assy, Steering Column, Upper
1988-05 → 1989-09 ended
AT170,ST170 SG,SGEXT ¥15,400
45280-20440 note Bracket Assy, Steering Column, Upper
1989-09 → 1990-05 ended
AT170 SG ¥15,400
45280-20450 Bracket Assy, Steering Column, Upper
1989-09 → 1992-11 ended
ST170 SGEXT CI;AT171,ST170 S,SX ¥15,400
45280-20450 note Bracket Assy, Steering Column, Upper
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175 SG ¥15,400
45280-20450 note Bracket Assy, Steering Column, Upper
1990-05 → 1991-06 ended
AT170,175,CT170 DX,SG,SV ¥15,400
45280-20450 note Bracket Assy, Steering Column, Upper
1989-09 → 1990-05 ended
AT170,175 SG ¥15,400
45280-20450 Bracket Assy, Steering Column, Upper
1988-05 → 1989-09 ended
AT171,ST170 S,SX ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1988-05 → 1990-05 ended
AT171 S ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1991-06 → 1992-11 ended
AT171,ST170 S,SX ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1988-05 → 1989-09 ended
ST170 SGEXT;AT170 4F SG ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1991-06 → 1992-08 ended
CT170 SG ¥15,400
45280-20460 Bracket Assy, Steering Column, Upper
1988-05 → 1992-08 ended
ST170 SE CI;AT17#,CT170,ST170 (GLIM,SE,SGEXT) +1 ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1990-12 → 1991-06 ended
CT170 SG ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1990-05 → 1991-06 ended
AT171,ST170 S,SX ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1988-05 → 1990-05 ended
ST170 SX ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1989-09 → 1990-05 ended
CT170 SG;AT170 4F SG ¥15,400
45280-20460 note Bracket Assy, Steering Column, Upper
1989-09 → 1990-05 ended
ST170 SGEXT ¥15,400
45283A — Plate, Beam Change & Turn Signal Caution
45283-22010 Plate, Beam Change & Turn Signal Caution
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥150
45286 — Cover, Steering Column
45286-20931-03 note Cover, Steering Column
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SG,SGEXT,STD,SV,SX ¥5,900
45286-20931-04 note Cover, Steering Column
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SG,SGEXT,STD,SV,SX ¥5,900
45286-20931-06 note Cover, Steering Column
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SG,SGEXT,STD,SV,SX ¥5,900
45286-20933-03 note Cover, Steering Column
1990-05 → 1991-06 ended
AT170,175,CT170 DX,SG,SV ¥5,400
45286-20933-03 note Cover, Steering Column
1989-09 → 1990-05 ended
AT170,175 SG ¥5,400
45286-20933-03 note Cover, Steering Column
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175 SG ¥5,400
45286-20933-04 note Cover, Steering Column
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175 SG ¥5,400
45286-20933-04 note Cover, Steering Column
1989-09 → 1990-05 ended
AT170,175 SG ¥5,400
45286-20933-06 note Cover, Steering Column
1988-05 → 1989-09 ended
ST170 SGEXT;AT170,175 SG ¥5,400
45286-20933-06 note Cover, Steering Column
1989-09 → 1990-05 ended
AT170,175 SG ¥5,400
45286-20933-06 note Cover, Steering Column
1990-05 → 1991-06 ended
AT170,175,CT170 SG ¥5,400
45286-20933-14 note Cover, Steering Column
1990-05 → 1992-08 ended
ST170 SGEXT;AT17# S,SE,SGEXT ¥5,400
45286-20933-14 note Cover, Steering Column
1990-05 → 1991-06 ended
AT170,175,CT170 SG ¥5,400
45286-20934-01 note Cover, Steering Column
1988-05 → 1990-05 ended
AT171 GLIM ¥5,400
45286-20934-03 note Cover, Steering Column
1990-12 → —
AT170,CT170,ST170 SG,SGEXT ¥5,400
45286-20934-03 note Cover, Steering Column
1989-09 → 1990-05 ended
ST170 SGEXT ¥5,400
45286-20934-03 note Cover, Steering Column
1989-09 → 1990-05 ended
AT170,CT170 SG ¥5,400
45286-20934-03 note Cover, Steering Column
1989-03 → 1989-09 ended
ST170 SGEXT ¥5,400
45286-20934-03 note Cover, Steering Column
1988-05 → 1990-05 ended
CT170,ST170 SE ¥5,400
45286-20934-04 note Cover, Steering Column
1989-09 → 1990-05 ended
AT170,CT170 SG ¥5,400
45286-20934-04 note Cover, Steering Column
1989-09 → 1990-05 ended
ST170 SGEXT ¥5,400
45286-20934-04 note Cover, Steering Column
1988-05 → 1990-05 ended
CT170,ST170 SE ¥5,400
45286-20934-04 note Cover, Steering Column
1989-03 → 1989-09 ended
ST170 SGEXT ¥5,400
45286-20934-06 note Cover, Steering Column
1989-09 → 1990-05 ended
AT170,CT170 SG ¥5,400
45286-20934-06 note Cover, Steering Column
1990-12 → —
AT170,CT170,ST170 SG,SGEXT ¥5,400
45286-20934-06 note Cover, Steering Column
1988-05 → 1989-02 ended
CT170,ST170 SE ¥5,400
45286-20934-06 note Cover, Steering Column
1989-08 → 1992-08 ended
CT170,ST170 SE ¥5,400
45286-20934-06 note Cover, Steering Column
1989-09 → 1990-05 ended
ST170 SGEXT ¥5,400
45286-20934-14 note Cover, Steering Column
1990-05 → 1992-08 ended
CT170,ST170 SE ¥5,400
45286-20934-14 note Cover, Steering Column
1990-12 → —
AT170,CT170,ST170 SG,SGEXT ¥5,400
45870 — Tube Assy, Steering Column
45870-12241 Tube Assy, Steering Column
1988-09 → 1989-05 ended
ST170 SGEXT;AT170,175,CT17#,ET176 DX,SG,STD,SV ¥9,200
45870-12242 Tube Assy, Steering Column
1989-05 → 1989-09 ended
ST170 SGEXT;AT170,175,CT17#,ET176 DX,SG,STD,SV ¥9,100
45870-12242 Tube Assy, Steering Column
1989-09 → 1991-10 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥9,100
45870-12242 note Tube Assy, Steering Column
1990-11 → —
AT175 SGEXT ¥9,100
45870-20220 Tube Assy, Steering Column
1988-05 → 1988-09 ended
ST170 SGEXT;AT170,175,CT17#,ET176 DX,SG,STD,SV ¥8,600
45870-20430 Tube Assy, Steering Column
1991-10 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥7,600
45897 — Bolt, Steering Lock Set
45897-12020 Bolt, Steering Lock Set
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥210
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
