Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

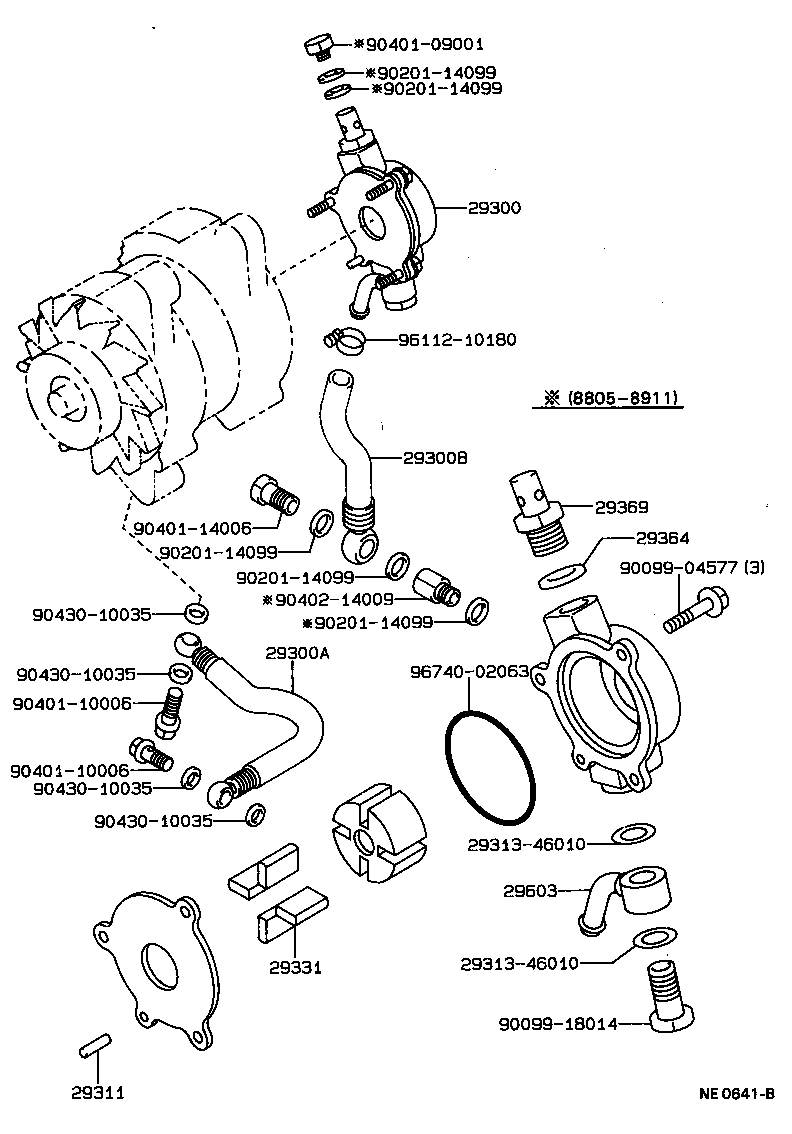

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 29300 — Pump Assy, Vacuum | ||||
| 29300-64020 |
Pump Assy, Vacuum
1988-05 → 1989-11
ended
|
2C CT17# | ¥47,100 | |
| 29300-64040 |
Pump Assy, Vacuum
1989-11 → 1991-01
ended
|
2C CT17# | ¥43,600 | |
| 29300-64041 |
Pump Assy, Vacuum
1991-01 → 1991-06
ended
|
2C CT170 4FC SE;2C +2 | ¥43,200 | |
| 29300-64041 |
Pump Assy, Vacuum
1991-06 → 1992-11
ended
|
2C CT17# | ¥43,200 | |
| 29300A — Hose, Vacuum Pump Oil Inlet | ||||
| 90923-02095 |
Hose, Vacuum Pump Oil Inlet
1988-05 → 1989-11
ended
|
2C CT17# | ¥3,610 | |
| 90923-02106 |
Hose, Vacuum Pump Oil Inlet
1989-11 → 1992-11
ended
|
2C CT17# | ¥3,400 | |
| 29300B — Hose, Vacuum Pump Oil Outlet | ||||
| 90923-02069 |
Hose, Vacuum Pump Oil Outlet
1988-05 → 1989-11
ended
|
2C CT17# | ¥2,120 | |
| 90923-02104 |
Hose, Vacuum Pump Oil Outlet
1989-11 → 1992-11
ended
|
2C CT17# | ¥2,260 | |
| 29311 — Pin, Vacuum Pump Dowel, NO.1 | ||||
| 29311-76010 |
Pin, Vacuum Pump Dowel, NO.1
1990-05 → 1991-06
ended
|
2C CT170 4FC SE;2C +2 | ¥140 | |
| 29311-76010 |
Pin, Vacuum Pump Dowel, NO.1
1991-06 → 1992-11
ended
|
2C CT17# | ¥140 | |
| 90099-08082 |
Pin, Vacuum Pump Dowel, NO.1
1988-05 → 1990-05
ended
|
2C CT17# | — | |
| 29331 — Blade, Vacuum Pump, A | ||||
| 29331-56070 |
Blade, Vacuum Pump, A
1990-05 → 1991-06
ended
|
2C CT170 4FC SE;2C +2 | — | |
| 29331-56070 |
Blade, Vacuum Pump, A
1991-06 → 1992-11
ended
|
2C CT17# | — | |
| 29331-56070 |
Blade, Vacuum Pump, A
1988-05 → 1990-05
ended
|
2C CT17# | — | |
| 29364 — Washer, Vacuum Pump | ||||
| 29364-66010 |
Washer, Vacuum Pump
1988-05 → 1990-05
ended
|
2C CT17# | ¥180 | |
| 29364-66010 |
Washer, Vacuum Pump
1990-05 → 1991-06
ended
|
2C CT170 4FC SE;2C +2 | ¥180 | |
| 29364-66010 |
Washer, Vacuum Pump
1991-06 → 1992-11
ended
|
2C CT17# | ¥180 | |
| 29369 — Valve Sub-assy, Check | ||||
| 29369-56070 |
Valve Sub-assy, Check
1988-05 → 1990-05
ended
|
2C CT17# | — | |
| 29369-56070 |
Valve Sub-assy, Check
1990-05 → 1991-06
ended
|
2C CT170 4FC SE;2C +2 | — | |
| 29369-56070 |
Valve Sub-assy, Check
1991-06 → 1992-11
ended
|
2C CT17# | — | |
| 29603 — Pipe, Vacuum Pump Oil Outlet | ||||
| 29365-64020 |
Pipe, Vacuum Pump Oil Outlet
1988-05 → 1989-11
ended
|
2C CT17# | — | |
| 29365-64040 |
Pipe, Vacuum Pump Oil Outlet
1989-11 → 1990-05
ended
|
2C CT17# | — | |
| 29365-64040 |
Pipe, Vacuum Pump Oil Outlet
1990-05 → 1991-06
ended
|
2C CT170 4FC SE;2C +2 | — | |
| 29365-64040 |
Pipe, Vacuum Pump Oil Outlet
1991-06 → 1992-11
ended
|
2C CT17# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
