Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

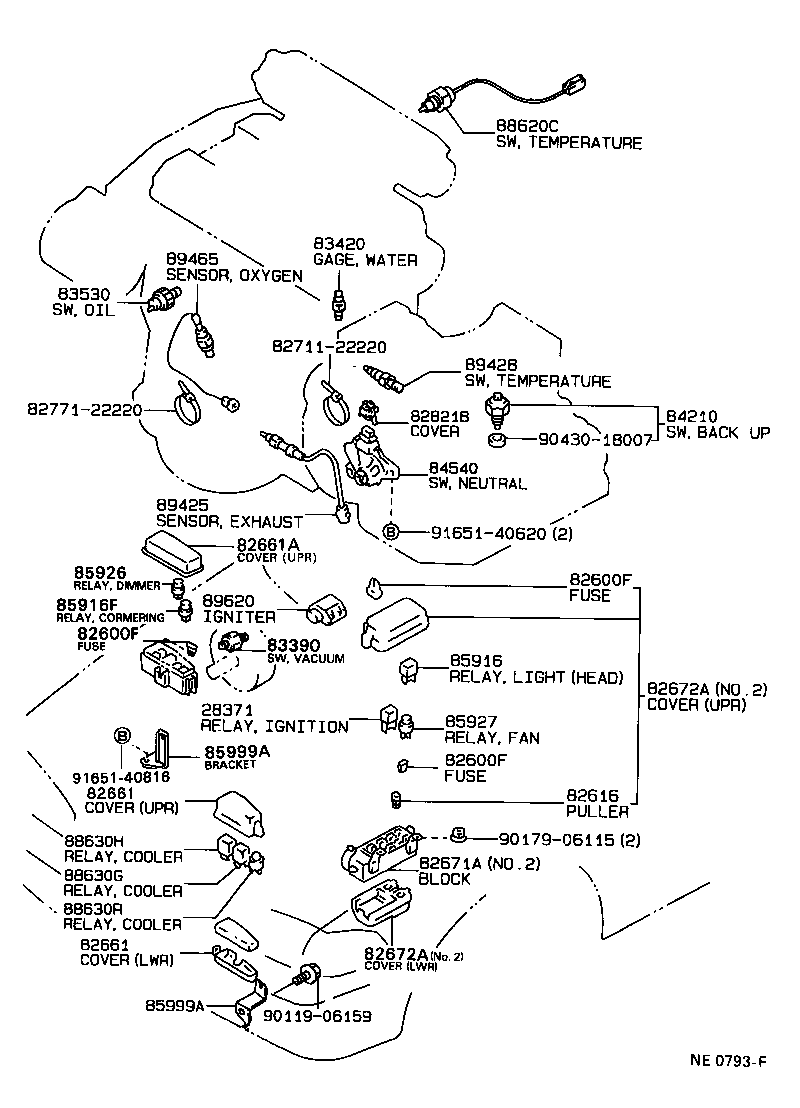

Exploded illustration NE0793F 88620C — THERMO SWITCH ASSY (19 parts) 83420 — GAGE ASSY, WATER TEMPERATURE SENDER (2 parts) 89465 — SENSOR, OXYGEN (7 parts) 83530 — SWITCH ASSY, OIL PRESSURE (FOR ENGINE) (9 parts) 8271122220 — not listed in this catalogue 89428 — SWITCH, TEMPERATURE DETECT, NO.2 (8 parts) 8277122220 — not listed in this catalogue 82821B — COVER, CONNECTOR (10 parts) 84210 — SWITCH ASSY, BACK-UP LAMP (2 parts) 9043018007 — not listed in this catalogue 84540 — SWITCH ASSY, NEUTRAL START (9 parts) 89425 — SENSOR, EXHAUST GAS TEMPERATURE (5 parts) 9165140620 — not listed in this catalogue 82661A — COVER, RELAY BLOCK, NO.2 (7 parts) 85926 — RELAY, HEADLAMP DIMMER (1 parts) 82600F — FUSE, FUSE BLOCK (29 parts) 89620 — IGNITER ASSY (6 parts) 85916F — RELAY, CORNERING LAMP (6 parts) 82600F — FUSE, FUSE BLOCK (29 parts) 83390 — SWITCH ASSY, VACUUM WARNING (2 parts) 85916 — RELAY, LIGHT CONTROL (6 parts) 82672A — COVER, JUNCTION BLOCK (18 parts) 28371 — RELAY, IGNITION, NO.1 (1 parts) 85927 — RELAY, COOLING FAN (1 parts) 85999A — BRACKET, RELAY, NO.2 (16 parts) 82600F — FUSE, FUSE BLOCK (29 parts) 9165140816 — not listed in this catalogue 82661 — COVER, RELAY BLOCK, NO.1 (14 parts) 82616 — PULLER, FUSE (2 parts) 9017906115 — not listed in this catalogue 88630H — RELAY ASSY, COOLER (17 parts) 82671A — BLOCK, JUNCTION (24 parts) 88630G — RELAY ASSY, COOLER (17 parts) 88630R — RELAY ASSY, COOLER, NO.3 (17 parts) 82661 — COVER, RELAY BLOCK, NO.1 (14 parts) 82672A — COVER, JUNCTION BLOCK (18 parts) 85999A — BRACKET, RELAY, NO.2 (16 parts) 9011906159 — not listed in this catalogue
NE0793F · 31 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
255 parts on this figure
Part number Description Fitment Price
28371 — Relay, Ignition, NO.1
90987-04002 Relay, Ignition, NO.1
1988-05 → 1992-11 ended
4AF#,4AGE,5AF#,2C,3E,4SF# AT17#,CT17#,ET176,ST170 ¥2,430
82600F — Fuse, Fuse Block
90982-09002 note Fuse, Fuse Block
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥120
90982-09002 note Fuse, Fuse Block
1990-12 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥120
90982-09002 note Fuse, Fuse Block
1990-09 → 1992-11 ended
AT171,175,CT170,ST170 GLIM,SE,SGEXT,SX ¥120
90982-09002 note Fuse, Fuse Block
1990-12 → 1992-08 ended
CT170 SG ¥120
90982-09002 note Fuse, Fuse Block
1990-09 → 1992-08 ended
AT170,171 GLIM,S,SE,SGEXT ¥120
90982-09002 note Fuse, Fuse Block
1990-05 → 1990-12 ended
AT170 SE,SGEXT;AT170 MTM (DX,SG);AT171,175,CT17#,ST170 ¥120
90982-09002 note Fuse, Fuse Block
1990-05 → 1990-09 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥120
90982-09002 note Fuse, Fuse Block
1989-11 → 1990-05 ended
AT170,171 DX,GLIM,SG,SV ¥120
90982-09002 note Fuse, Fuse Block
1989-03 → 1990-05 ended
AT170 4F SG ¥120
90982-09002 note Fuse, Fuse Block
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥120
90982-09002 note Fuse, Fuse Block
1988-05 → 1990-05 ended
AT175,CT17#;AT170,171,ST170 GLIM,S,SE,SGEXT,SX ¥120
90982-09002 note Fuse, Fuse Block
1988-05 → 1989-03 ended
AT170 4F SG ¥120
90982-09002 note Fuse, Fuse Block
1988-05 → 1989-11 ended
AT170,171,ET176 DX,GLIM,SG,STD,SV ¥120
90982-09003 note Fuse, Fuse Block
1988-05 → 1990-12 ended
AT170 CBR;AT170 (SE,SGEXT) EFI;AT171,175,CT17#,ET176,ST170 ¥120
90982-09003 note Fuse, Fuse Block
1990-12 → 1992-11 ended
AT170 SE,SGEXT,SV;AT170 4FC (DX,SG);AT171,175,CT17#,ET176,ST170 ¥120
90982-09003 note Fuse, Fuse Block
1989-11 → 1992-08 ended
AT170 (DX,SG,SV) CBR;AT170 MTM +2 ¥120
90982-09003 note Fuse, Fuse Block
1988-05 → 1989-11 ended
AT170,ET176 DX,SG,STD,SV ¥120
90982-09003 note Fuse, Fuse Block
1988-05 → 1992-11 ended
AT17#,ST170 CI,EFI,EFIS ¥120
90982-09003 note Fuse, Fuse Block
1990-05 → 1992-11 ended
CT17# ¥120
90982-09004 note Fuse, Fuse Block
1989-11 → 1990-12 ended
AT170 CBR;AT171,175,CT17#,ST170;AT170 (SE,SGEXT) EFI;AT170 +3 ¥120
90982-09004 note Fuse, Fuse Block
1990-12 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥120
90982-09004 note Fuse, Fuse Block
1988-05 → 1989-11 ended
AT17#,CT17#,ET176,ST170 ¥120
90982-09005 note Fuse, Fuse Block
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥120
90982-09005 note Fuse, Fuse Block
1990-12 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥120
90982-09005 note Fuse, Fuse Block
1990-05 → 1992-11 ended
AT17#,ET176,ST170 ¥120
90982-09005 note Fuse, Fuse Block
1990-05 → 1992-11 ended
CT17# ¥120
90982-09005 note Fuse, Fuse Block
1990-05 → 1990-12 ended
AT170 SE,SGEXT;AT170 MTM (DX,SG);AT171,175,CT17#,ST170 ¥120
90982-09005 note Fuse, Fuse Block
1988-05 → 1989-11 ended
AT17#,CT17#,ET176,ST170 ¥120
90982-09005 note Fuse, Fuse Block
1989-11 → 1990-05 ended
AT17#,CT17#,ST170 ¥120
82616 — Puller, Fuse
82616-12010 Puller, Fuse
1990-05 → 1992-11 ended
AT17#,ET176,ST170 ¥190
82616-12010 Puller, Fuse
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥190
82661 — Cover, Relay Block, NO.1
82661-20080 note Cover, Relay Block, NO.1
1988-05 → 1988-08 ended
AT171,CT17#,ST170 ¥1,080
82661-20080 note Cover, Relay Block, NO.1
1988-08 → 1990-05 ended
CT176 5F;AT171,175,CT170;ST170 SGEXT,SX ¥1,080
82661-20080 note Cover, Relay Block, NO.1
1990-05 → 1992-11 ended
AT17#;CT170,ST170 WG;CT17# (SED,VAN) 5F ¥1,080
82661-20080 note Cover, Relay Block, NO.1
1988-08 → 1992-08 ended
ST170 SE CI;ST170 SED +1 ¥1,080
82661-20110 note Cover, Relay Block, NO.1
1988-08 → 1990-05 ended
ST170 SE ¥800
82661-20110 note Cover, Relay Block, NO.1
1990-05 → 1992-08 ended
ST170 SED ¥800
82661-20180 Cover, Relay Block, NO.1
1990-05 → 1992-08 ended
ST170 SED ¥1,540
82672-20380 note Cover, Relay Block, NO.1
1988-08 → 1992-08 ended
ST170 SE CI;ST170 SED +1 ¥610
82672-20380 note Cover, Relay Block, NO.1
1988-08 → 1992-11 ended
ST170 SX;ST170 SGEXT CI;AT17#,CT17# +1 ¥610
82672-20380 note Cover, Relay Block, NO.1
1988-05 → 1988-08 ended
AT171,CT17#,ST170 ¥610
82672-20390 note Cover, Relay Block, NO.1
1990-05 → 1992-08 ended
ST170 SED ¥1,290
82672-20390 note Cover, Relay Block, NO.1
1988-08 → 1990-05 ended
ST170 SE ¥1,290
82672-20740 note Cover, Relay Block, NO.1
1989-11 → 1990-05 ended
CT176 4FC ¥1,350
82672-20740 note Cover, Relay Block, NO.1
1990-05 → 1992-11 ended
CT17# (SED,VAN) 4FC ¥1,350
82661A — Cover, Relay Block, NO.2
82661-20170 note Cover, Relay Block, NO.2
1990-05 → 1992-11 ended
AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥450
82661-20180 note Cover, Relay Block, NO.2
1990-05 → 1992-08 ended
AT175 SE,SGEXT ¥1,540
82661-20180 note Cover, Relay Block, NO.2
1990-12 → 1992-08 ended
CT170 SG ¥1,540
82661-20180 note Cover, Relay Block, NO.2
1990-05 → 1992-08 ended
CT170 SE ¥1,540
82672-20380 note Cover, Relay Block, NO.2
1990-12 → 1992-08 ended
CT170 SG ¥610
82672-20380 Cover, Relay Block, NO.2
1990-05 → 1992-11 ended
ST170 SED ¥610
82672-20380 note Cover, Relay Block, NO.2
1990-05 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥610
82671A — Block, Junction
82671-20090 note Block, Junction
1988-05 → 1989-11 ended
AT17#,CT17#,ET176,ST170 ¥17,100
82671-20090 note Block, Junction
1990-12 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥17,100
82671-20090 note Block, Junction
1989-11 → 1990-12 ended
AT170 CBR;AT171,175,CT17#,ST170;AT170 (SE,SGEXT) EFI;AT170 +3 ¥17,100
82671-20100 note Block, Junction
1988-05 → 1989-11 ended
AT17#,CT17#,ET176,ST170 ¥17,100
82671-20100 note Block, Junction
1990-12 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥17,100
82671-20100 note Block, Junction
1989-11 → 1990-12 ended
AT170 CBR;AT171,175,CT17#,ST170;AT170 (SE,SGEXT) EFI;AT170 +3 ¥17,100
82671-20110 note Block, Junction
1989-03 → 1990-05 ended
AT170 5F SG ¥17,100
82671-20110 note Block, Junction
1990-12 → 1992-11 ended
AT170 SE,SGEXT,SV;AT170 4FC (DX,SG);AT171,175,CT17#,ET176,ST170 ¥17,100
82671-20110 note Block, Junction
1989-11 → 1990-12 ended
AT170 ) 4FC CBR +5 ¥17,100
82671-20110 note Block, Junction
1989-03 → 1990-05 ended
AT170 4F SG ¥17,100
82671-20110 note Block, Junction
1988-05 → 1989-03 ended
AT170 5F SG ¥17,100
82671-20110 note Block, Junction
1988-05 → 1989-03 ended
AT170 4F SG ¥17,100
82671-20110 note Block, Junction
1988-05 → 1989-11 ended
AT170 4FC;AT170 MTM (DX,SE,SV);AT171,175,CT17#,ET176,ST170 ¥17,100
82671-20130 note Block, Junction
1988-05 → 1992-08 ended
AT170 MTM SG;AT170 4F +2 ¥17,100
82671-20160 note Block, Junction
1990-05 → 1992-11 ended
ST170;AT17# MTM;AT171 4FC EFI ¥17,100
82671-20160 note Block, Junction
1988-05 → 1990-05 ended
ST170;AT171,175 5F;AT171 4FC GLIM ¥17,100
82671-20170 note Block, Junction
1990-05 → 1992-11 ended
CT17# ¥17,100
82671-20180 note Block, Junction
1988-08 → 1990-05 ended
AT175 5F ¥17,100
82671-20180 note Block, Junction
1988-05 → 1990-05 ended
AT171,175 4FC (S,SG,SGEXT) ¥17,100
82671-20180 note Block, Junction
1990-05 → 1992-11 ended
AT17# 4FC (DX,S,SE,SG,SGEXT,SV) ¥17,100
82671-20180 note Block, Junction
1990-05 → 1992-11 ended
AT170,175 MTM ¥17,100
82671-20200 note Block, Junction
1988-05 → 1990-05 ended
CT17# ¥17,100
82671-32030 Block, Junction
1990-05 → 1992-11 ended
ET176 ¥9,800
82671-32030 note Block, Junction
1988-05 → 1990-05 ended
AT170,ET176 ¥9,800
82672A — Cover, Junction Block
82672-20200 note Cover, Junction Block
1988-05 → 1992-11 ended
AT17#,CT17#,ST170 CI,DSL,EFI,EFIS ¥2,120
82672-20310 note Cover, Junction Block
1988-05 → 1989-11 ended
AT17#,CT17#,ET176,ST170 ¥610
82672-20310 note Cover, Junction Block
1990-12 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥610
82672-20310 note Cover, Junction Block
1989-11 → 1990-12 ended
AT170 CBR;AT171,175,CT17#,ST170;AT170 (SE,SGEXT) EFI;AT170 +3 ¥610
82672-20330 note Cover, Junction Block
1989-11 → 1990-05 ended
AT17#,CT17#,ST170 ¥730
82672-20330 note Cover, Junction Block
1990-05 → 1990-12 ended
AT17#,CT17#,ET176,ST170 ¥730
82672-20330 note Cover, Junction Block
1988-05 → 1989-11 ended
AT17#,CT17#,ET176,ST170 ¥730
82672-20360 note Cover, Junction Block
1990-05 → 1992-11 ended
AT17# 4FC (DX,S,SE,SG,SGEXT,SV) ¥2,570
82672-20360 note Cover, Junction Block
1990-05 → 1992-11 ended
AT170,175 MTM ¥2,570
82672-20360 note Cover, Junction Block
1988-05 → 1990-05 ended
AT171,175;ST170 5F ¥2,570
82672-20370 note Cover, Junction Block
1988-05 → 1992-11 ended
CT17# ¥2,570
82672-20430 note Cover, Junction Block
1988-05 → 1990-05 ended
AT170,ET176 ¥2,290
82672-20430 Cover, Junction Block
1990-05 → 1992-11 ended
ET176 ¥2,290
82672-20480 note Cover, Junction Block
1988-05 → 1990-05 ended
ST170 4FC ¥2,330
82672-20770 note Cover, Junction Block
1990-12 → 1992-08 ended
AT170 MTM (DX,SG) ¥660
82672-20780 note Cover, Junction Block
1990-05 → 1992-11 ended
AT171 4FC EFI;AT17#,ST170 MTM ¥2,730
82672-20790 note Cover, Junction Block
1990-12 → 1992-11 ended
AT170 SE,SGEXT,SV;AT170 4FC (DX,SG);AT171,175,CT17#,ET176,ST170 ¥660
82672-20810 note Cover, Junction Block
1990-05 → 1992-11 ended
ST170 4FC ¥2,730
82821B — Cover, Connector
82821-12250 Cover, Connector
1990-05 → 1992-03 ended
AT17#,CT17#,ET176,ST170 MTM (DX,S,SE,SG,SGEXT,STD,SV,SX) —
82821-12250 Cover, Connector
1990-05 → 1992-08 ended
AT175 5F (SE,SGEXT) —
82821-12251 Cover, Connector
1992-03 → 1992-11 ended
AT17#,CT17#,ET176,ST170 MTM (DX,S,SE,SG,SGEXT,STD,SV,SX) —
82821-16030 Cover, Connector
1988-05 → 1992-11 ended
AT170,175,CT17#,ET176 ATM (DX,SG,SV) ¥550
82821-16030 note Cover, Connector
1990-05 → 1992-08 ended
AT170 4FC SGEXT ¥550
82821-35010 Cover, Connector
1988-05 → 1989-07 ended
AT17#,CT170,ST170 4FC (GLIM,S,SE,SGEXT,SX) —
82821-35010 note Cover, Connector
1990-12 → 1992-08 ended
CT170 4FC SG —
82821-35010 Cover, Connector
1989-07 → 1992-08 ended
AT17#,CT170 4FC (GLIM,S,SE,SGEXT) —
82821-35010 note Cover, Connector
1988-05 → 1990-05 ended
AT170,CT170 4FC SG —
82821-35010 note Cover, Connector
1990-05 → 1992-08 ended
AT170 4FC SGEXT —
83390 — Switch Assy, Vacuum Warning
83390-20150 note Switch Assy, Vacuum Warning
1990-11 → 1992-11 ended
ST170 4FC SGEXT ¥4,890
83390-30020 Switch Assy, Vacuum Warning
1988-05 → 1992-11 ended
CT17# ¥4,080
83420 — Gage Assy, Water Temperature Sender
83420-16020 Gage Assy, Water Temperature Sender
1988-05 → 1992-11 ended
AT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX ¥3,730
83420-20020 Gage Assy, Water Temperature Sender
1988-05 → 1992-11 ended
AT171,CT17# DX,GLIM,SE,SG,SV ¥3,610
83530 — Switch Assy, Oil Pressure (FOR ENGINE)
83530-14020 Switch Assy, Oil Pressure (FOR ENGINE)
1988-05 → 1989-08 ended
AT171 GLIM ¥1,330
83530-30042 Switch Assy, Oil Pressure (FOR ENGINE)
1988-05 → 1989-08 ended
CT17# ¥1,330
83530-30050 Switch Assy, Oil Pressure (FOR ENGINE)
1990-03 → 1992-08 ended
CT17# ¥1,330
83530-30050 Switch Assy, Oil Pressure (FOR ENGINE)
1989-08 → 1990-03 ended
AT17#,CT17# DX,S,SE,SG,SGEXT,SV ¥1,330
83530-30050 Switch Assy, Oil Pressure (FOR ENGINE)
1988-05 → 1989-08 ended
AT17# DX,S,SE,SG,SGEXT,SV ¥1,330
83530-30051 Switch Assy, Oil Pressure (FOR ENGINE)
1990-03 → 1992-08 ended
AT17# DX,S,SE,SG,SGEXT,SV ¥1,320
83530-30051 Switch Assy, Oil Pressure (FOR ENGINE)
1992-08 → 1992-11 ended
AT170,CT17# ¥1,320
83530-30080 Switch Assy, Oil Pressure (FOR ENGINE)
1988-05 → 1989-08 ended
ET176,ST170 ¥1,320
83530-30080 Switch Assy, Oil Pressure (FOR ENGINE)
1989-08 → 1992-11 ended
AT171,ET176,ST170 DX,GLIM,SE,SG,SGEXT,STD,SX ¥1,320
84210 — Switch Assy, Back-up Lamp
84210-12040 Switch Assy, Back-up Lamp
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 MTM (DX,S,SE,SG,SGEXT,STD,SV,SX) ¥2,910
84210-60021 Switch Assy, Back-up Lamp
1988-05 → 1992-08 ended
AT171 5F GLIM ¥4,270
84540 — Switch Assy, Neutral Start
84540-12170 note Switch Assy, Neutral Start
1988-05 → 1990-05 ended
AT170,CT170 4FC SG ¥24,900
84540-12170 Switch Assy, Neutral Start
1988-05 → 1992-08 ended
AT17#,CT170 4FC (GLIM,S,SE,SGEXT) ¥24,900
84540-12170 note Switch Assy, Neutral Start
1990-05 → 1992-08 ended
AT170 4FC SGEXT ¥24,900
84540-12170 note Switch Assy, Neutral Start
1990-12 → 1992-08 ended
CT170 4FC SG ¥24,900
84540-12170 note Switch Assy, Neutral Start
1990-12 → 1992-10 ended
CT170 SG ¥24,900
84540-12170 note Switch Assy, Neutral Start
1990-12 → 1992-10 ended
AT170,ST170 SGEXT ¥24,900
84540-16030 Switch Assy, Neutral Start
1988-05 → 1992-11 ended
AT170,175,CT17#,ET176 ATM (DX,SG,SV) ¥20,100
84540-16030 note Switch Assy, Neutral Start
1990-05 → 1992-08 ended
AT170 4FC SGEXT ¥20,100
84540-32070 Switch Assy, Neutral Start
1988-05 → 1992-11 ended
ST170 4FC ¥25,100
85916 — Relay, Light Control
90987-02002 note Relay, Light Control
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥1,210
90987-02002 note Relay, Light Control
1990-05 → 1992-11 ended
CT170 SG,SV;CT170 4FC SE;AT17#,CT176,ET176,ST170 ¥1,210
90987-02004 note Relay, Light Control
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥2,330
90987-02004 note Relay, Light Control
1990-05 → 1992-11 ended
CT170 SG,SV;CT170 4FC SE;AT17#,CT176,ET176,ST170 ¥2,330
90987-02006 note Relay, Light Control
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥2,560
90987-02006 Relay, Light Control
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥2,560
85916F — Relay, Cornering Lamp
90987-02002 note Relay, Cornering Lamp
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE,SGEXT ¥1,210
90987-02002 note Relay, Cornering Lamp
1990-12 → 1992-08 ended
CT170 SG ¥1,210
90987-02002 note Relay, Cornering Lamp
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥1,210
90987-02004 note Relay, Cornering Lamp
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥2,330
90987-02004 note Relay, Cornering Lamp
1990-12 → 1992-08 ended
CT170 SG ¥2,330
90987-02004 note Relay, Cornering Lamp
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE,SGEXT ¥2,330
85926 — Relay, Headlamp Dimmer
85926-30020 Relay, Headlamp Dimmer
1990-05 → 1992-11 ended
CT170 4FC SE;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥4,470
85927 — Relay, Cooling Fan
90987-03001 Relay, Cooling Fan
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥2,230
85999A — Bracket, Relay, NO.2
85999-20250 Bracket, Relay, NO.2
1988-05 → 1990-05 ended
CT17#,ST170 ¥470
85999-20250 Bracket, Relay, NO.2
1990-12 → 1992-11 ended
CT17# VAN,WG ¥470
85999-20250 Bracket, Relay, NO.2
1990-05 → 1990-12 ended
CT17# DX,SG,SV ¥470
85999-20250 note Bracket, Relay, NO.2
1990-05 → 1992-08 ended
CT170 SE ¥470
85999-20250 Bracket, Relay, NO.2
1990-12 → 1992-08 ended
CT170 SG ¥470
85999-20270 Bracket, Relay, NO.2
1988-05 → 1990-05 ended
AT171,175 ¥470
85999-20270 Bracket, Relay, NO.2
1990-05 → 1992-08 ended
AT175 SG;AT170,171 GLIM,S,SE,SGEXT ¥470
85999-20270 note Bracket, Relay, NO.2
1990-05 → 1992-08 ended
AT175 SE,SGEXT ¥470
85999-20430 note Bracket, Relay, NO.2
1990-05 → 1992-11 ended
AT170,171,ST170 GLIM,S,SE,SGEXT,SX ¥520
85999-20430 Bracket, Relay, NO.2
1990-05 → 1992-11 ended
AT170 DX,SG,SV ¥520
85999-20440 Bracket, Relay, NO.2
1990-05 → 1992-11 ended
AT175,ST170 SE,SGEXT,SX ¥520
85999-20470 Bracket, Relay, NO.2
1990-05 → 1990-09 ended
CT170 SE ¥520
85999-20470 note Bracket, Relay, NO.2
1990-05 → 1990-09 ended
AT175 SE,SGEXT ¥520
85999-20471 note Bracket, Relay, NO.2
1990-12 → 1992-08 ended
CT170 SG ¥660
85999-20471 Bracket, Relay, NO.2
1990-09 → 1992-08 ended
CT170 SE ¥660
85999-20471 note Bracket, Relay, NO.2
1990-09 → 1992-08 ended
AT175 SE,SGEXT ¥660
88620C — Thermo Switch Assy
88620-20070 note Thermo Switch Assy
1990-12 → 1992-11 ended
CT176 4FC —
88620-20070 Thermo Switch Assy
1990-12 → 1992-11 ended
CT170 5F SV;ST170 SGEXT,SX;AT170 +2 —
88620-20070 note Thermo Switch Assy
1990-05 → 1992-11 ended
CT170 4FC (SE,SV) —
88620-20070 Thermo Switch Assy
1989-03 → 1992-11 ended
CT176 5F —
88620-20070 Thermo Switch Assy
1990-12 → 1992-08 ended
AT171,ST170 S,SE;AT170 4FC (DX,SE,SG) —
88620-20070 note Thermo Switch Assy
1990-12 → 1992-08 ended
CT170 4FC SG —
88620-20070 Thermo Switch Assy
1990-11 → 1990-12 ended
AT170 SED 4FC;AT171,ST170 S,SE,SGEXT —
88620-20070 Thermo Switch Assy
1990-11 → 1990-12 ended
ST170 SX;CT170 5F SV;AT170 +2 —
88620-20070 note Thermo Switch Assy
1990-05 → 1990-12 ended
CT17# 4FC (DX,SG) —
88620-20070 Thermo Switch Assy
1990-05 → 1990-11 ended
CT170 5F SV;AT170 4FC +2 —
88620-20070 Thermo Switch Assy
1989-03 → 1990-11 ended
ST170 SED EFI;ST170 (SE,SX) +4 —
88620-20070 Thermo Switch Assy
1989-03 → 1990-05 ended
ST170 SGEXT;AT171,CT170 4FC (S,SE) —
88620-20070 Thermo Switch Assy
1989-03 → 1990-05 ended
CT170 4FC SG —
88620-20070 Thermo Switch Assy
1988-05 → 1989-03 ended
AT171,CT170 4FC (S,SE) —
88620-20070 Thermo Switch Assy
1988-05 → 1989-03 ended
CT176;CT170 4FC SG —
88620-20070 Thermo Switch Assy
1988-05 → 1989-03 ended
ST170 —
88620-20080 note Thermo Switch Assy
1990-05 → 1992-08 ended
CT170 4FC SE —
88620-20080 note Thermo Switch Assy
1990-05 → 1992-11 ended
CT17# 4FC (DX,SG) —
88620-20080 note Thermo Switch Assy
1990-05 → 1992-11 ended
CT170 4FC SV —
88630G — Relay Assy, Cooler
85926-30020 Relay Assy, Cooler
1990-12 → 1992-11 ended
AT175;AT170,171,ET176,ST170 DX,GLIM,SE,SG,STD ¥4,470
85926-30020 Relay Assy, Cooler
1990-12 → 1992-11 ended
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX ¥4,470
85926-30020 Relay Assy, Cooler
1990-12 → 1992-11 ended
CT176 ¥4,470
85926-30020 Relay Assy, Cooler
1990-12 → 1992-08 ended
CT170 SG ¥4,470
85926-30020 Relay Assy, Cooler
1990-05 → 1990-12 ended
CT17# DX,SG ¥4,470
85926-30020 Relay Assy, Cooler
1989-03 → 1990-12 ended
AT170 IM,SE,SG,SGEXT,STD) SED (CBR,EFI) +4 ¥4,470
85926-30020 Relay Assy, Cooler
1989-03 → 1990-12 ended
ST170 SGEXT CI;AT170,ST170 WG +2 ¥4,470
85926-30020 Relay Assy, Cooler
1989-03 → 1990-05 ended
CT170 SG ¥4,470
85926-30020 Relay Assy, Cooler
1989-03 → 1990-05 ended
AT170 4FC SG ¥4,470
85926-30020 Relay Assy, Cooler
1989-03 → 1990-05 ended
AT170 5F SG ¥4,470
85926-30020 Relay Assy, Cooler
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥4,470
85926-30020 Relay Assy, Cooler
1988-05 → 1989-03 ended
AT170 4F SG ¥4,470
85926-30020 Relay Assy, Cooler
1988-05 → 1989-03 ended
CT17# DX,SG ¥4,470
85926-30020 Relay Assy, Cooler
1988-05 → 1989-03 ended
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SGEXT,SV,SX ¥4,470
85926-30020 Relay Assy, Cooler
1989-03 → 1990-05 ended
CT176 5F ¥4,470
85926-30020 Relay Assy, Cooler
1989-03 → 1990-05 ended
AT170 4F SG ¥4,470
85926-30020 Relay Assy, Cooler
1988-05 → 1989-03 ended
AT171,CT170 S,SE ¥4,470
88630H — Relay Assy, Cooler
88630-32010 Relay Assy, Cooler
1989-03 → 1990-12 ended
AT170 IM,SE,SG,SGEXT,STD) SED (CBR,EFI) +4 —
88630-32010 Relay Assy, Cooler
1990-12 → 1992-11 ended
AT175;AT170,171,ET176,ST170 DX,GLIM,SE,SG,STD —
88630-32010 Relay Assy, Cooler
1990-12 → 1992-11 ended
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX —
88630-32010 Relay Assy, Cooler
1990-12 → 1992-11 ended
CT176 —
88630-32010 Relay Assy, Cooler
1990-12 → 1992-08 ended
CT170 SG —
88630-32010 Relay Assy, Cooler
1990-05 → 1990-12 ended
CT17# DX,SG —
88630-32010 Relay Assy, Cooler
1989-03 → 1990-12 ended
ST170 SGEXT CI;AT170,ST170 WG +2 —
88630-32010 Relay Assy, Cooler
1989-03 → 1990-05 ended
CT170 SG —
88630-32010 Relay Assy, Cooler
1989-03 → 1990-05 ended
AT170 4FC SG —
88630-32010 Relay Assy, Cooler
1989-03 → 1990-05 ended
AT170 4F SG —
88630-32010 Relay Assy, Cooler
1989-03 → 1990-05 ended
CT176 5F —
88630-32010 Relay Assy, Cooler
1988-05 → 1989-03 ended
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SGEXT,SV,SX —
88630-32010 Relay Assy, Cooler
1988-05 → 1989-03 ended
AT171,CT170 S,SE —
88630-32010 Relay Assy, Cooler
1988-05 → 1989-03 ended
CT17# DX,SG —
88630-32010 Relay Assy, Cooler
1988-05 → 1989-03 ended
AT170 4F SG —
88630-32010 Relay Assy, Cooler
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG —
88630-32010 Relay Assy, Cooler
1989-03 → 1990-05 ended
AT170 5F SG —
88630R — Relay Assy, Cooler, NO.3
90987-02004 Relay Assy, Cooler, NO.3
1989-03 → 1990-05 ended
AT170 5F SG ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1989-03 → 1990-05 ended
CT170 SG ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1989-03 → 1990-12 ended
ST170 SGEXT CI;AT170,ST170 WG +2 ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1989-03 → 1990-12 ended
AT170 IM,SE,SG,SGEXT,STD) SED (CBR,EFI) +4 ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1990-05 → 1990-12 ended
CT17# DX,SG ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1990-12 → 1992-08 ended
CT170 SG ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1990-12 → 1992-11 ended
CT176 ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1990-12 → 1992-11 ended
CT170 SE,SV;AT170,171,ST170 S,SGEXT,SV,SX ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1990-12 → 1992-11 ended
AT175;AT170,171,ET176,ST170 DX,GLIM,SE,SG,STD ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1989-03 → 1990-05 ended
AT170 4F SG ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1989-03 → 1990-05 ended
AT170 4FC SG ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1988-05 → 1989-03 ended
AT170 4F SG ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1988-05 → 1989-03 ended
CT17# DX,SG ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1988-05 → 1989-03 ended
AT171,CT170 S,SE ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1988-05 → 1989-03 ended
AT175,ET176;AT170,171,ST170 DX,GLIM,SE,SGEXT,SV,SX ¥2,330
90987-02004 Relay Assy, Cooler, NO.3
1989-03 → 1990-05 ended
CT176 5F ¥2,330
89425 — Sensor, Exhaust Gas Temperature
89425-12210 Sensor, Exhaust Gas Temperature
1988-05 → 1989-11 ended
AT17#,ST170 DX,S,SE,SG,SGEXT,SV,SX ¥21,200
89425-12210 Sensor, Exhaust Gas Temperature
1989-11 → 1991-09 ended
AT17#,ET176,ST170 (DX,S,SE,SG,SGEXT,STD,SV,SX) (CBR,CI,EFI) ¥21,200
89425-29405 Sensor, Exhaust Gas Temperature
1988-05 → 1992-08 ended
AT171 EFIS;AT171 GLIM ¥20,600
89425-29415 Sensor, Exhaust Gas Temperature
1988-05 → 1989-11 ended
ET176 ¥20,900
89425-32090 Sensor, Exhaust Gas Temperature
1991-09 → 1992-11 ended
AT170,175,ET176,ST170 ¥21,400
89428 — Switch, Temperature Detect, NO.2
89428-10100 note Switch, Temperature Detect, NO.2
1988-05 → 1990-05 ended
ET176 ¥5,300
89428-10110 note Switch, Temperature Detect, NO.2
1988-05 → 1990-05 ended
ET176 ¥5,300
89428-12100 note Switch, Temperature Detect, NO.2
1988-08 → 1992-08 ended
AT175 4FC ¥6,000
89428-12110 note Switch, Temperature Detect, NO.2
1988-05 → 1992-11 ended
AT171 EFIS ¥5,900
89428-12110 note Switch, Temperature Detect, NO.2
1991-10 → 1992-08 ended
AT171 EFIS ¥5,900
89428-15011 note Switch, Temperature Detect, NO.2
1988-05 → 1990-05 ended
AT17#,ST170 ¥5,900
89428-15011 note Switch, Temperature Detect, NO.2
1990-05 → 1992-11 ended
AT17#,ET176,ST170 ¥5,900
89428-15030 Switch, Temperature Detect, NO.2
1988-05 → 1992-11 ended
CT17# ¥7,400
89465 — Sensor, Oxygen
89465-10010 Sensor, Oxygen
1989-11 → 1992-11 ended
ET176 ¥10,200
89465-10020 Sensor, Oxygen
1990-05 → 1992-11 ended
ST170 ¥10,200
89465-12080 Sensor, Oxygen
1988-05 → 1990-05 ended
AT170 ¥9,900
89465-19175 Sensor, Oxygen
1988-05 → 1990-05 ended
AT171 GLIM ¥10,200
89465-19176 Sensor, Oxygen
1990-05 → 1992-08 ended
AT171 EFI ¥10,200
89465-29425 Sensor, Oxygen
1990-05 → 1992-08 ended
AT171 EFIS ¥10,200
89465-32060 Sensor, Oxygen
1988-05 → 1992-11 ended
ST170 CI;AT17# (DX,S,SE,SG,SGEXT,SV) EFI ¥9,800
89620 — Igniter Assy
89620-12410 Igniter Assy
1990-05 → 1992-01 ended
AT171 EFIS ¥26,200
89620-12440 Igniter Assy
1992-01 → 1992-08 ended
AT171 EFIS ¥25,900
89621-20040 Igniter Assy
1990-05 → 1992-11 ended
ST170 ¥25,900
89621-22010 Igniter Assy
1988-08 → 1990-05 ended
AT175 ¥26,200
89621-30010 Igniter Assy
1988-05 → 1988-08 ended
ST170;AT171 4FC GLIM ¥32,500
89621-30010 Igniter Assy
1988-08 → 1992-08 ended
ST170 CI;AT171 GLIM ¥32,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
