Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

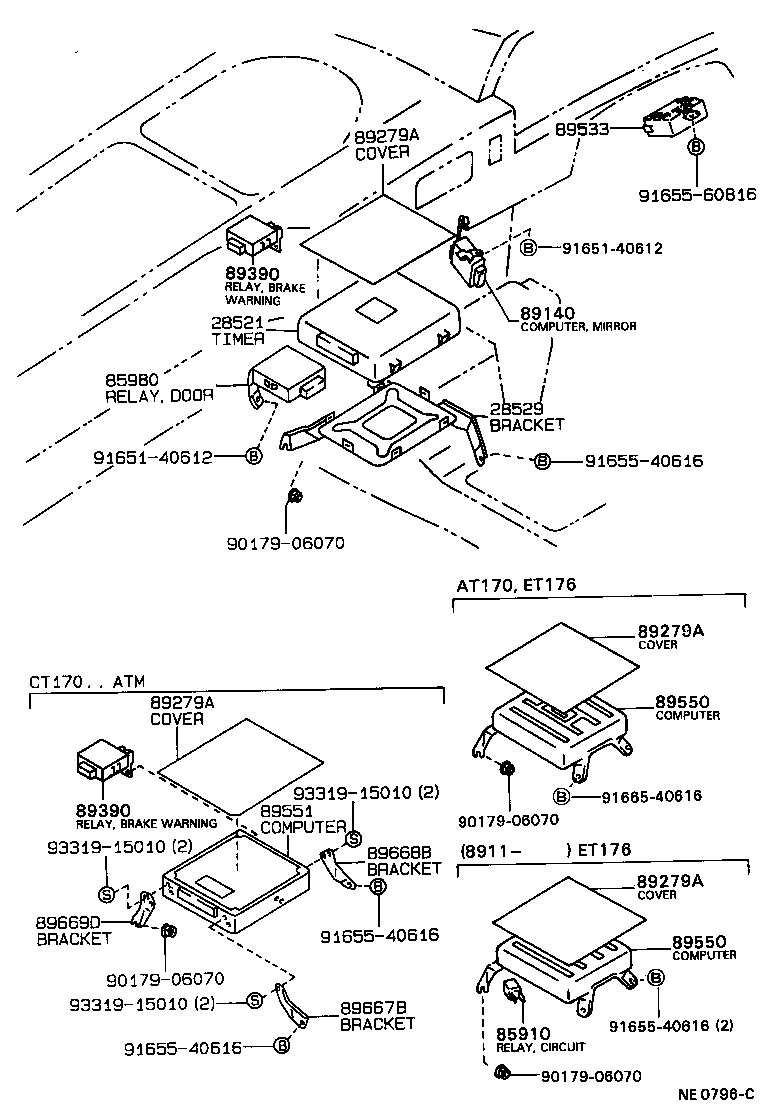

Exploded illustration NE0796C 89533 — COMPUTER, 4 WHEEL DRIVE CONTROL (2 parts) 89279A — COVER, COMPUTER (7 parts) 9165560816 — not listed in this catalogue 9165140612 — not listed in this catalogue 89390 — RELAY, BRAKE WARNING (4 parts) 89140 — COMPUTER,ASSY MIRROR VIBLATION CONTROL (1 parts) 28521 — TIMER, PREHEATING (3 parts) 85980 — RELAY ASSY, DOOR CONTROL (11 parts) 28529 — BRACKET, PREHEATING TIMER, NO.1 (3 parts) 9165140612 — not listed in this catalogue 9165540616 — not listed in this catalogue 9017906070 — not listed in this catalogue 89279A — COVER, COMPUTER (7 parts) 89550 — COMPUTER ASSY, EMISSION CONTROL (7 parts) 89279A — COVER, COMPUTER (7 parts) 9331915010 — not listed in this catalogue 9166540616 — not listed in this catalogue 89390 — RELAY, BRAKE WARNING (4 parts) 89551 — COMPUTER, EMISSION CONTROL (2 parts) 9017906070 — not listed in this catalogue 9331915010 — not listed in this catalogue 89668B — BRACKET, ENGINE CONTROL COMPUTER, NO.2 (2 parts) 89279A — COVER, COMPUTER (7 parts) 89669D — BRACKET, ENGINE CONTROL COMPUTER, NO.3 (2 parts) 9165540616 — not listed in this catalogue 89550 — COMPUTER ASSY, EMISSION CONTROL (7 parts) 9017906070 — not listed in this catalogue 9331915010 — not listed in this catalogue 89667B — BRACKET, ENGINE CONTROL COMPUTER, NO.1 (2 parts) 9165540616 — not listed in this catalogue 85910 — RELAY ASSY, CIRCUIT OPENING (1 parts) 9165540616 — not listed in this catalogue 9017906070 — not listed in this catalogue
NE0796C · 18 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
47 parts on this figure
Part number Description Fitment Price
28521 — Timer, Preheating
28521-64360 Timer, Preheating
1988-05 → 1991-04 ended
2C CT176;2C CT170 5F ¥35,900
28521-64390 Timer, Preheating
1991-04 → 1991-06 ended
2C CT176;2C CT170 5F ¥46,200
28521-64390 Timer, Preheating
1991-06 → 1992-11 ended
2C CT176 ¥46,200
28529 — Bracket, Preheating Timer, NO.1
28529-64170 Bracket, Preheating Timer, NO.1
1988-05 → 1990-09 ended
2C CT176;2C CT170 5F ¥750
28529-64210 Bracket, Preheating Timer, NO.1
1990-09 → 1991-06 ended
2C CT176;2C CT170 5F ¥1,400
28529-64210 Bracket, Preheating Timer, NO.1
1991-06 → 1992-11 ended
2C CT176 ¥1,400
85910 — Relay Assy, Circuit Opening
85910-12010 Relay Assy, Circuit Opening
1989-11 → 1992-11 ended
ET176 ¥5,700
85980 — Relay Assy, Door Control
85980-20090 Relay Assy, Door Control
1988-05 → 1989-03 ended
CT170 SE;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥25,100
85980-20090 Relay Assy, Door Control
1989-03 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥25,100
85980-20090 Relay Assy, Door Control
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 S,SGEXT,SV,SX ¥25,100
85980-20180 Relay Assy, Door Control
1988-08 → 1992-08 ended
AT175 SGEXT ¥25,100
85980-20260 note Relay Assy, Door Control
1990-12 → 1992-08 ended
AT170 4F SGEXT;CT170,ST170 SG,SGEXT ¥26,900
85980-20260 note Relay Assy, Door Control
1990-12 → 1992-10 ended
AT170,ST170 SGEXT ¥26,900
85980-20260 note Relay Assy, Door Control
1990-12 → 1992-10 ended
CT170 SG ¥26,900
85980-20260 note Relay Assy, Door Control
1990-12 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥26,900
85980-20260 Relay Assy, Door Control
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥26,900
85980-20260 note Relay Assy, Door Control
1990-05 → 1990-12 ended
AT170 (4FC,5F) SGEXT ¥26,900
85980-20270 Relay Assy, Door Control
1990-05 → 1992-08 ended
AT175 SE ¥26,900
89140 — Computer,Assy Mirror Viblation Control
89140-20010 Computer,Assy Mirror Viblation Control
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 GLIM,S,SE,SX ¥28,600
89279A — Cover, Computer
89279-20050 Cover, Computer
1988-05 → 1989-11 ended
AT170,ET176 ¥310
89279-20050 Cover, Computer
1989-11 → 1990-05 ended
AT170 ¥310
89279-20070 Cover, Computer
1988-05 → 1991-06 ended
CT176;CT170 5F ¥260
89279-20070 Cover, Computer
1991-06 → 1992-11 ended
CT176 ¥260
89279-20110 Cover, Computer
1988-05 → 1991-06 ended
CT170 4FC ¥310
89279-20110 Cover, Computer
1991-06 → 1992-11 ended
CT170 ¥310
89279-20140 Cover, Computer
1989-11 → 1992-11 ended
ET176 ¥260
89390 — Relay, Brake Warning
89390-20020 Relay, Brake Warning
1991-06 → 1992-11 ended
CT170 ¥16,300
89390-20020 Relay, Brake Warning
1990-09 → 1991-06 ended
CT170 4FC ¥16,300
89391-20010 Relay, Brake Warning
1990-09 → 1991-06 ended
CT176;CT170 5F ¥15,600
89391-20010 Relay, Brake Warning
1991-06 → 1992-11 ended
CT176 ¥15,600
89533 — Computer, 4 Wheel Drive Control
89533-20010 Computer, 4 Wheel Drive Control
1988-08 → 1990-05 ended
AT175 4FC ¥11,900
89533-20020 Computer, 4 Wheel Drive Control
1990-05 → 1992-08 ended
AT175 4FC ¥11,800
89550 — Computer Assy, Emission Control
89550-20510 Computer Assy, Emission Control
1988-05 → 1989-11 ended
ET176 MTM ¥21,400
89550-20520 Computer Assy, Emission Control
1988-05 → 1989-11 ended
ET176 3FC ¥21,400
89550-20530 Computer Assy, Emission Control
1988-05 → 1990-05 ended
AT170 MTM ¥44,200
89550-20540 Computer Assy, Emission Control
1988-05 → 1990-05 ended
AT170 4FC ¥44,200
89551-20020 Computer Assy, Emission Control
1989-11 → 1992-11 ended
ET176 MTM ¥49,100
89551-20030 Computer Assy, Emission Control
1989-11 → 1990-05 ended
ET176 3FC ¥49,600
89551-20031 Computer Assy, Emission Control
1990-05 → 1992-11 ended
ET176 3FC ¥49,100
89551 — Computer, Emission Control
89551-20010 Computer, Emission Control
1988-05 → 1991-06 ended
CT170 4FC ¥32,500
89551-20040 Computer, Emission Control
1991-06 → 1992-11 ended
CT170 ¥37,900
89667B — Bracket, Engine Control Computer, NO.1
89667-20130 Bracket, Engine Control Computer, NO.1
1988-05 → 1991-06 ended
CT170 4FC ¥390
89667-20130 Bracket, Engine Control Computer, NO.1
1991-06 → 1992-11 ended
CT170 ¥390
89668B — Bracket, Engine Control Computer, NO.2
89668-20120 Bracket, Engine Control Computer, NO.2
1988-05 → 1991-06 ended
CT170 4FC ¥390
89668-20120 Bracket, Engine Control Computer, NO.2
1991-06 → 1992-11 ended
CT170 ¥390
89669D — Bracket, Engine Control Computer, NO.3
89669-20080 Bracket, Engine Control Computer, NO.3
1988-05 → 1991-06 ended
CT170 4FC ¥390
89669-20080 Bracket, Engine Control Computer, NO.3
1991-06 → 1992-11 ended
CT170 ¥390
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
