Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

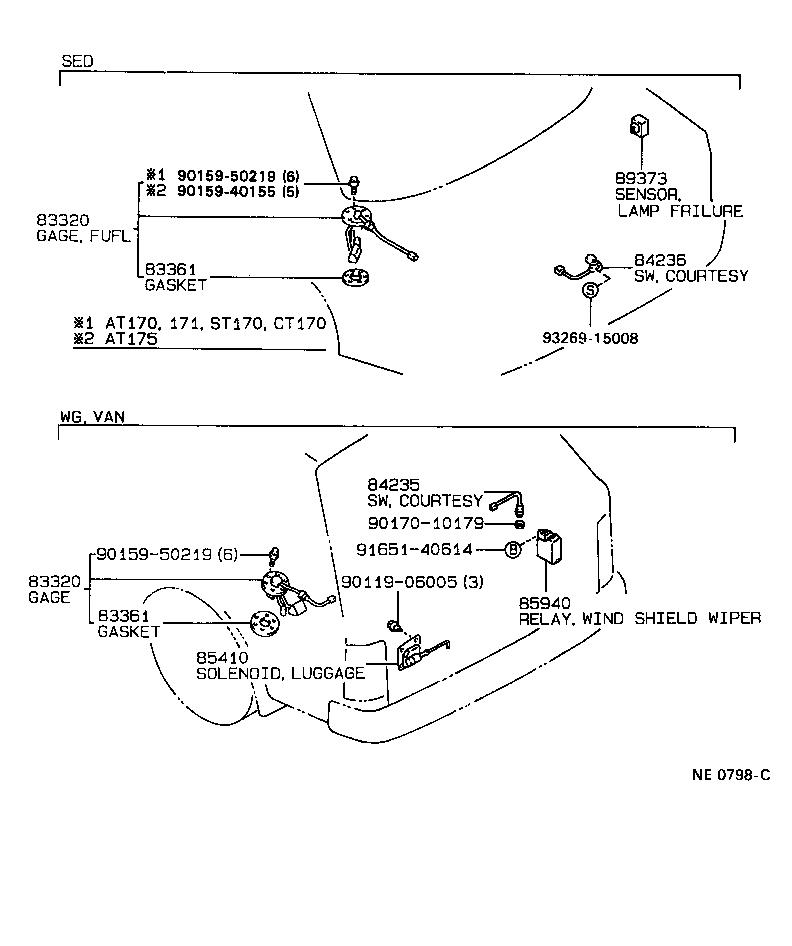

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-39795 note |
Gage Assy, Fuel Sender
1988-05 → 1992-08
ended
|
AT171,ST170 5F (GLIM,SE) | ¥5,500 | |
| 83320-39795 note |
Gage Assy, Fuel Sender
1988-05 → 1992-08
ended
|
ST170 4FC SE | ¥5,500 | |
| 83320-39795 note |
Gage Assy, Fuel Sender
1988-05 → 1992-08
ended
|
AT171 4FC GLIM | ¥5,500 | |
| 83320-80094 |
Gage Assy, Fuel Sender
1988-08 → 1992-08
ended
|
AT175 | ¥7,900 | |
| 83320-80098 |
Gage Assy, Fuel Sender
1988-05 → 1990-01
ended
|
CT170 SE | ¥7,900 | |
| 83320-80098 |
Gage Assy, Fuel Sender
1990-01 → 1992-11
ended
|
CT170 | ¥7,900 | |
| 83320-80098 note |
Gage Assy, Fuel Sender
1989-03 → 1990-01
ended
|
CT170 SG | ¥7,900 | |
| 83320-80100 |
Gage Assy, Fuel Sender
1988-05 → 1990-01
ended
|
AT170,171,ST170 GLIM,S,SE,SGEXT,SX | ¥7,900 | |
| 83320-80100 note |
Gage Assy, Fuel Sender
1988-05 → 1989-03
ended
|
AT170 SG | ¥7,900 | |
| 83320-80100 |
Gage Assy, Fuel Sender
1990-01 → 1992-11
ended
|
AT170,171,ST170 | ¥7,900 | |
| 83320-80100 note |
Gage Assy, Fuel Sender
1989-03 → 1990-01
ended
|
AT170 SG | ¥7,900 | |
| 83320-80101 |
Gage Assy, Fuel Sender
1988-05 → 1990-01
ended
|
AT170,CT170 DX,SG,SV | ¥5,700 | |
| 83320-80105 |
Gage Assy, Fuel Sender
1988-05 → 1992-11
ended
|
CT176,ET176 | ¥5,500 | |
| 83361 — Gasket, Fuel Sender Gage | ||||
| 77169-14020 |
Gasket, Fuel Sender Gage
1988-08 → 1992-08
ended
|
AT175 | ¥330 | |
| 83361-32020 |
Gasket, Fuel Sender Gage
1988-05 → 1992-11
ended
|
AT170,171,CT17#,ET176,ST170 | — | |
| 84235 — Switch Assy, Courtesy Lamp(FOR BACK DOOR) | ||||
| 84230-20150 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1991-12 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥1,070 | |
| 84230-91701 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1988-05 → 1991-12
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥1,070 | |
| 84236 — Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84231-20110 |
Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
1988-05 → 1990-05
ended
|
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT | ¥1,070 | |
| 84231-20240 |
Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT | ¥1,070 | |
| 85410 — Solenoid Assy, Luggage Door Lock | ||||
| 85410-95500 |
Solenoid Assy, Luggage Door Lock
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 (VAN,WG) (SG,SV,SX) | ¥18,900 | |
| 85940 — Relay Assy, Windshield Wiper | ||||
| 85940-20100 |
Relay Assy, Windshield Wiper
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥14,800 | |
| 89373 — Sensor, Lamp Failure Indicator | ||||
| 89373-20170 |
Sensor, Lamp Failure Indicator
1988-05 → 1992-08
ended
|
AT171 GLIM | ¥16,300 | |
| 89373-20170 |
Sensor, Lamp Failure Indicator
1988-05 → 1992-08
ended
|
ST170 SE | ¥16,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
